- Page 1 MGate EIP3000 DF1 to EtherNet/IP Gateway User’s Manual First Edition, June 2009 www.moxa.com/product © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
-
Page 2: Copyright Notice
MGate EIP3000 DF1 to EtherNet/IP Gateway The software described in this manual is furnished under a license agreement and may be used only in accordance All other trademarks or registered marks in this manual belong to their respective manufacturers. Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. -
Page 3: Table Of Contents
Chapter 1 Introduction ...1-1 Overview ... 1-2 Package Checklist... 1-2 Product Features ... 1-3 Chapter 2 Getting Started ...2-1 Connecting Power ... 2-2 Connecting Serial Devices... 2-2 Connecting to a Host or the Network ... 2-2 Installing the Software... 2-3 Mounting the Unit ... - Page 4 Monitoring EtherNet/IP Activity ... 5-17 Open Traffic Monitor Window... 5-18 Filter Traffic Information ... 5-19 Save Log to File... 5-20 Upgrading Firmware ... 5-20 Chapter 6 Pin Assignments ...6-1 DB9 (Male)... 6-2 Terminal Block (RS-422) ... 6-3 Power Input, Relay Output ... 6-3...
-
Page 5: Package Checklist
Welcome to the MGate EIP3000 line of DF1 to EtherNet/IP gateways. All models feature easy protocol conversion from DF1 to EtherNet/IP, and RS-232/422 ports for DF1 communication. One-port and two-port models are available. This chapter is an introduction to the MGate EIP3000 and includes the following sections: Overview Package Checklist Product Features... -
Page 6: Overview
EtherNet/IP protocols by tracking items such as connection status and address translation errors. Package Checklist All models in the MGate EIP3000 line are shipped with the following items: Standard Accessories 1 MGate EIP3000 DF1 to EtherNet/IP gateway. Document & software CD. Quick Installation Guide. Product warranty statement. -
Page 7: Product Features
MGate EIP3000 Series User’s Manual Product Features PCCC objects for Rockwell Automation networks supported. 8 simultaneous EtherNet/IP clients with up to 16 simultaneous requests per client. Serial redirector function provided. ProCOM function provides virtual serial port for multiple DF1 and EtherNet/IP device communication. -
Page 8: Chapter 2 Getting Started
This chapter provides basic instructions for installing the MGate EIP3000. The following topics are covered: Connecting Power Connecting Serial Devices Connecting to a Host or the Network Installing the Software Mounting the Unit Getting Started Chapter 2... -
Page 9: Connecting Power
6. Tighten the connections using the screws on the terminal block. Note that the unit does not have an on/off switch. It automatically turns on when it receives power. The PWR LED on the top panel will glow to indicate that the unit is receiving power. -
Page 10: Installing The Software
MGate EIP3000 Series User’s Manual Installing the Software The Windows management utility is installed from the Document and Software CD. Follow the onscreen instructions after inserting the CD. Mounting the Unit The unit can be mounted on the wall or mounted on a DIN-Rail. Getting Started... -
Page 11: Hardware: Eip3170, Eip3170I

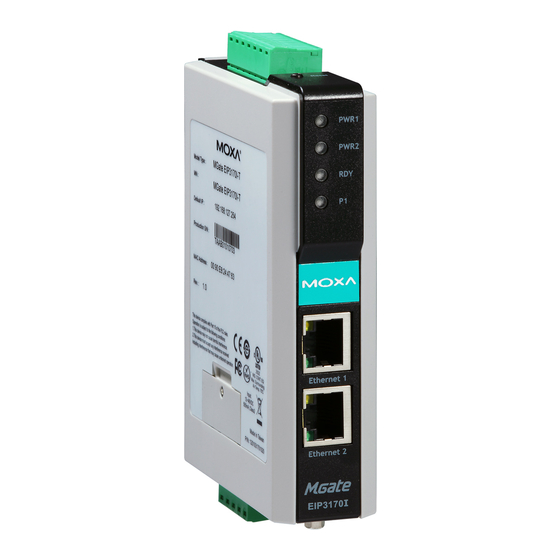

Hardware: EIP3170, EIP3170I Chapter 3 This chapter provides hardware information for the MGate EIP3170 and EIP3170I. The following topics are covered: Panel Layout LED Indicators Dimensions Jumpers Pin Assignments DB9 (Male) Terminal Block (RS-422) Power Input, Relay Output DIN-Rail, Wall Mounting Specifications... -
Page 12: Panel Layout
MGate EIP3000 Series User’s Manual Panel Layout LED Indicators Name PWR1 PWR2 Ethernet Color Power is being supplied to the power input. Power is being supplied to the power input. Steady on: Power is on and unit is booting up. Blinking: Indicates an IP conflict, or DHCP or BOOTP server is not responding properly. -
Page 13: Dimensions
MGate EIP3000 Series User’s Manual Hardware: EIP3170, EIP3170I Dimensions 29 mm (1.14 in) 14.5 mm (0.57 in) 14.5 mm (0.57 in) 89.2 mm (3.51 in) 20.6 mm 29.91 mm (0.81 in) (1.18 in) 11.5 mm (0.45 in) 25.9 mm 35 mm (1.02 in) (1.38 in) -
Page 14: Jumpers
The DIP switches are located beneath the DIP switch panel on the side of the unit. To add a 120 Ω termination resistor, set switch 3 to ON; set switch 3 to OFF (the default setting) to disable the termination resistor. -
Page 15: Pin Assignments
MGate EIP3000 Series User’s Manual Pin Assignments DB9 (Male) The MGate EIP3170 and EIP3170I use a DB9 (male) serial port for RS-232 connections to DF1 devices. RS-232 Terminal Block (RS-422) The MGate EIP3170 and EIP3170I use a terminal block connector for RS-422 connections to DF1 devices. -
Page 16: Power Input, Relay Output
MGate EIP3000 Series User’s Manual Power Input, Relay Output Shielded DC Power Ground Input 1 DIN-Rail, Wall Mounting There are two sliders on the back of the unit for DIN-Rail and wall mounting. Mounting on a DIN-Rail: Pull out the bottom slider; latch the unit onto the DIN-Rail, and push the slider back in. -
Page 17: Specifications
MGate EIP3000 Series User’s Manual Specifications Ethernet Protection Serial Interface Interface No. of Ports Connector Type Signals Serial Line Protection Serial Communication parameters Parity Data Bits Stop Bits Flow Control Transmission Speed Software Features Utilities Multi-Request Protocol Power Requirements Power Input Power Socket Power Consumption Environment... -
Page 18: Chapter 4 Hardware: Eip3270, Eip3270I
Hardware: EIP3270, EIP3270I Chapter 4 This chapter provides hardware information for the MGate EIP3270 and EIP3270I. The following topics are covered: Panel Layout LED Indicators Dimensions Jumpers Pin Assignments DB9 (Male) Power Input, Relay Output DIN-Rail, Wall Mounting Specifications... -
Page 19: Panel Layout
MGate EIP3000 Series User’s Manual Panel Layout LED Indicators Name PWR1 PWR2 Ethernet P1, P2 Color Power is being supplied to the power input. Power is being supplied to the power input. Steady on: Power is on and unit is booting up. Blinking: Indicates an IP conflict, or DHCP or BOOTP server is not responding properly. -
Page 20: Dimensions
MGate EIP3000 Series User’s Manual Dimensions 29 mm (1.14 in) 14.5 mm (0.57 in) 25.9 mm 35 mm (1.02 in) (1.38 in) 14.5 mm (0.57 in) 89.2 mm (3.51 in) 20.6 mm 29.91 mm (0.81 in) (1.18 in) 11.5 mm (0.45 in) Hardware: EIP3270, EIP3270I... -
Page 21: Jumpers
To set the pull high/low resistors to 150 KΩ, set switches 1 and 2 on the port’s assigned DIP switch to OFF. This is the default setting. To set the pull high/low resistors to 1 KΩ, set switches 1 and 2 on the port’s assigned DIP switch to Switch 4 on the port’s assigned DIP switch is reserved. -
Page 22: Pin Assignments
MGate EIP3000 Series User’s Manual Pin Assignments DB9 (Male) The MGate EIP3000 uses DB9 (male) serial ports to connect Modbus RTU or ASCII devices. Each port supports two serial interfaces: RS-232 and RS-422. RS-232 Power Input, Relay Output Shielded DC Power Ground Input 1 RS-422... -
Page 23: Din-Rail, Wall Mounting
MGate EIP3000 Series User’s Manual DIN-Rail, Wall Mounting There are two sliders on the back of the unit for DIN-Rail and wall mounting. Mounting on a DIN-Rail: Pull out the bottom slider; latch the unit onto the DIN-Rail, and push the slider back in. -
Page 24: Specifications
MGate EIP3000 Series User’s Manual Specifications Ethernet Protection Serial Interface Interface No. of Ports Connector Type Signals Serial Line Protection Serial Communication Parameters Parity Data Bits Stop Bits Flow Control Transmission Speed Software Features Utilities Multi-Request Protocol Power Requirements Power Input Power Socket Power Consumption Environment... -
Page 25: Chapter 5 Configuring The Ethernet/Ip Gateway
Configuring the EtherNet/IP Gateway Chapter 5 We discuss the following topics in this chapter: Installing the Software Starting MGate Manager Change Language Se Connecting to the Unit Broadcast Search Specify by IP Addre Modifying the Configur Configure IP Address a Configure Serial Communi Set up Routing and ProCOM function Set up Protocol... -
Page 26: Installing The Software
MGate EIP3000 Series User’s Manual Installing the Software The following instructions explain how to install MGate Manager, a utility for configuring and monitoring MGate EIP3000 units over the network. 1. Insert the Document and Software CD into the CD-ROM drive. Locate and run the following setup program to begin the installation process: MGM_Setup_[Version]_Build_[DateTime].exe The latest version might be named MGM_Setup_Ver1.3_Build_xxxxxxxx.exe, for example:... - Page 27 MGate EIP3000 Series User’s Manual 3. When the Select Destination Location window appears, click Next to continue. You may change the destination directory by first clicking on Browse... 4. When the Select Additional Tasks window appears, click Next to continue. You may select Create a desktop icon if you would like a shortcut to MGate Manager on your desktop.
- Page 28 MGate EIP3000 Series User’s Manual Configuring the EtherNet/IP Gateway 5. Click Next to start copying the software files. 6. A progress bar will appear. The procedure should take only a few seconds to complete.
- Page 29 MGate EIP3000 Series User’s Manual 7. A message will indicate that MGate Manager is successfully installed. You may choose to run it immediately by selecting Launch MGate Manager. 8. You may also open MGate Manager through Start MGate Manager, as shown below. Configuring the EtherNet/IP Gateway Programs MGate Manager...
-
Page 30: Starting Mgate Manager
MGate EIP3000 Series User’s Manual Starting MGate Manager MGate Manager is a Windows-based utility that is used to configure the MGate EIP3000. Before running MGate Manager, make sure that your PC and the MGate EIP3000 are connected to the same network. Alternatively, the MGate EIP3000 may be connected directly to the PC for configuration purposes. -
Page 31: Connecting To The Unit
MGate EIP3000 Series User’s Manual ATTENTION Use “Default Language” before contacting Moxa Technical Support. With support for multiple languages, MGate Manager is more user-friendly and accessible. However, if you need assistance from Moxa Technical Support, please change the language to “Default Language”. -
Page 32: Specify By Ip Address
MGate EIP3000 Series User’s Manual When the search is complete, every MGate EIP3000 that is found on the LAN will appear in the window with MAC address and IP address. Simply select the one that you wish to configure. Specify by IP Address Click Specify by IP Address if you know the IP address of the unit and wish to connect to it directly. -
Page 33: Modifying The Configuration
MGate EIP3000 Series User’s Manual If the search is successful, the unit will be listed in MGate Manager. Click the unit to begin configuration. ATTENTION If Search by IP Address fails to locate the MGate EIP3000, the IP address that you entered might be incorrect. -
Page 34: Configure Ip Address And Other Network Settings
MGate EIP3000 Series User’s Manual Configure IP Address and Other Network Settings The Network tab is where the unit’s network settings are configured. You can modify the Name, Network Configuration, IP1 Address, IP2 Address (only for 2-port model) and the default IP1 address is 192.168.127.254, IP2 address is 192.168.127.253, Netmask and Default Gateway. - Page 35 MGate EIP3000 Series User’s Manual Parameter Password Confirm password ATTENTION Both IP1 and IP2 all can be set manually. Since IP1 is the main IP address, please assign the IP2 address to the same network subnet as IP1. If IP2 is assigned a different network subnet from IP1, an error message will appear.
-
Page 36: Configure Serial Communication Parameters
MGate EIP3000 Series User’s Manual ATTENTION To erase an existing password, leave both the New Password and Confirm Password text input boxes blank. The password will be erased when you click OK in the bottom right corner. Configure Serial Communication Parameters The Serial tab is where each serial port’s communication parameters are configured. -
Page 37: Set Up Routing And Procom Function
MGate EIP3000 Series User’s Manual Set up Routing and ProCOM function The definitions of the Routing tab determine how requests will be routed by the unit. How to set Routing on the MGate EIP3000 The MGate EIP3000 decides where to forward the received requests according to its internal routing rules. - Page 38 MGate EIP3000 Series User’s Manual What is ProCOM? ProCOM is Moxa’s proprietary function which provides a virtual COM port for flexible DF1 and EtherNet/IP communication. This is an intelligent function of the Fieldbus gateway that translates the data to the correct destination through DF1 protocol. How to set ProCOM on the MGate EIP3000 ProCOM is your best solution if your system requires using a remote PC that only supports DF1 protocol to control remote DF1 devices.
-
Page 39: Set Up Protocol
MGate EIP3000 Series User’s Manual target DF1 device, it will forward the response to ProCOM and then the application running on your PC will receive the response. Set up Protocol You can configure the options for DF1, EtherNet/IP, and CIP protocol. Response Time-out defines how much time the EIP3000 needs to wait for a response after sending a PCCC command to a DF1/EIP device. -
Page 40: Set Up Miscellaneous
MGate EIP3000 Series User’s Manual Set Up Miscellaneous This page defines all other options that can not be classified. Currently, this page defines “Auto Relay Warning”, “Reset Button Protect” and “Telnet Console”. The auto relay warning includes power failure, Ethernet 1 or 2 links down to trigger relay warning. If any checked trigger condition occurs, the EIP3000 will open the circuit of the relay output and trigger the Fault LED to start blinking. -
Page 41: Verifying Location Of Unit
MGate EIP3000 Series User’s Manual Verifying Location of Unit If you are managing multiple MGate units, you may wonder if you are configuring the correct unit in MGate Manager. You can select a unit in MGate Manager and click Locate to make that unit’s “Ready”... -
Page 42: Open Traffic Monitor Window
MGate EIP3000 Series User’s Manual Open Traffic Monitor Window Select the unit that you wish to monitor and click Monitor to open the Traffic Monitor window. In the Traffic Monitor window, click Start to begin live monitoring of the data passing through the selected MGate EIP3000 unit. -
Page 43: Filter Traffic Information
MGate EIP3000 Series User’s Manual To stop capturing the log, press the Stop button. Filter Traffic Information By default, all events are displayed in the traffic monitor window. MGate Manager also allows the data to be filtered so only the relevant information is displayed. The filter is selected using the radio buttons and customized using the “Filter info”... -
Page 44: Save Log To File
MGate EIP3000 Series User’s Manual Save Log to File To save the data log to a file, click Save. You may retrieve a saved log by clicking Load. Upgrading Firmware Firmware updates for the MGate EIP3000 are located at downloaded the new firmware onto your PC, you can use MGate Manager to write it onto your MGate EIP3000. - Page 45 MGate EIP3000 Series User’s Manual Configuring the EtherNet/IP Gateway The dialog boxes will guide you through the process. You will need to browse your PC for the firmware file. Make sure that it matches your model. As the firmware is written to the unit, progress is displayed in the window. Once the firmware has been successfully written onto the unit, click Exit to close the Upgrade Firmware window.
-
Page 46: Chapter 6 Pin Assignments
Pin Assignments Chapter 6 We discuss the following topics in this chapter: DB9 (Male) Terminal Block (RS-422) Power Input, Relay Output... -
Page 47: Db9 (Male)
MGate EIP3000 Series User’s Manual DB9 (Male) The MGate EIP3000 uses DB9 (male) serial ports to connect DF1 devices. Each port supports two serial interfaces: RS-232 and RS-422. RS-232 EIP3170, EIP3170I RS-232 RS-422 TxD- TxD+ RxD+ RxD- Pin Assignments... -
Page 48: Terminal Block (Rs-422)
MGate EIP3000 Series User’s Manual Terminal Block (RS-422) The EIP3170 and EIP3170I have a terminal block connector for RS-422 signal. RS-422 TxD+ TxD- RxD+ RxD- Power Input, Relay Output Shielded DC Power Ground Input 1 DC Power Relay Relay Input 1 Output Output Pin Assignments...
