AT-800D AT-800D Quick Quick Start Start
AT-800D Quick AT-800D Quick Start Start Guide
1 1 1 1 、Installation
Installation Installation Installation and and and and access
Installation:

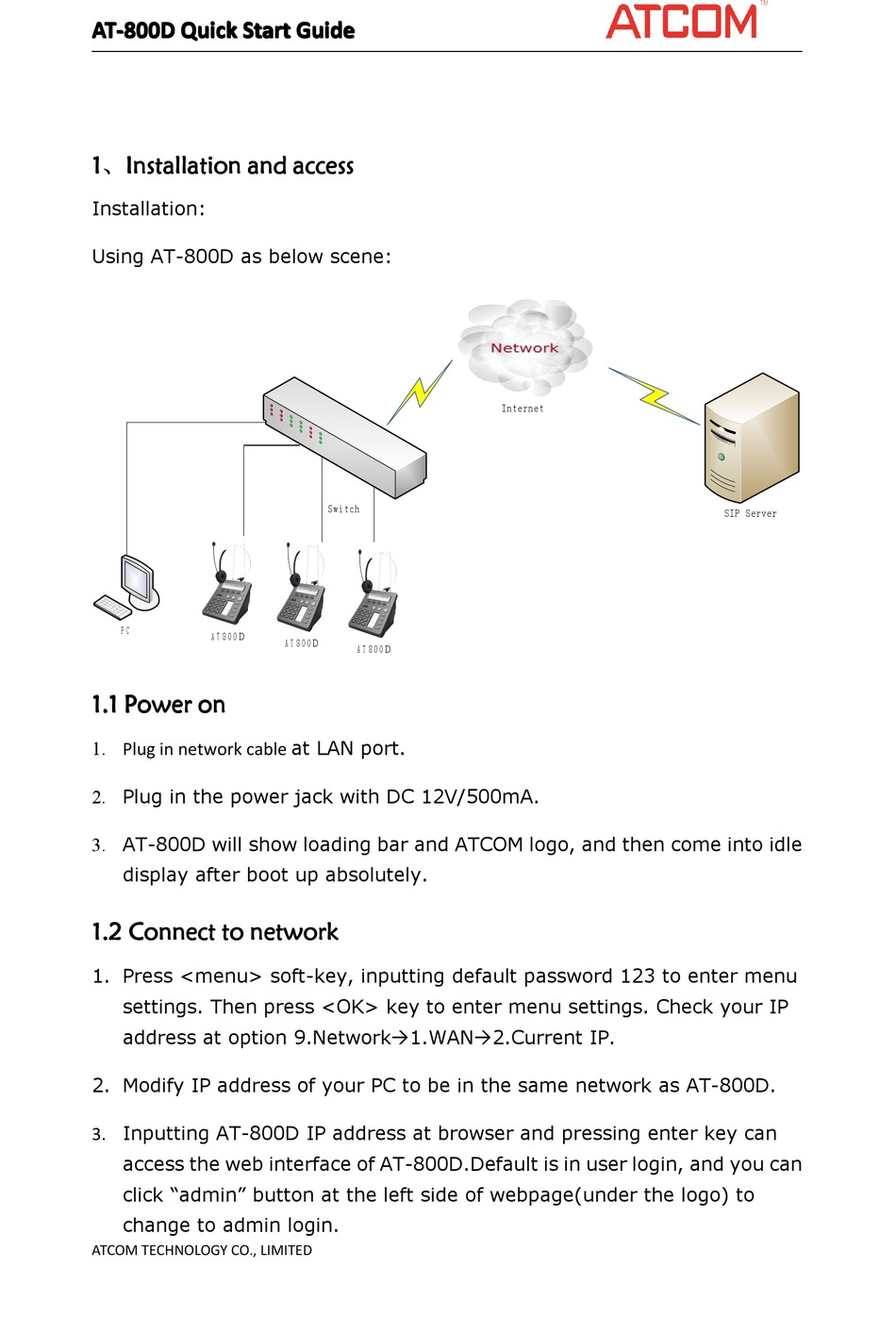

Using AT-800D as below scene:
P C
A T8 0 0D
1.1 Power 1.1 1.1 1.1

Power on

Power Power on on on
1. Plug in network cable at LAN port.
2. Plug in the power jack with DC 12V/500mA.
3. AT-800D will show loading bar and ATCOM logo, and then come into idle
display after boot up absolutely.
1.2 1.2 Connect 1.2 1.2 Connect Connect to to to to network Connect network network network
1. Press <menu> soft-key, inputting default password 123 to enter menu
settings. Then press <OK> key to enter menu settings. Check your IP
address at option 9.Network�1.WAN�2.Current IP.
2. Modify IP address of your PC to be in the same network as AT-800D.
3. Inputting AT-800D IP address at browser and pressing enter key can
access the web interface of AT-800D.Default is in user login, and you can
click "admin" button at the left side of webpage(under the logo) to
change to admin login.
ATCOM TECHNOLOGY CO., LIMITED
Guide Guide
Guide
access access access
S w i t c h
A T8 0 0D
A T8 0 0D
Internet
SIP Server
