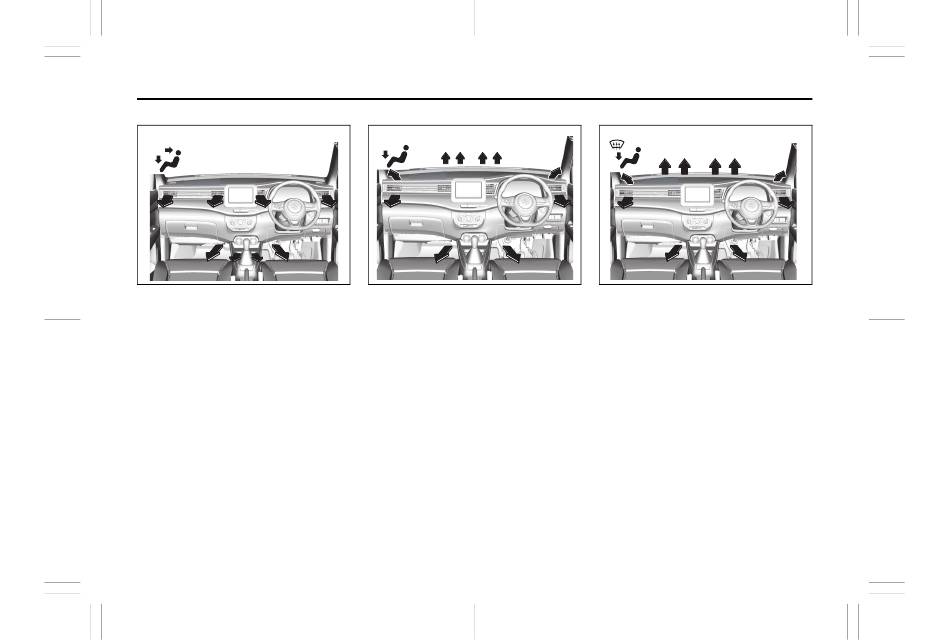

BI-LEVEL (d)
EXAMPLE
Temperature-controlled air comes out of
the floor outlets and cooler air comes out
of the center, side and cup holder outlets.
When the temperature selector (1) is in the
fully cold position or fully hot position, how-
ever, the air from the floor outlets and the
air from the center, side and cup holder
outlets. will be the same temperature.
HEAT (e)
EXAMPLE
72R0129
Temperature-controlled air comes out of
the floor outlets and the side outlets, also
comes out of the windshield defroster out-
lets and the side defroster outlets slightly.
OTHER CONTROLS AND EQUIPMENT
HEAT & DEFROST (f)
72R0017
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
outlets, the side defroster outlets and the
side outlets.
EXAMPLE
72R0018
5-6
72RH0-74E
