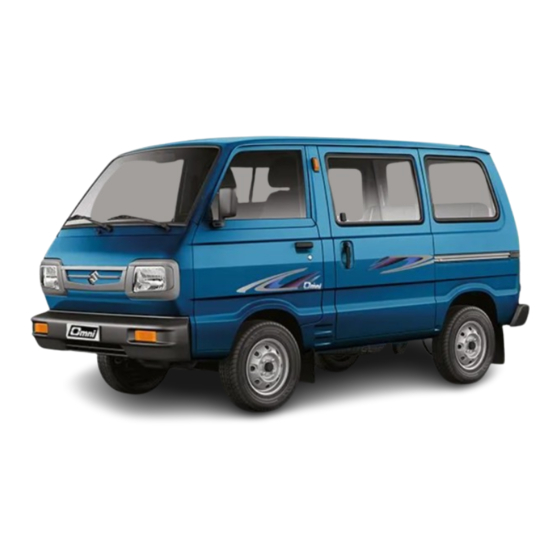

MARUTI SUZUKI Omni Owner's Manual
  1. Manuals
  2. Brands
  3. MARUTI SUZUKI Manuals
  4. Automobile
  5. Omni
  6. Owner's manual

MARUTI SUZUKI Omni Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

797-74E-I
BEFORE DRIVING
13
Fuel Recommendation ....................................................................................... 3-1
Keys ...................................................................................................................... 3-2
Door Locks .......................................................................................................... 3-3
Windows ............................................................................................................... 3-4
Mirrors ................................................................................................................... 3-5
Driver's Seat Adjustment .................................................................................. 3-5
Adjustable Head Restraints (if equipped) ..................................................... 3-6
Seat Belts ............................................................................................................ 3-7
BEFORE DRIVING
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omni and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MARUTI SUZUKI Omni

Summary of Contents for MARUTI SUZUKI Omni

  • Page 1: Table Of Contents

    BEFORE DRIVING 797-74E-I BEFORE DRIVING Fuel Recommendation ..................3-1 Keys ........................3-2 Door Locks ......................3-3 Windows ....................... 3-4 Mirrors ........................3-5 Driver's Seat Adjustment .................. 3-5 Adjustable Head Restraints (if equipped) ............. 3-6 Seat Belts ......................3-7...

  • Page 2: Fuel Recommendation

    BEFORE DRIVING 797-74E-I FUEL RECOMMENDATION Petrol/Methanol Blends Blends of unleaded petrol and methanol (wood alcohol) are also commercially available in some areas. DO NOT USE fuels containing more than 5% methanol under any circumstances. Fuel system damage or vehicle performance problems resulting from the use of such fuels are not the responsibility of MARUTI and may not be covered under Warranty.

  • Page 3: Keys

    BEFORE DRIVING 797-74E-I KEYS w w w w w CAUTION The fuel tank has an air space to allow for fuel expansion in hot weather. If you continue to add fuel after the filler nozzle has automatically shut off or an initial blowback occurs, the air chamber will become full.

  • Page 4: Door Locks

    BEFORE DRIVING 797-74E-I DOOR LOCKS 843-03-005E 797-03-003E 843-03-004E Front Right Door To lock a door from inside the vehicle, push Back Door To lock the door from outside the vehicle: in the lock lever. Pull out the lock lever to To unlock, insert the key into the lock knob a) Insert the key fully and turn the top of unlock the door.

  • Page 5: Windows

    BEFORE DRIVING 797-74E-I WINDOWS 70F-01-010 797-03-004E Front Door Window Sliding Door Window w w w w w CAUTION Raise or lower the door windows by turning Release the lock and simultaneously push Do not use the key to lift up the door, the handle located on the door panel.

  • Page 6: Mirrors

    BEFORE DRIVING 797-74E-I MIRRORS DRIVER'S SEAT ADJUSTMENT w w w w w WARNING Never attempt to adjust the driver’s seat or seatback while driving. The seat seatback could move unexpectedly, causing loss of control. Make sure that the driver’s seat and seatback are properly adjusted before you start driving.

  • Page 7: Adjustable Head Restraints (If Equipped)

    BEFORE DRIVING 797-74E-I ADJUSTABLE HEAD RESTRAINTS (if equipped) 797-03-007 797-03-008 70F-01-019 Adjusting Driver’s Seat Position Adjusting/Folding Seatbacks w w w w w WARNING The adjustment lever is located under the The seatbacks can be adjusted to different • Never drive the vehicle with the front of the seat, on the inboard side.

  • Page 8: Seat Belts

    BEFORE DRIVING 797-74E-I SEAT BELTS 797-03-009 70F-01-021 70F-01-022E There are two height positions for the head w w w w w WARNING restraints. To raise the head restraint, pull upward on the restraint until it clicks. To Wear Your Seat Belts at All Times. lower the restraint, push down on the restraint.
  • Page 9 BEFORE DRIVING 797-74E-I 843E-01-003E 843E-01-004E 843E-01-005 To Adjust the Belt After use, always rehang the belt on the w w w w w WARNING hook provided near the upper anchorage • 3-point non-retractor type Be sure to inspect all seat belt point.
  • Page 10 BEFORE DRIVING 797-74E-I w w w w w WARNING w w w w w WARNING w w w w w WARNING • Never allow persons to ride in the pockets or on your clothing. If an • Infants and small children should cargo area of a vehicle.
  • Page 11 STEERING COLUMN CONTROLS 797-74E-I STEERING COLUMN CONTROLS Ignition Switch ....................4-1 Lighting/Turn Signal Control Lever ..............4-2 Hazard Warning Switch ..................4-3 Windscreen Wiper and Washer Lever ............4-4 Horn ........................4-5...

  • Page 12: Ignition Switch

    STEERING COLUMN CONTROLS 797-74E-I IGNITION SWITCH 797-04-002E 70F-02-002 70F-02-003E The ignition switch has the following four LOCK w w w w w WARNING positions: This is the normal parking position. It is the To avoid possible injury, do not only position in which the key can be w w w w w WARNING operate controls by reaching through removed.

  • Page 13: Lighting/Turn Signal Control Lever

    STEERING COLUMN CONTROLS 797-74E-I LIGHTING/TURN SIGNAL CONTROL LEVER w w w w w CAUTION Accessories such as the radio can operate, • Do not use the starter motor for but the engine is off. more than 15 seconds at a time. If the engine does not start;...

  • Page 14: Hazard Warning Switch

    STEERING COLUMN CONTROLS 797-74E-I HAZARD WARNING SWITCH 843-04-004E 843-04-005 797-04-003 With the headlights on, push the lever Turn Signal Operation Pull up the hazard warning switch to forward to switch to the high beams (main With the ignition switch in the “ON” position, activate the hazard warning lights.

  • Page 15: Windscreen Wiper And Washer Lever

    STEERING COLUMN CONTROLS 797-74E-I WINDSCREEN WIPER AND WASHER LEVER Windscreen Washer w w w w w CAUTION To spray windscreen washer fluid, pull the To help prevent damage to the lever toward you. windscreen wiper and washer system w w w w w WARNING components, you should take the following precautions: •...

  • Page 16: Horn

    STEERING COLUMN CONTROLS 797-74E-I HORN 72F-04-006 With the ignition switch in “ON” position, press the horn button of the steering wheel to sound the horn.
  • Page 17 INSTRUMENT PANEL 797-74E-I INSTRUMENT PANEL Warning and Indicator Lights ................5-3 Speedometer/Odometer ..................5-5 Fuel Gauge ......................5-6 Temperature Gauge .................... 5-6 Cigarette Lighter (if equipped) ................ 5-6 Ashtray ........................5-7 Glove Box ......................5-7...
  • Page 18 INSTRUMENT PANEL 797-74E-I 1. Instrument cluster 2. Ignition switch 3. Lighting switch/Turn signal and dimmer switch 4. Windscreen wiper and washer switch 5. Hazard warning switch 6. Cigarette lighter (if equipped) 7. Ashtray 8. Glove box 9. Fuse box 10. Brake fluid reservoir lid 797-05-008...
  • Page 19 INSTRUMENT PANEL 797-74E-I 1 Speedometer 2 Odometer 3 Fuel gauge 4 Temperature gauge 5 Warning and indicator lights 797-05-009...

  • Page 20: Warning And Indicator Lights

    INSTRUMENT PANEL 797-74E-I WARNING AND INDICATOR LIGHTS w w w w w WARNING Remember that stopping distance may be longer, you may have to push harder on the pedal, and the pedal may go down farther than normal. 2) Test the brakes by carefully starting and stopping at the side of the road.
  • Page 21 INSTRUMENT PANEL 797-74E-I 72F-05-027 “Malfunction Indicator” Light Your vehicle has a computer-controlled emission control system. A “Malfunction Indicator” light is provided on the instrument panel to indicate when it is necessary to have the emission control system serviced. 797-05-003 70F-03-009 The “Malfunction Indicator”...

  • Page 22: Speedometer/Odometer

    INSTRUMENT PANEL 797-74E-I SPEEDOMETER/ODOMETER 70F-03-011 70F-03-012 797-05-004 1 Speedometer Turn Signal Indicators Main Beam (High Beam) Indicator Light 2 Odometer When you turn on the left or right turn This indicator comes on when headlight signals, the corresponding green arrow on main beams (high beams) are turned on.

  • Page 23: Fuel Gauge

    INSTRUMENT PANEL 797-74E-I FUEL GAUGE TEMPERATURE GAUGE CIGARETTE LIGHTER (if equipped) 797-05-006 797-05-005 70F-03-024 When the ignition switch is on, this gauge With ignition switch in ON position this To use the cigarette lighter, push it all the indicates the engine coolant temperature. gauge gives an approximate indication of way into the receptacle and release it.

  • Page 24: Ashtray

    INSTRUMENT PANEL 797-74E-I ASHTRAY GLOVE BOX 70F-03-025E 797-05-007 To remove the front panel ashtray for To open the glove box, pull the latch lever. cleaning, push down on the metal plate, and To close it, push the lid until it latches pull the ashtray completely out of its holder.
  • Page 25 797-74E-I MEMO...
  • Page 26 797-74E-I MEMO...
  • Page 27 OTHER CONTROLS AND EQUIPMENT 797-74E-I OTHER CONTROLS AND EQUIPMENT Parking Brake Lever ..................6-1 Pedals ........................6-2 Gear Lever ......................6-2 Fuel Filler Cap ....................6-3 Front Seats Removal ..................6-4 Luggage Compartment ..................6-4 Sun Visor ......................6-5 Ventilator ......................6-5 Interior Light Switchs ..................

  • Page 28: Parking Brake Lever

    OTHER CONTROLS AND EQUIPMENT 797-74E-I PARKING BRAKE LEVER w w w w w WARNING Always apply the parking brake fully before leaving your vehicle or it may move, causing injury or damage. When parking, make sure the gear shift lever is left in first gear or reverse.

  • Page 29: Pedals

    OTHER CONTROLS AND EQUIPMENT 797-74E-I PEDALS GEAR LEVER Brake Pedal 2 2 2 2 2 Your MARUTI vehicle is equipped with front and rear drum brakes. Depressing the brake pedal applies both sets of brakes. You may hear occasional brake squeal when you apply the brakes.

  • Page 30: Fuel Filler Cap

    OTHER CONTROLS AND EQUIPMENT 797-74E-I FUEL FILLER CAP 797-06-006 797-06-007E 797-06-008E The fuel filler cap is located on the right • To remove - turn the cap counterclock- w w w w w WARNING rear side of the vehicle. To lock the fuel wise.

  • Page 31: Front Seats Removal

    OTHER CONTROLS AND EQUIPMENT 797-74E-I FRONT SEATS REMOVAL LUGGAGE COMPARTMENT w w w w w WARNING Luggage or other cargo should be stowed in the luggage compartment, whenever possible. If you need to carry cargo passenger compartment, be sure to secure the cargo or it may be thrown about, causing injury.

  • Page 32: Sun Visor

    OTHER CONTROLS AND EQUIPMENT 797-74E-I SUN VISOR VENTILATOR INTERIOR LIGHT SWITCHES 797-06-011 797-06-012 797-06-013 The sun visors can be pulled down to block Two ventilators, one each on left and right Front/Center Interior Light glare coming through the wind screen. side, are provided.

  • Page 33: Assist Grips

    OTHER CONTROLS AND EQUIPMENT 797-74E-I ASSIST GRIPS TYRE CHANGING TOOLS 70F-04-015 797-06-015 Assist grips are provided for passenger Jack Handle is stowed near the front left w w w w w WARNING convenience. seat. Jack is stowed under the front left seat The jack should be used only to and can be taken out after removing the w w w w w WARNING...
  • Page 35 OPERATING YOUR VEHICLE 797-74E-I OPERATING YOUR VEHICLE Exhaust Gas Warning ..................7-1 Daily Inspection Checklist ................7-1 Starting the Engine .................... 7-2 Using the Transmission ..................7-3 Braking ........................7-4 Running-in ......................7-4 Catalytic Converter ..................... 7-5 Improving Fuel Economy ................. 7-6 Trailer Towing .....................

  • Page 36: Exhaust Gas Warning

    OPERATING YOUR VEHICLE 797-74E-I EXHAUST GAS WARNING DAILY INSPECTION CHECKLIST Before driving: 1) Make sure that windows, mirrors, lights, and reflectors are clean and unobstructed. 2) Check the tyres. 3) Look for fluid and oil leaks. 4) Adjust the seat/head restraint. 5) Check the brake pedal.

  • Page 37: Starting The Engine

    OPERATING YOUR VEHICLE 797-74E-I STARTING THE ENGINE Before starting the engine: Starting a Cold Engine Starting a Warm Engine 1) Make sure the parking brake is applied Engine which is started after 6 hours should For Electronic fuel injection models: fully.

  • Page 38: Using The Transmission

    OPERATING YOUR VEHICLE 797-74E-I USING THE TRANSMISSION Gear changing w w w w w WARNING All forward gears are synchronized, which • Reduce your speed and change provides for quiet, easy changing. Always down to a lower gear before going depress the clutch pedal fully before down a long or steep hill.

  • Page 39: Braking

    OPERATING YOUR VEHICLE 797-74E-I BRAKING RUNNING-IN The distance needed to bring any vehicle w w w w w CAUTION w w w w w CAUTION to a halt increases with the speed of the The future performance and reliability vehicle. The braking distance needed, for •...

  • Page 40: Catalytic Converter

    OPERATING YOUR VEHICLE 797-74E-I CATALYTIC CONVERTER damage to the catalyst and other vehicle components. w w w w w CAUTION To minimize the possibility of catalyst or other vehicle damage: • Maintain the engine in the proper operating condition. • In event engine malfunction,...

  • Page 41: Improving Fuel Economy

    OPERATING YOUR VEHICLE 797-74E-I IMPROVING FUEL ECONOMY TRAILER TOWING The following instructions will help you Keep the air cleaner clean: Your MARUTI was originally designed to carry people and a normal amount of cargo, improve fuel economy. A dirty air cleaner will cause the carburation not to tow a trailer.
  • Page 43 DRIVING TIPS AND SAFE DRIVING 797-74E-I DRIVING TIPS AND SAFE DRIVING High Speed Driving ................... 8-1 Driving on Hills ....................8-1 Driving on Slippery Roads ................8-2 Do’s and Don’ts for Safe Driving ..............8-3...

  • Page 44: High Speed Driving

    DRIVING TIPS AND SAFE DRIVING 797-74E-I HIGH-SPEED DRIVING DRIVING ON HILLS When driving at a high-speed, pay attention • When climbing steep hills, the vehicle to the following: may begin to slow down and show a lack of power. If this happens, you •...

  • Page 45: Driving On Slippery Roads

    DRIVING TIPS AND SAFE DRIVING 797-74E-I DRIVING ON SLIPPERY ROADS Under wet road conditions you should drive Do not race the engine. Excessive wheel w w w w w WARNING at a lower speed than on dry roads due to spin will cause the tyres to dig deeper, •...

  • Page 46: Do's And Don'ts For Safe Driving

    DRIVING TIPS AND SAFE DRIVING 797-74E-I DO’S AND DON’TS FOR SAFE DRIVING Exercise care in handling your vehicle. Be conscious of not only your own safety but also the safety of others on the road, and thus enjoy the best and most comfortable driving experience.
  • Page 47 DRIVING TIPS AND SAFE DRIVING 797-74E-I 72F-08-004 72F-08-006 4. Don’t start quickly, for it is dangerous 2. Always follow other vehicles at a safe and wastes fuel. distance in order to prevent a rear-end collision, should the vehicle ahead make a sudden stop.
  • Page 48 DRIVING TIPS AND SAFE DRIVING 797-74E-I 72F-08-007 72F-08-008 72F-08-009 3. Turn ON the turn signal at least 30 4. Before entering a corner, decelerate to meters before making a turn or changing a safe speed. Don’t apply brakes during the lane so as not to be hit from behind. cornering, or a cornering skid may occur.
  • Page 49 DRIVING TIPS AND SAFE DRIVING 797-74E-I 72F-08-012 72F-08-013 2. Don’t handbraking unless 3. When driving on a downhill, try not to unavoidable. It causes the vehicle to skid apply the brake but use the engine and a rearend collision occur. It is brake effectively.
  • Page 50 DRIVING TIPS AND SAFE DRIVING 797-74E-I 72F-08-014 72F-08-015 72F-08-016 4. Avoid reckless high speed driving and try 5. The higher the speed, the narrower the to drive at a safe speed suitable for the driver’s visual range becomes. In such road conditions while maintaining a a state, it is difficult to anticipate any constant speed.
  • Page 51 DRIVING TIPS AND SAFE DRIVING 797-74E-I 72F-08-018 72F-08-019 72F-08-020 Long distance driving 2. Take rest at certain intervals to prevent Night time driving 1. Be sure to perform safety checks before an accident which may occur when you 1. Drive more slowly at night than in the starting a trip.
  • Page 52 DRIVING TIPS AND SAFE DRIVING 797-74E-I MARGIN FOR SAFETY It is important to allow yourself a margin for safety during driving so that you can cope with erroneous or unexpected driving of other drivers. For that, observe the following. • Drive at a safe speed.
  • Page 53 INSPECTION AND MAINTENANCE 797-74E-I INSPECTION AND MAINTENANCE Tool Kit ........................9-2 Periodic Maintenance Schedule ................. 9-2 Water Pump Belt ....................9-6 Engine Oil and Filter .................... 9-7 Gear Oil ....................... 9-10 Engine Coolant ....................9-11 Windscreen Washer Fluid ................. 9-12 Air Cleaner ......................
  • Page 54 INSPECTION AND MAINTENANCE 797-74E-I w w w w w WARNING w w w w w WARNING You should take extreme care when • Do not get under your vehicle if it working on your vehicle to prevent is supported only with the portable accidental injury.

  • Page 55: Tool Kit

    INSPECTION AND MAINTENANCE 797-74E-I TOOL KIT PERIODIC MAINTENANCE SCHEDULE The following table shows when regular maintenance on your vehicle is required. This table shows in kilometres and months when inspections, adjustments, lubrication and other services should be performed. w w w w w WARNING Maruti recommends that maintenance on your Maruti vehicle be performed by Maruti Authorised Dealer/Service...
  • Page 56 INSPECTION AND MAINTENANCE 797-74E-I PERIODIC MAINTENANCE SCHEDULE (for ELECTRONIC FUEL INJECTION MODELS) A..Adjust. I..Inspect and correct or replace if necessary. T..Tighten to specified torque. C..Clean. R..Replace or change. O..Rotate L..Lubricate. Note: This table includes services as scheduled up to 80,000 km mileage. Beyond 80,000 km, carry out the same services at the same intervals respectively.
  • Page 57 INSPECTION AND MAINTENANCE 797-74E-I Interval: This interval should be judged FREE INSPECTIONS PERIODIC MAINTENANCE SERVICE AT COST by odometer reading or months, (x 1,000) whichever comes first. months FUEL 1. Air cleaner Paved-road Clean every 5,000 km. Replace every 40,000 km. Dusty condition Clean every 2,500 km or as required.
  • Page 58 INSPECTION AND MAINTENANCE 797-74E-I Interval: This interval should be judged FREE INSPECTIONS PERIODIC MAINTENANCE SERVICE AT COST by odometer reading or months, (x 1,000) whichever comes first. months WHEEL 1. Tyres (air pressure, abnormal wear, crack, ROTATION) Rotate and inspect every 5,000 km 2.

  • Page 59: Water Pump Belt

    INSPECTION AND MAINTENANCE 797-74E-I WATER PUMP BELT w w w w w WARNING • All maintenance should be carried out with the ignition switch in the “OFF” position and the vehicle parked securely on the level ground unless otherwise specified. •...

  • Page 60: Engine Oil And Filter

    INSPECTION AND MAINTENANCE 797-74E-I ENGINE OIL AND FILTER 70F-07-004E 797-05-003E Specified oil Oil Level Check It is important to keep the engine oil at the Be sure that the engine oil you use comes correct level for proper lubrication of your under the API classification of SF, SG or vehicle’s engine.
  • Page 61 INSPECTION AND MAINTENANCE 797-74E-I w w w w w WARNING New and used oil can be hazardous. Children and pets may be harmed by swallowing new or used oil. Keep new and used oil and used oil filters away from children and pets. Continuous contact with used engine oil has been found to cause (skin) cancer in laboratory animals.
  • Page 62 INSPECTION AND MAINTENANCE 797-74E-I w w w w w CAUTION To prevent oil leakage, make sure that the oil filter is tight, but do not overtighten it. Refill with oil and check for leaks. 1) Pour 2.5 litres of oil through the filler hole and install the filler cap.

  • Page 63: Gear Oil

    INSPECTION AND MAINTENANCE 797-74E-I GEAR OIL 70F-07-013E 797-09-003E 797-09-004E Oil filler and level plug 1 Specified Transmission/Differential oil Oil filler and level plug 1 When adding gear oil, use the appropriate Tightening torque: 4.0 kg-m (29.0 lb-ft) Tightening torque: 4.3 kg-m (31.0 lb-ft) viscosity and grade as shown in the chart Transmission Oil/Differential oil level below.

  • Page 64: Engine Coolant

    INSPECTION AND MAINTENANCE 797-74E-I ENGINE COOLANT 4) If the oil level is low, add gear oil Adding Coolant through the filler plug hole 1 until the If the Coolant level is below the “LOW” oil level reaches the bottom of the filler mark, more coolant should be added.

  • Page 65: Windscreen Washer Fluid

    INSPECTION AND MAINTENANCE 797-74E-I WINDSCREEN WASHER FLUID 70F-07-018E 797-09-007 Coolant Replacement Check that there is washer fluid in the tank. w w w w w WARNING Since special procedures, materials and Refill it if necessary. Use a good quality It is dangerous to remove the radiator tools are required, it is recommended that windscreen washer fluid, diluted with water cap when the water temperature is...

  • Page 66: Air Cleaner

    INSPECTION AND MAINTENANCE 797-74E-I AIR CLEANER 797-09-008 797-09-009 If the air cleaner is clogged with dust, there w w w w w CAUTION will be greater intake resistance, resulting in decreased power output and increased fuel The air cleaner element should be consumption.

  • Page 67: Spark Plugs

    INSPECTION AND MAINTENANCE 797-74E-I SPARK PLUGS 70F-07-025E 70F-07-026E 72F-09-005E You should inspect spark plugs periodically w w w w w CAUTION w w w w w CAUTION carbon deposits. When carbon When replacing spark plugs, you accumulates on a spark plug, a strong spark •...

  • Page 68: Brakes

    INSPECTION AND MAINTENANCE 797-74E-I BRAKES w w w w w WARNING • Brake fluid can harm your eyes and damage painted surfaces. Use caution when refilling the reservoir. w w w w w WARNING • Do not use any fluid other than SAE J1703 or DOT-3 brake fluid.
  • Page 69 INSPECTION AND MAINTENANCE 797-74E-I NOTE: When measuring the distance between the brake pedal and floor wall, be sure not to include floor covering measurement. w w w w w WARNING If you experience any of the following problems with your vehicle’s brake system, have the vehicle inspected immediately by your MARUTI dealer.

  • Page 70: Steering

    INSPECTION AND MAINTENANCE 797-74E-I STEERING CLUTCH PEDAL TYRES 797-09-015 70F-07-034 70F-07-035 Check the play of the steering wheel by Measure the clutch pedal play by moving front rear tyre pressure gently turning it from left to right and the clutch pedal with your hand and specifications for your vehicle are listed on measuring the distance that it moves before measuring the distance it moves until you...
  • Page 71 INSPECTION AND MAINTENANCE 797-74E-I w w w w w WARNING w w w w w WARNING • Air pressures should be checked Hitting curbs and running over rocks when the tyres are cold or you may can damage tyres and affect wheel alignment.
  • Page 72 INSPECTION AND MAINTENANCE 797-74E-I w w w w w WARNING Replacing the wheels and tyres equipped on your vehicle with certain combinations of aftermarket wheels and tyres can significantly change the steering and handling characteristics of your vehicle. Therefore, use only those wheel and tyre combinations approved by MARUTI as standard or optional equipment for your vehicle.
  • Page 73 INSPECTION AND MAINTENANCE 797-74E-I 70F-07-040 797-06-015 70F-07-039E Changing Wheels 5) Install the new wheel and replace the 6) Lower the jack and fully tighten the nuts To change a wheel, use the following wheel nuts with their cone shaped end [4.0 –...

  • Page 74: Battery

    INSPECTION AND MAINTENANCE 797-74E-I BATTERY FUSES w w w w w WARNING To avoid harm to yourself or damage to your vehicle or battery, follow the jump starting instructions in the EMERGENCY SERVICE section of this manual if it is necessary to jump start your vehicle.
  • Page 75 INSPECTION AND MAINTENANCE 797-74E-I Main Fuse (fusible link) The main fuse is located on the battery positive terminal under the rear seat. If the main fuse blows, no electrical component will function. When replacing the main fuse, use a genuine MARUTI replacement. w w w w w WARNING If the main fuse blows, be sure to have your vehicle inspected by an...

  • Page 76: Bulb Replacement

    INSPECTION AND MAINTENANCE 797-74E-I BULB REPLACEMENT w w w w w CAUTION Frequent replacement of a bulb indicates the need for an inspection of the electrical system. This should be carried out by your MARUTI dealer. 70F-07-045E 70F-07-046E NOTE: Make sure that the fuse box always carries two spare fuses of 15A.
  • Page 77 INSPECTION AND MAINTENANCE 797-74E-I 797-09-023 797-09-024E 797-09-021 Front/Center Interior Light Headlights Press the lens at the positions Indicated by Undo the two screws holding the front grill the arrows and remove it. and remove the grill. Press and slide the headlight in the direction of arrow to remove The bulb can be removed by simply pulling the headlight from retainer screws.
  • Page 78 INSPECTION AND MAINTENANCE 797-74E-I 70F-07-050E 70F-07-051E 843-09-016 Front Clearance/Turn Signal Light, Side To remove a round bulb from a bulb holder, Front turn signal/clearance light Turn Signal Light, rear Combination push bulb turn Undo the two screws and remove the lens. Light, Registration Plate Light, Back-up counterclockwise.
  • Page 79 INSPECTION AND MAINTENANCE 797-74E-I 843-09-018 797-09-026 797-09-027 Side turn signal light Rear combination light (tail, stop, turn Registration plate light Remove the lens by using a plain screw signal, etc.) Undo the two screws and remove the light driver covered with a soft cloth. Undo the two screws that secure the housing.

  • Page 80: Wiper Blades

    INSPECTION AND MAINTENANCE 797-74E-I WIPER BLADES If the wiper blades become brittle or damaged, or make streaks when wiping, replace the wiper blades. w w w w w CAUTION To avoid scratching or breaking the window, do not let the wiper arm strike the windshield while replacing the wiper blade.
  • Page 81 EMERGENCY SERVICE 797-74E-I EMERGENCY SERVICE Jacking Instructions ..................10-1 Jump Starting Instructions ................10-2 Towing ........................ 10-3 Emergency Remedies ..................10-4...

  • Page 82: Jacking Instructions

    EMERGENCY SERVICE 797-74E-I JACKING INSTRUCTIONS 797-10-001 797-06-015 797-10-002E 1) Park the vehicle securely on hard level 6) Continue to raise the jack slowly and w w w w w WARNING ground. smoothly until the tyre clears the ground. 2) Choke the front and rear wheel Do not raise the vehicle more than •...

  • Page 83: Jump Starting Instructions

    EMERGENCY SERVICE 797-74E-I JUMP STARTING INSTRUCTIONS w w w w w WARNING w w w w w CAUTION • Never attempt to jump start your For fuel injection models vehicle if the battery appears to be • Vehicle equipped with electronic fuel frozen.

  • Page 84: Towing

    EMERGENCY SERVICE 797-74E-I TOWING 3) Make jump lead connections as follows: If you need to have your vehicle towed, contact a professional service. a) Connect one end of the first jump w w w w w CAUTION lead to the positive (+) terminal of the flat battery.

  • Page 85: Emergency Remedies

    EMERGENCY SERVICE 797-74E-I EMERGENCY REMEDIES If the Starter Does Not Operate: If the Engine Overheats If the temperature indication does not come 1) Try turning the ignition switch to the The engine could overheat temporarily under down to within the normal, acceptable “START”...
  • Page 86 EMERGENCY SERVICE 797-74E-I w w w w w WARNING w w w w w WARNING It is dangerous to remove the radiator To help prevent personal injury, keep cap when the water temperature is hands, tools and clothing away from the engine cooling fan.
  • Page 87 BODY WORK CARE 797-74E-I BODY WORK CARE Corrosion Prevention ..................11-1 Vehicle Cleaning ....................11-2...
  • Page 88 BODY WORK CARE 797-74E-I CORROSION PREVENTION It is important to take good care of your the vehicle which are not well ventilated Remove these types of deposits as quickly vehicle to protect it from corrosion. to permit quick drying. as possible. If these deposits are difficult to Listed below are instructions for how to wash off, an additional cleaner may be This information illustrates the necessity of...
  • Page 89 BODY WORK CARE 797-74E-I VEHICLE CLEANING Store your vehicle in a dry, well- fabric cleaner, carefully follow w w w w w WARNING ventilated area. manufacturer’s instructions and precautions. When cleaning the interior or exterior Do not park your vehicle in a damp, poorly Seat Belts of the vehicle, NEVER USE flammable ventilated area.
  • Page 90 BODY WORK CARE 797-74E-I Cleaning the Exterior When washing the vehicle, follow the 4) Once the dirt has been completely instructions below: removed, rinse off the detergent with w w w w w CAUTION running water. 1) Flush the underside of body and wheel 5) After rinsing, wipe off the vehicle body It is important that your vehicle be housings with pressurized water to...

  • Page 91: General Information

    GENERAL INFORMATION 797-74E-I GENERAL INFORMATION...
  • Page 92 GENERAL INFORMATION 797-74E-I VEHICLE IDENTIFICATION Chassis Serial Number Engine Serial Number The chassis serial number is stamped under The engine serial number is stamped on the the driver seat on the body as shown. cylinder block as shown in the illustration The chassis and/or engine serial numbers and also on the identification plate.

  • Page 93: Specifications

    SPECIFICATIONS 797-74E-I SPECIFICATIONS...
  • Page 94 Overall length 3,370 Overall width 1,410 Overall height 1,640 Wheelbase 1,840 Tread front 1,205 rear 1,190 Ground clearance MASS (WEIGHT) UNIT: Kg OMNI OMNI-E Kerb mass (weight) Gross vehicle mass (weight) rating 1235 1350 Seating Capacity 5 persons 8 persons 13-1...
  • Page 95 SPECIFICATIONS 797-74E-I ENGINE Type F8B - Four-stroke cycle, water cooled (SOHC) Number of cylinders Bore 68.5 mm Stroke 72.0 mm Piston displacement 796 cm Compression ratio 8.7:1 ELECTRICAL ±1 Initial Ignition timing B.T.D.C. at 900 r/min Standard spark plug NGK – BPR5ES, DENSO – W16EXR-U Battery 38B20R (28AH/5HR) Fuses...
  • Page 96 SPECIFICATIONS 797-74E-I WHEEL AND SUSPENSION Tyre size, front and rear 4.50-12-6PR ULT Tyre pressures front/rear 2.2kg/cm Suspension type front strut rear leaf spring STEERING Toe-in 13±2 mm CAPACITIES Coolant 4.0 L (Including reservoir tank) Fuel tank 36 L Engine oil 2.7 L (Replacement with oil filter) Transmission oil 1.0 L...
  • Page 97 This Owner's manual & service booklet applies to the following models produced by MARUTI UDYOG LIMITED OMNI OMNI-E...
