Westin PRO TRAXX 6 Installation Instructions Manual

ITEM QUANTITY
1 1
2 1
3 3
4 3
5 6
6 12
7 12
8 12
9 12
10 24
11 12
12 12
13 12
14 12
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Passenger Side Opposite
ITEM 1 (Double Cab)
ITEM 3
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-216412-RevA ECO #: W18-0225
INSTALLATION INSTRUCTIONS

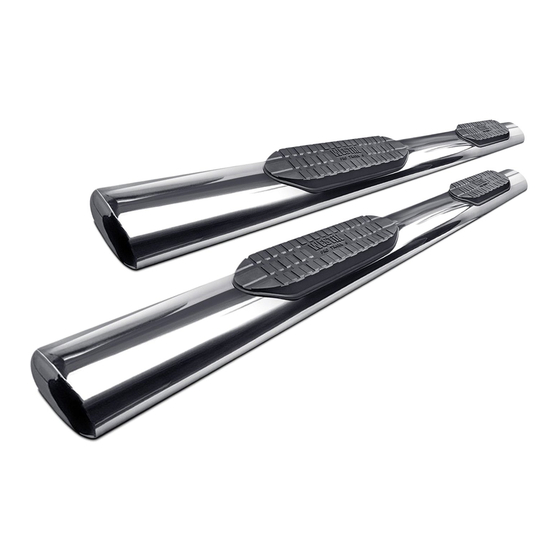

PRO TRAXX 6 OVAL STEP BAR
APPLICATION:
2019 Chevrolet Silverado/GMC Sierra 1500 Crew Cab & Double
Cab (Excl. 2019 Silverado LD/Sierra 1500 Limited)
PART NUMBER:
21-64130, 21-64135 (Crew Cab)
21-64120, 21-64125 (Double Cab)

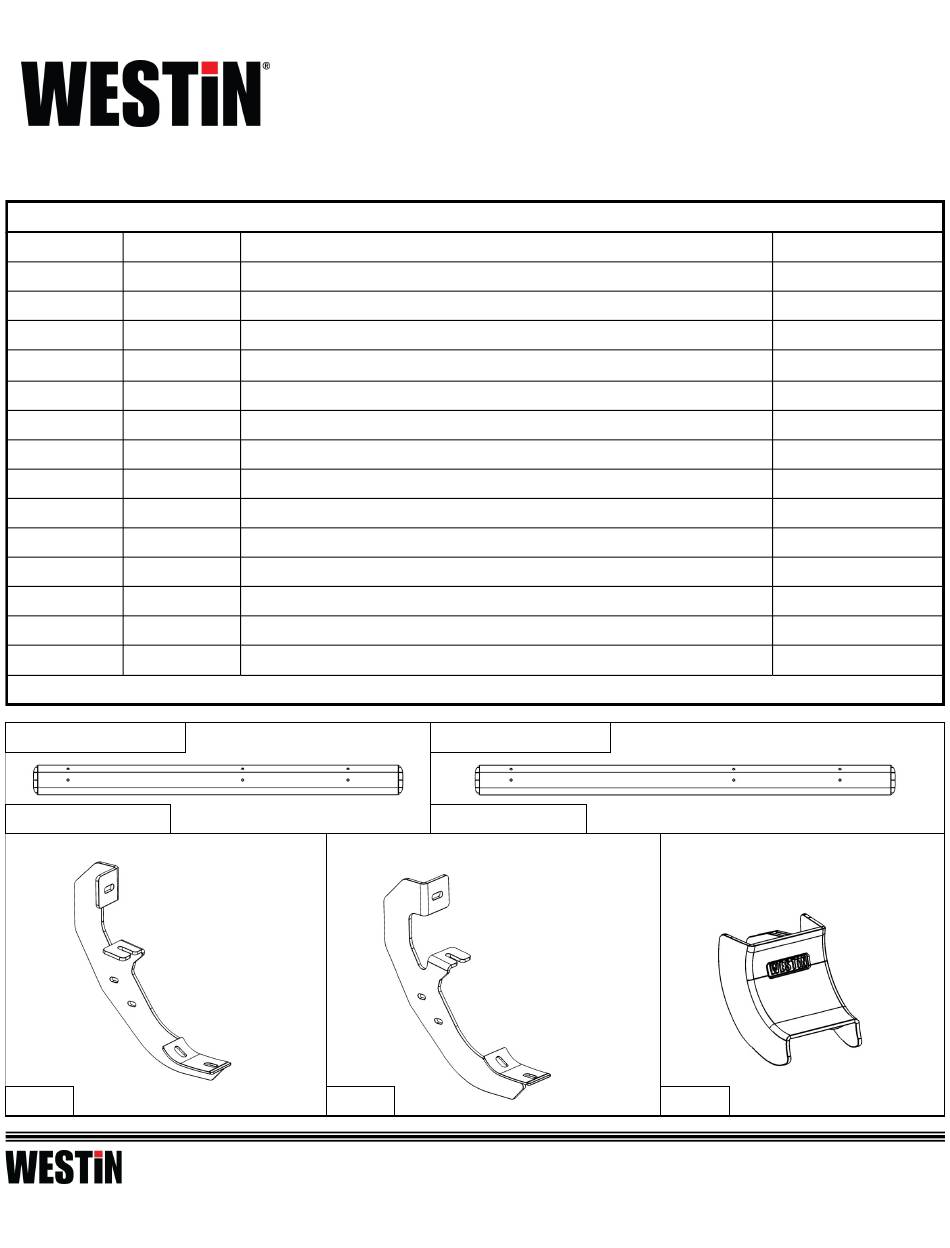

CONTENT
DESCRIPTION
DRIVER STEP BAR ASSEMBLY
PASSENGER STEP BAR ASSEMBLY
DRIVER MOUNT BRACKET
PASSENGER MOUNT BRACKET
BRACKET COVER
M8 HEX HEAD BOLT (YELLOW ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M6 HEX HEAD CAP SCREW (YELLOW ZINC)
M6 FLAT WASHER (YELLOW ZINC)
M6 NYLOCK NUT (YELLOW ZINC)
M8 BUTTON HEAD BOLT (BLACK ZINC)
M8 FLAT WASHER (BLACK ZINC)
M8 TOOTHED WASHER (BLACK ZINC)
Passenger Side Opposite
ITEM 1 (Crew Cab)
ITEM 4
1
ITEM 5
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10MM SOCKET
10MM WRENCH
13MM SOCKET
13MM WRENCH
ALLEN WRENCH
RATCHET
TORQUE WRENCH
DATE: 03/14/19
