AUTOMOTIVE PRODUCTS,
ITEM
QUANTITY
1
1
2,3
2
4,5
2
6
2
7
6
8
14
9
6
10
6
11
2
12
2
13
2
14
4
15
6
16
4
17
4
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
2. Remove the lower bumper front valance by removing the two M6 bolts at the ends and prying out the center pins of the
plastic retaining clips with a flat head screwdriver. See Figure 2.
3. On vehicles without factory tow hooks: For 2009 - 2012 vehicles, remove the plastic fill panel on the front bumper by
removing the 2-piece plastic clips at the top of the panel. See Figure 1. NOTE: Use a flat-blade screwdriver to first pop
the center pin out to release the clip. For 2013+ vehicles remove the two plastic bumper inserts that are attached with (4)
M6 fasteners from the inside of the bumper. Next, from behind the driver side of the front bumper, remove the (2) hex nuts
on the bottom of the bumper bracket securing the bumper to the frame. See Figure 3.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-0014-RevC
ECO #: W13-0999

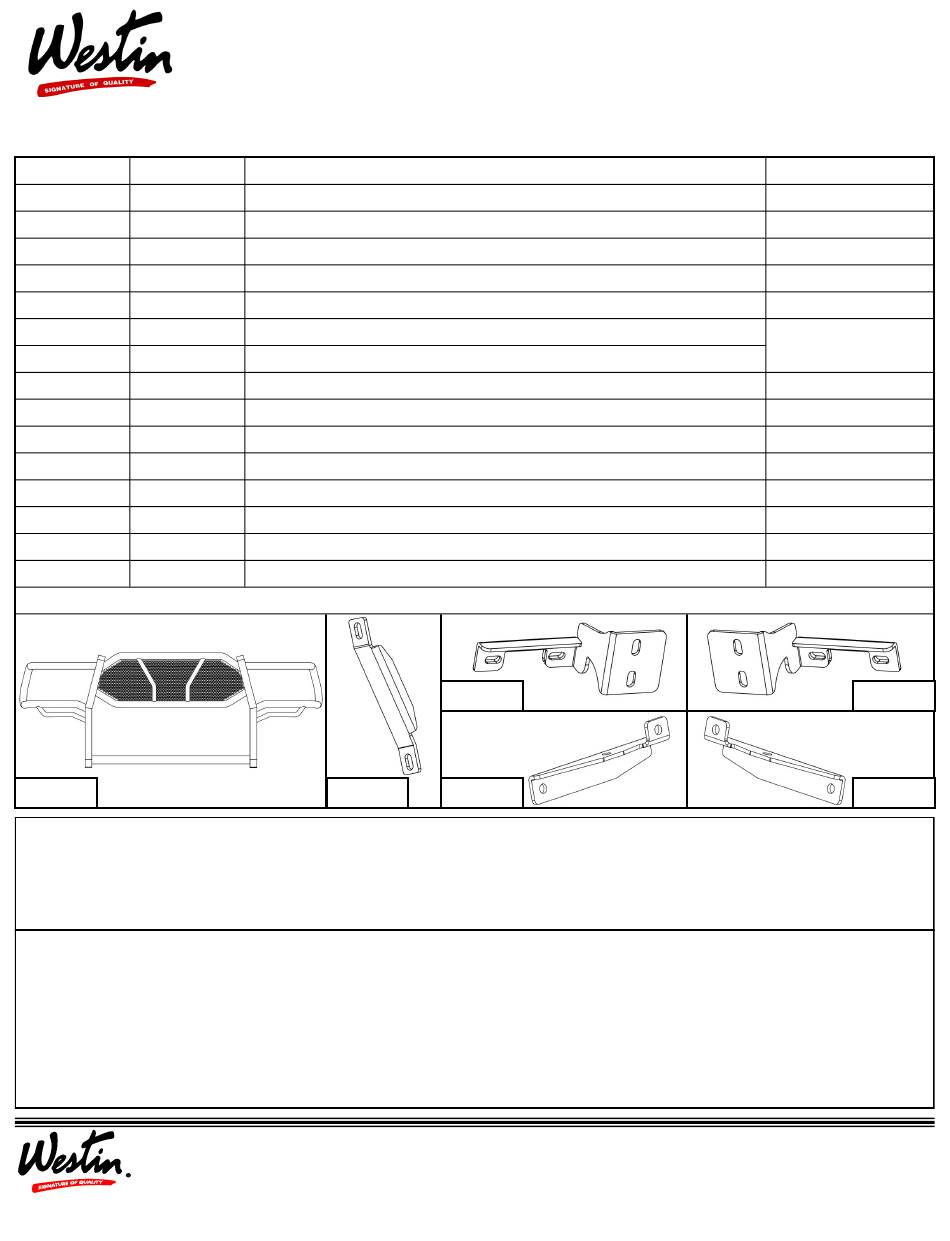

INSTALLATION INSTRUCTIONS

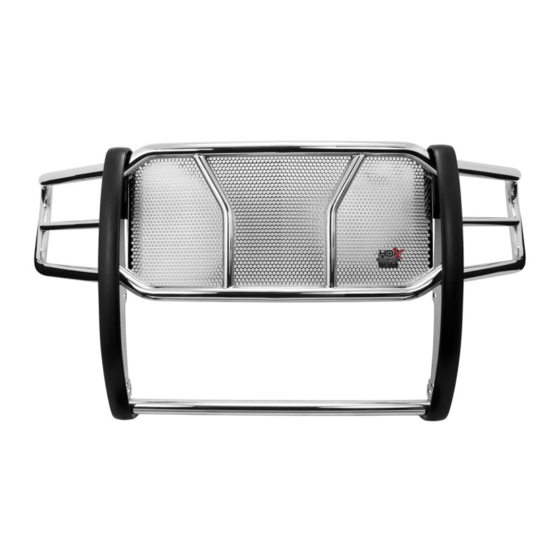

HDX GRILLE GUARD
APPLICATION:
2009-2016 Dodge Ram 1500
PART NUMBER:
57-3540, 57-3545
DESCRIPTION
GRILLE GUARD
LOWER MOUNTING BRACKET, DRIVER (2) AND PASSENGER (3)
FRAME MOUNTING BRACKET, DRIVER (4) AND PASSENGER (5)
SUPPORT STRAP
M12 BUTTON HEAD BOLTS (STAINLESS)
M12 FLAT WASHERS (STAINLESS)
M12 LOCK WASHERS (STAINLESS)
M12 HEX NUT (STAINLESS)
M12 X 140 HEX BOLT
M12 LARGE FLAT WASHER
M12 X 30 HEX BOLT
M12 FLAT WASHER
M12 LOCK WASHER
M12 X 60 HEX BOLT
ITEM 5
ITEM 6
ITEM 3
PROCEDURE
M12 HEX NUT
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
10MM SOCKET
16MM SOCKET
16MM WRENCH
18MM SOCKET
18MM WRENCH
FLAT HEAD
SCREWDRIVER
HAMMER
UTILITY KNIFE
RATCHET
TORQUE WRENCH
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 9/2/16
ITEM 4
ITEM 2
