Westin PRO TRAXX 4 Series Installation Instructions

ITEM QUANTITY
1,2 2
3 3
4 3
5 6
6 12
7 12
8 12
9 12
10 12
11 12
12 12
13 24
14 12
15 1
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 2
Front
Front
Crew Cab shown; Double Cab will be shorter
ITEM 3 (Pro Traxx 4)
ITEM 4 (Pro Traxx 4)
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-212413-RevB ECO #: W19-0995
INSTALLATION INSTRUCTIONS
PRO TRAXX 4 & 5 OVAL STEP BARS
APPLICATION:
2019 Chevy Silverado/GMC Sierra 1500 Crew Cab & Double
Cab (Excl. 2019 Silverado LD / Sierra 1500 Limited)
PART NUMBER:
21-24130, 21-24135, 21-54130, 21-54135, 21-24120, 21-24125, 21-
54120, 21-54125
CONTENT
DESCRIPTION

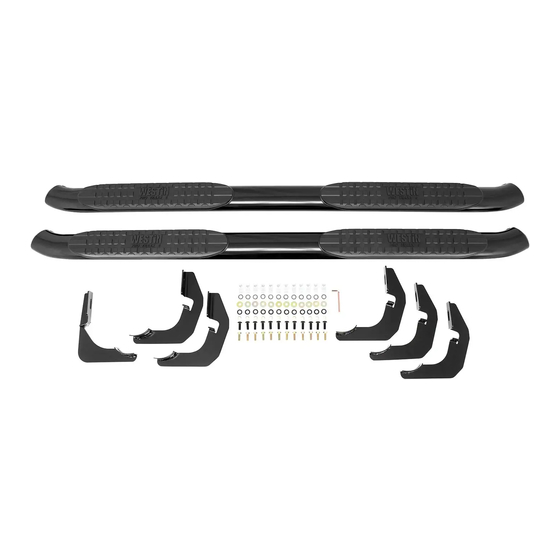

STEP BAR ASSEMBLY (1 DRIVER, 1 PASSENGER)
DRIVER MOUNTING BRACKET
PASSENGER MOUNTING BRACKET
PLASTIC BRACKET COVER
M8 HEX HEAD CAP SCREW
M8 SPLIT LOCK WASHER
M8 FLAT WASHER
M10 BUTTON HEAD SCREW
M10 TOOTHED LOCK WASHER
M10 FLAT WASHER
M6 HEX HEAD CAP SCREW
M6 FLAT WASHER
M6 NYLOCK NUT
HEX KEY TOOL
ITEM 4 (Pro Traxx 5)
1
Pro Traxx 4 Shown; Pro Traxx 5 Similar
ITEM 4 (Pro Traxx 5) ITEM 5
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10MM SOCKET
10MM WRENCH
13MM SOCKET
13MM WRENCH
16MM SOCKET
16MM WRENCH
RATCHET
TORQUE WRENCH
Passenger
Driver
DATE: 01/04/19
