Westin PRO TRAXX 4 OVAL TUBE STEP BARS Installation Instructions

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1,2 2
3 2
4 2
5 2
6 2
7 12
8 24
9 12
10 12
11 8
12 12
13 8
14 4
15 4
16 4
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Front
ITEM 3
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W16-0082
P.N.: 75-212331-RevC
INSTALLATION INSTRUCTIONS

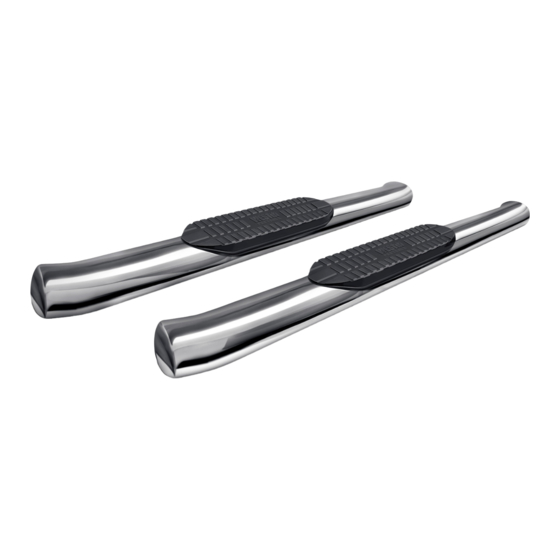

PRO TRAXX 4 OVAL TUBE STEP BARS
APPLICATION:
2007-2017 Jeep Wrangler 2-Door
PART NUMBER:
21-23310, 21-23315
DESCRIPTION
STEP BARS, DRIVER (1) AND PASSENGER (2)
FRONT MOUNTING BRACKET
FRONT SUPPORT BRACKET
REAR MOUNTING BRACKET
REAR SUPPORT BRACKET
M8 HEX CAP SCREW (BLACK ZINC)
M8 FLAT WASHER (BLACK ZINC)
M8 SPLIT LOCK WASHER (BLACK ZINC)
M8 HEX NUT (BLACK ZINC)
M10 HEX SOCKET BUTTON HEAD SCREW (BLACK ZINC)
M10 FLAT WASHER (BLACK ZINC)
M10 INTERNAL TOOTHED LOCK WASHER (BLACK ZINC)
M10 HEX CAP SCREW (BLACK ZINC)
M10 SPLIT LOCK WASHER (BLACK ZINC)
M10 NUT PLATE
Front
ITEM 4

PROCEDURE

Rear Rear
ITEM 5 ITEM 6
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
16MM SOCKET
16MM WRENCH
5MM HEX DRIVER/
ALLEN KEY
13MM SOCKET
13MM WRENCH
POWER DRILL
5/16" -3 /8" DRILL BIT
RATCHET
TORQUE WRENCH
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 2/16/17
