Westin PRO TRAXX 5 Installation Instructions Manual

ITEM QUANTITY
1,2 2
3 2
4 1
5 6
6 3
7 6
8 12
9 12
10 12
11 24
12 24
13 24
14 6
15 12
16 24
17 12
18 18
19 1
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
ITEM 3
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-215408-RevB ECO #: W18-0090
INSTALLATION INSTRUCTIONS
APPLICATION:
2019 Ram 1500 Crew Cab
PART NUMBER:
21-54080, 21-54085, 21-54090, 21-54095
STEP BAR ASSEMBLY (1 DRIVER, 1 PASSENGER)
MOUNTING BRACKET A
MOUNTING BRACKET B
MOUNTING BRACKET C
MOUNTING BRACKET D
PLASTIC COVER BRACKET
M10 BUTTON HEAD SCREW
M10 INTERNAL TOOTHED LOCK WASHER
M8 SPLIT LOCK WASHER
M8 ROUND HEAD SQUARE NECK BOLT
M6 HEX HEAD CAP SCREW
PLASTIC RETAINER SQUARE
ITEM 4

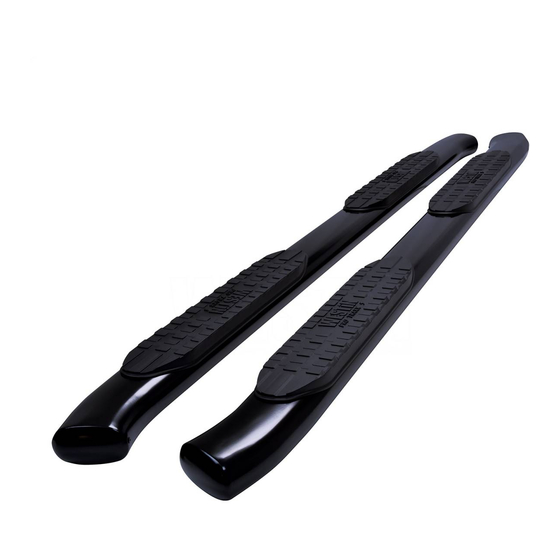

PRO TRAXX 5 OVAL STEP BAR
CONTENT
DESCRIPTION
M10 FLAT WASHER
M8 HEX NUT
M8 FLAT WASHER
M6 FLAT WASHER
M6 NYLON NUT
HEX KEY TOOL
ITEM 5
for additional installation assistance please call
1
TOOLS NEEDED
10MM SOCKET
10MM WRENCH
13MM SOCKET
TORQUE WRENCH
ITEM 6
Thank you for choosing Westin products
Customer Service (800) 793-7846
www.westinautomotive.com
RATCHET
DATE: 07/26/18
