Dante DNA1982 Web Operation Manual

Ip ptz domes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

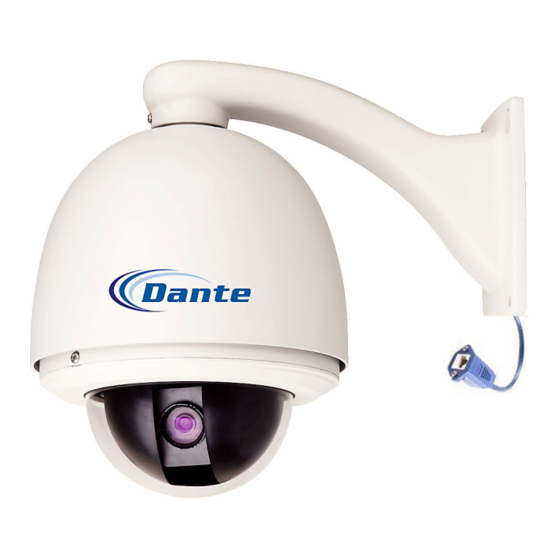

DNA1982-85-90
IP PTZ Domes
Web Operations Manual
Model Number: DNA1982, DNA1985, DNA1990
Description: IP D1 and MP PTZ Domes
18x, 20, 28x, 36x Optical Zoom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DNA1982 and is the answer not in the manual?

Questions and answers

Related Manuals for Dante DNA1982

Summary of Contents for Dante DNA1982

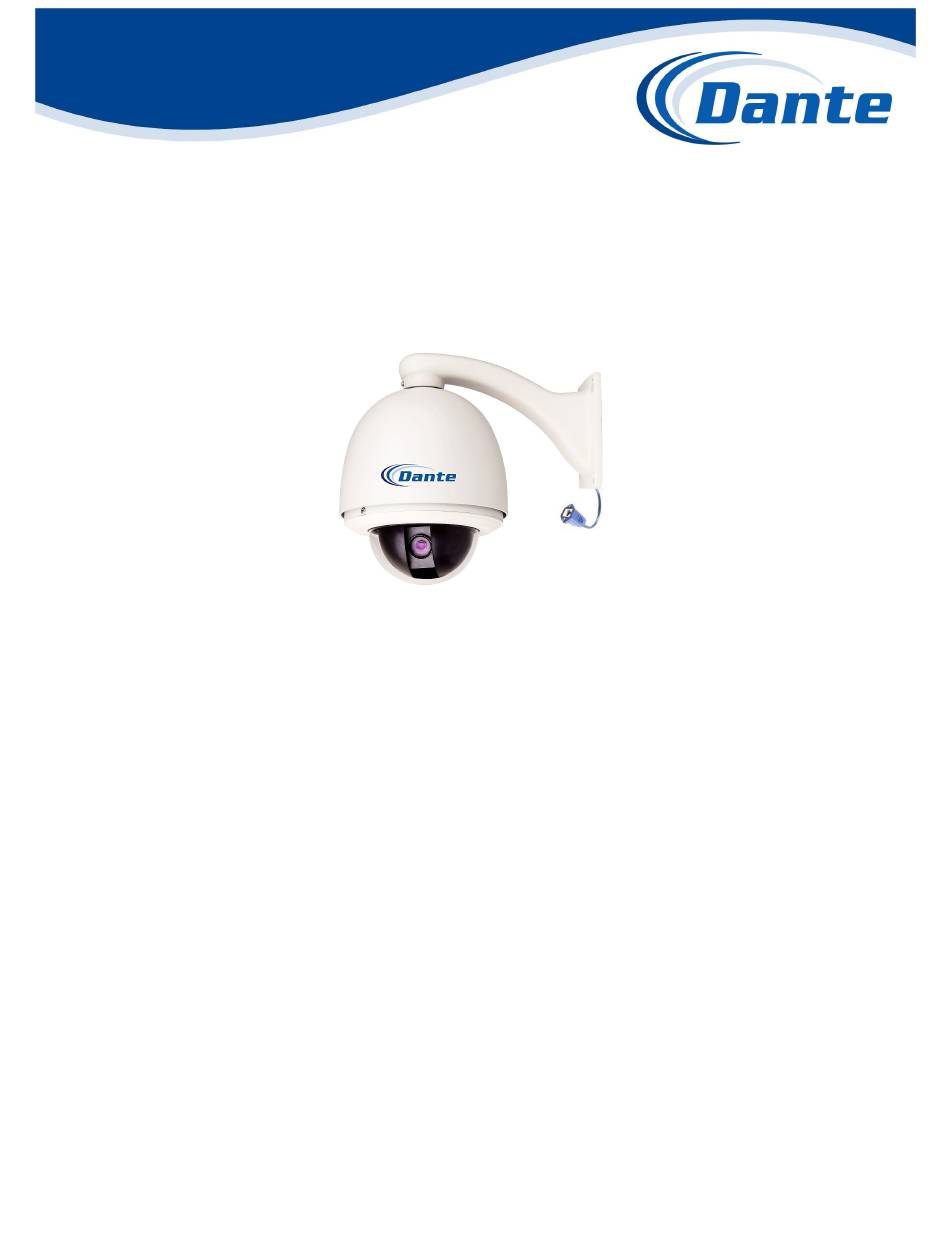

  • Page 1 DNA1982-85-90 IP PTZ Domes Web Operations Manual Model Number: DNA1982, DNA1985, DNA1990 Description: IP D1 and MP PTZ Domes 18x, 20, 28x, 36x Optical Zoom...

  • Page 2: Table Of Contents

    Table of Contents Network Connection ....................... 1 Main Interface Introduction ....................2 Log in ......................... 2 Live Interface ......................4 Encode Setup ......................4 System Menu ......................5 Video Window Function Option ................5 Video Window Setup ....................6 PTZ Control ..........................8 Setup .............................
  • Page 3 4.3.6 SMTP （e-mail） ..................... 40 4.3.7 UPnP ......................... 42 4.3.8 SNMP ........................ 43 4.3.9 Bonjour ......................45 4.3.10 Multicast ..................... 46 4.3.11 Qos ......................46 Event ........................47 4.4.1 Video detect ...................... 47 4.4.2 Alarm ......................... 52 4.4.3 Abnormity ......................54 Storage ........................

  • Page 4: Network Connection

    1 1 1 1 Network Network Network Network C C C C onnection onnection onnection onnection This series speed dome product supports the Web access and management via PC. Web includes several modules includes monitor channel preview, PTZ control, system configuration, alarm and etc.

  • Page 5: Main Interface Introduction

    2 2 2 2 Main Interface Introduction Main Interface Introduction Main Interface Introduction Main Interface Introduction 2.1 Log in Log in Log in Log in Open IE and input speed dome address in the address bar. For example, if your device IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address bar.
  • Page 6 Figure 2-2 Login Interface If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too.

  • Page 7: Live Interface

    2.2 Live Interface Live Interface Live Interface Live Interface After you logged in, you can see the live monitor window. See Figure 2-4. Figure 2-4 Live Interface There are four sections: Section 1: Encode setup bar Section 2: System menu Section 3: Window function option bar Section 4: Window adjust bar 2.3 Encode Setup...

  • Page 8: System Menu

    Parameter Function In normal network width environment, main stream can record Main stream audio/video file and realize network monitor. You can set the main stream resolution if your device supports. If network width is not sufficient, you can use sub stream to Sub (Extra) realize network monitor.

  • Page 9: Video Window Setup

    When you click local record button, the system begins Record recording. The recorded file is saved to system folder: \ RecordDownload(default). You can go to Setup->Camera->Video->Path to modify the local record save path. You can snapshoot important video. All images are Snapshot memorized in system folder: \ picture download (default).
  • Page 10 Figure 2-9 Please refer to the following sheet for detailed information. Parameter Function Video It is to adjust monitor video Note: setup brightness. All the operations here apply to WEB end It is to adjust monitor video contrast only. ness. It is to adjust monitor video saturation.

  • Page 11: Ptz Control

    3 3 3 3 PTZ Control PTZ Control PTZ Control PTZ Control Before PTZ operation, please make sure you have properly set PTZ protocol. (Please go to Setup- >System->PTZ to set.). Here you can view direction keys, speed, zoom, focus, iris, preset, tour, pan, scan, pattern, aux close, PTZ setup button and 3D positioning button.
  • Page 12 3D positioning button After click the icon You can click this icon to display or hide the PTZ control platform. Figure 3-2 PTZ Control Interface Click PTZ set button, the interface is shown as in Figure 3-3.
  • Page 13 Figure 3-3 PTZ Setup Please refer to the following sheet for PTZ setup information. Parameter Function Move the device to you desired location and then click left limit Scan button. Then move the device again and then click right limit button to set a right limit.
  • Page 14 Parameter Function You can input pattern value and then click start record button to Pattern begin PTZ movement. Please go back to Figure 3-1 to implement operation. Then you can click stop record button in Figure 3-3. Now you have set one pattern. The assistant items include: BLC, Digital zoom, night vision, camera Assistant brightness, flip.

  • Page 15: Setup

    4 4 4 4 Setup Setup Setup Setup 4.1 Camera Camera Camera Camera 4.1.1 Video 4.1.1.1 Video bit stream The video bit stream interface is shown as below. See Figure 4-1. Figure 4-1 Please refer to the following sheet for detailed information. Parameter Function It includes general stream, motion stream and alarm...
  • Page 16 Parameter Function There are three options: H.264(main profile standard, Encode mode H.264B(baseline standard）encode and MJPG encode. The H.264 and H.264B both are H264 bit stream. H.264 is the Main Profile encode and the H.264B is the Baseline Profile encode mode. H.264B is for Blackberry cell phone to realize the monitor.
  • Page 17 Parameter Function There are three options: H.264(main profile standard, Encode mode H.264B(baseline standard）encode and MJPG encode. The H.264 and H.264B both are H264 bit stream. H.264 is the Main Profile encode and the H.264B is the Baseline Profile encode mode. H.264B is for Blackberry cell phone to realize the monitor.
  • Page 18 Figure 4-2 Please refer to the following sheet for detailed information. Parameter Function There are two modes: general (schedule) and Event Snapshot type (activation). Image size It is the same with the resolution of the main stream. It is to set the image quality. There are six levels. Quality It is to set snapshot frequency.
  • Page 19 Figure 4-3 Please refer to the following sheet for detailed information. Parameter Function Privacy mask Here you can privacy mask the specified video in the monitor video. System max supports 4 privacy mask zones. Time Title You can enable this function so that system overlays time information in video window.

  • Page 20: Audio

    Figure 4-4 4.1.2 Audio The audio interface is shown as below. See Figure 4-5. Figure 4-5 Please refer to the following sheet for detailed information. Parameter Function Audio enable Main stream: Recorded file only contains video by default. You need to check the audio box here to enable audio function. Sub (Extra) stream: Recorded file only contains video by default.

  • Page 21: Ivs

    Encode mode The encode mode of the main stream and extra stream include PCM, G.711A and G.711Mu. The setup here is for audio encode mode and the bidirectional talk encode both. 4.2 IVS 4.2.1 Global Setup The global setup interface is shown as in Figure 4-6. Figure 4-6 Please refer to the following sheet for detailed information.

  • Page 22: Scene Setup

    Parameter Function It includes: panorama track, single scene track and multiple-scene track. Panorama track: Realize the intelligent track of current monitor video after you enabled the preview function. Track type Single scene track: Realize the intelligent track of one scene. Multiple-scene track: It is to realize the intelligent track of several scenes and the scenes support tour function.
  • Page 23 Parameter Function Add scene Click it to add a scene. Scene setup Click it to set current monitor video as the corresponding scene and get a number. Preview scene Click it to preview the selected scene. Track time Here you can set the max track time for the moving object. Zoom Click to zoom in and click...
  • Page 24 In Figure 4-6, select the Multiple-scene track from the track type list, you can see the multiple-scene track interface is shown as in Figure 4-9. Figure 4-9 In Figure 4-9, click Add scene button you can set tour point during the scene tour process. Move the mouse to the Scene name list;...

  • Page 25: Rule Setup

    4.2.3 Rule Setup The rule setup interface is shown as in Figure 4-11. Figure 4-11 Please refer to the following sheet for detailed informaiton. Parameter Function Select track You can select the scene from the dropdown list so that you can add the scene.
  • Page 26 Figure 4-12 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Activate alarm Here you can set the alarm activation position of the target frame. position There are five options: Centre/Left centre/Right centre/Top centre/Bottom centre.
  • Page 27 Figure 4-13 4.2.3.2 Cross Warning Zone The cross warning zone interface is shown as in Figure 4-14. Figure 4-14...
  • Page 28 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported In area: When the tracking object is in the detect zone and the stay time is more than the time threshold you set here, system can activate an alarm.
  • Page 29 Figure 4-15 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Activate alarm Here you can set the alarm activation position of the target frame. position There are five options: Centre/Left centre/Right centre/Top centre/Bottom centre.
  • Page 30 Figure 4-16 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Activate alarm Here you can set the alarm activation position of the target frame. position There are five options: Centre/Left centre/Right centre/Top centre/Bottom centre.
  • Page 31 Figure 4-17 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Activate alarm Here you can set the alarm activation position of the target frame. position There are five options: Centre/Left centre/Right centre/Top centre/Bottom centre.
  • Page 32 Figure 4-18 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Activate alarm Here you can set the alarm activation position of the target frame. position There are five options: Centre/Left centre/Right centre/Top centre/Bottom centre.
  • Page 33 Figure 4-19 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Activate alarm Here you can set the alarm activation position of the target frame. position There are five options: Centre/Left centre/Right centre/Top centre/Bottom centre.
  • Page 34 Figure 4-20 Please refer to the following sheet for detailed informaiton. Parameter Function Object type You can select an object type here. The default setup is unknown. supported Fast run：It is to detect the fast moving object in the warning zone. Abrupt speedup：It is to detect the abrupt speedup object in the warning zone.

  • Page 35: Parameter

    Alarm activation setup is shown as in Figure 4-21. Figure 4-21 Please refer to the following sheet for detailed informaiton. Parameter Function Here you can set alarm arm and disarm period. Please click the Setup button Working period to set. Check the box here so that the device can record when alarm activation Record occurred.
  • Page 36 Figure 4-22 Please refer to the following sheet for detailed informaiton. Parameter Function Scene Please select a scene from the dropdown list you want to set. There are three modes: compromise mode, omission detect less and error detect Detect balance less.

  • Page 37: Network

    4.3 Network Network Network Network 4.3.1 TCP/IP The TCP/IP interface is shown as in Figure 4-23. Figure 4-23 Please refer to the following sheet for detailed information. Parameter Function Host Name It is to set current host device name. It max supports 32-digit character.
  • Page 38 Mode There are two modes: static mode and the DHCP mode. The IP/submask/gateway are null when you select the DHCP mode to auto search the IP. If you select the static mode, you need to set the IP/submask/gateway manually. If you select the DHCP mode, you can view the IP/submask/gateway from the DHCP.

  • Page 39: Connection

    Enable You can use ARP/Ping command to modify or set the device IP address if you know the device MAC address. ARP/Ping set device IP Before the operation, please make sure the speed dome and address service. the PC in the same LAN. This function is on by default. You can refer to the steps listed below.

  • Page 40: Pppoe

    Please refer to the following sheet for detailed information. Parameter Function It is the max Web connection for the same device. The value ranges from 1 connection to 20. The max connection amount is 20. TCP port The default value is 37777. You can input the actual port number if necessary.

  • Page 41: Ddns

    Figure 4-25 4.3.4 DDNS The DDNS interface is shown as in Figure 4-26. The DDNS is to set to connect the various servers so that you can access the system via the server. Please go to the corresponding service website to apply a domain name and then access the system via the domain.

  • Page 42: Ip Filter

    Figure 4-26 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. The private DDNS protocol means you use your self-defined private protocol to realize DDNS function. Server IP DDNS server IP address Server Port...

  • Page 43: Smtp （E-Mail

    You can add IP address or IP address section. If you do not check the box here, it means there is on access limit. Figure 4-27 4.3.6 SMTP （ （ （ （ e-mail） ） ） ） The SMTP interface is shown as in Figure 4-28.
  • Page 44 Figure 4-28 Please refer to the following sheet for detailed information. Parameter Function Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function. You can auto login anonymously.

  • Page 45: Upnp

    Parameter Function System can send out the email of the snapshot picture once Attachment you check the box here. Input receiver email address here. Max three addresses. Mail receiver The send interval ranges from 0 to 3600 seconds. 0 means Interval there is no interval.

  • Page 46: Snmp

    Figure 4-29 4.3.8 SNMP The SNMP interface is shown as in Figure 4-30. The SNMP allows the communication between the network management work station software and the proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or establish the SNMP service before you use this function.
  • Page 47 Figure 4-30 Please refer to the following sheet for detailed information. Parameter Function System only processes the information of V1. SNMP V1 SNMP V2 System only processes the information of V2. SNMP Port The listening port of the proxy program of the device. It is a UDP port not a TCP port.

  • Page 48: Bonjour

    Parameter Function The destination address of the Trap information from the Trap address proxy program of the device. The destination port of the Trap information from the proxy Trap port program of the device. It is for the gateway device and the client-end PC in the LAN to exchange the information.

  • Page 49: Multicast

    4.3.10 Multicast The multicast interface is shown as in Figure 4-32. Multicast is a transmission mode of data packet. When there is multiple-host to receive the same data packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host can just send out one data to transit.

  • Page 50: Event

    Figure 4-33 Please refer to the following sheet for detailed information. Parameter Function Real-time The value ranges from 0 to 63. The router or the switcher can monitor provide different service for various data packets. Command The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.
  • Page 51 Figure 4-34 Figure 4-35...
  • Page 52 Figure 4-36 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Region There are six levels. The sixth level has the highest sensitivity. Region: If you select motion detection type, you can click this button to set motion detection zone.
  • Page 53 Parameter Function Record System auto activates motion detection channel to record once channel alarm occurs (working with motion detection function). Please note you need to go to Storage-> Schedule to set current channel as general record. Record Delay System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.
  • Page 54 Figure 4-38 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Area There are six levels. The sixth level has the highest sensitivity. Region: you can click this button to set Video masking zone.

  • Page 55: Alarm

    Parameter Function Record Delay System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s. Email If you enabled this function, System can send out email to alert you when alarm occurs. Here you can set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.
  • Page 56 Parameter Function Enable You need to check the box to enable this function. Working This function becomes activated in the specified periods. Period There are six periods in one day. Please draw a circle to enable corresponding period. Select date. If you do not select, current setup applies to today only.

  • Page 57: Abnormity

    Figure 4-40 Please refer to the following sheet for detailed information. Parameter Function Alarm output There are two output channels. Please click the corresponding button. If you want to enable the alarm activation output function, please press the corresponding button and then trigger. Please note the interface here is for reference only.
  • Page 58 Figure 4-41 Figure 4-42...
  • Page 59 Figure 4-43 Figure 4-44...

  • Page 60: Storage

    Figure 4-45 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: no disk, no space, disk error, net error, Type offline, IP conflict. Threshold: You can set the minimum percentage value here. The device can alarm when capacity is not sufficient.

  • Page 61: Record Schedule And Snapshot Schedule

    4.5.1 Record schedule and snapshot schedule In these two interfaces, you can add or remove the schedule record/snapshot setup. See Figure 4-46. There are three record modes: general (auto), motion detect and alarm. There are six periods in one day. Please make sure you have enabled the corresponding record mode in the Setup->Storage- >Conditions.
  • Page 62 Figure 4-47 Please refer to the following sheet for detailed information. Parameter Function Event It includes: general, motion detect and alarm. Type Local It saved in the SD card. It saved in the FTP server. The local interface is shown as in Figure 4-48. Here you can view local SD card or disk information. You can also operate the read-only, write-only, hot swap and format operation.

  • Page 63: Record Control

    The FTP interface is shown as in Figure 4-49. You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card. Figure 4-49 4.5.3 Record control The record control interface is shown as in Figure 4-50.

  • Page 64: System

    Parameter Function Here you can select file size. Default setup is 8 minutes. Pack Duration Pre-record Please input pre-record value here. For example, system can record the four seconds video in the buffer. The record begins from the fifth second. There are two options: stop recording or overwrite the previous files Disk Full when HDD is full.
  • Page 65 Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device No Video This is to display video standard such as PAL or NTSC. Standard Language You can select the language from the dropdown list. Please note the device needs to reboot to get the modification activated.

  • Page 66: Account

    It is to set system time. It becomes valid after you set. System time Sync PC You can click this button to save the system time as your PC current time. Here you can set day night save time begin time and end time. You can set according to the date format or according to the week format.
  • Page 67 Figure 4-53 Add user: It is to add a name to group and set the user rights. See Figure 4-54. There are four default users: admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right. The user 666666 can only have the monitor rights. Hidden user “default”...
  • Page 68 Figure 4-54 Modify user It is to modify the user property, belonging group, password and rights. See Figure 4-55. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup.
  • Page 69 The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 4-56. Figure 4-56 Add group: It is to add group and set its corresponding rights. See Figure 4-58. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc.

  • Page 70: Ptz

    Figure 4-58 4.6.3 PTZ The PTZ interface includes two interfaces. 4.6.3.1 Network PTZ The network PTZ interface is shown as in Figure 4-59. Figure 4-59 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol 4.6.3.2 Analog PTZ Setting...

  • Page 71: Default

    The analog PTZ setting interface is shown as in Figure 4-60. Pelco D Baud rate is 2400 Figure 4-60 Please refer to the following sheet for detailed information. Parameter Function Set the address you can control the speed dome via the RS485. Address Default value is 1.

  • Page 72: Import/Export

    Figure 4-61 4.6.5 Import/Export The interface is shown as in Figure 4-62. Figure 4-62 Please refer to the following sheet for detailed information.

  • Page 73: Auto Maintenance

    Parameter Function It is to import the local setup files to the system. Import It is to export the corresponding system setup to your local PC. Export 4.6.6 Auto maintenance The auto maintenance interface is shown as in Figure 4-63. Here you can select auto reboot and auto delete old files interval from the dropdown list.

  • Page 74: Information

    Figure 4-64 4.7 Information Information Information Information 4.7.1 Version The version interface is shown as in Figure 4-65. Here you can view system hardware features, software version, release date and etc. Please note the following information is for reference only. Figure 4-65...

  • Page 75: Log

    4.7.2 Log Here you can view system log. See Figure 4-66. Figure 4-66 Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, and user management, log clear.
  • Page 76 Parameter Function Clear You can click this button to delete all displayed log files. Please note system does not support clear by type. You can click this button to backup log files to current PC. Backup...

  • Page 77: Alarm

    5 5 5 5 Alarm Alarm Alarm Alarm Click alarm function, you can see an interface is shown as in Figure 5-1. Here you can set device alarm type and alarm sound setup. Figure 5-1 Alarm Please refer to the following sheet for detailed information. Type Parameter Function...

  • Page 78: Log Out

    6 6 6 6 Log out Log out Log out Log out Click log out button, system goes back to log in interface. See Figure 6-1. Figure 6-1 Note: This manual is for reference only. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice.
