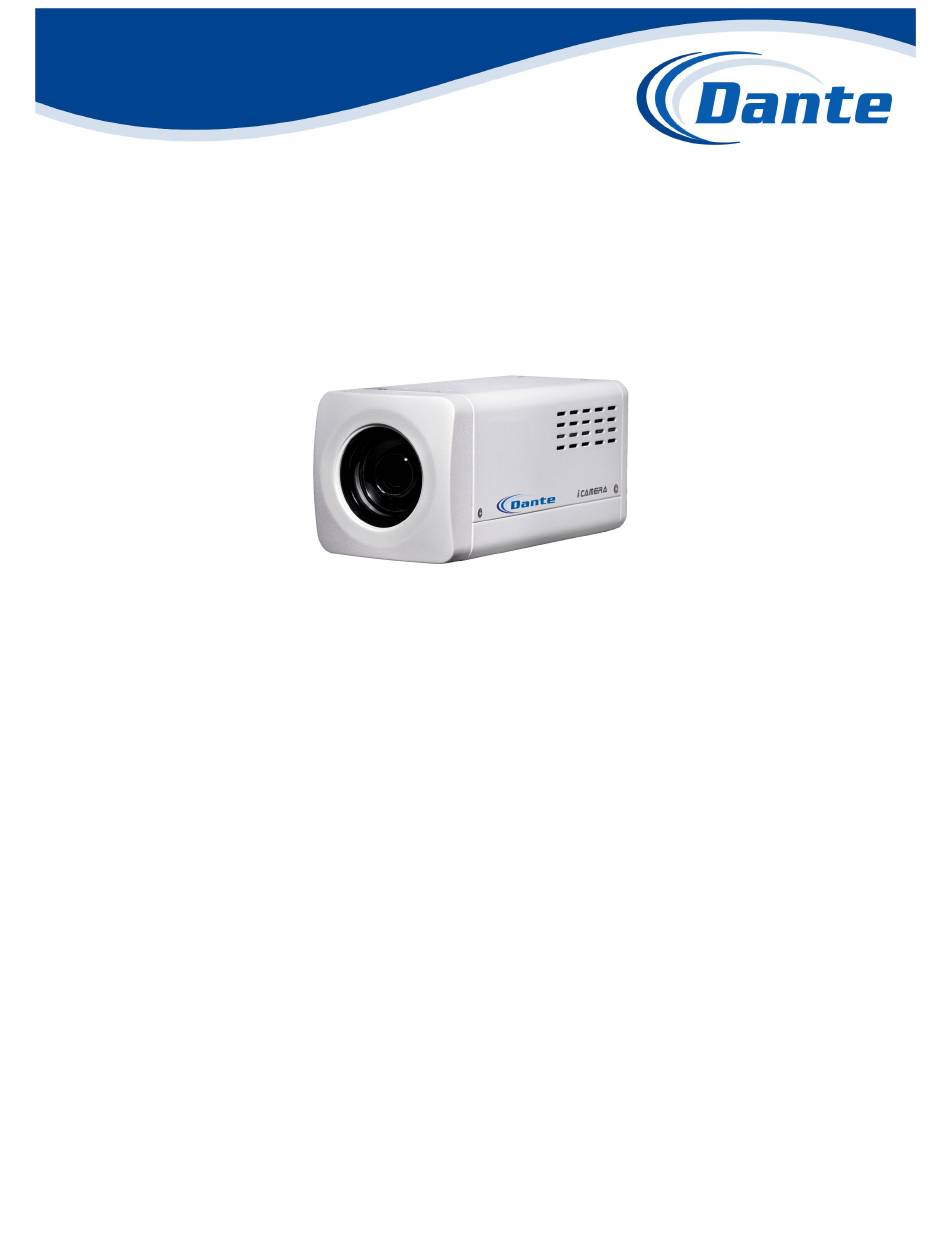

- Page 1 DNA1290M2 Zoom Box Camera Installation and Operations Manual Model Number: DNA1290M2 Description: Network 2MP Zoom Box Camera...
- Page 2 Welcome Thank you for purchasing our block camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings 1． ． ． ． Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modification or attempted repair. - Page 4 Before installation, please open the package and check that all the components are included in the package: Contact you local retailer ASAP if something is missing in your package.
-
Page 5: Table Of Contents
Table of Contents General Introduction ......................1 Overview ........................1 Features ........................1 Framework ..........................2 Rear Panel ........................ 2 Side Panel ......................... 5 Front Panel ....................... 6 Installation ..........................7 Pedestal ........................7 SD Card ........................7 3.2.1 General Series ....................7 3.2.2 Special Series .................... - Page 6 FAQ ............................18 Appendix Toxic or Hazardous Materials or Elements ............. 19...
-
Page 7: General Introduction
1 1 1 1 General Introduct General Introduction General Introduct General Introduct 1.1 Overview Overview Overview Overview This series camera integrates the traditional camera and network video technology. It adopts audio/video data collection, transmission, and storage together. This series network camera uses standard H.264 video compression technology, PCM, G.711a/u audio compression technology and etc. -
Page 8: Framework
2 2 2 2 F F F F ramework ramework ramework ramework 2.1 Rear Panel Rear Panel Rear Panel Rear Panel The rear panel is shown as below. See Figure 2-1 BNC out no longer supported Figure 2-1 Please refer to the following sheet for detail information. Interface Name Connector Function... -
Page 9: Video Out
VIDEO OUT Video output port BNC Not available Output analog video signal. Can connect to TV monitor to view video. AC 24V/ DC 12V Power port Power port. Input 12V DC or AC 24V STATUS Indicator Light Camera working status indictor light. -
Page 10: Audio Out
etc. RS485_B port, control peripheral device and etc. RS232 port RS232_RX，RS232 receive end. RS232_TX，RS232 COM send out end. RS232 ground end RESET RESET button Restore factory default setup. When system is running normally (indicator light is green), press the RESET button for at least 5 seconds, system can restore factory... -
Page 11: Side Panel
SD card port Connect to SD card. Note When you install the SD card, please make sure current card is not in write mode and then user may install it to the camera. When you remove the SD card, please make sure current card is not in write mode. -
Page 12: Front Panel
Figure 2-2 2.3 Front Panel Front Panel Front Panel Front Panel Please refer to the following interface for the front panel information. The unit is mm. See Figure 2-3. Figure 2-3... -
Page 13: Installation
3 3 3 3 Installation Installation Installation Installation 3.1 Pedestal Pedestal Pedestal Pedestal Please refer to the steps listed below to install the pedestal. See Figure 3-1 and Figure 3-2. a) Take the connection adapter and four screws from the accessories bag, line up the connection adapter to the four holes at the bottom of the camera and then sue the crosshead screwdriver to fix the four screws firmly. -
Page 14: 3.2.2 Special Series
a) Press the rear end of the SD card, system can pop up the SD card. b) Take the SD card out. See and Figure 3-4. Figure 3-3 Figure 3-4 3.2.2 Special Series Important Please note, the following operation is for professional engineer only. We are not liable for any problem resulting from the unauthorized operation. - Page 15 Figure 3-5 b) Refer to Figure 3-6.to open the cover. Figure 3-6 c) Take or remove SD card. See Figure 3-7.
-
Page 16: Bidirectional Talk
Figure 3-7 d) Follow the reverse sequence to uninstall/install the screws and covers. 3.3 Bidirectional Talk Bidirectional Talk Bidirectional Talk Bidirectional Talk Please refer to the steps listed below to connect. See Figure 3-8. a) Connect the microphone to the audio input port at the rear panel of the camera. b) Connect the earphone to the audio output port at the rear panel of the camera. -
Page 17: Lens Protection Film
Figure 3-9 3.5 Lens Protection Film Lens Protection Film Lens Protection Film Lens Protection Film Note Before you use the camera, please remove the lens protection film to guarantee video quality. Please refer to Figure 3-10 to remove the lens protection film. Figure 3-10... -
Page 18: Quick Configuration Tool
4 4 4 4 Quick Configuration Tool Quick Configuration Tool Quick Configuration Tool Quick Configuration Tool 4.1 Overview Overview Overview Overview Quick configuration tool can search current IP address, modify IP address. At the same time, user may use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. - Page 19 Figure 4-2 Select the “Open Device Web” item; user may go to the corresponding web login interface. See Figure 4-3. Figure 4-3 If you want to modify the device IP address without logging in the device web interface, user may go to the configuration tool main interface to set. In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface.
- Page 20 Figure 4-4 After you logged in, the configuration tool main interface is shown as below. See Figure 4-5. Figure 4-5 For detailed information and operation instruction of the quick configuration tool, please refer to the Quick Configuration Tool User’s Manual included in the resources...
-
Page 21: Web Operation
5 5 5 5 Web Web Operation Operation Operation Operation These series block camera products support the Web access and management via PC. Web includes six modules: encode setup bar, window adjust bar, system menu bar, window function option bar, PTZ control bar, PTZ setup/menu. 5.1 Network Connection Network Connection Network Connection... - Page 22 Figure 5-2 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too.
- Page 23 Figure 5-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.
- Page 24 6 6 6 6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device or can factory default setup. not control the device. Audio function Please use active device for the audio monitor input, otherwise there is no audio in the client-end.
- Page 25 Appendix Toxic or Hazardous M Appendix Toxic or Hazardous Materials or Elements aterials or Elements Appendix Toxic or Hazardous M Appendix Toxic or Hazardous M aterials or Elements aterials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet Metal ○...
