Dante DN1125A4 Installation And Operation Manual
Series dn1125, dn1126, dn1129 1/3” h.264/mpeg4/mjpeg 550tvl day/night ip camera
Hide thumbs
Also See for DN1125A4:
- Installation and operation manual (15 pages) ,
- Installation and operation manual (15 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Dante DN1125A4
Summary of Contents for Dante DN1125A4

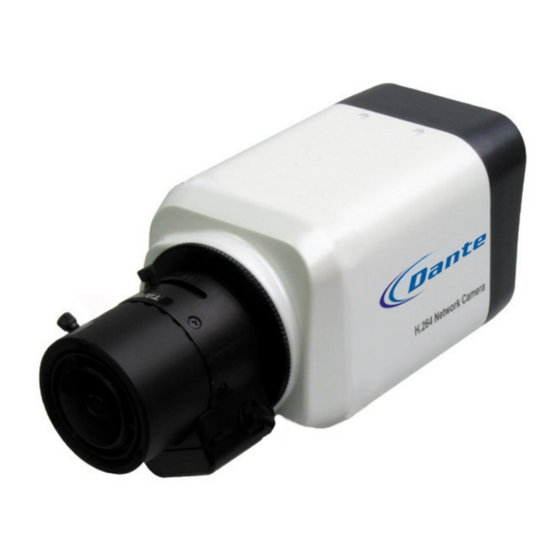

- Page 1 DN1125, DN1126, DN1129 1/3” H.264/MPEG4/MJPEG 550TVL Day/Night IP Camera Installation and Operations Manual Model Numbers: DN1125A4, DN1125B4 DN1126A4, DN1126B4 DN1129A4, DN1129B4 Description: H.264/MPEG4/MJPEG IP Box Camera Dual Configurable Video Streams with duplex Audio, Data, Alarms, POE...
- Page 2 QUICK GUIDE FOR UPDATING Series DN1125, DN1126, DN1129 IP CAMERAS 1. Factory default settings are set as follows: • IP address: 192.168.xx.yy (refer to 2.3 Serial Number / MAC Address) • Mask: 255.255.0.0 • Gateway: 192.168.0.1 • User ID: root •...
- Page 3 10. If detected in Network a screen appears as Reply from IP address – using example with 192.168.1.65 11. Return to Control Panel and follow procedures 1, 2, 3 and 4 12. Next Select “Obtain an IP address automatically 13. Next Click OK and wait 2 minutes for your PC to take on new IP address 14.
- Page 4 20. Next go to System Options to change the IP Address of Encoder 21. Select TCP/IP and input new IP address, click Apply, wait 3 minutes 22. Next ping device as in procedure # 9, if successful then 23. Use may open Internet explorer and type in new IP address selected 24.
-
Page 5: Information To User
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 02A.00 Dante Security... -
Page 6: Table Of Contents
APPENDIX (A): SPECIFICATIONS ................Summary ..........................VCA (Video Content Analysis) ....................Electrical Characteristics ......................Environment Condition ......................APPENDIX (B): DIMENSIONS ................... APPENDIX (C): ACCESSORIES ................... APPENDIX (D): TROUBLE SHOOTING ............... Checking your Firmware ......................Support ............................ REVISION HISTORY ....................02A.00 Dante Security... -
Page 7: Features
Micro SD memory card supported PoE supported (Optional) Built-in Video Content Analysis OSD supported SDK (Software Development Kit) provided VCA (Video Content Analysis) VCA Presence (Included as basic) VCA Surveillance (Optional) 02A.00 Dante Security... -
Page 8: Package Contents
Unpack carefully and handle the equipment with care. The packaging contains: IPE1100 DC power adaptor Mount ring 9 Pin terminal block Rubber cap (for protecting CCD) Hexa wrench driver Adaptor for mounting the camera DC Jack Adaptor Cable Quick Installation Guide Screws 02A.00 Dante Security... -
Page 9: Part Names
DN1120 Series DN1120 Installation Guide PART NAMES Rear View ③ ① ② ① LOOP OUT RESET RS-485 DO AUDIO ⑤ ④ ① Out In ⑥ Micro SD ETHERNET ⑦ ⑧ Bottom View ⑨ 02A.00 Dante Security... - Page 10 IP device. Caution ○ Micro SD Card socket It is a memory card slot for external storage. ○ LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Status LED Network LED 02A.00 Dante Security...
- Page 11 4 pin connector for Auto IRIS Only DC-drive type is supported. ○ Adaptor for mounting the camera Mounting points adaptor is provided on the bottom(or the top) of the camera for mounting the camera on a bracket or tripod. 02A.00 Dante Security...
-
Page 12: Installation
2. Connect the auto iris lens plug to the 4-pin lens terminal on the back of the camera. Use the connection recommended by the manufacturer. For best performance, read the lens manual carefully. You may need to set the flange back focus. Note Only DC-drive type is supported. Note 02A.00 Dante Security... - Page 13 DN1120 Series DN1120 Installation Guide 4 pin connector for IRIS DC IRIS Lens Damp- Damp+ Drive+_ Drive- 02A.00 Dante Security...
- Page 14 Out In Power Adaptor Micro SD LAN Cable ETHERNET 4 pin connector for iris When connecting the DC power supply, make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the camera. Caution 02A.00 Dante Security...
-
Page 15: Connections
1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. It can be selected by software. Do not exceed the maximum input voltage or relay rate. Caution 02A.00 Dante Security... - Page 16 DN1120 has a mono audio input and a mono audio output. As the output power for the audio is low, amplifier speaker is needed. (Do not use a headphone or earphone directly to the camera.) Aout Speaker 02A.00 Dante Security...
-
Page 17: Power Adaptor Connector (Dc 12V)
Power Adaptor Connector (DC 12V) Power adaptor connector connects to DC Jack adapter cable. Make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the IP device Caution Power Adaptor Connector (DC 12V) Caution 02A.00 Dante Security... -
Page 18: Configuration
IPAdminTool or enter the IP address on the web page. View video using IPAdmin Tool IPAdminTool automatically searches all activated DN1120 series and shows the product name, IP address, MAC address and etc. IPAdminTool is provided with SDK at the following SDK path. {SDK root}\BIN\TOOLS\AdminTool\ 02A.00 Dante Security... - Page 19 4. Click pop-up blocked and install the ActiveX control as below. You need to install the ActiveX for displaying the images. 5. Wait for a few seconds while the web page loads. The live video is displayed as below. 02A.00 Dante Security...
-
Page 20: View Video Using Ip Address
1. Disconnect the power supply from the device. 2. Connect the power to the device with the Reset button pressed and held. 3. Release the Reset button after 5 seconds. 4. Wait for the system to reboot. 02A.00 Dante Security... -
Page 21: Appendix (A): Specifications
OFF/LOW/MIDDLE/HIGH ON (Level 0~32) / (Noise Reduction) OFF Selectable Lens 3~8 mm Day & Night Vari-focal Auto Iris (Optional) DN1125 : S/W DN1129 Day & Night : IR Cut Filter IR Cut Filter Remove DN1126 Remove Video 02A.00 Dante Security... -
Page 22: Vca (Video Content Analysis)
Direction, Stopping, Loitering, Entering, Exiting, Appear, and Detection Behavior Disappear Filters 3D Behavior Perspective Corrected Size and Speed Filters Statistics Counting Functions and Other Statistics Meta Data Binary XML Format Image Stabilization (Optional) Electronic Stabilization Removes Camera Sway 02A.00 Dante Security... -
Page 23: Electrical Characteristics
TTL level 4.5V threshold, Max 50mA Alarm(D/O) Max 500mA@24VAC or 1A@12VDC Power Source(Approx) 12 V DC 340 mA or PoE IEEE802.3af (Optional) Environment Condition 0 ˚C ~ 50 ˚C (32˚F ~ 122 ˚F) Operating Temperature Operating Humidity Up to 85% RH 02A.00 Dante Security... -
Page 24: Appendix (B): Dimensions
DN1120 Series DN1120 Installation Guide APPENDIX (B): DIMENSIONS Front view Top view LOOP OUT RESET RS-485 AUDIO C 1 C 1 Out In Micro SD ETHERNET Rear view H.264 Network Camera Right side view UNIT: mm 02A.00 Dante Security... -
Page 25: Appendix (C): Accessories
DN1120 Series DN1120 Installation Guide APPENDIX (C): ACCESSORIES 02A.00 Dante Security... -
Page 26: Appendix (D): Trouble Shooting
The server report contains important information about the device, as well as a list of the current parameters. 2. The Log messages in the device can prove a useful diagnostic tool for troubleshooting. Go to Setup > Maintenance > System Log > LOG LIST > message. 02A.00 Dante Security... -
Page 27: Revision History
DN1120 Series DN1120 Installation Guide REVISION HISTORY MAN# DATE(D/M/Y) Comments 01A.01 12/03/2009 Created. 01A.02 23/06/2009 Modified 01A.03 25/06/2009 Added TroubleShooting 01A.04 26/06/2009 Added Model specification 02A.00 24/07/2009 FW 1.00.07 official release version 02A.00 Dante Security...
