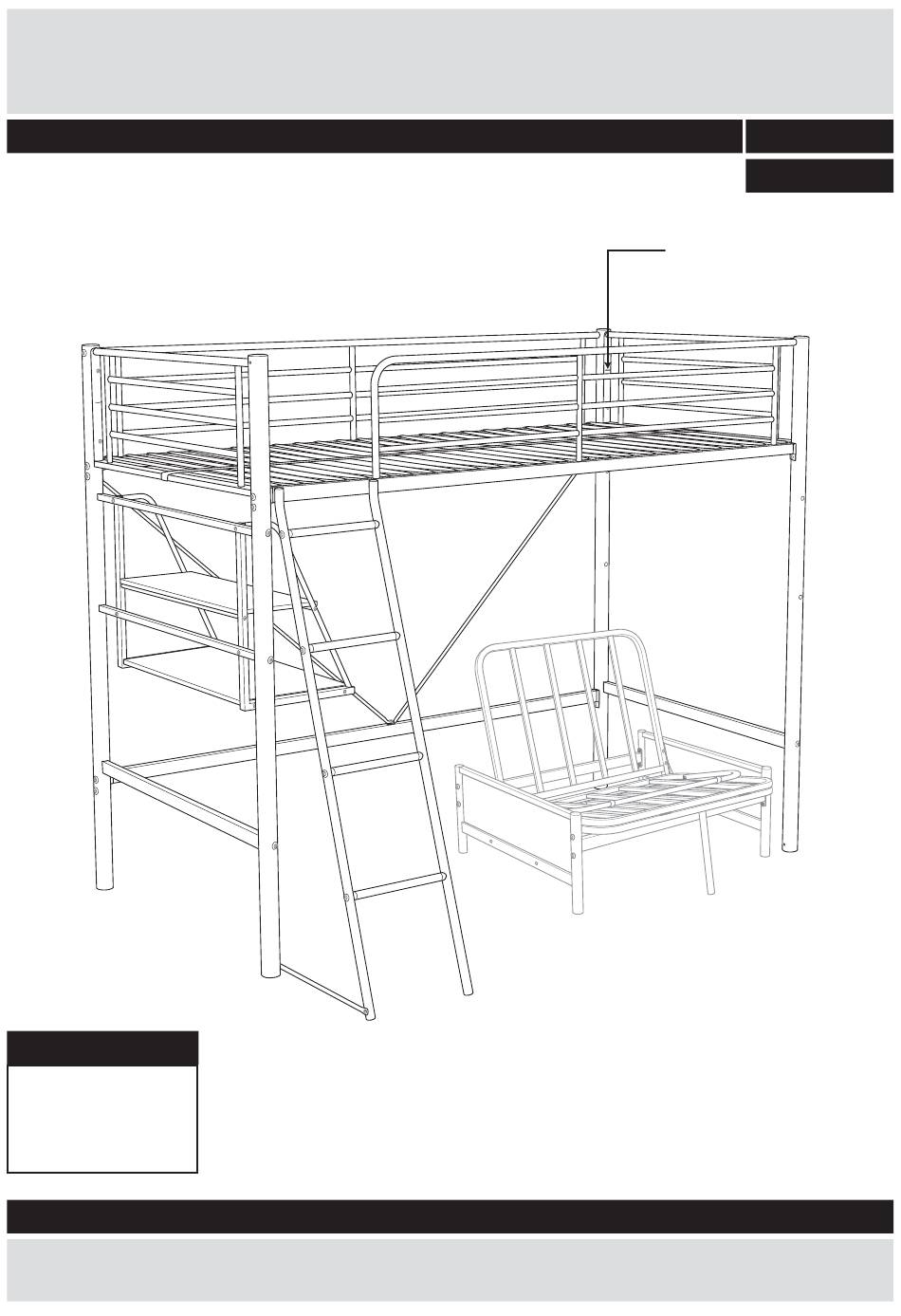

Sit N' Sleep Bed
Assembly Instructions
Dimensions
Width - 200cm
Depth - 99/143cm
Height - 170.5cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
- Please keep for future reference
758/5418
758/5401
IMPORTANT NOTE:
The top surface of the
mattress should not come
above this line.
Issue 1 - 08/11/13
Advertisement
Related Manuals for Argos Sit N’ Sleep Bed
Summary of Contents for Argos Sit N’ Sleep Bed
- Page 1 Sit N’ Sleep Bed Assembly Instructions 758/5418 - Please keep for future reference 758/5401 IMPORTANT NOTE: The top surface of the mattress should not come above this line. Dimensions Width - 200cm Depth - 99/143cm Height - 170.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 08/11/13...
-
Page 2: For Future Reference
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Because of the size of this unit, • Assemble this product on a flat • We do not it is recommended to assemble it surface. recommend the in the room intended for use. - Page 3 Components - Parts Please check you have all the parts listed below Sticker “1” Sticker “2” Sticker “3” Sticker “4” Front right-hand Back right-hand Back left-hand Front left-hand endpost end post end post end post (Ø5 x 170.5cm) (Ø5 x 170.5cm) (Ø5 x 170.5cm) (Ø5 x 170.5cm) Upper side safety rail x 2...
- Page 4 Components - Parts (cont.) Please check you have all the parts listed below Sticker “12” Sticker “13” Left ladder side rail Right ladder side rail Ladder step x 4 (Ø2.5 x 141cm) (Ø2.5 x 141cm) (Ø2.5 x 29 cm) Ladder brace Shelf side frame x 2 Shelf brace x 4 (45.5 x 1.5 x Ø1cm)
-
Page 5: Tools Required
Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 6 Assembly Instructions Step 1 Assembling end panels Lay all parts flat on a soft surface on the floor to avoid damaging any of the parts. Note: Identify and RIGHT-HAND END PANEL correctly position Sticker “2” Sticker “1” end posts looking for the sticker label pasted on the posts.
- Page 7 Assembly Instructions Step 2 Attaching rails Note: Determine your preferred bunk bed entry position. Then attach the front safety rail with the entry space positioned either on the left or right. Identify the correct rails for assembly and with the help of an assistant attach the lower tubes of upper back safety rail...
- Page 8 Assembly Instructions Step 3 Attaching back braces Position the back braces as shown and attach it to upper back safety rail using bolts , washers and nuts . Attach the back braces to lower rail using bolt as shown. Note: After all bolts in step 2 and 3 are positioned, fully...
- Page 9 Assembly Instructions Step 5 Attaching shelf Position the shelf on the bed as shown and attach the side frames middle right side rails using bolts . Tighten bolts using allen key Step 6 Attaching slats With the help of an assistant, line up the slats onto upper rails...
- Page 10 Assembly Instructions Step 7 Assembling ladder Sticker “13” Sticker “12” Referring to diagram, attach the ladder steps to ladder side rails using bolts spring washers curved washers plastic washers Tighten all bolts using allen key Note: Identify and correctly position the ladder side rails by looking for the...
- Page 11 Assembly Instructions Step 9 Securing the ladder Attach the ladder brace to ladder side rail and front right-hand post using bolts . Tighten bolts using allen key Step 10 Fixing to wall Wall This unit must be fixed to a wall. Move the bunk bed into position on the wall.
- Page 12 Single Metal Futon Assembly Instructions 7585418 - Please keep for future reference 7585401 Dimensions Width - 82cm Depth - 80-170cm Height - 30-69.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 21/08/12...
- Page 13 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Because of the size of this unit, • Discard all extra fittings and • We do not it is recommended to assemble it keep fittings out of reach of recommend the in the room intended for use.
-
Page 14: Components - Parts
Components - Parts Please check you have all the parts listed below Futon side frame x 2 Front / back rail x 2 Back frame (70 x 30 x 3.2cm) (76 x 8.5 x 2.5cm) (70 x 55 x 2cm) Seat frame Front leg (110 x 70 x 2cm) - Page 15 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 16 Assembly Instructions Step 1 Attaching side frames Position the side frames as shown and attach the front/back rails using bolts , washers and nuts . Tighten bolts and nuts using allen key and big spanner Step 2 Attaching futon mechanisms Correctly position the left and right futon...
- Page 17 Assembly Instructions Step 4 Attaching centre leg Carefully lay the seat frame face down on a flat protected surface. Position the centre leg as shown and attach it to seat frame using bolts Tighten bolts using allen Step 5 Attaching front leg Position the front leg and attach it to seat frame...
- Page 18 Assembly Instructions Step 7 Attaching seat frame Position the seat frame as shown and attach it to futon mechanisms using bolts nuts . Tighten bolts and nuts using allen key and big spanner Step 8 Attaching adhesive pads Remove backing from adhesive pads then carefully position it on the...
- Page 19 Operation Instructions Step 1 Folding the futon Carefully pull up the front leg and fold down the front seat frame. Fold down the front leg. Then carefully push in the seat frame and pull up the back rest. Step 2 Opening the futon Carefully pull out the front seat frame and fold...
