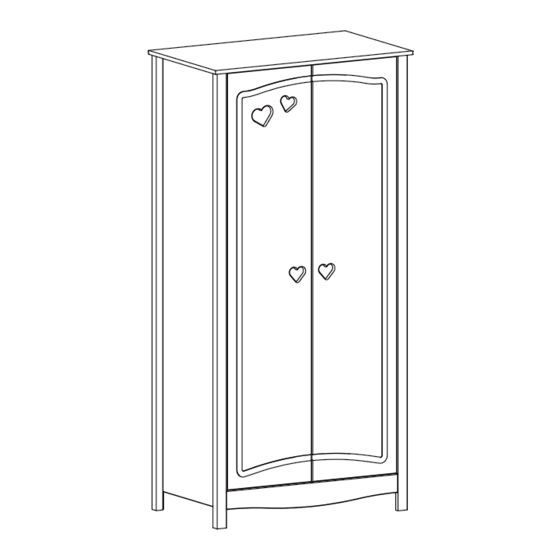

Mia Hearts / Stars 2 Door Wardrobe
Assembly Instructions -
Hearts
Dimensions
:
Width
88.5 cm
Depth
:
52.3 cm
:
181.2 cm
Height
Assembly Instructions -
If you need help or have damaged or missing parts, call the Argos Customer Helpline: 03456 400 800
350269
Please keep for future reference
Please keep for future reference
Hearts 2463834
Stars 4553326
Stars
Issue 3 - 23-09-2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Mia Stars 4553326
Summary of Contents for Argos Mia Stars 4553326
- Page 1 Width 88.5 cm Depth 52.3 cm 181.2 cm Height Assembly Instructions - Please keep for future reference If you need help or have damaged or missing parts, call the Argos Customer Helpline: 03456 400 800 Issue 3 - 23-09-2015 350269...
- Page 2 ! Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on components and tools listed on the product, this could cause pages 2 and 3. damage.
- Page 3 Components - Panels If you have damaged or missing components, call 03456 400 800 the Argos Customer Helpline: Please check you have all the panels listed below (88,5 cm x 52,3 cm) H-profile (163 cm x 1,7 cm) Back 2...
-
Page 4: Tools Required
Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. ø7.8 x 40mm Wooden dowel x ø15 x 10.5mm Cam x 12 ø3 x 12mm Screw x ø5 x 8, cc34mm Bolt x 12... - Page 5 Assembly Instructions Step 1 Assembly of the wardrobe. Step 1.1 Fix the posts onto the ø4 x 25mm Screw x sides using screws into the holes indicated. The top of the posts the sides must be flush. 350263-05...
- Page 6 Assembly Instructions Step 1.2 Knock the dowels into ø7.8 x 40mm Wooden dowel x ø5 x 8, cc34mm Bolt x 6 the holes indicated on the sides a small hammer. Screw the bolts into the holes indicated on the sides Step 1.3 Fix the Crossplates ø3 x 12mm Screw x...
- Page 7 Assembly Instructions Step 1.4 Fix the angles using ø3 x 12mm Screw x ø4,2 x 9,5mm Screw x screws into the holes indicated on the front rail 44 x 23 x 23mm Angle x Angle 23 x 23 x 24mm x 1 Step 1.5 Knock the dowels into...
- Page 8 Assembly Instructions Step 1.7 Screw the bolts into ø5 x 8, cc34mm Bolt x 6 Magnet, adjustable x the holes indicated on the Press the magnets into the holes indicated on the top Step 1.8 ø15 x 10.5mm Cam x 6 Place the top onto the sides...
- Page 9 Assembly Instructions Step 1.10 Place the backs into 1.2 x 15mm Nail x the rabbet on the top into the H-profile Distribute equally ! onto the posts Important! Make sure the angle between the and the posts 90° when the backs attached.
- Page 10 Assembly Instructions Step 2 Assembly of the doors. Step 2.1 Place the cup hinges ø3 x 12mm Screw x ø26mm Cup hinge x into the holes indicated on the doors Fix the hinges using screws 35 x 12 x 1mm Magnet catch x Fix the magnet catches using screws into...
- Page 11 Assembly Instructions Step 2.2 Place the hanger rail into the supports Slide the cup hinges onto the crossplates Fix the hinges using the premounted screw in the crossplates. See details below on how to fit the cup hinge onto the cross plate Adjust the magnets 350269-11...
- Page 12 ALL the crossplates. Argos Customer Helpline: 03456 400 800 If you need help or have damaged or missing parts, call the Home Retail Group - 489-499 Avebury Boulevard - Saxon Gate West - Central Milton Keynes MK9 2NW...
- Page 13 A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
