ASSEMBLY INSTRUCTIONS
SMABLCD - DIGITAL SCREEN
Open all boxes first and layout all parts on a level and sturdy floor. Reference parts list to verify that all parts
and hardware are present.
Before you begin, read instructions thoroughly prior to assembly. 2 people are required for the installation.

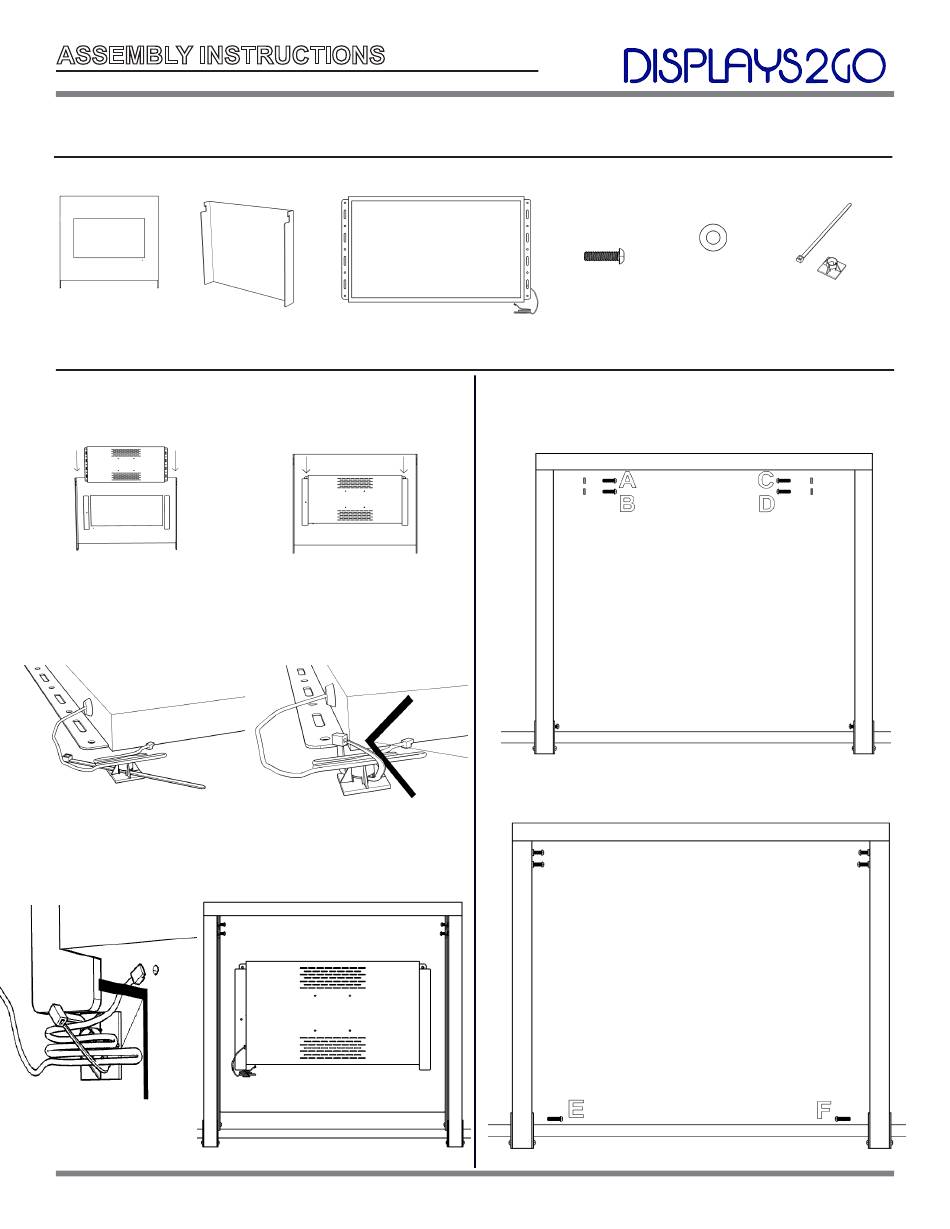

PARTS LIST
Front Panel X1
Back Panel X1
1. Take Screen and insert into brackets making sure
the screen hits the bottom of the brackets shown
below.
2. Next tie the IR cable to the zip tie holder using the
zip tie shown in the images below. Make sure it is
secured tightly.
3. Peel bottom of zip tie holder to stick to front panel
and place IR over hole like the images below.
Rev. 19.10
MASTER SKU: FRMRCKWT66DS
21.5" Screen X1 Screws X6 Spacers X4
4. Remove screw A and replace with screw and
spacer provided in the kit. Repeat steps for screws
B,C, and D. Only screw half way.
5. Remove screw E and replace with a screw from kit.
Repeat step for screw F. Only screw halfway.
Zip tie X1 and Zip tie
holder X1
1 of 2
