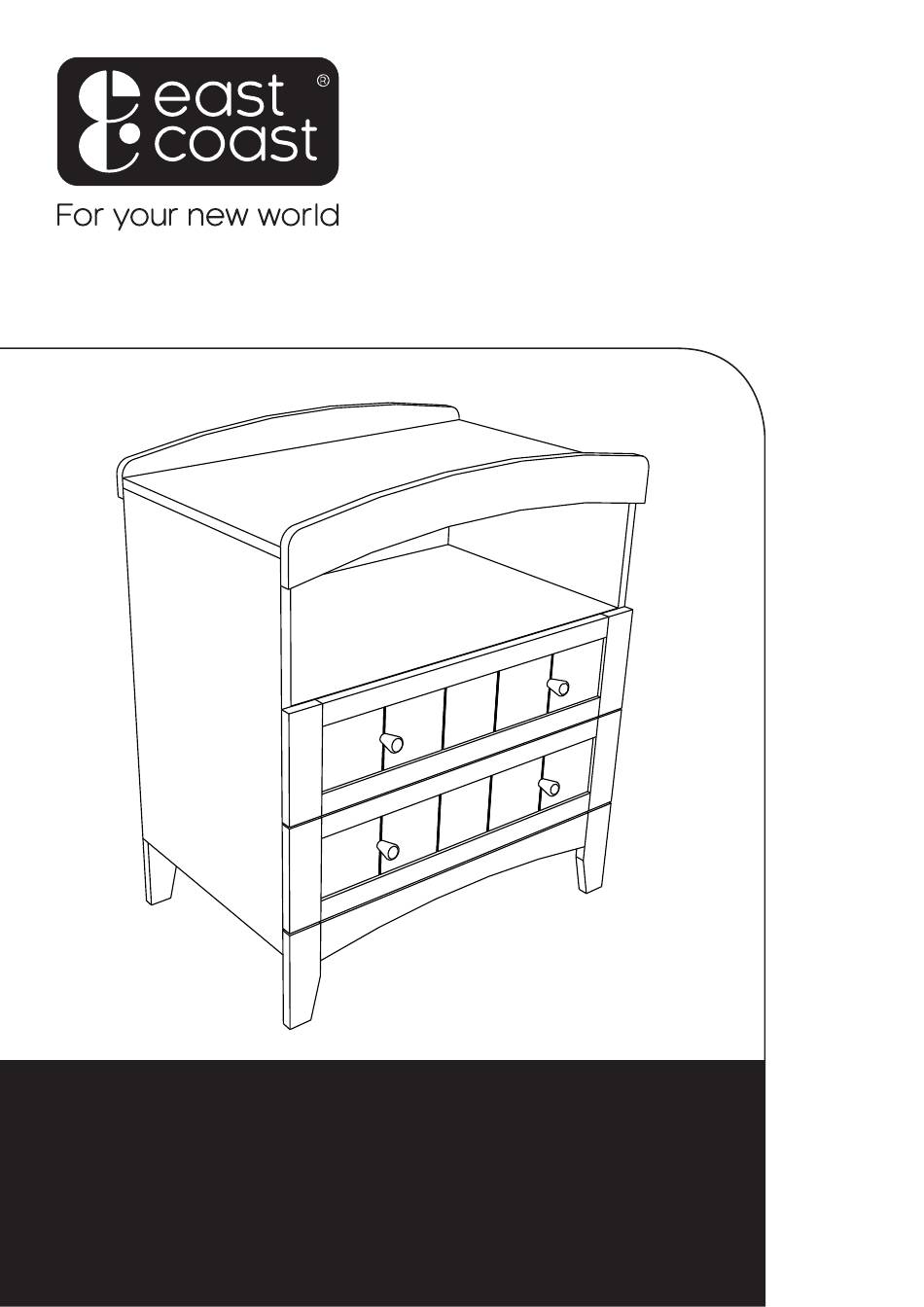

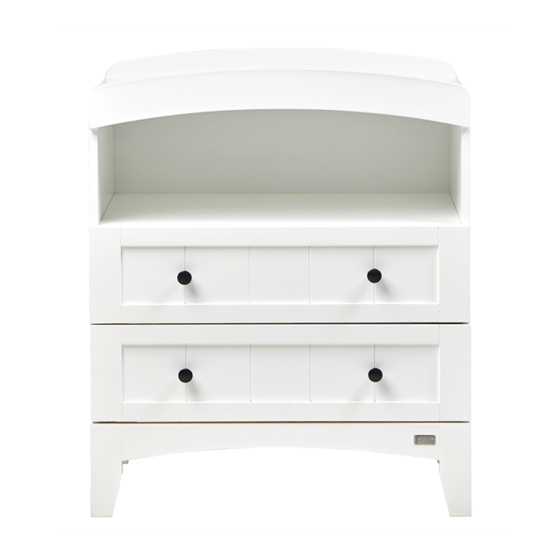

- Page 1 Acre Dresser Assembly and care instructions...
- Page 2 RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Dresser Parts Dresser top panel Rear changer barrier Dresser shelf panel Front changer barrier Left side panel Base frame Top back panel Right side panel Bottom Rear drawer back panel panel (2) Right drawer panel (2) Rear legs Left drawer panel (2) Front drawer panel (2)
- Page 4 Assembly 1 Dresser top panel Dresser shelf panel Base frame B x 7 NOTE: Repeat process for opposite side(s). Assembly 2 Dresser Dresser shelf panel panel Base frame A x 5 A x 4 Right side panel NOTE: Do not tighten bolts fully until assembly is complete.
- Page 5 Assembly 3 Left side panel A x 4 A x 5 Assembly 4 Front legs Rear legs NOTE: A x 4 Repeat process to secure the Rear legs to the Base frame.
- Page 6 Assembly 5 C x 10 Top back panel C x 10 Bottom NOTE: back panel Ensure that the slot on the Top back panel is at the top as shown. Assembly 6 Rear changer barrier B x 2 H x 2 (30mm)
- Page 7 Assembly 7 Front changer barrier A x 2 Assembly 8 E x 2 Front drawer panel Left drawer panel Right drawer panel E x 2 NOTE: Repeat step for the remaining drawer.
- Page 8 Assembly 9 Drawer base panel NOTE: Repeat step for the remaining drawer. Assembly 10 D x 4 F x 2 Rear drawer panel Drawer support bar F x 2 NOTE: Ensure slot in part D are visible. Repeat for the remaining drawer.
- Page 9 Assembly 11 I x 2 G x 2 (15mm) NOTE: Repeat step for the remaining drawer.
- Page 10 Assembly 12 The furniture is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (Short) Screw (Long)
-
Page 11: Care And Maintenance
Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. For customer care or enquiries: Call: 01692 408802 Email: nursery@east-coast.co.uk East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX 8583 eastcoastnursery.co.uk 06_17...
