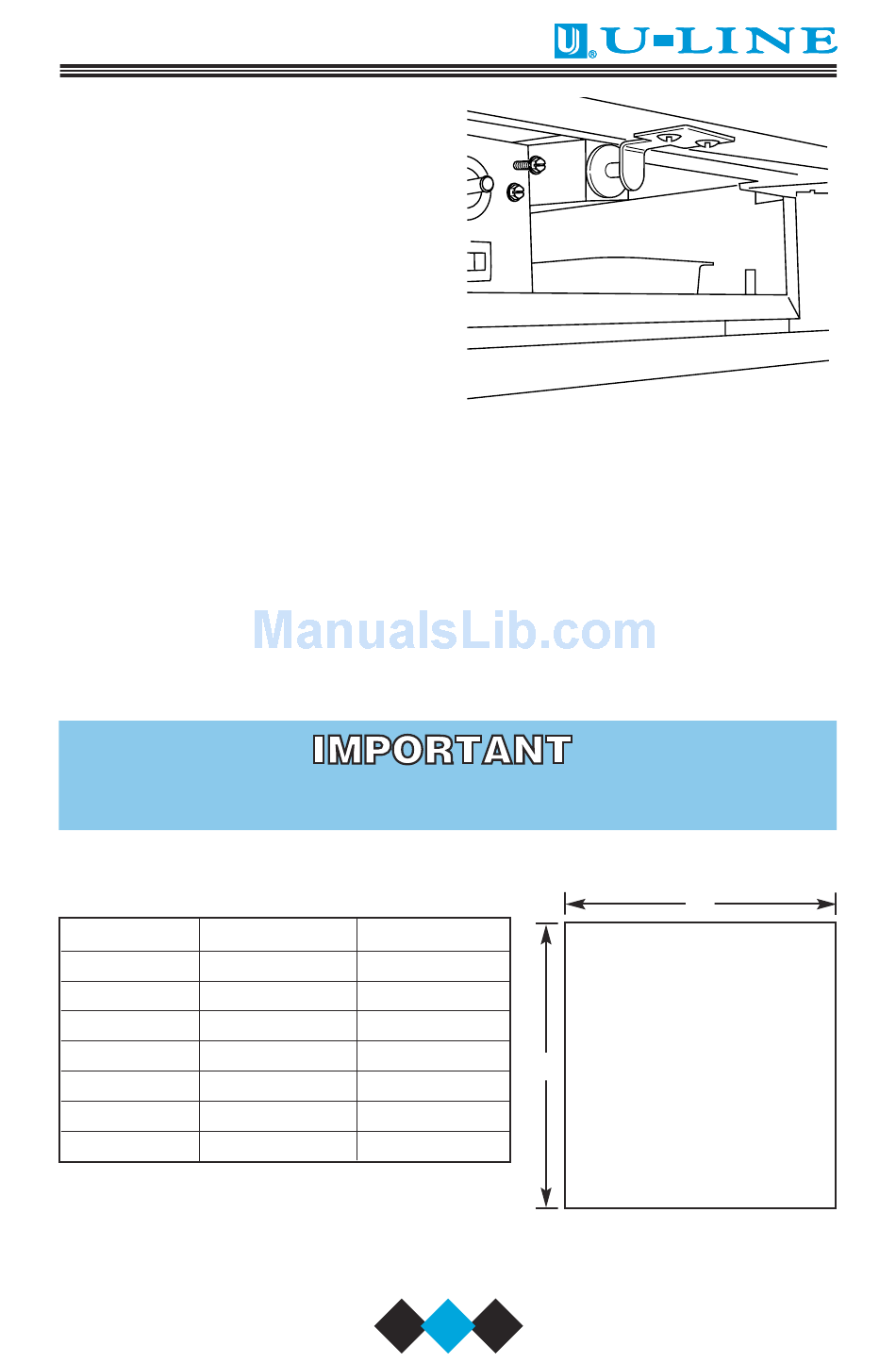

NOTE
When inspecting door align-
ment, make sure that the
light switch bracket (where
equipped) makes contact
with the light switch plunger
(see Figure 27). Also, make
sure that the door gasket is
not pinched too tightly on
the hinge side of the door.
CUSTOM DOOR PANEL INSERT
A custom door panel insert can be installed in most U-Line units. The
door will accept a flat or raised panel. The maximum panel thickness
where inserted into the door reveal (channel) is 1/4" thick. For raised
panels, the depth of the reveal is 1/4" on the sides and bottom, and
1/2" on the top. The size of the door panel insert is shown below:
The door panel insert must not weigh more than 20 lbs.
Model
BI-95 13–15/32"
BI-98 15–15/16"
75 Series 28–5/32"
75 SS 29–13/32"
29 Series 21–13/32"
15 Series 28–5/32"
15 SS 29–13/32"
SS - Stainless steel units
Model SP18 does not accept custom
door panels.
INSTALLATION
Custom Door Panel Dimensions
A
12–15/16"
13–15/16"
22–15/16"
22–15/16"
19–13/16"
13–15/16"
13–15/16"
NOTE
Figure 27
B
A
19
UL130
B
