U-Line 1115R Use And Care Manual

Origins series beverage center
Hide thumbs Also See for 1115R:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Installation Manual

Use and Care Guide

Refrigerator Models:
1115R, 1175R, 29R
Beverage Center Model:
1175BEV
29R
1175BEV
1115R
1175R

Advertisement

Table of Contents
loading

Related Manuals for U-Line 1115R

Summary of Contents for U-Line 1115R

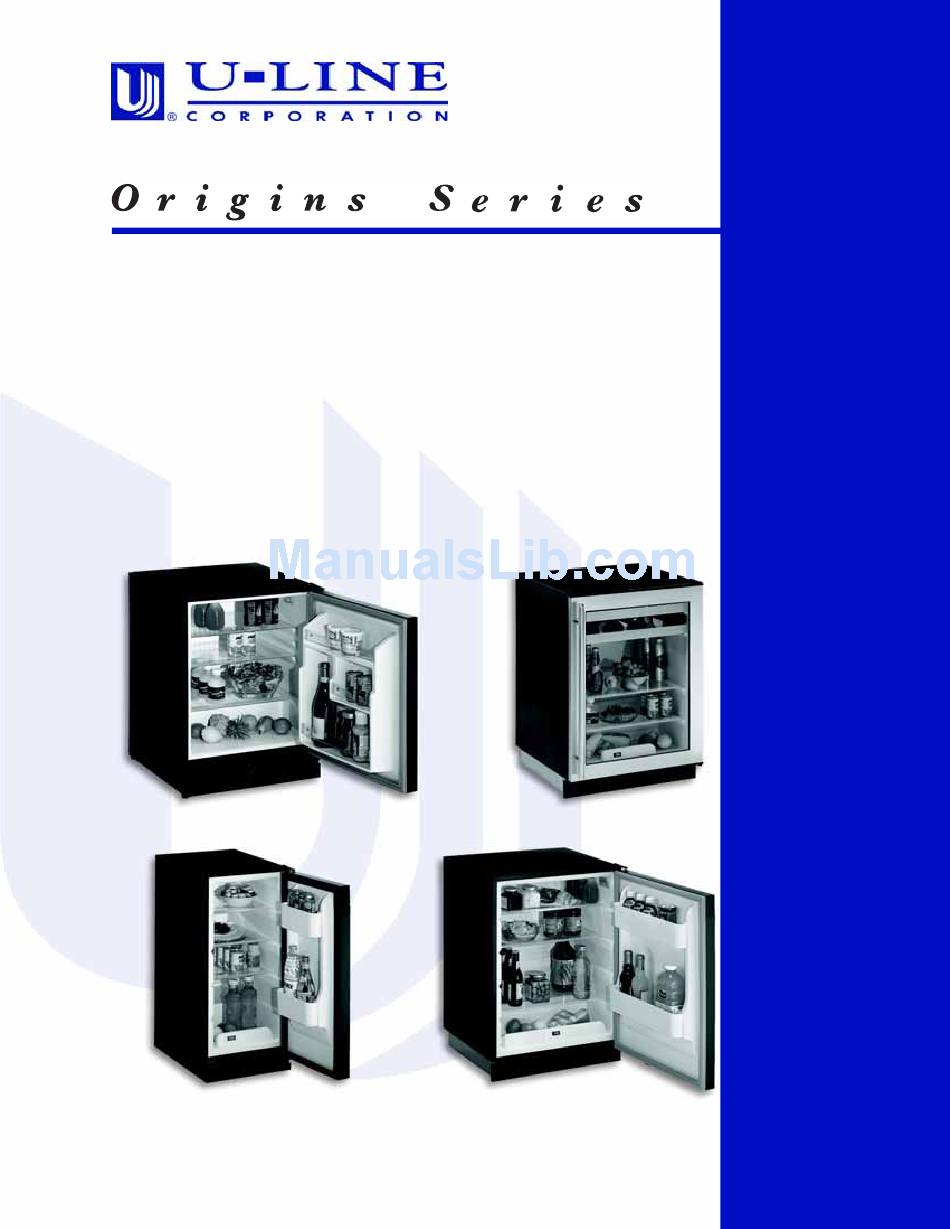

  • Page 1: Use And Care Guide

    Use and Care Guide Refrigerator Models: 1115R, 1175R, 29R Beverage Center Model: 1175BEV 1175BEV 1115R 1175R...

  • Page 2: Introduction

    If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product.

  • Page 3: Table Of Contents

    Table of Contents ...3 Safety Precautions ...5 Safety Alert Definitions ...5 General Precautions ...5 Product Features ...6 Origins Refrigerator Models 1115R, 1175R, 29R ...6 Origins Beverage Center Model 1175BEV ...6 Operation ...7 Initial Startup ...7 Interior Lighting ...7 Electronic Control Panel ...8 Manual Temperature Control ...9...
  • Page 4 This page intentionally left blank 1115R, 1175R, 29R, 1175BEV...

  • Page 5: Safety Precautions

    An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide.

  • Page 6: Product Features

    • A generous capacity, one piece molded interior is very durable and easy to clean. • Model 1115R provides 3.3 cu ft (93 L) of refrigeration, Model 29R provides 3.5 cu ft (99 L) of refrigeration, and Model 1175R provides 5.7 cu ft (161 L) of refrigeration.

  • Page 7: Operation

    A grille, located in the base of the unit, must not be blocked at any time, or your unit will not perform as expected. Initial Startup All U-Line units are shipped with controls that are preset. No initial adjustments are required. IMPORTANT IMPORTANT U-Line recommends the unit be allowed to run overnight prior to loading with product.

  • Page 8: Electronic Control Panel

    2. After approximately 10 seconds, the set point temperature will return to the display. Checking Product Temperature ULIN_0074_A U-Line recommends a set temperature of 38°F on all refrigerators. To check the actual product temperature in your unit, insert an accurate thermometer into a plastic (non- breakable) bottle that is partially filled with water.

  • Page 9: Manual Temperature Control

    • Condenser Fan: Air moving through a condenser may be heard. • Automatic Defrost/Drain Pan: Water may be heard dripping or running into the drain pan when the unit is in the defrost cycle. 1115R, 1175R, 29R, 1175BEV ULIN_0014_A Figure 8...

  • Page 10: Wine Stocking Recommendations

    (Figure 9). Figure 9 Outdoor, Marine and RV Usage Some U-Line models are designed to operate in outdoor, marine and RV environments. For best performance, keep the unit out of direct sunlight. • If the unit will be shut off for five days or more, prop door open to allow for air circulation and prevent mold and mildew.

  • Page 11: Wine Guide

    But there is so much more to true wine appreciation. Many secrets are simply too good to keep bottled up. The U-Line Corporation is proud to present Spilling Wine Secrets online at www.U-Line.com/resources/wine_secrets. Take a...

  • Page 12: Guide To Common Styles Of Wine

    French French Italian California French California French French Germany Frency Hungary California Germany Germany 1115R, 1175R, 29R, 1175BEV Zinfandel, Cabernet Rhone, Chateauneuf-du-Pape Barbaresco, Barolo Pinot Noir Bordeaux, Burgundy Beaujolais Chianti, Bardolino Chardonnay Montrachet, Meursault Puligny-Montrachet Sauvignon-Blanc Pouilly-Fuisse, Sancerre, Vouvray, Graves...

  • Page 13: Cleaning And Maintenance

    Maintenance Proper maintenance of your U-Line product will ensure efficiency, top performance and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations.
  • Page 14 NOTE: Screws are held in the grille by o-ring retainers, ULIN_0197_A and will not come free of the grille. 3. Remove grille (Figure 14, 2) and grille cap (Figure 14, 3) from unit. 1115R, 1175R, 29R, 1175BEV ULIN_0153_A Figure 12 ULIN_0198_A Figure 13...
  • Page 15 1. Use a level to check the levelness of the unit from front to back and from side to side. Level should be placed along top edge and side edge as shown (Figure 19). 1115R, 1175R, 29R, 1175BEV ULIN_0159_A Figure 18 ULIN_0041_A...
  • Page 16 2. Remove top hinge from cabinet (three screws) (Figure 22). Hold door to keep it from falling. 3. Lift the door off the bottom hinge. ULIN_0143_A 4. Remove bottom hinge from cabinet (two screws) (Figure 23). 1115R, 1175R, 29R, 1175BEV ULIN_0143_A Figure 22 ULIN_0121 _A Figure 23...
  • Page 17 10. Remove three plastic screw plugs (Figure 28) from hinge holes, top of cabinet, opposite side. Be careful not to scratch cabinet. 11. Place door on lower hinge pin. Invert and install upper hinge on door. 1115R, 1175R, 29R, 1175BEV Hinge Plastic Plug Hole Screw...
  • Page 18 (Figure 32). 8. Install bottom hinge on cabinet, opposite side, aligning flat edge of hinge with outer edge of unit (Figure 34). Partially tighten screws. 1115R, 1175R, 29R, 1175BEV Hinge Plastic Plug Hole Screw...
  • Page 19 4. Remove top hinge from cabinet (three screws) (Figure 38). Hold door to keep it from falling. 5. Lift the door off the bottom hinge. 6. Remove bottom hinge from cabinet (two screws) (Figure 39). ULIN_0197_A 1115R, 1175R, 29R, 1175BEV ULIN_0143_A Figure 38 ULIN_0121 _A Figure 39...
  • Page 20 12. Remove three plastic screw plugs (Figure 44) in hinge holes, top of cabinet, opposite side. Be careful not to scratch cabinet. 13. Place door on lower hinge pin. Invert and install upper hinge on door. 1115R, 1175R, 29R, 1175BEV Hinge Plastic Plug Hole Screw...
  • Page 21 (Figure 46, 2). Door Shelf Removal/Insertion ULIN_0143_A NOTE: 1115R and 1175R models only To remove the door shelf: 1. Grasp shelf in center, and lift until the shelf notches (Figure 47, 1) clear the bosses (Figure 47, 2).
  • Page 22 3. Replace the bulb only with a genuine U-Line P/N 31317 replacement. 4. Replace the lens by first inserting the tab side back into the housing at a slight angle.
  • Page 23 Wood Trim Finishing Interior components of your U-Line unit are equipped with a natural wood trim for appearance and durability. Although this wood trim has been coated with a clear...

  • Page 24: Service

    8 Service Before Calling for Service If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that the function of all controls are clearly understood. If...

  • Page 25: Troubleshooting Guide

    Soft sounds from the fan and water/dropping sounds from the ice maker will be heard. Remove obstruction. Set control to warmer setting (See OPERATION). Move product away from evaporator, making sure it is not touching evaporator. 1115R, 1175R, 29R, 1175BEV...
  • Page 26 Repeatedly touch the WARMER button to advance any number shown to 99 and touch and release the LIGHT button. The set-point temperature should now be displayed. Record the error code(s) displayed and call for service. 1115R, 1175R, 29R, 1175BEV...

  • Page 27: Electronic Control Quick Guide

    Release when °F flashes. COOLER COOLER COOLER Display (and cabinet light) will not operate in Blackout Mode. IMPORTANT 1115R, 1175R, 29R, 1175BEV Display Comment °F flashes after first touch, set-point saved after 5 seconds of inactivity and °F stops flashing.
  • Page 28 This page intentionally left blank 1115R, 1175R, 29R, 1175BEV...
  • Page 29 This page intentionally left blank 1115R, 1175R, 29R, 1175BEV...
  • Page 30 This page intentionally left blank 1115R, 1175R, 29R, 1175BEV...

  • Page 31: U-Line Corporation Limited Warranty

    During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Lines option, repair any product or replace any part of a product that breaches this warranty;...
  • Page 32 When you need replacement parts, always request genuine U-Line replacements be used. Visit www.U-Line.com to locate a parts distributor in your area. U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in undercounter ice makers, Combo ice maker/refrigerators, Wine Captain ®...
