U-Line ICE-MAKER User Manual

Ice-makers, combos, refrigerators, 75 bev beverage center
Hide thumbs
Table of Contents

Advertisement

Quick Links

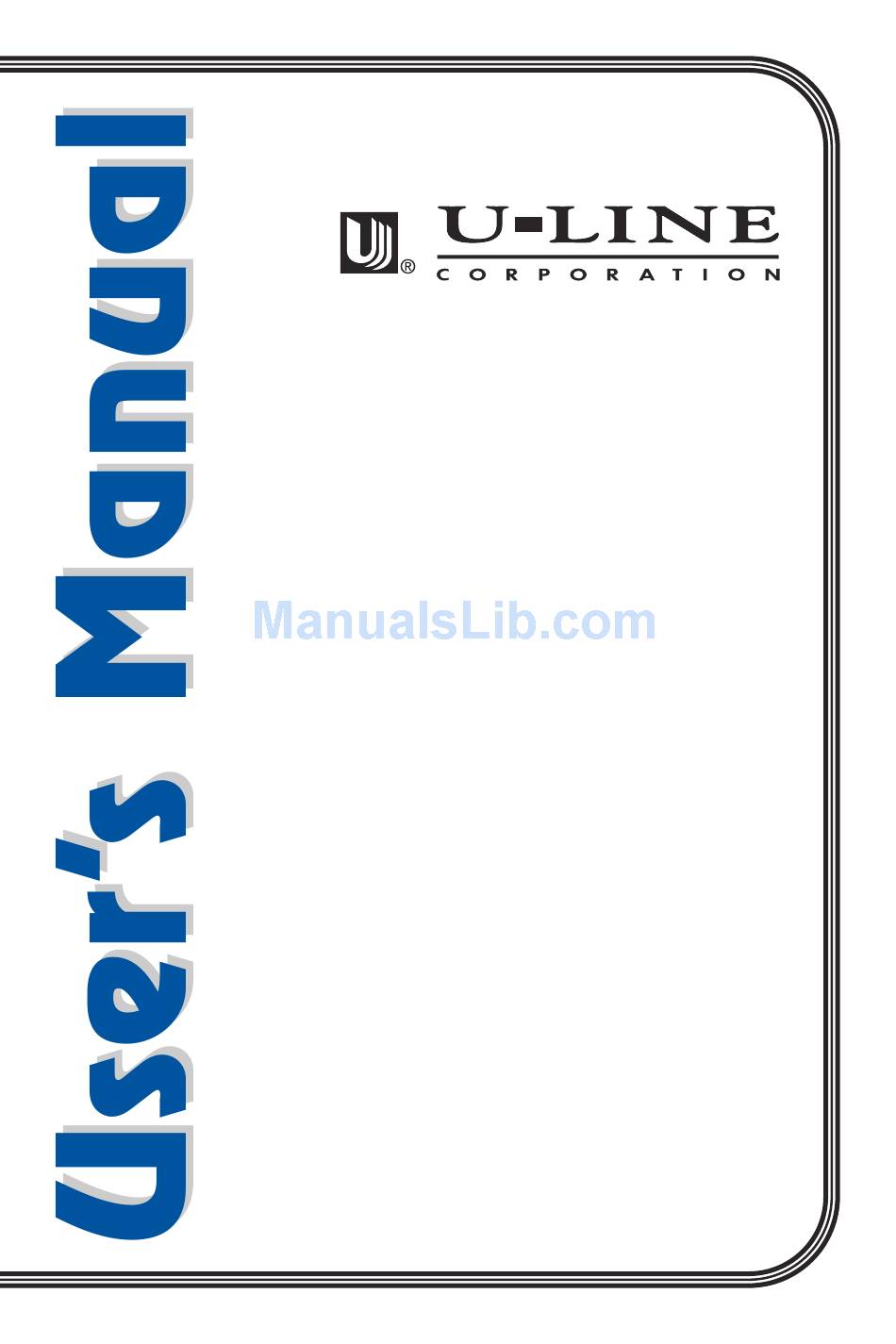

ICE-MAKERS,
COMBOS,
REFRIGERATORS,
75 BEV BEVERAGE
CENTER

Advertisement

Table of Contents
loading

Frequently Asked Questions (13)

  • Why is my U-Line ice maker not producing ice?

    If your ice maker is not producing ice, it could be due to one of the following reasons:

    • Bin arm locked in upright position: You should lower the bin arm.
    • No water to unit: You need to turn on the water or contact a plumber.

    For more information, see page 53 of the manual.
    Was this helpful?
  • How do I clean my U-Line ice maker?

    To clean your U-Line ice maker, follow these steps:

    • Exterior Cleaning: Clean the door, grille and cabinet with a mild detergent and warm water solution, using a soft sponge and rinsing with clean water. Wipe with a soft, clean towel to prevent water spotting. For stainless steel models, use a mild detergent and warm water solution with a damp cloth, avoiding abrasive cleaning agents.
    • Interior Cleaning: Disconnect power to the unit. Remove all inside racks and shelves. Wipe down the interior, racks and shelves with a solution of mild detergent and warm water. Rinse thoroughly with clear water and reconnect power. Do not use solvent-based or abrasive cleaners on the interior, and do not place any components in a dishwasher.
    • Condenser Cleaning: Every three months, keep the front grille free of dust and lint. Clean the condenser coil behind the front grille using a brush or vacuum cleaner to remove dirt and lint. Disconnect electric power before cleaning the condenser.
    • Solenoid Valve Inlet Screen Cleaning: At least once each year, shut off the water at the supply valve. Remove the entire hose connector from the solenoid valve. Use a toothbrush to clean sediment from the inlet screen without removing the screen. Reattach the hose connector to the solenoid valve, tighten securely with pliers, and open the water supply valve, checking for leaks.
    Was this helpful?
  • What are common troubleshooting steps if my U-Line ice maker is not working?

    If your unit appears to be malfunctioning, first refer to the NORMAL OPERATION section. If the problem persists, consult the TROUBLESHOOTING GUIDE to identify the problem and its remedy. This guide helps resolve simple issues without needing a service call. Common issues and their solutions include:

    • No interior light: The bulb may be loose or burned out. Tighten or replace the bulb.
    • Light won't go out when door is closed: The light on/off switch might be turned to ON. Turn the switch to OFF.
    • Unit not cold enough: This could be due to blocked airflow to the front grille, the temperature not being set cold enough, or the door being left open causing frost. Ensure airflow is not obstructed, set the control knob clockwise for colder temperatures (allowing 24 hours to stabilize), or manually defrost the evaporator.
    • Unit frosts up: If it's a manual defrost model, you may need to defrost it manually. If the door gasket is not sealing properly, adjust the door. High ambient temperatures or humidity can also cause frosting.
    • Water leaking out the back: A leaking water supply connection is a possible cause. Tighten the fitting.
    • Ice cubes sticking together: This can happen with infrequent use of cubes. Break apart the cubes by shaking the bucket.
    • Noise during operation: Copper water supply tubing may be contacting internal components. Carefully bend the tubing away. Some soft sounds from the fan and water/dropping sounds from the ice maker are normal. If a fan blade is touching an obstruction, remove the obstruction.
    • No ice: The bin arm might be locked in an upright position, or there might be no water to the unit.
    • Not enough ice: The control might be set too cold, or the ice cube size might be too large.
    • Water leaks into ice bucket: The water level might be set too high.
    • Fresh food section on Combo units too cold: The ice bucket might not be fully inserted, or the flap door not closed correctly.
    • Unit too cold: The temperature control might be set too cold. Set the control to a warmer setting.
    Was this helpful?
  • Why is my U-Line ice maker not getting cold enough?

    If your ice maker is not getting cold enough, the reasons and solutions are:

    • Airflow to front grille blocked: Ensure airflow is not obstructed to the front grille.
    • Temperature not set cold enough: Turn the control knob clockwise to set the temperature colder and allow 24 hours for the temperature to stabilize.
    • Door left open causing evaporator to fill with frost: Turn off the unit to manually defrost the evaporator.

    For more information, see page 52 of the manual.
    Was this helpful?
  • What causes a U-Line ice maker to stop pumping water?

    If your U-Line ice maker is not producing ice due to no water reaching the unit, you should turn on the water or contact a plumber.

    Was this helpful?
  • How often should I clean my U-Line ice maker?

    The frequency of cleaning depends on the specific part of your U-Line ice maker:

    • Condenser: Clean the condenser every three months.
    • Solenoid Valve Inlet Screen: Clean the solenoid valve inlet screen at least once each year.
    • Manual Defrost Models: Defrost these models approximately every eight weeks, or whenever frost thickness is 1/4 inch or greater. This interval may need to be shortened with high humidity or heavy usage.
    Was this helpful?
  • How long does it take for a U-Line ice maker to produce its first batch of ice?

    The approximate time for the first ice cycle is 45 minutes. For Frostfree models, allow two hours.

    Was this helpful?
  • Where should I install my U-Line ice maker for optimal performance?

    For optimal performance, install your U-Line ice maker in the following manner:

    Was this helpful?
  • How do I properly shut down my U-Line ice maker?

    To properly shut down your U-Line ice maker for long-term storage or extended periods of non-use, follow these steps:

    • Remove all contents from the unit.
    • Shut off the water supply at the main water source.
    • Disconnect the water supply line from the solenoid valve.
    • Disconnect the water line from the solenoid valve outlet and drain the system of water.
    • Allow the unit to run for one hour or more until all remaining ice cubes have been ejected from the ice maker assembly.
    • Remove all ice from the ice bucket.
    • Dry out excess water from the ice maker assembly and ice bucket.
    • Prop the doors open at least 2 inches to allow for air circulation and prevent mold and mildew.
    • Disconnect the unit from the main electrical power source.
    • Leave the water supply line and power cord disconnected until ready to reuse. The use of anti-freeze or similar products is not necessary or recommended.

    For more information, see page 50 of the manual.
    Was this helpful?
  • What is the correct procedure to start up my U-Line ice maker?

    To start up your U-Line ice maker, follow these steps:

    U-Line recommends allowing the unit to run overnight and make ice before loading with product. It is also recommended to throw away all ice cubes made during the first two to three hours of operation, as dirt or scale may dislodge in the water line.

    Was this helpful?
  • How do I prepare my U-Line ice maker for long-term storage or winterization?

    To prepare your U-Line ice maker for long-term storage or extended periods of non-use, follow these steps:

    • Remove all contents from the unit.
    • Shut off the water supply at the main water source.
    • Disconnect the water supply line from the solenoid valve.
    • Disconnect the water line from the solenoid valve outlet and drain the system of water.
    • Allow the unit to run for one hour or more until all remaining ice cubes have been ejected from the ice maker assembly.
    • Remove all ice from the ice bucket.
    • Dry out excess water from the ice maker assembly and ice bucket.
    • Prop the doors open at least 2 inches to allow for air circulation and prevent mold and mildew.
    • Disconnect the unit from the main electrical power source.
    • Leave the water supply line and power cord disconnected until ready to reuse. The use of anti-freeze or similar products is not necessary or recommended.

    For more information, see page 50 of the manual.
    Was this helpful?
  • What is the ideal ambient temperature for a U-Line ice maker to operate efficiently?

    The surrounding ambient air temperature for a U-Line ice maker must be at least 50°F (10°C) but must not exceed 110°F (40°C). Operating in high ambient temperatures (110°F or higher) may reduce the unit's ability to reach low temperatures and may also reduce the ice production rate.

    Was this helpful?
  • What is the normal operating noise level for a U-Line ice maker?

    Certain sounds are normal during the unit's operation. You may hear the compressor or fan motor, the water valve, sounds of defrost, or ice dropping into the ice bucket. Soft sounds from the fan and water/dropping sounds from the ice maker will be heard.


    For more information, see pages 39 and 52 of the manual.
    Was this helpful?
Need help?

Need help?

Do you have a question about the ICE-MAKER and is the answer not in the manual?

Questions and answers

Mark Hopper
June 23, 2025

how do I turn off my ice maker

-1
1 comments:
Mr. Anderson
August 22, 2025

To turn off the U-Line ice maker, use the ON-OFF switch located behind the front grille. Access the switch through a small opening at the top of the grille. On some models, you can also turn it off by rotating the temperature control all the way toward the warmer setting until it clicks.

This answer is automatically generated

0

Related Manuals for U-Line ICE-MAKER

Summary of Contents for U-Line ICE-MAKER

  • Page 1 ICE-MAKERS, COMBOS, REFRIGERATORS, 75 BEV BEVERAGE CENTER...
  • Page 2 (consisting of the compressor, the condenser, the evaporator, the hot gas bypass valve, the dryer and the connecting tubing) in each U-Line product to be free from defects in materials and workmanship for a period of five years from the date of purchase. During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s...

  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase of your U-Line product. A pioneer in the field for more than 40 years, U-Line is the world’s number one man- ufacturer of built-in, under-counter ice making and specialty refrigera- tion products. U-Line dedicates 100% of its research and development to these products.
  • Page 4 You may also register the product online at www.U-LineService.com. If you do not return your Product Registration Card, U-Line will use the date of sale to the U-Line distributor as the first date of warranty for your unit.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION...1 SAFETY PRECAUTIONS ...4 INSTALLATION ...7 LEVELING THE UNIT ...10 CONNECTING THE WATER SUPPLY – ICE MAKER MODELS ONLY ..12 GRILLE INSTALLATION ...15 GLASS SHELF INSTALLATION...18 BUILT-IN INSTALLATION...19 CUSTOM DOOR PANEL INSERT...20 WINE RACK REMOVAL/INSTALLATION...25 REVERSING THE DOOR ...26 REVERSING A STAINLESS STEEL DOOR...31 ALIGNING THE DOOR...32 WINE RACKS –...

  • Page 6: Safety Precautions

    User’s Manual SAFETY PRECAUTIONS Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type. DEFINITIONS This is the safety alert symbol.
  • Page 7 GENERAL PRECAUTIONS Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so that children may not easily climb inside. • Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
  • Page 8 DO NOT use any type of electrical heater to defrost. • Use only genuine U-Line replacement parts. Imitation parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty.

  • Page 9: Installation

    SITE PREPARATION Your U-Line product is designed to be installed in a wall or under a counter or freestanding. The 75 BEV must be ordered for right or left hand door. The 75 BEV doors are not reversible. Any reference to revers- ing the door, does not apply to the 75 BEV.
  • Page 10 8. Connect the water supply line. See CONNECTING THE WATER SUPPLY for installation requirements. These U-Line products are designed so they can be installed next to a wall on either side (Figure 1). DANGER CABINET...
  • Page 11 Keep in mind that the door of the unit may be mounted on either side of the cabinet (see REVERSING THE DOOR) except for the 75 BEV. All U-Line units have a zero clear- ance for the door to open when the hinge is on the right, except for Stainless Steel Doors.

  • Page 12: Leveling The Unit

    User’s Manual LEVELING THE UNIT It is important that these units, primarily the ice maker assembly and 75 BEV are level. All 75 and 15 Series units are equipped with adjustable feet for leveling and height adjustment (Figure 3). All other units have rubber feet.
  • Page 13 4. Place the unit in position where it is to be installed. Re-check cabinet height and levelness (Figure 4) and adjust if necessary. LEVEL TWO PLACES TURN FOOT TO ADJUST Figure 3 Figure 4 UL105 UL135...

  • Page 14: Connecting The Water Supply - Ice Maker Models Only

    However, make certain that the tubing is not pinched or damaged during installation. • U-Line recommends the use of copper tubing for installation. On BI-95 and BI-98 models, the water line is inserted through the hole in the rear of the unit to connect to the solenoid valve in the front (Figure 5).
  • Page 15 1. Locate the compression fitting and ferrule packed in the unit. Slide the compression fitting and ferrule over the 1/4" outside diameter water supply line. Do not use thread sealing com- pound or tape. Using two wrenches, tighten the compres- sion fitting on the supply line (see Figure 6).
  • Page 16 User’s Manual WATER LINE UL104 Figure 9 NOTE On BI-95 and BI-98 models, route the water supply line through the unit so it does not come into contact with any internal components other than the solenoid valve (Figure 9). Normal operation creates some vibration. A water supply line contacting an internal component or cabinet wall can cause excessive noise during operation or damage to the line.

  • Page 17: Grille Installation

    After completing the installation, turn on the water and recheck water connection for leaks. Apply additional tight- ening if needed. Do not use thread sealing compound or tape. 4. Plug in the power cord. 5. Gently push the unit into position. GRILLE INSTALLATION 1.
  • Page 18 User’s Manual 4. Place the two hook-hinges (located on the rear bottom side of the grille) on the front lip of the unit base. Swing the grille up into posi- tion, aligning the grille and cabinet screw hole (Figure 12). 5.
  • Page 19 95 AND 98 MODELS 1. With a standard blade screwdriver (or 1/4" nutdriver), remove the screw needed to attach the grille (see Figure 13). 2. Carefully remove the grille from inside the unit. Locate the screw hole at the top, middle recessed section of the grille.

  • Page 20: Glass Shelf Installation

    User’s Manual GLASS SHELF INSTALLATION (for models with Glass Shelves) 1. Carefully remove the glass shelves from the packaging. 2. Slide the shelves onto lower two sets of ribs, making sure the sil- ver edge strip is toward the front of the unit and the decorative graphics are on the underside of the shelves.

  • Page 21: Built-In Installation

    BUILT-IN INSTALLATION Your U-Line product is designed to be built-in or freestanding. When built-in, they do not require additional air space for the top, sides, or rear. However, the front grille must NOT be obstructed. Required for ease of installation and door opening, you must allow an additional 1/4"...

  • Page 22: Custom Door Panel Insert

    The SP18 and 75 BEV models are not designed to accept custom door panels. A custom door panel can be installed on your U-Line unit to harmonize with or accent the surrounding decor. The door will accept a flat or raised panel. The maximum panel thick- ness where inserted into the door reveal (channel) is 1/4”...
  • Page 23 Install the insert as follows: Insert edges may be SHARP! Use care when installing. 1. Remove top hinge screw pin (large Phillips head, Figure 18). Hold door to keep it from falling. 2. Remove door, being careful not to scratch top of door on hinge. 3.
  • Page 24 User’s Manual Use care not to bend light switch bracket (where installed), located on door bottom when installing door insert. Do not set door on bottom edge when pushing insert into place. 6. Slide custom door panel insert into 1/4" channel in door front. 7.
  • Page 25 To add a final finish coat: 1. Remove the top two racks. See WINE RACK REMOVAL/ INSTALLATION. 2. Remove screws securing wood trim to the two racks attached at the drawer slides so wood can be removed for treatment. 3. Lightly scruff sand the wood trim with 280 grit 3M™ Tri-M-Ite™ sandpaper.
  • Page 26 User’s Manual To stain for a different wood color: 1. Remove the top two racks. See WINE RACK REMOVAL/ INSTALLATION. 2. Remove screws securing wood trim to the two racks attached at the drawer slides so wood can be removed for treatment. 3.

  • Page 27: Wine Rack Removal/Installation

    WINE RACK REMOVAL/INSTALLATION To remove the wine racks for cleaning or refinishing: 1. Grasp the end of the wine rack, sliding it out and up. 2. Clean wine rack with a clean dampened cloth. To insert the wine racks: 1. Position the wine rack above the shelf channel where the rack is to be inserted (Figure 21).

  • Page 28: Reversing The Door

    User’s Manual REVERSING THE DOOR Depending upon the location of the unit, it may be desirable to change the side on which the door is mounted. On Combo Models 29A and 29FF (built-in installations only), changing the door mounting to the left side may interfere with ice bucket removal.
  • Page 29 Figure 24 Figure 25 6. Relocate plastic spacer/bushing on bottom of door to opposite side, and place door on bottom hinge pin (Figure 27). Clean out bushing hole in door bottom with a screwdriver if needed. 7. Remove plastic hole plug from door handle and relocate on oppo- site side (Figure 28).
  • Page 30 User’s Manual 8. Remove pivot screw from top hinge, invert screw and reinstall pivot screw in top hinge (Figure 28). RIGHT SIDE DOOR SWING PLASTIC PLUG HOLE RIGHT SIDE HINGE 9. Remove three plastic screw plugs in hinge holes, top of cabinet, opposite side.
  • Page 31 12. Adjust door to assure proper seal. Tighten upper hinge screws securely. 13. Replace three plastic plugs removed in step 8 into holes on top of unit. Replace screws in holes in bottom of unit, opposite side. 14. Reinspect door seal and alignment. Adjust if needed. 15.
  • Page 32 User’s Manual 8. Install bottom hinge on cabi- cabinet, opposite side, align- ing flat edge of hinge with outer edge of unit. Partially tighten screws (Figure 32). 9. Relocate plastic spacer/ bushing on bottom of door to opposite side (Figure 27). Clean out bushing hole in door bottom with a screw- driver if needed.

  • Page 33: Reversing A Stainless Steel Door

    REVERSING A STAINLESS STEEL DOOR Stainless Steel models are field reversible for left or right hand opening. The door opening is easily reversed by moving the hinge hard- ware to the opposite side (Figure 33) as follows: 1. Remove (two screws) from door. 2.

  • Page 34: Aligning The Door

    User’s Manual ALIGNING THE DOOR For proper door alignment: UL109 Figure 34 1. Loosen top and bottom hinge screws (Figure 34). 2. Align door squarely with cabinet. 3. Make sure the gasket is firmly in contact with cabinet all the way around the door (no gaps).

  • Page 35: Wine Racks - 75 Bev

    When inspecting door alignment, make sure the light switch bracket makes contact with the light switch plunger (Figure 35). Also, make sure the door gasket is not pinched on the hinge side of the door. WINE RACKS – 75 BEV The two wine racks in the 75 BEV are designed for storage as well as for display purposes.

  • Page 36: Initial Start-Up And Adjusting The Temperature Control

    INITIAL START-UP AND ADJUSTING THE TEMPERATURE CONTROL U-Line recommends the unit be allowed to run overnight and make ice on ice-maker models prior to loading with product. It is possible that dirt or scale will dislodge in the water line.

  • Page 37: Temperature Control

    Allow unit temperature to stabilize for 24 hours before use. 4. Open the water supply valve in the main water source. As soon as the ice maker mold reaches the proper temperature, the ice maker mechanism will fill the mold with water. The first cubes may be small because of air in the water line.
  • Page 38 User’s Manual Factors which affect the internal temperatures of the cabinet include: 1. Temperature setting. 2. Room temperature where used or installed. 3. Number of times the door is opened and closed. 4. Amount of time the internal light is illuminated. This affects primarily wines on the top racks.

  • Page 39: Normal Operation

    NORMAL OPERATION On units with refrigerator sections, the unit has been designed to achieve a fresh food temperature of approximately 38°F. Units with with a freezer section (ice maker) are designed to have a freezer temperature of approximately 15°F. On units with ice makers, when the ice bucket is full, the ice making mechanism will shut off.
  • Page 40 User’s Manual If ice maker is not used regularly, the ice bucket should be emptied periodically to ensure fresh cubes. It is normal for cubes to appear cloudy. This is caused by air being trapped in the water due to fast freezing. It has nothing to do with the health, taste or chemical make-up of the water.

  • Page 41: Marine Use

    Many U-Line models are designed to operate in a harsh marine environment. Special considerations include the following: • For best performance, keep the unit out of direct sunlight. • On Ice Maker models, turn the unit OFF and dispose of any ice cubes if the unit will not be used for five days or more.

  • Page 42: Adjusting Ice Cube Size

    User’s Manual ADJUSTING ICE CUBE SIZE On models equipped with an ice maker, the cube size may be adjusted by changing the amount of water injected into the ice maker assembly. 1. Remove the ice maker assembly cover (Figure 39). 2.

  • Page 43: Light Switch And Bulb

    Use only genuine U-Line replacement parts. U-Line ice maker parts are not the same as standard FSP Whirlpool parts. Using non U-Line parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty. Using non U-Line parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty.

  • Page 44: Light Bulb Replacement

    User’s Manual LIGHT BULB REPLACEMENT Light bulb replacement is simple. 1. Remove the light housing cover by sliding the cover toward the tab, swinging the end opposite the tab down and pulling down and away (Figure 41). 2. Replace bulb with genuine ULine replacement. Do not use any other replacement bulb than the one recommended.

  • Page 45: Proper Storage And Stocking Recommendations

    PROPER STORAGE and STOCKING RECOMMENDATIONS Your Beverage Center will accommodate up to 16 bottles (750 ML size) on the wine racks: up to eight bottles on each rack. Specially designed wine racks allow for the proper horizontal storage and pre- sentation of the wine.

  • Page 46: Cleaning & Maintenance

    User’s Manual CLEANING & MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets, the unit is used outdoors, or other special considerations. Exterior Cleaning –...
  • Page 47 Condenser Cleaning – Every Three Months Disconnect electric power to the unit before cleaning the condenser or the solenoid valve. Keep the front grille free of dust and lint to allow air to flow to the con- denser (Figure 43). Clean the condenser coil, located behind the front grille.
  • Page 48 User’s Manual DO NOT touch the condenser fins. The condenser fins are SHARP and can be easily damaged. 4. Clean the condenser coil using a soft brush with a “combing” action or vacuum cleaner. Do not touch the condenser coil. The condenser coil may be located on either the right or left side of the base.

  • Page 49: Defrosting

    3. Use a tooth brush to clean sediment from the inlet screen (Figure 46). DO NOT remove the screen. 4. Attach the hose connector to the solenoid valve. Tighten connec- tor securely with pliers. Open the water supply valve and check for leaks at the hose connector.

  • Page 50: Storage

    User’s Manual If the unit is to be stored or not used for extended periods: 1. Remove all contents from the unit. 2. Shut off water supply at the main water source. 3. Disconnect the water supply line from the solenoid valve. 4.

  • Page 51: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through NORMAL OPER- ATION first. If the problem persists, check the TROUBLESHOOTING GUIDE. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem could be something very simple which can be solved without a service call.
  • Page 52 User’s Manual Problem The unit is not Airflow to front grille cold enough (cont.) blocked Temperature not set cold enough The unit is not cold The door was left open enough (Frost free causing the evaporator units only) behind the back wall to fill with frost preventing proper air flow and cooling.

  • Page 53: If Service Is Required

    REPLACEMENT PARTS Use only genuine U-Line replacement parts. Genuine U-Line parts are designed to work correctly with U-Line products and offer superior ser- vice life. The use of non-U-Line parts can damage the unit and may void the warranty. Possible Cause Lower bin arm.

  • Page 54: Specifications

    User’s Manual SPECIFICATIONS Ice Production Model Unit Type Capacity Number (per day) SP18 18 lbs. (8 kg) BI-95 23 lbs. (10 kg) Makers BI-98 25 lbs. (11 kg) 22.5 lbs. (10 kg) Combos 29FF 8 lbs. (4 kg) 22 lbs. (10 kg) Refrigerators Beverage 75 BEV...
  • Page 56 P .O. Box 245040 Milwaukee, WI 53224-9540 Phone 414.354.0300 FAX 414.354.7905 www.U-Line.com Printed in U.S.A. P/N 30035...
