Page 1: Installation Guide

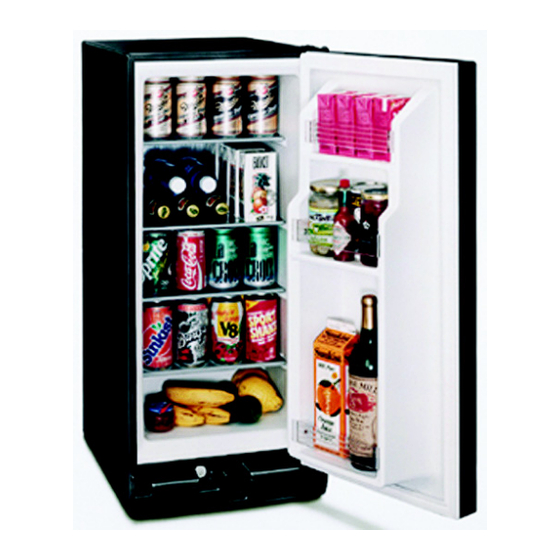

Installation Guide 15R Refrigerator ® and 15WC Wine Captain www.U-LineService.com Phone (414) 354-0300 • FAX (414) 354-7905 Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696 OnlineService@U-Line.com ©2005 U-Line Corporation 02/2005... -
Page 2: Table Of Contents
Contents Exterior Cleaning ......Cut-Out Dimensions ......Product Dimensions . -
Page 3: Inspect And Plan
15R and 15WC Models 2 Inspect and Plan You have received a carton containing your 15R Refrigerator or 15WC Wine Captain inside containing a User Manual and a Product Registration Card. Complete and mail the Product Registration Card or register online at www.U-LineService.com. -
Page 4: Exterior Cleaning
15R and 15WC Models 3 Prepare Site Your U-Line product has been designed for either free- standing or built-in installation. When built-in, your unit does not require additional air space for top, sides or rear. However, the front grille must NOT be obstructed and clearance is required for electrical connection in the rear. -
Page 5: Product Dimensions
Door Swing/Clearances Information Black 15R units have a zero clearance for the door to open 90° (see Figure 3). U-line recommends a minimum clearance of 1/4” for black units and 11/16” for Stainless units to accommodate the handle if the unit is installed next to a wall or similar type of structure. -
Page 6: Reversing The Door
Note: The grille should not yet be installed. If it has been installed, remove it for door reversing. See Page 11. To reverse the door on Black 15R Refrigerator models: 1. Remove top hinge from cabinet (three screws). See Figure 4. Hold door to keep it from falling. -
Page 7: Other Site Requirements
Stainless 15R Units and All 15WC Units Note: The grille should not yet be installed. If it has been installed, remove it for door reversing. See Page 11. Stainless 15R Refrigerator models and Black and Stainless 15WC Wine Captain models are reversible by... -
Page 8: Side-By-Side Installation Instructions
If this treatment is not included in this installation, go on to 5 Adjust Door. Custom 1/4'' Thick Door Panel Insert (15R Refrigerator Units Only) Door Panel Preparation A custom door panel can be inserted into the doorframe. Custom door panels can be flat or raised, as long as the maximum panel thickness where inserted into the door reveal (channel) is 1/4"-thick. -
Page 9: Checking Door Alignment
Figure 16 Figure 17 3. Pull door gasket out of groove (top edge of door only). Start in the middle and pull outward, moving toward the edge (see Figure 16). This may take some force. 4. Remove two outside screws holding door handle. -
Page 10: Electrical Specifications
6 Prepare Power Supply Electrical Specifications CAUTION Electrical installation must observe all state and local codes. This unit requires connection to a grounded (three- prong), polarized receptacle that has been placed by a qualified electrician. The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A power supply (normal household current). -
Page 11: Installation Of The 15R/15Wc
Figure 24 5. Insert the screw. Do not overtighten. 6. Reinstall control knob. Glass Shelf Installation (15R Refrigerator Only) 1. Carefully remove the glass shelves from the packaging. 2. Slide the shelves onto lower sets of ribs, making sure the decorative graphics are on the underside of the shelves. -
Page 12: Initial Start-Up
See the User Manual’s Troubleshooting Guide for more solutions. For more than four decades, U-Line has distinguished itself as the leader in built-in undercounter ice making, refrigeration and wine storage appliances. U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in undercounter icemakers, Combo refrigerators, refrigerated drawers and refrigerator/freezers.
