REVERSING A STAINLESS STEEL DOOR

Stainless Steel models are field
reversible for left or right hand
opening. The door opening is easily
reversed by moving the hinge hard-
ware to the opposite side (see Figure
26) as follows:
1. Remove the bottom hinge (2
screws) from door.
2. Remove top hinge (2 screws)
from door.
3. Remove door.
4. Remove top hinge (4 screws)
from cabinet. Invert and install on
bottom, opposite side of cabinet.
5. Remove bottom hinge (4 screws)
from cabinet. Invert and install on
top, opposite side of cabinet.
6. Attach top hinge to door.
7. Attach bottom hinge to door.
8. Align as required to assure proper door seal.
For proper door alignment:
1. Loosen top and bottom hinge screws (see Figure 16).
2. Align door squarely with cabinet.
3. Assure gasket is firmly in contact with cabinet all the way around
the door (no gaps).
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.

ALIGNING THE DOOR

18

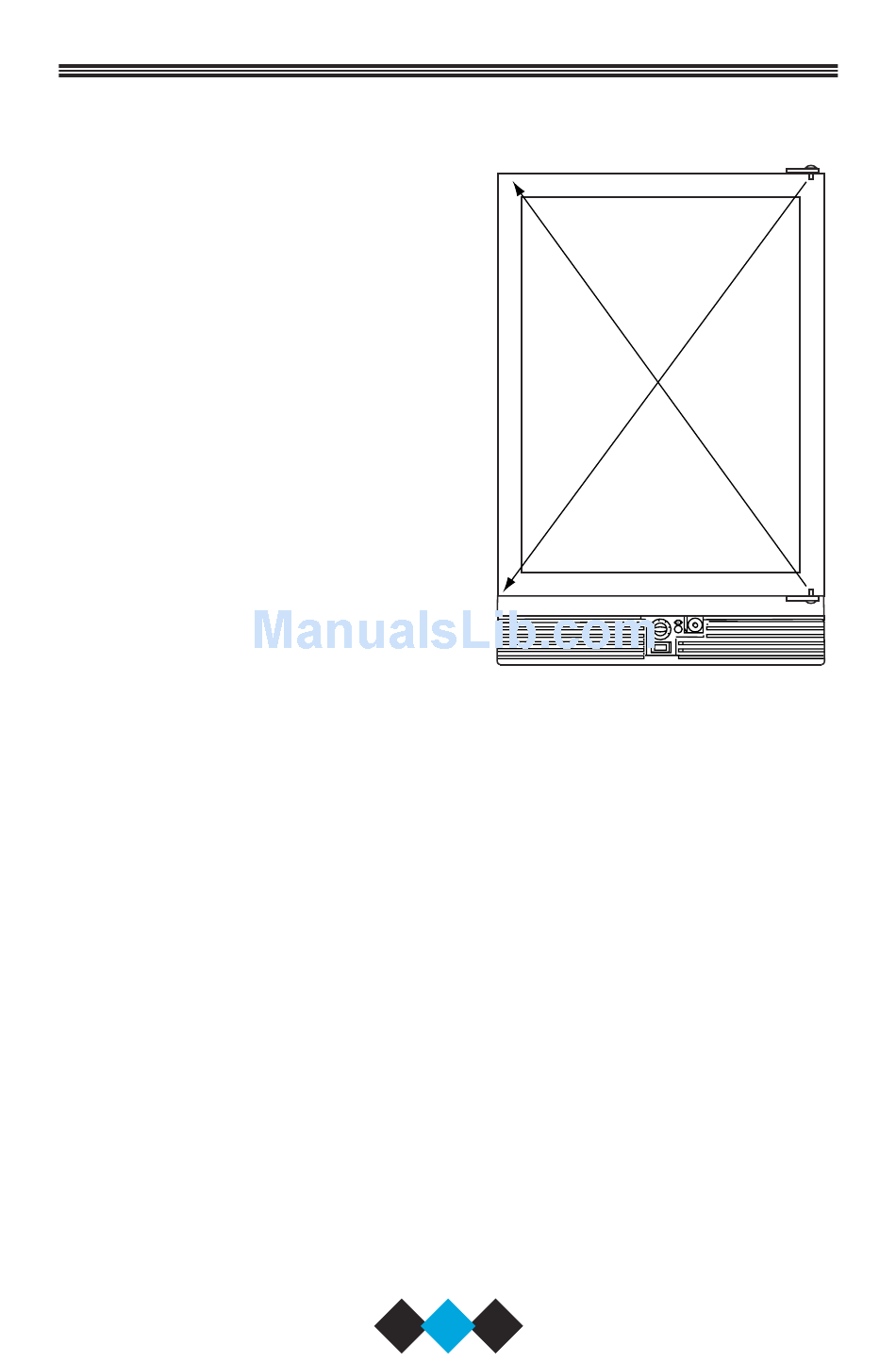

Figure 26
