95 AND 98 MODELS

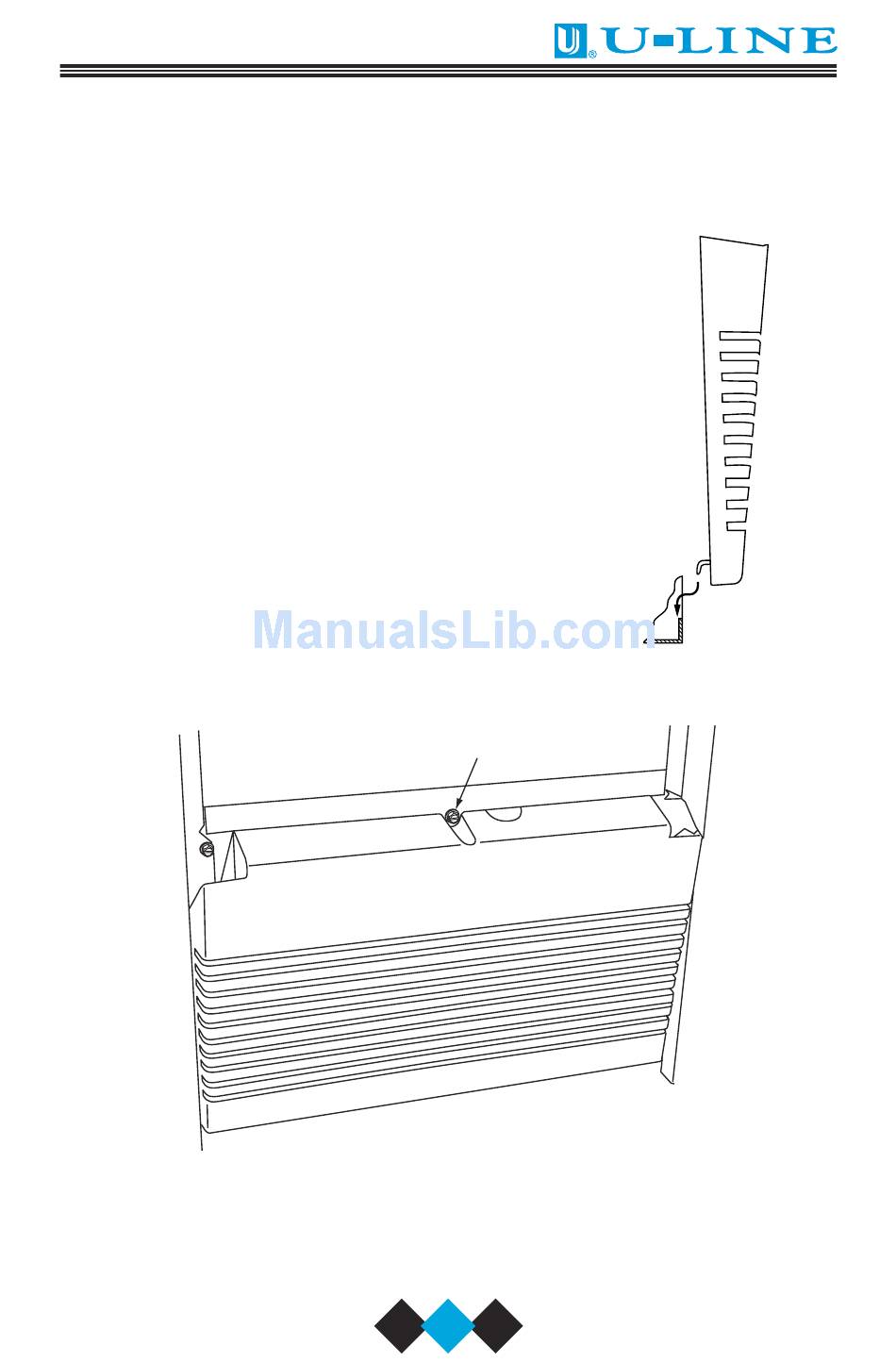

1. With a standard blade screwdriver (or 1/4" nutdriver), remove
the screw needed to attach the grille (see Figure 12).
2. Carefully remove the grille from inside the
unit. Locate the screw hole at the top,
middle recessed section of the grille.
3. Place the two hook-hinges (located on the
rear bottom side of the grille) on the front
lip of the unit base. Swing the grille up into
position, aligning the grille and cabinet
screw holes (see Figure 13).
4. Insert the screw, being careful not to over tighten.
GRILLE SCREW
Figure 13
11
UL501
Figure 12
UL502
