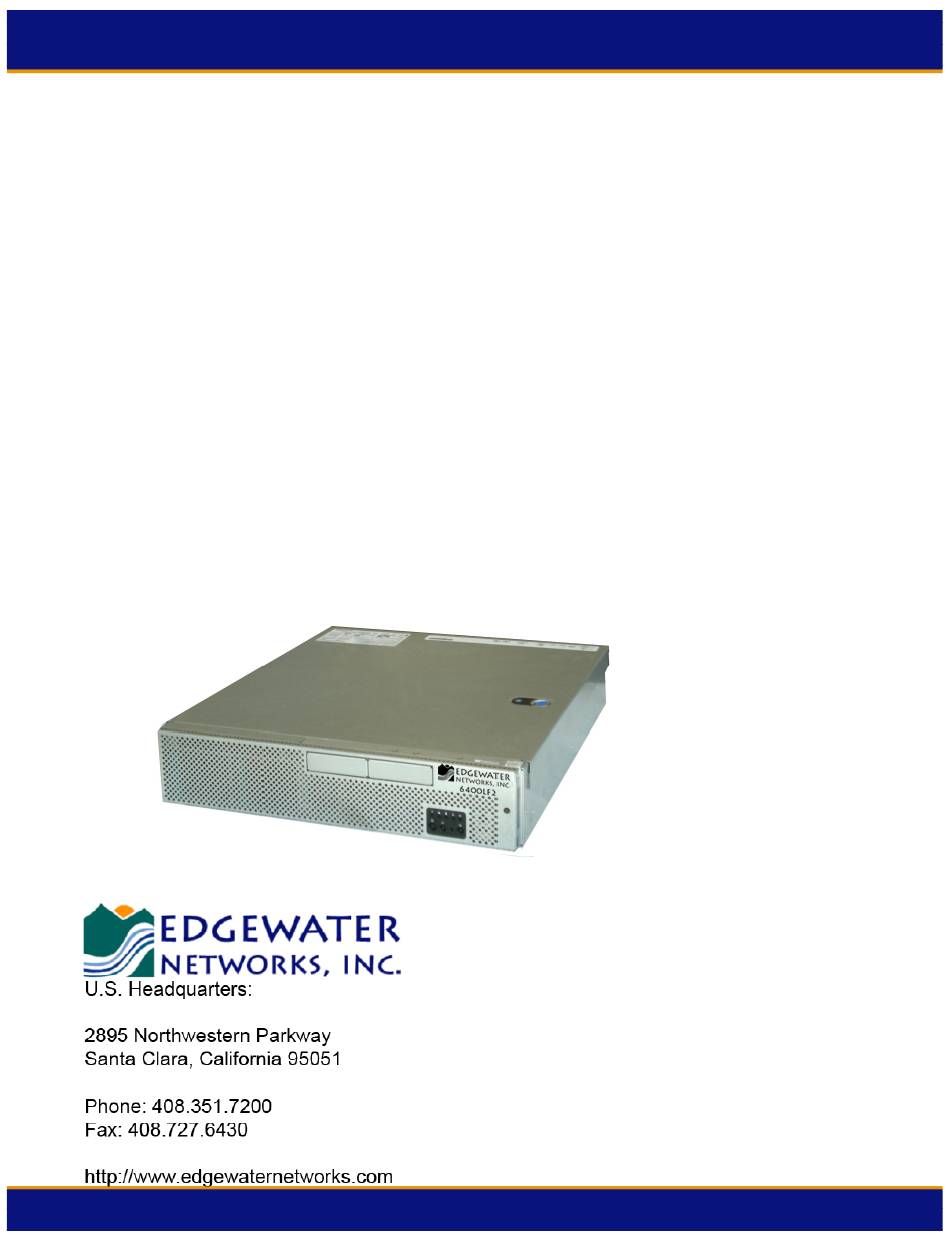

- Page 1 EdgeMarc 6400LF2 EdgeView 6400LF2 EdgeProtect 6400LF2 Quick Start Guide Version 1.0 Page 1 of 10 300-6400LF-001...
-
Page 2: Before You Start
Before You Start Please read this guide thoroughly as it describes the basic installation of the device. Additional configuration that is needed to deploy the device in a specific environment can be performed by using online help. This guide also provides an example of a typical 6400LF2 deployment that can be used as a guideline for your installation. -
Page 3: Step 1 − Connecting The Cables
Instructions Step 1 − Connecting the Cables Figure 1: 6400LF2 Back Panel 1. Connect one end of an Ethernet crossover cable to local LAN port 1 of 6400LF. This port can be seen in area “B” of Figure 1: 6400LF2 Front Panel. Connect the other end of the cable to your computer’s Ethernet port. - Page 4 c) Connect the positive and negative cables to their corresponding terminals, also located in area “A” of Figure 1: 6400LF2 Back Panel. d) Turn on the DC power supply for the 6400LF2. 5. Turn the power switch “on”, as shown in area “A” of Figure 2: 6400LF2 Front Panel (see the following page).
- Page 5 Page 5 of 10...
- Page 6 Step 2 − Configuring the 6400LF2 You can configure the 6400LF2 EdgeMarc and 6400LF2 EdgeProtect appliances using a simple web-based user interface. Configure the 6400LF2 EdgeView appliance using YaST, a pre-installed, LINUX-based system management tool. Configuring the 6400LF2 EdgeMarc and 6400LF2 EdgeProtect You can configure the 6400LF2 EdgeMarc and 6400LF2 EdgeProtect appliance using a web browser such as Internet Explorer or Netscape Navigator.
- Page 7 5. Select Network and start configuring the 6400LF2 appliance. Note For secure network management on an EdgeMarc or EdgeProtect 6400LF2 appliance, change the default user name and password as described in the VOS for EdgeMarc User Manual. Configuring the 6400LF2 EdgeView You can configure the 6400LF2 Edgeview appliance using YaST, a pre-installed, LINUX-based system management tool.
- Page 8 7. Continue to configure the EdgeView appliance as described in “Chapter 2. Getting Started” of the EdgeView 6400 User Manual. Page 8 of 10...
-
Page 9: Step 3 − Plan Your Configuration
Step 3 − Plan Your Configuration The EdgeMarc 6400LF2 can be deployed as a gateway router in a network. It can also be deployed in a network behind an existing firewall. Based on your deployment criteria, consult the following documents for further configuration: 6400LF2 EdgeMarc Hardware Installation Guide •... - Page 10 Edgewater Technical Assistance Center at 408.351.7255 for additional information or assistance. Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 info@edgewaternetworks.com Converged Networking. Simplified. All rights reserved. Copyright© 2008, Edgewater Networks, Inc. Page 10 of 10...
