EdgeMarc 250W
Network Services Gateway
Hardware Installation Guide
Version 1.0
Page 1 of 19
201-250AEW-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeMarc 250W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edgewater Networks EdgeMarc 250W

  • Page 1 EdgeMarc 250W Network Services Gateway Hardware Installation Guide Version 1.0 Page 1 of 19 201-250AEW-001...
  • Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
  • Page 3: Table Of Contents

    Contents Preface......................1
 Typographic Conventions ..............1
 Contact and Support Information ............2
 Overview ......................3
 Feature Summary................4
 Back Panel ..................5
 Front Panel..................7
 Getting Started ..................... 10
 Physical Installation................10
 Specifications ....................12
 Warranty Information ................... 13
 Hardware Warranty ................
  • Page 4: Preface

    Preface Thank you for purchasing the 250W Network Services Gateway. This Installation Guide describes the 250W hardware and installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide. Chapter or Appendix Description Chapter 1, Overview...
  • Page 5: Contact And Support Information

    EdgeMarc 250W Network Services Gateway Installation Guide Contact and Support Information Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 http://www.edgewaternetworks.com Phone: +1 (408) 351-7200 General Email: info@edgewaternetworks.com Sales Email: sales@edgewaternetworks.com Edgewater Networks, Inc. - Technical Assistance Center Phone: +1 (408) 351-7200 ext. 2 Support Email: support@edgewaternetworks.com...
  • Page 6: Overview

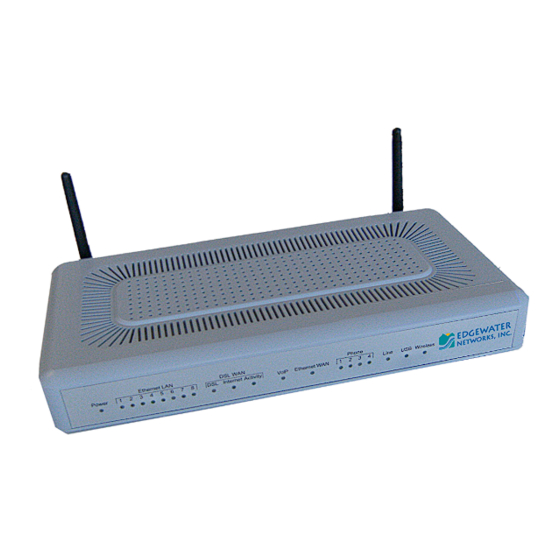

    The EdgeMarc 250W provides flexible and application ready low cost solutions. It is an ideal platform for managed services for the Small Office/Home Office (SOHO) environment. The 250W can also be deployed in applications such as Enterprise voice over IP.
  • Page 7: Feature Summary

    EdgeMarc 250W Network Services Gateway Installation Guide Feature Summary VoIP SIP ALG that allows a single public IP address to be used for multiple VoIP endpoints • Class based queuing/prioritization • Diffserv marking and policing • Traffic shaping • VoIP Call Admission Control (CAC) prevents oversubscription of priority queue •...
  • Page 8: Back Panel

    EdgeMarc 250W Network Services Gateway Installation Guide Back Panel Figure 1: 250W Back Panel Name Description Phone Four FXS ports (NOTE: These ports are not active or supported) ADSL WAN/ FXO Connects the 250W to a phone line supporting ADSL/ADSL 2/2+ Port standards.
  • Page 9 EdgeMarc 250W Network Services Gateway Installation Guide Name Description If pressed twice in quick succession, only the CLI password will be changed back to its original password. If pressed three times in quick succession, the EdgeMarc will revert back to the factory default settings. This will reset all passwords and erase all prior configurations.
  • Page 10: Front Panel

    EdgeMarc 250W Network Services Gateway Installation Guide Front Panel Figure 2: 250W Front Panel LED LED Label Activity Description Solid The device is powered. Power Green The device is not powered. Flashing Power-On Selt-Test is in Progress A device malfunction has occurred.
  • Page 11 EdgeMarc 250W Network Services Gateway Installation Guide LED Label Activity Description Attempting to synchronize the connection. Flashing Green Flashing Attempting to synchronize the connection after three Green & consecutive minutes has passed. Solid Red Flashing No DSL connection and no signal.
  • Page 12 EdgeMarc 250W Network Services Gateway Installation Guide LED Label Activity Description Not connected. VoIP Solid Data is being streamed using RTP forwarding to the Green connection. Note: In the case of LAN to LAN calls, the LED light is off because RTP forwarding is not present.
  • Page 13: Getting Started

    Getting Started Physical Installation The 250W is designed for desktop installation. Observe the following guidelines when installing the system: Always verify that the 250W is disconnected from a power source prior to installation. • Ensure that the installation site has adequate air circulation and meets the minimum •...
  • Page 14 EdgeMarc 250W Network Services Gateway Installation Guide 3. Enter the username “root” and the password “default” to log into the system. The following initial 250W main configuration menu should appear: 4. Click on “Network” under the “Configuration Menu” and start configuring the 250W.
  • Page 15: Specifications

    Specifications WAN Ports ADSL/ADSL 2/2+ or 10/100 Ethernet LAN Ports 8x10/100 Ethernet (Managed VLAN Switch) FXS Ports FXO Port 1 (integrated with ADSL WAN port) USB Port Wireless LAN 802.11b/g/n Dimensions Height 1“ (25.4 ), Width 1’ ( ), Depth 6” ( 304.8 mm 152.4 Weight...
  • Page 16: Warranty Information

    Warranty Information Hardware Warranty For a period of one (1) year after shipment of the product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater.
  • Page 17: Certification And Compliance

    If trouble is experienced with this equipment, Model 200 for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the telephone company may request...
  • Page 18 Caution This equipment contains no user-serviceable parts. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of Model 200 equipment does not disable your alarm equipment.
  • Page 19: Industry Canada (Ic) Notice

    Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.” WARRANTY AND REPAIR SERVICE CENTER: Bill Dunnion, +1 (613) 288-8872 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 Converged Networking.
