EdgeMarc 6400LF2
EdgeView 6400LF2
EdgeProtect 6400LF2
Hardware Installation Guide
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeMarc 6400LF2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edgewater Networks EdgeMarc 6400LF2

Summary of Contents for Edgewater Networks EdgeMarc 6400LF2

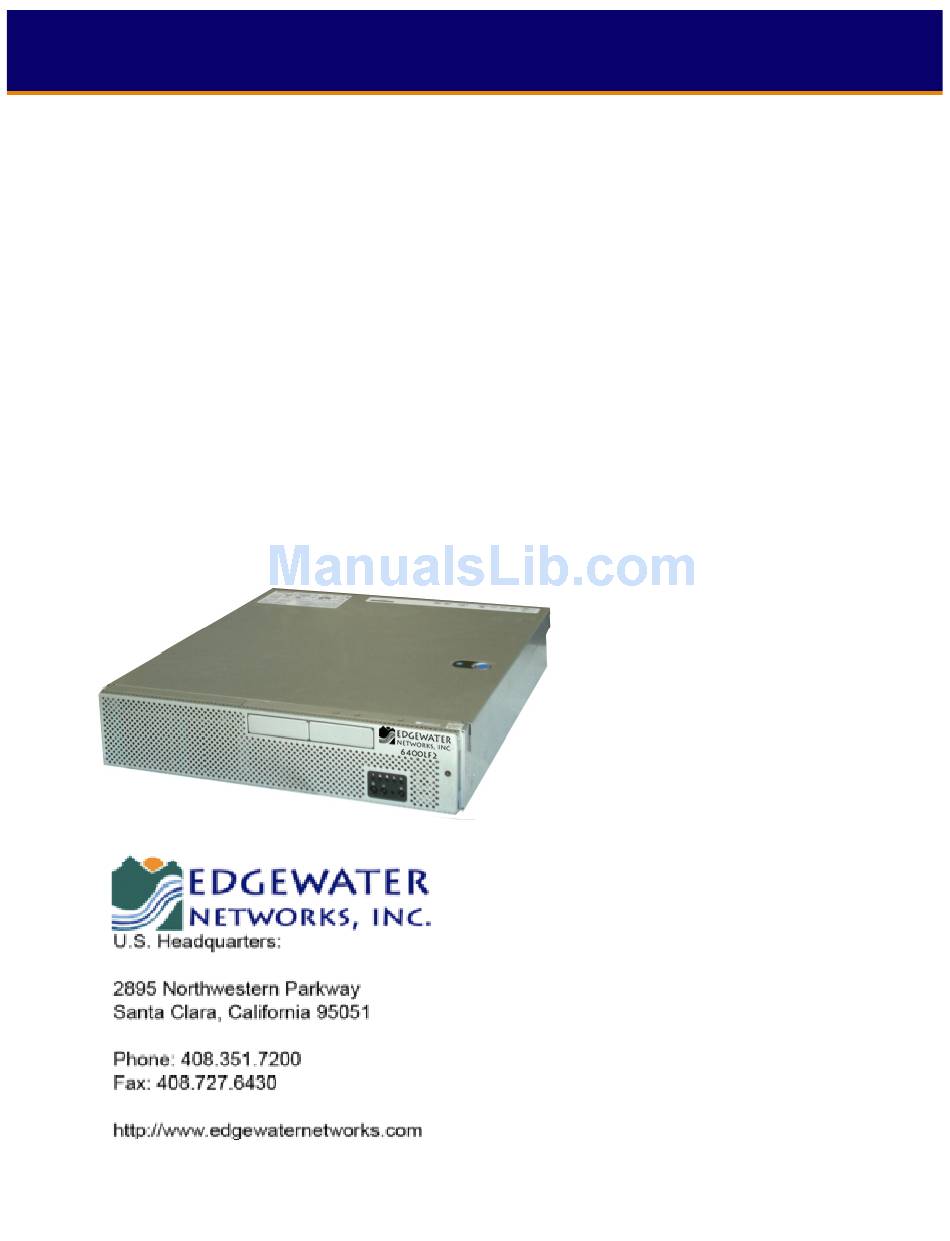

  • Page 1 EdgeMarc 6400LF2 EdgeView 6400LF2 EdgeProtect 6400LF2 Hardware Installation Guide Version 1.0...
  • Page 2 6400LF2 Hardware Installation Guide 100-4500-001...
  • Page 3 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.

  • Page 4: Table Of Contents

    Contents Preface ......................1 Typographic Conventions ..............1 Contact and Support Information ............2 Overview ....................... 3 EdgeMarc 6400LF2................3 Feature Summary..............3 EdgeView 6400LF2 ................4 EdgeProtect 6400LF2 ................. 4 Front Panel..................6 System Panel ..................7 Back Panel ..................8 Getting Started .....................

  • Page 5: Preface

    Preface Thank you for purchasing the 6400LF2 appliance. This Installation Guide describes the 6400LF2 hardware and installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide. Chapter or Appendix Description Chapter 1, Overview...

  • Page 6: Contact And Support Information

    Contact and Support Information Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 http://www.edgewaternetworks.com Phone: +1 (408) 351-7200 General Email: info@edgwaternetworks.com Sales Email: sales@edgewaternetworks.com Edgewater Networks, Inc. - Technical Assistance Center Phone: +1 (408) 351-7200 ext. 2 Support Email: support@edgewaternetworks.com...

  • Page 7: Overview

    Overview EdgeMarc 6400LF2 The EdgeMarc 6400LF2 converged networking router is an intelligent, all-in-one networking solution for enterprises and service providers. It reduces costs by simplifying the deployment, management and security of converged voice, video and data networks. The EdgeMarc 6400LF2 provides the following important functions for converged networks: Security •...

  • Page 8: Edgeview 6400Lf2

    6400LF2 Converged Network Appliance Installation Guide Class based queuing/prioritization • Diffserv marking and policing • Traffic shaping • VoIP call admission control prevents oversubscription of priority queue • Security Stateful packet inspection firewall • VoIP aware firewall dynamically provisioning and closing of UDP ports used for VoIP •...
  • Page 9 6400LF2 Converged Network Appliance Installation Guide In either service provider or enterprise environments, the EdgeProtect 6400LF2 is usually installed at the edge of the operations center to secure critical voice, video, and data infrastructure components such as VoIP softswitches, video gatekeepers, gateways, and media servers.

  • Page 10: Front Panel

    6400LF2 Converged Network Appliance Installation Guide Front Panel Figure 1: 6400LF2 Back Panel Name Description Storage Area 1 Slimline drive bay Storage Area 2 Two gigabyte ethernet ports Storage Area 3 Six 1” Hard disk drive bay or optional floppy drive bay System Control See Figure 2: 6400LF2 System Panel for more details.

  • Page 11: System Panel

    NOTE: Should never be pressed without the recommendation of support team of Edgewater Networks, Inc. NIC #1 Activity LED System Identification Button System Identification LED The blue system identification LED is used to help identify a system for servicing. This is especially useful when the system is installed when in a high-density rack or cabinet that is populated with several similar systems.

  • Page 12: Back Panel

    6400LF2 Converged Network Appliance Installation Guide Back Panel Figure 3: 6400LF2 Back Panel Description Description Low profile PCI add-in card slots NIC2 Connector Full height PCI add-in slots Video port Two power supply modules Two USB ports PS2 keyboard and mouse ports Management port RJ45 serial console port Diagnostic Post Code LEDs...

  • Page 13: Getting Started

    Getting Started Physical Installation The 6400LF2 is designed for rack installation. Observe the following guidelines when installing the system: Always verify that the 6400LF2 is disconnected from a power source prior to installation. • Ensure that the installation site has adequate air circulation and meets the minimum •...
  • Page 14 6400LF2 Converged Network Appliance Installation Guide Screw, #10-32 x ½-inch—qty. 8 Screw, hex head—qty. 6 Screw, #10-32 x 7/8-inch—qty. 2 Handle spacers—qty. 2 Nut bar—qty. 4 Chassis disks—qty. 2 Figure 4: Fastener Pack Contents...
  • Page 15 6400LF2 Converged Network Appliance Installation Guide Mounting in a Four-Post Rack System Remove the Chassis Handles 1. Remove two screws (Figure 2) from each handle. 2. Set the handles and screws aside for reattachment later. Figure 1: Removing a Handle from the Chassis...
  • Page 16 6400LF2 Converged Network Appliance Installation Guide Attach Brackets to Chassis 1. Place a chassis bracket along one side of the chassis in the front-mount position (Figure 1, A). 2. Align the holes (B) in the bracket with the tabs (C) on the chassis and place the bracket against the chassis.
  • Page 17 6400LF2 Converged Network Appliance Installation Guide Attach Disks to Chassis 1. Place a chassis disk at the side of the chassis towards the rear (see Figure 4, 2. Install screw (B) and tighten. 3. In the same manner, attach a chassis disk to the opposite side of the chassis. Chassis disk Hex head screw Figure 3: Attaching a Chassis Disk to the Chassis...
  • Page 18 6400LF2 Converged Network Appliance Installation Guide Attach Brackets to Rear Posts 1. Attach a nut bar (Figure 5, C) on the inside of the two rear rack posts using screws (A). Do not completely tighten the screws—leave them loose enough to allow insertion of the brackets in step 2.
  • Page 19 6400LF2 Converged Network Appliance Installation Guide 4. Install Chassis in Rack CAUTION Lifting the chassis and attaching it to the rack is a two-person job. If needed, use an appropriate lifting device. A fully loaded SR1400 server weighs approximately 13.9 kg (30.6 lbs.) and a fully loaded SR2400 server weighs approximately 23.4 kg (51.5 lbs.).
  • Page 20 6400LF2 Converged Network Appliance Installation Guide Chassis bracket Front post #10-32 x ½ - inch screw Nut bar Figure 6: Attaching a Front Bracket to a Front Post...
  • Page 21 6400LF2 Converged Network Appliance Installation Guide Install Chassis Handles NOTE: The handles are required to hold the bezel on. If you will not be installing a bezel, you do not need to install the handles. 1. Slide a handle (Figure 7, A) between the chassis and the chassis bracket. 2.
  • Page 22 6400LF2 Converged Network Appliance Installation Guide Mid-Mounting in a Two-Post Rack System Remove the Chassis Handles 1. Remove two screws (Figure 8) from each handle. 2. Save the handles and screws for possible future reattachment. You will not reattach them as part of this process. Figure 8: Removing a Handle from the Chassis...
  • Page 23 6400LF2 Converged Network Appliance Installation Guide Attach Brackets to Chassis 1. Place a mounting bracket (Figure 10, A) along one side of the chassis in the mid-mount position. 2. Align the holes (B) in the bracket with the tabs (C) on the chassis and place the bracket against the chassis.
  • Page 24 6400LF2 Converged Network Appliance Installation Guide Attach L Brackets to Center Posts 1. Position an L bracket (Figure 11, A) on the front side of the center post (C). 2. Attach the L bracket to the center post using the screws (B) supplied with your rack. Do not fully tighten at this time.
  • Page 25 6400LF2 Converged Network Appliance Installation Guide Install Chassis in Rack CAUTION Lifting the chassis and attaching it to the rack is a two-person job. If needed, use an appropriate lifting device. A fully loaded SR1400 server weighs approximately 13.9 kg (30.6 lbs.) and a fully loaded SR2400 server weighs approximately 23.4 kg (51.5 lbs.).
  • Page 26 6400LF2 Converged Network Appliance Installation Guide Chassis bracket in mid-mount position L bracket Screw Figure 12: Installing the Chassis in the Rack...
  • Page 27 6400LF2 Converged Network Appliance Installation Guide Front-Mount-Only in a Two-Post Rack System WARNING Your chassis’ rack mount kit provides the option for mounting the system in a two post front-mount-only configuration. However, mounting your chassis using this option is not recommended for use in most rack systems. If a front-mount-only configuration is desired, it is highly recommended that you verify through your rack vendor that your specific rack is designed to support the excessive weight and stresses this type of mounting configuration imposes on the rack.
  • Page 28 6400LF2 Converged Network Appliance Installation Guide Attach Brackets to Chassis 1. Place a mounting bracket (Figure 14, A) along one side of the chassis in the front- mount position. 2. Align the holes (B) in the bracket with the tabs (C) on the chassis and place the bracket against the chassis.
  • Page 29 6400LF2 Converged Network Appliance Installation Guide Attach L Brackets to Center Posts 1. Position an L bracket (Figure 16, A) on the backside of the center post (C). 2. Attach the L bracket to the center post using the screws (B) supplied with your rack. Do not fully tighten at this time.
  • Page 30 6400LF2 Converged Network Appliance Installation Guide Install Chassis in Rack CAUTION Lifting the chassis and attaching it to the rack is a two-person job. If needed, use an appropriate lifting device. A fully loaded SR1400 server weighs about 13.9 kg (30.6 lbs.) and a fully loaded SR2400 server weighs about 23.4 kg (51.5 lbs.).
  • Page 31 6400LF2 Converged Network Appliance Installation Guide Chassis bracket in front-mount position L bracket Screw (supplied by rack manufacturer) Figure 17: Installing the Chassis in the Rack...

  • Page 32: Install Chassis Handles

    6400LF2 Converged Network Appliance Installation Guide Install Chassis Handles NOTE: The handles are only required to hold the bezel on. If you will not be installing a bezel, you do not need to install the handles. 1. Slide a handle (Figure 19, A) between the chassis and the chassis bracket. 2.

  • Page 33: Power Supply Modules

    6400LF2 Converged Network Appliance Installation Guide Power Supply Modules The 6400LF2 features either 2x600W AC or DC power supply modules. The following section describes the safety requirements for each one. AC Power Supplies Mains AC power disconnect The AC power cord(s) is considered the mains disconnect for the 6400-S and must be readily accessible when installed.

  • Page 34: Power Supplies

    6400LF2 Converged Network Appliance Installation Guide installed with a 10 in/lbs torque. The safety ground conductor provides proper grounding only for the 6400-S. You must provide additional, proper grounding for the rack and other devices installed in it. Overcurrent protection Overcurrent protection circuit breakers must be provided as part of each host equipment rack and must be incorporated in the field wiring between the DC source and the 6400-S.

  • Page 35: Ac Power Supply Interface Requirements

    6400LF2 Converged Network Appliance Installation Guide Voltage Minimum tolerance = -38VDC • Nominal rating = -48 to -60VDC • Maximum tolerance = -75VDS • Maximum input current = 17.0 Amps • The power supply will power-off if the DC input is less than -34 VDC. •...
  • Page 36 6400LF2 Converged Network Appliance Installation Guide DC present/Only Standby Outputs Blink Green Power supply DC outputs ON and Green Power supply in Alert Condition Blink Amber Power supply failure Amber...

  • Page 37: Connecting The Power And Cables

    6400LF2 Converged Network Appliance Installation Guide Connecting the Power and Cables The 6400LF2 can come with either AC or DC power supplies. If AC power supplies are provided, the appliance will also include an AC power cord and power adapter for connecting the unit to the AC outlet.

  • Page 38: Administration

    6400LF2 Converged Network Appliance Installation Guide Administration You can configure the 6400LF2 EdgeMarc and 6400LF2 EdgeProtect appliances using a simple web-based user interface. Configure the 6400LF2 EdgeView appliance using YaST, a pre-installed, LINUX-based system management tool. Configuring the 6400LF2 EdgeMarc and 6400LF2 EdgeProtect You can configure the 6400LF2 EdgeMarc and 6400LF2 EdgeProtect appliance using a web browser such as Internet Explorer or Netscape Navigator.

  • Page 39: Configuring The 6400Lf2 Edgeview

    6400LF2 Converged Network Appliance Installation Guide 5. Select Network and start configuring the 6400LF2 appliance. Note For secure network management on an EdgeMarc or EdgeProtect 6400LF2 appliance, change the default user name and password as described in the VOS for EdgeMarc User Manual. Configuring the 6400LF2 EdgeView You can configure the 6400LF2 Edgeview appliance using YaST, a pre-installed, LINUX-based system management tool.

  • Page 40: Configuring The 6400Lf2 Using Serial Console Access

    6400LF2 Converged Network Appliance Installation Guide 7. Continue to configure the EdgeView appliance as described in “Chapter 2. Getting Started” of the EdgeView User Manual. Note For secure network management on an EdgeView 6400LF2 appliance, change the default user name and password as described in the EdgeView User Manual. Additional Note Configure the EdgeView 6400LF2 appliance as a High Availability system by following the instructions as described in the EdgeView User Manual.
  • Page 41 6400LF2 Converged Network Appliance Installation Guide Baud per second: 9600 • Data bits: 8 • Parity: None • Stop bits: 1 • Flow Control: None • 4. The following login screen appears*: * The login prompt text is determined by whether the appliance is the 6400LF2 EdgeMarc, 6400LF2 EdgeView, or 6400LF2 EdgeProtect.

  • Page 42: Specifications

    Specifications NIC Ports 3x10/100 Ethernet Dimensions 19” Rack Mount, 1RU Weight 11.5 lbs Power 100/240v VAC, auto-selecting, 47 to 63 Hz Warranty 1 Year Environmental Operating Temperature: 5° to 40°C Humidity: 20% to 80%, non-condensing For up-to-date information, please visit the following URL: http://www.edgewaternetworks.com.

  • Page 43: Warranty Information

    Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater.

  • Page 44: Certification

    Certification RoHS Compliant WEEE Compliant Safety cUL, CE Emissions FCC Part 15 Class A ICES-03 VCCI Class A C-tick Immunity...
  • Page 45 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 Converged Networking. Simplified. info@edgewaternetworks.com...
