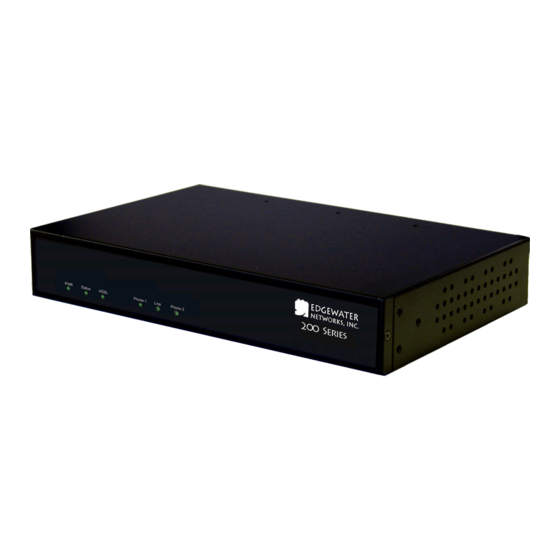

Edgewater Networks 200AE2 Quick Start Manual

Network services gateway
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

200AE2
Network Services
Gateway
Quick Start Guide
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200AE2 and is the answer not in the manual?

Questions and answers

Related Manuals for Edgewater Networks 200AE2

Summary of Contents for Edgewater Networks 200AE2

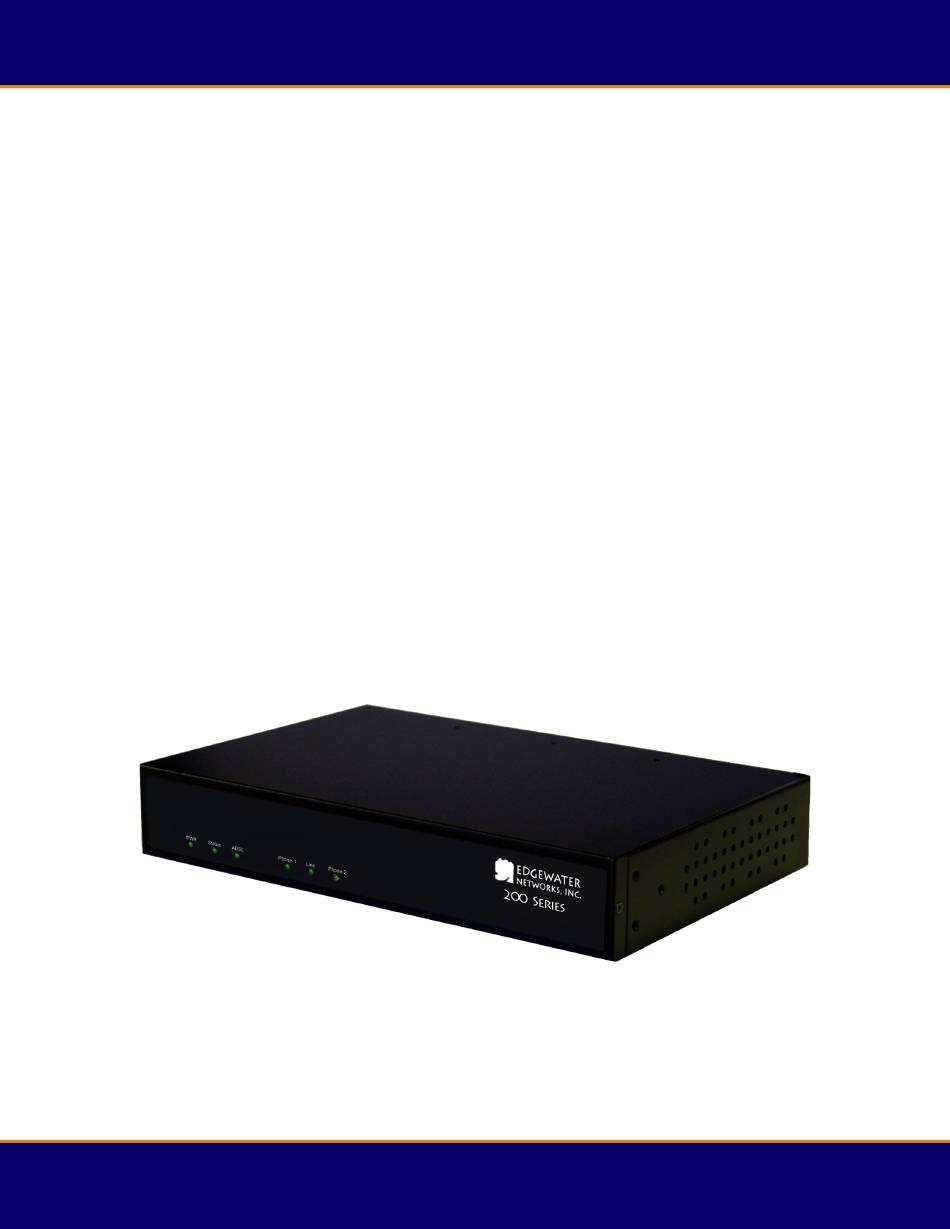

  • Page 1 200AE2 Network Services Gateway Quick Start Guide Version 1.0...

  • Page 2: Before You Start

    Refer to online help for assistance when deploying and configuring the device in a specific environment. This guide also provides an example of a typical 200AE2 deployment that can be used as a guideline for your installation. Requirements for Installation A computer with a web browser such as Microsoft Internet Explorer or •...

  • Page 3: Step 1 − Connecting The Cables

    Step 1 − Connecting the Cables 1. Connect one end of an Ethernet cable to local LAN port 4 of the 200AE2 denoted by “D” in the following diagram. Connect the other end of the cable to your computer’s Ethernet port.
  • Page 4 Make sure that the power and status LEDs denoted by “A” and “B” in the figure below are solid green after a short while. Step 2 − Configuring the EdgeMarc 1. The EdgeMarc device is preconfigured with a LAN address of 192.168.1.1 and a subnet mask of 255.255.255.0.
  • Page 5 5. The System page should appear next. If you should see the "message of the day" instead, just click on the System link under “Configuration Menu” to get to the System page. 6. From the Configuration Menu on the left configure the following: Network –...

  • Page 6: Step 3 − Plan Your Configuration

    Step 3 − Plan Your Configuration The EdgeMarc 200AE2 can be deployed as a gateway router in a network. It can also be deployed in a network behind an existing firewall. Based on your deployment criteria, consult the following documents for further configuration: EdgeMarc 200AE2 Network Service Gateway Hardware Installation Guide •...
  • Page 7 The web page configurations for the various 200AE2 deployments are shown below. The two darker- shaded rows indicate the minimum configuration required for each deployment. 200AE2 GUI 200AE2 as 200AE2 within existing 200AE2 behind an Configuration Gateway infrastructure existing firewall...
