Summary of Contents for Edgewater Networks 4610W

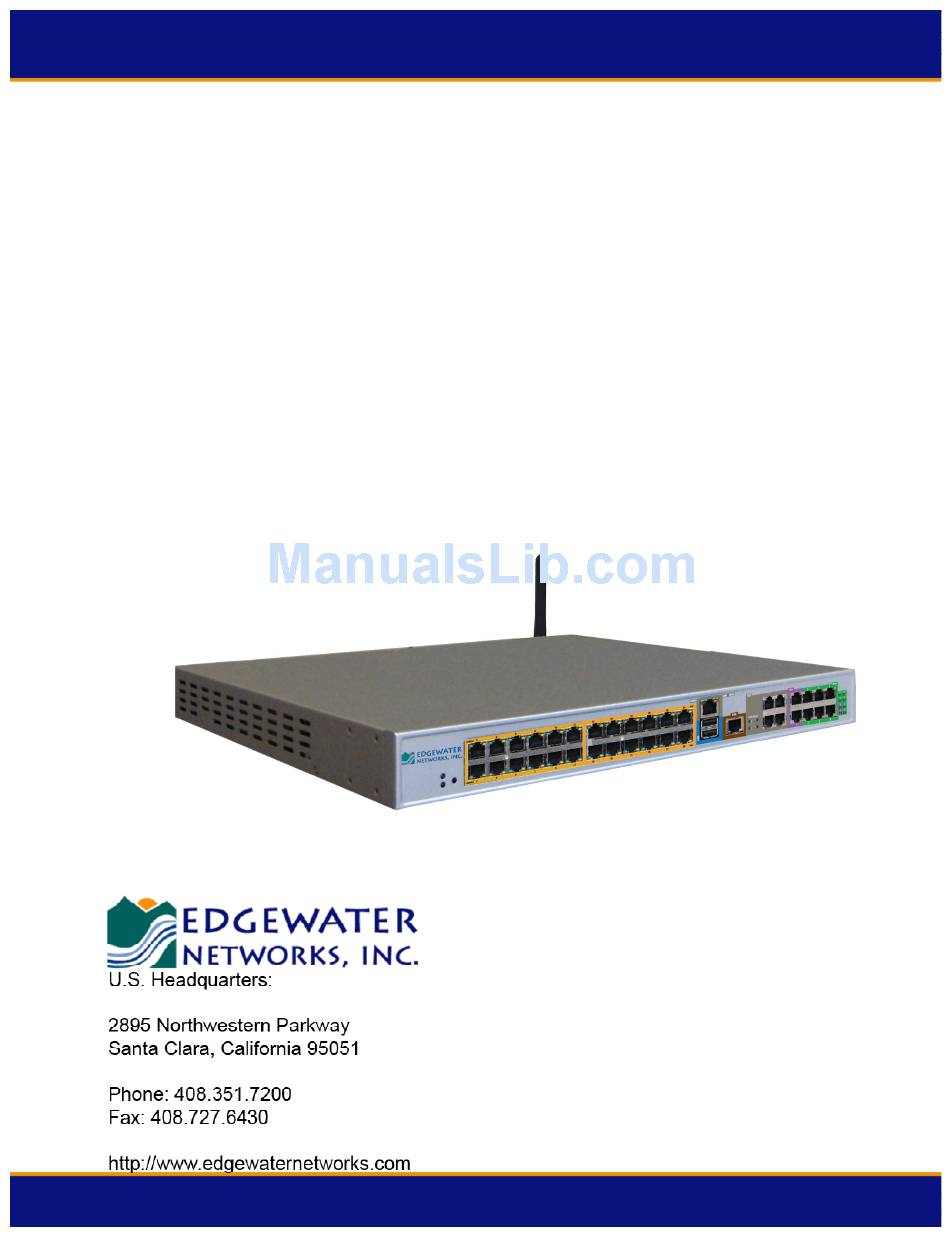

- Page 1 4610W Network Services Gateway Hardware Installation Guide Version 1.0 Page 1 of 21 EWN015-05-B001...
- Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
-
Page 3: Table Of Contents
Contents Preface ......................1 Typographic Conventions ..............1 Contact and Support Information ............1 Overview......................3 Feature Summary ................5 Front Panel ..................6 Back Panel...................8 Getting Started....................9 Physical Installation ................9 Required Tools and Materials ...........9 Desktop Installation..............10 Rack-Mount Installation............10 Connecting the Power and Cables..........10 Administration ..................11 Specifications....................13 ... -
Page 4: Preface
Preface Thank you for purchasing the 4610W Network Services Gateway. This Installation Guide describes the 4610W Device and hardware installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide. - Page 5 EdgeMarc 4610W Network Services Gateway Installation Guide Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 http://www.edgewaternetworks.com Phone: +1 (408) 351-7200 General Email: info@edgwaternetworks.com Sales Email: sales@edgewaternetworks.com Edgewater Networks, Inc. - Technical Assistance Center Phone: +1 (408) 351-7200 ext. 2 Support Email: support@edgewaternetworks.com...
-
Page 6: Overview
The 4610W Network Services Gateway is an intelligent, all-in-one networking solution for enterprises and service providers. It reduces costs by simplifying the deployment, management and security of converged voice, video and data networks. The 4610W provides the following important functions for converged networks: Multiple T1 Wide Area Network (WAN) Access Router •... - Page 7 Future-proof Scalability • The 4610W is a powerful, flexible platform that can be deployed initially as a low-cost WAN access router and then licensed through software for more advanced VoIP features and increased call performance. It is the ideal platform for service providers offering DIA, hosted VoIP and managed security services or enterprises migrating to converged voice and data networks.
-
Page 8: Feature Summary
EdgeMarc 4610W Network Services Gateway Installation Guide Feature Summary VoIP SIP, MGCP and H.323 Application Layer Gateway (ALG) that allows a single public IP • address to be used for multiple VoIP endpoints • VoIP survivability for local call switching to PSTN gateways during WAN link failures (SIP... -
Page 9: Front Panel
Erase Button Caution Using the Erase button as outlined above means any configuration made to the 4610W will be lost. Additionally the VoIP ALG registration code must be re-entered in the 4610W. Erasing the configuration means that IP phones installed... - Page 10 4600 PoE to an existing WAN Port T1/E1 WAN router, cable or xDSL modem. Used to establish a local console session with the 4610W using a V.90 Dial-In PSTN connection. The connection is established by calling into the Console 4610W from a dial-up modem.
-
Page 11: Back Panel
Description This port is used to establish a local console session with the Management 4610W using a VT100 terminal or emulation program. The cable Console Port required is a straight-through 8-wire cable. The serial port uses a baud rate of 9600, 8 data bits, 1 stop bit and no parity. -
Page 12: Getting Started
Specifications section of this document IMPORTANT: Before completing rack installation of the 4610W device, take note of the following conditions: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the •... -
Page 13: Desktop Installation
You can mount the 4610W in a 19” rack by using the rack-mount kit supplied with the product. 1. Attach the ear mounts to both sides of 4610W with the screws. 2. Attach the 4610W with the ear mounts to the shelf by screwing the ear mounts to the shelf with screws. -
Page 14: Administration
EdgeMarc 4610W Network Services Gateway Installation Guide Administration You can configure the 4610W using a web browser such as Internet Explorer or Netscape Navigator. The 4610W is shipped with the pre-configured IP address 192.168.1.1 for the LAN port. To connect to the 4610W device, follow these steps: 1. - Page 15 EdgeMarc 4610W Network Services Gateway Installation Guide 5. Select Network and start configuring the 4610W device. Note For secure network management, change the default user name and password as described in the VOS for EdgeMarc User Manual.
-
Page 16: Specifications
Specifications WAN Ports 4xT1 CSU/DSU or 10/100 Ethernet LAN Ports 4x10/100 Ethernet (Managed VLAN Switch) PoE Ports 24x10/100/1000 Ethernet (Managed VLAN Switch). Wireless LAN 802.11 a/b/g auto-selectable Access Point (Models ending with W only) Serial Ports 1xRS-232 Dimensions Height 1.75” (44.45 mm), Width 16.93” (430.02 mm), Depth 13.19”... -
Page 17: Warranty Information
Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. -
Page 18: Certification And Compliance
If trouble is experienced with this equipment, Model 4610W for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. - Page 19 If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of Model 4610W equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a...
-
Page 20: Industry Canada (Ic) Notice
EdgeMarc 4500 Series Network Services Gateway Installation Guide INDUSTRY CANADA (IC) NOTICE This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. - Page 21 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 info@edgewaternetworks.com Converged Networking. Simplified. All rights reserved. Copyright© 2010, Edgewater Networks, Inc.
