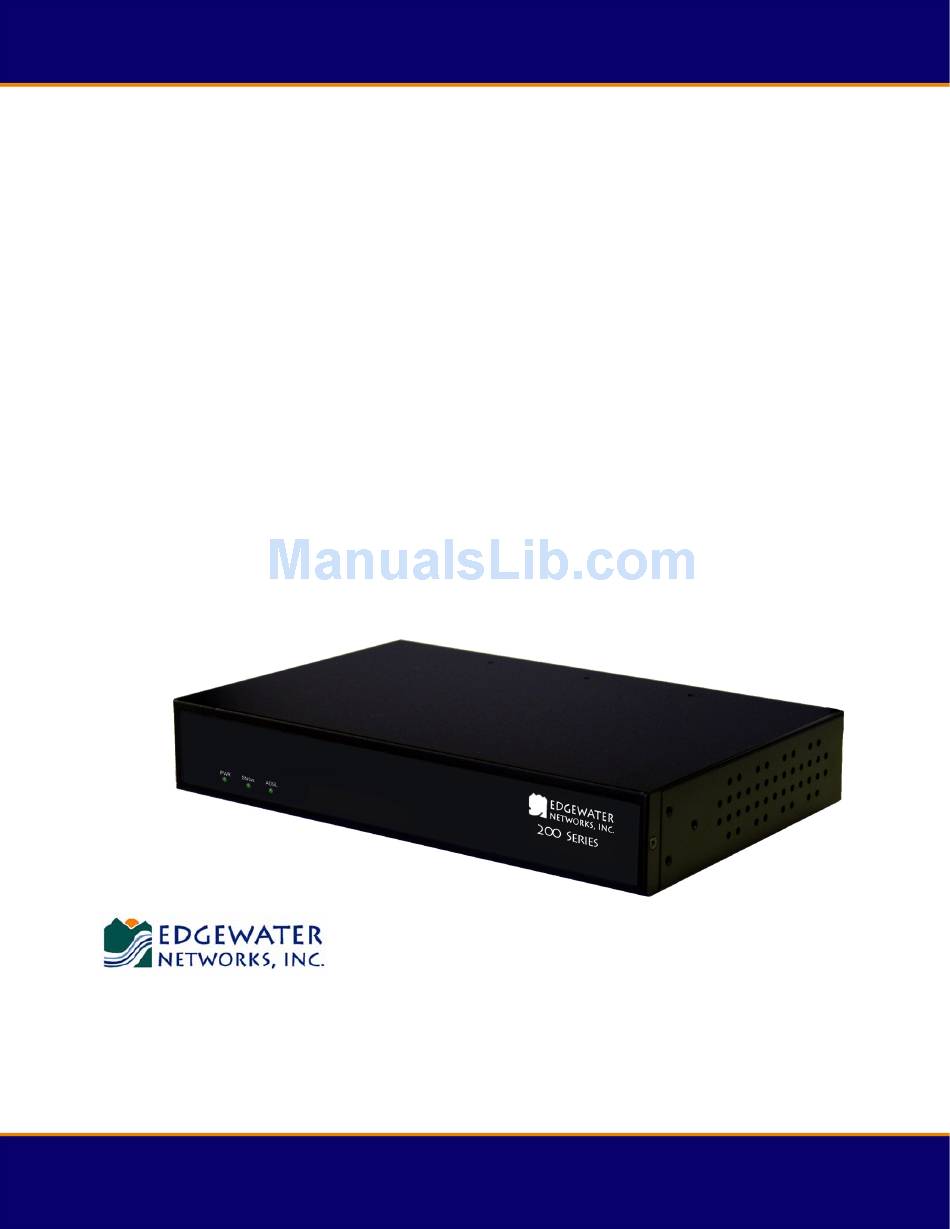

200AE1
Network Services Gateway
Hardware Installation Guide
Version 1.0
U.S. Headquarters:
2895 Northwestern Parkway
Santa Clara, CA 95051
Phone: +1 (408) 351-7200
Fax: +1 (408) 727-6430
www.edgewaternetworks.com
100-203-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200AE1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edgewater Networks 200AE1

  • Page 1 200AE1 Network Services Gateway Hardware Installation Guide Version 1.0 U.S. Headquarters: 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: +1 (408) 351-7200 Fax: +1 (408) 727-6430 www.edgewaternetworks.com 100-203-001...
  • Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
  • Page 3: Table Of Contents

    Contents Preface ......................1
 Typographic Conventions ..............1
 Contact and Support Information ............2
 Overview ....................... 3
 Feature Summary................4
 Back Panel ..................5
 Front Panel LEDs ................7
 Getting Started ..................... 8
 Physical Installation................8
 Required Tools and Materials ..........8
 Desktop Installation ..............
  • Page 4: Preface

    Preface Thank you for purchasing the 200AE1 Network Services Gateway. This Installation Guide describes the 200AE1 hardware and installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide.
  • Page 5: Contact And Support Information

    EdgeMarc 200AE1 Network Services Gateway Installation Guide Contact and Support Information Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 http://www.edgewaternetworks.com Phone: +1 (408) 351-7200 General Email: info@edgewaternetworks.com Sales Email: sales@edgewaternetworks.com Edgewater Networks, Inc. - Technical Assistance Center Phone: +1 (408) 351-7200 ext. 2 Support Email: support@edgewaternetworks.com...
  • Page 6: Overview

    The EdgeMarc 200AE1 provides flexible and application ready low cost solutions. It is an ideal platform for managed services for the Small Office/Home Office (SOHO) environment. The 200AE1 can also be deployed in applications such as Enterprise voice over IP.
  • Page 7: Feature Summary

    EdgeMarc 200AE1 Network Services Gateway Installation Guide Feature Summary VoIP SIP ALG that allows a single public IP address to be used for multiple VoIP endpoints • Class based queuing/prioritization • Diffserv marking and policing • Traffic shaping • VoIP Call Admission Control (CAC) prevents oversubscription of priority queue •...
  • Page 8: Back Panel

    Accepts the plug from the supplied power cord to connect the unit Power Connector to an AC power source ADSL WAN Connects the 200AE1 to a phone line supporting ADSL/ADSL 2/2+ Port ** standards. Management This port is used to establish a local console session with the Console Port 200AE1 using a VT100 terminal or emulation program.
  • Page 9 100BaseT Ethernet switch or hub Off - If the link is up, it indicates that the port is connected to a 10BaseT Ethernet switch or hub Ethernet WAN Connects the 200AE1 to a cable or xDSL modem. Port **...
  • Page 10: Front Panel Leds

    EdgeMarc 200AE1 Network Services Gateway Installation Guide Front Panel LEDs Figure 2: 200AE1 Front Panel LED LED Label Activity Description Power switch is off (or no power from the AC outlet) Power Green Power is supplied to the unit Either the ALG is not licensed or the SIP server address under “VoIP ALGSIP”...
  • Page 11: Getting Started

    Getting Started Physical Installation The 200AE1 is designed for desktop, rack, or wall-mount installation. Observe the following guidelines when installing the system: Always verify that the AC cord is disconnected from a power source prior to installation. • Ensure that the installation site has adequate air circulation and meets the minimum •...
  • Page 12: Wall-Mount Installation

    2. Place the 200AE1 on a flat, dry surface such as a desktop, shelf or tray. Wall-Mount Installation You can mount the 200AE1 on a wall using the two mounting brackets on the bottom of the appliance. We recommend that you use two round or pan head screws.
  • Page 13: Rack-Mount Installation

    You can mount the 200AE1 in a 19” rack by using the rack-mount kit supplied with the product. 1. Attach the ear mounts to both sides of 200AE1 with the screws. 2. Attach the 200AE1 with the ear mounts to the shelf by screwing the ear mounts to the shelf with screws.
  • Page 14: Administration

    EdgeMarc 200AE1 Network Services Gateway Installation Guide Administration You can configure the 200AE1 using a web browser such as Internet Explorer or Netscape Navigator. The 200AE1 is shipped with the pre-configured IP address 192.168.1.1 for the LAN port. To connect to the 200AE1, follow these steps: 1.
  • Page 15 EdgeMarc 200AE1 Network Services Gateway Installation Guide 5. Click on “Network” under the “Configuration Menu” and start configuring the 200AE1. Note For better network management security change the default user name and password by following the procedure described in the VOS for EdgeMarc User Manual.
  • Page 16: Specifications

    Specifications WAN Ports ADSL/ADSL 2/2+ or 10/100 Ethernet LAN Ports 4x10/100 Ethernet (Managed VLAN Switch) Serial Ports 1xRS-232 Dimensions Height 1 “ ( ), Width 10 “ ( 42.863 mm 265.113 mm Depth 6 “ ( 168.275 mm Weight 2 lb (0.91 kg) Power 12V @ 1.5A, external plug pack Warranty...
  • Page 17: Warranty Information

    Warranty Information Hardware Warranty For a period of one (1) year after shipment of the product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater.
  • Page 18: Certification And Compliance

    If trouble is experienced with this equipment, Model 200 for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
  • Page 19: Industry Canada (Ic) Notice

    INDUSTRY CANADA (IC) NOTICE This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
  • Page 20 Wall Mount Stencil...
  • Page 21 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 Converged Networking. Simplified. info@edgewaternetworks.com...
