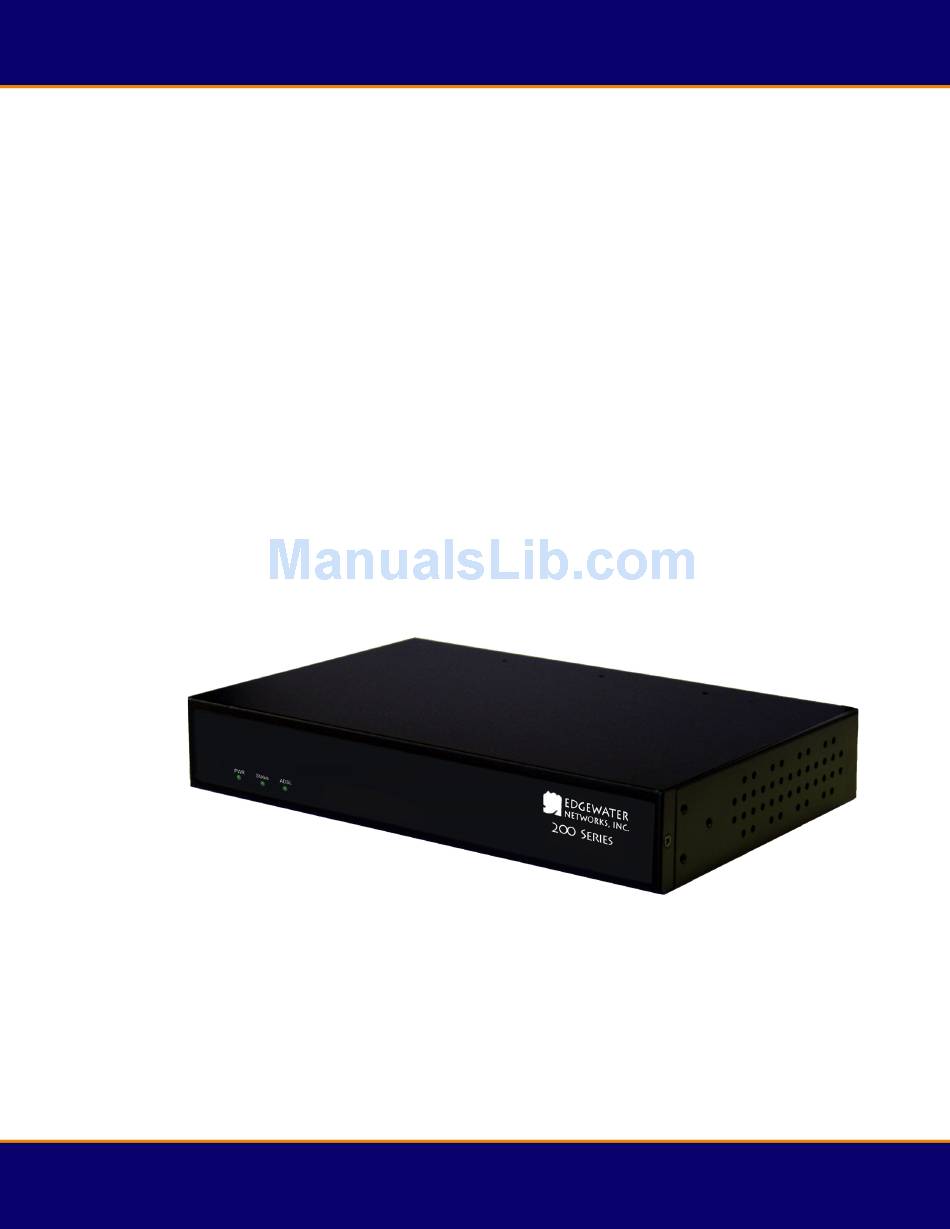

Page 1: Network Services
200AE1 Network Services Gateway Quick Start Guide Version 1.0... -
Page 2: Before You Start
Refer to online help for assistance when deploying and configuring the device in a specific environment. This guide also provides an example of a typical 200AE1 deployment that can be used as a guideline for your installation. Requirements for Installation A computer with a web browser such as Microsoft Internet Explorer or •... -
Page 3: Step 1 − Connecting The Cables
Step 1 − Connecting the Cables 1. Connect one end of an Ethernet cable to local LAN port 4 of the 200AE1 denoted by “E” in the below diagram. Connect the other end of the cable to your computer’s Ethernet port. - Page 4 Step 2 − Configuring the EdgeMarc 1. The EdgeMarc device is preconfigured with a LAN address of 192.168.1.1 and a subnet mask of 255.255.255.0 Configure your computer Ethernet adapter’s IP address to any address other than 192.168.1.1 in the same subnet mask, for example, 192.168.1.2 Note: If you’re using a LAN switch, it must support 100Mbps full duplex.
-
Page 5: Step 3 − Plan Your Configuration
Step 3 − Plan Your Configuration The EdgeMarc 200AE1 can be deployed as a gateway router in a network. It can also be deployed in a network behind an existing firewall. Based on your deployment criteria, consult the following documents for further configuration: EdgeMarc 200AE1 Network Service Gateway Hardware Installation Guide •... - Page 6 The web page configurations for the various 200AE1 deployments are shown below. The two darker- shaded rows indicate the minimum configuration required for each deployment. 200AE1 GUI 200AE1 as 200AE1 within existing 200AE1 behind an Configuration Gateway infrastructure existing firewall...
