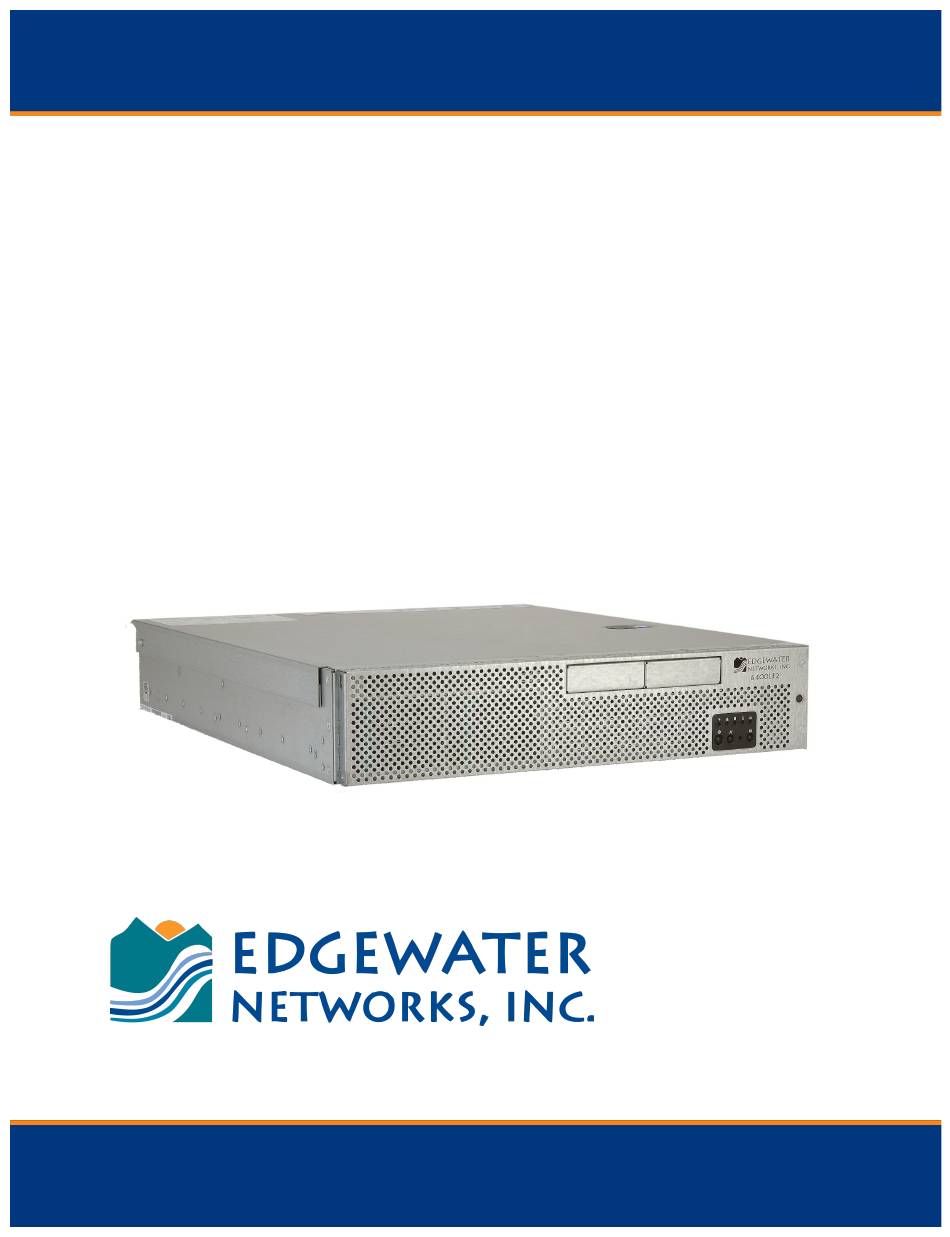

- Page 1 EdgeView 6400LF2 Hardware Installation Guide Version 2.0 EWN018-02-B001 Edgewater Networks / 2895 Northwestern Parkway, Santa Clara, CA 95051 Phone: +1 (408) 351-7200 / Email: support@edgewaternetworks.com...
- Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
- Page 3 Changes are made periodically to the information herein; these changes will be incorporated in new releases of this publication. Edgewater Networks may make improvements or changes in the product or products described in this publication at any time, without prior notice.
- Page 4 Additional EdgeView Publications EdgeView 6400LF2 System Administration Guide • Getting Started with the EdgeView 6400LF2 • You can download these documents and additional application notes to help you configure, administer, and troubleshoot your EdgeView appliance from http://www.edgewaternetworks.com/kb.
-
Page 5: Table Of Contents
Contents Preface......................1 Typographic Conventions ..............1 Contact and Support Information............2 Overview......................3 Front Panel ..................4 System Panel..................5 Back Panel..................7 Getting Started....................9 Physical Installation ................9 Rack-Mount Installation ............9 Power Supply Modules ................10 Grounding the rack installation ..........10 Overcurrent protection ............ -
Page 6: Preface
Preface Thank you for purchasing the 6400LF2. This Installation Guide describes the 6400LF2 and hardware installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide. Chapter or Appendix Description Chapter 1, Overview... -
Page 7: Contact And Support Information
Contact and Support Information Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 http://www.edgewaternetworks.com Phone: +1 (408) 351-7200 General Email: info@edgewaternetworks.com Sales Email: sales@edgewaternetworks.com Edgewater Networks, Inc. - Technical Assistance Center Phone: +1 (408) 351-7200 ext. 2 Support Email: support@edgewaternetworks.com... -
Page 8: Overview
Overview The EdgeView is a sophisticated yet easy to use management tool designed to simplify the management and monitoring of converged voice, video and data networks. It provides several important features to service providers and enterprises using Edgewater’s EdgeMarc and EdgeProtect Series products: Software image management and upgrade of Edgewater nodes •... -
Page 9: Front Panel
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide Front Panel Figure 1: 6400LF2 Front Panel (Bezel Removed) Name Description Storage Area 1 Slimline drive bay Storage Area 2 Two gigabyte Ethernet ports (not used) Storage Area 3 Six 1” hard disk drive bay or optional floppy drive bay. System Control See Figure 2: 6400LF2 System Panel. -
Page 10: System Panel
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide System Panel Figure 2: 6400LF2 System Panel LED Label Activity Description Power switch is off (or no power from the AC outlet). Power Solid Indicates the presence of power supply output power Green in the EdgeView. - Page 11 EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide LED Label Activity Description No disk activity. Solid Data is being read or Green written to the disk. Disk Activity System Failure for between one and up Solid to six hard drives that Amber can be in the EdgeView.
-
Page 12: Back Panel
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide Back Panel Figure 4: 6400LF2 Back Panel Name Description Not used. Low Profile PCI Add-In Card Slots Not used. Full Height PCI Add-In Slots Use the supplied power cord to connect to one of the two Power redundant, IEC320-C13 receptacles that can accept the plug to Connectors... - Page 13 ) can be a LAN or WAN port. eth1 10/100/1000 Recommended for use as the “heartbeat” port in a High- NIC2 Connector Availability configuration. For details, see the EdgeView 6400LF2 System Administration Guide. VGA Connection Available. 2+1 unused x USB ports (Port 0 and Port 1)
-
Page 14: Getting Started
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide Getting Started Physical Installation The 6400LF2 is designed for rack-mount installation. Observe the following guidelines when installing the system: Always verify that the AC cord is disconnected from a power source prior to installation. •... -
Page 15: Power Supply Modules
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide Complete the following steps to complete installation: 1. Attach the ear mounts to both sides of with the screws. 6400LF2 2. Attach the with the ear mounts to the shelf by screwing the ear mounts to the shelf 6400LF2 with screws. -
Page 16: Grounding The 6400Lf2
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide exhaust a maximum of 1023 BTU's per hour for the 6400LF2. The rack selected and the ventilation provided must be suitable to the environment in which the 6400LF2 will be used. Grounding the 6400LF2 To avoid the potential for an electrical shock hazard, you must reliably connect an earth grounding conductor to the 6400LF2. -
Page 17: Connecting With The 6400Lf2
EdgeMarc 6400LF2 Enterprise Session Border Controller Installation Guide Connecting with the 6400LF2 You can use the RJ45 console port, located on the front panel of the 6400LF2 appliance, to perform advanced configuration and debugging. To configure the 6400LF2 appliance using the RJ45 console port, you will need an RJ45-to DB9-cable, such as the cable shown in the picture below: Figure 6: RJ45-to-DB9 Cable To connect successfully with the EdgeView, the RJ45-to-DB9 cable must feature the following... -
Page 18: Connecting To The 6400Lf2 Using Rj45 Console Access
3. The following login screen appears: Connecting to the CLI of the 6400LF2 using an SSH client Prerequisite Task: You will need to download an SSH client. Edgewater Networks recommends using Putty (available for download from http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html). To connect locally with the Command Line Interface (CLI), complete the following steps: 1. -
Page 19: Administration
System Administrator as the IP address might have been changed. For further instructions on how to configure the EdgeView, review the content of the EdgeView 6400LF2 System Administration Guide. Administration See the EdgeView System Administration Guide for details about how to configure the EdgeView appliance. -
Page 20: Specifications
Specifications NIC Ports 4x10/100/1000 Ethernet Serial Port 2x RJ-45 ports USB Ports 2+1 unused Dimensions Height:87.6 mm/Width:435.3 mm/Depth:508 mm, 19” Rack Mount, 2U Weight 45 lbs. (20.454 kg) Power +12V1/2/3/4 combined output limit @ 46.2A/63A, maximum, External Warranty 1 Year Environmental Operating Temperature: 10°C to 35°C (50°F to 95°F) Humidity: 5% - 85%, non-condensing... -
Page 21: Warranty Information
Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. -
Page 22: Certification And Compliance
Certification and Compliance INDUSTRY CANADA (IC) NOTICE This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. -
Page 23: Immunity Ce Mark Warning
EdgeMarc 6400LF2 Series Converged Networking Router Installation Guide Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Immunity CE Mark Warning This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. - Page 24 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 Converged Networking. Simplified. info@edgewaternetworks.com...
