FANATEC CSL Elite Racing Wheel Manual page 24

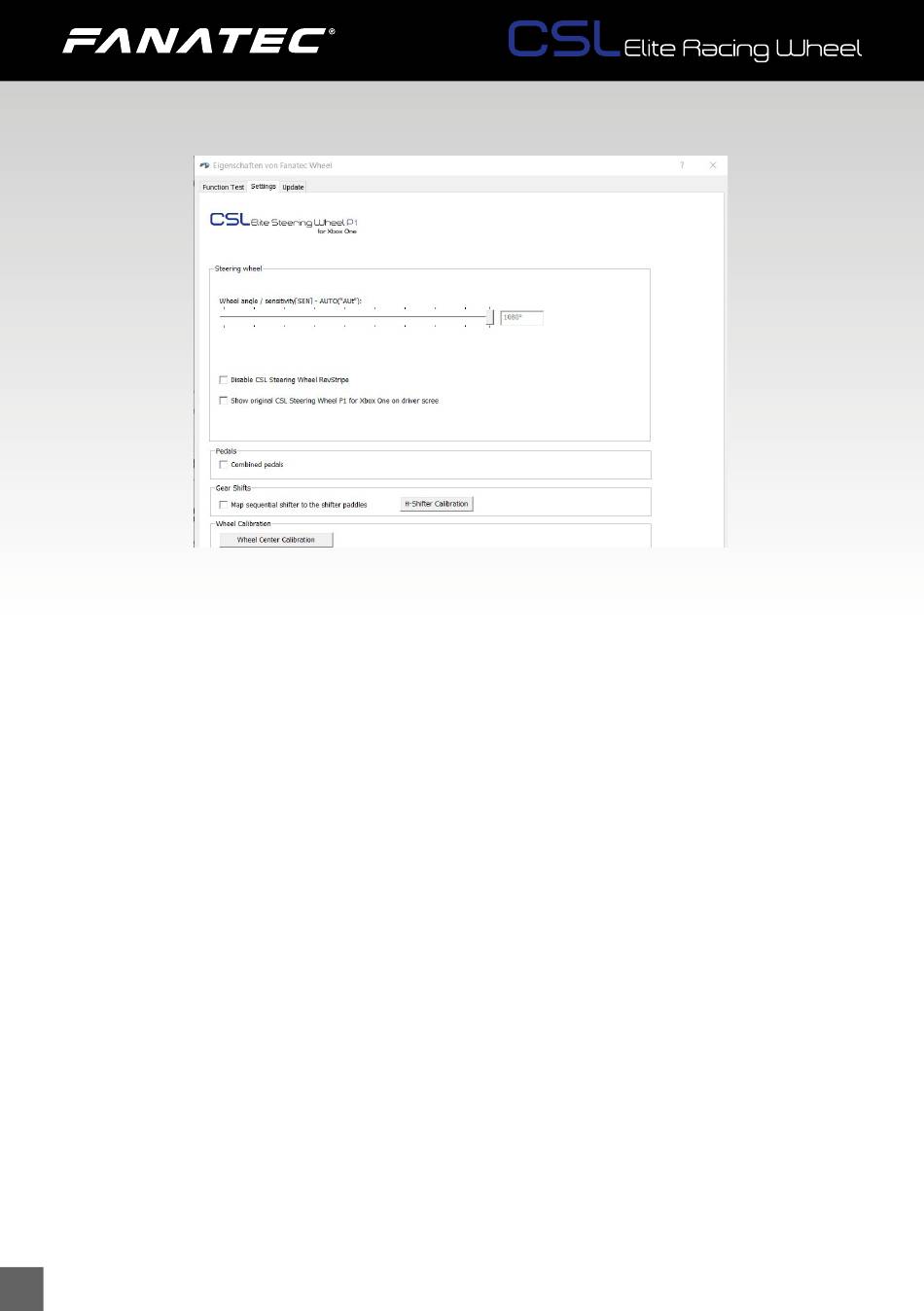

If you go to the PC* driver Settings page, you will see this window:
There are two different slider bars in the section "Steering Wheel":
The "Wheel angle / sensitivity" can adjust the maximum turning angle of the
CSL Elite Racing Wheel, so the functionality is identical with the option 'SEN'
in Tuning Menu (see chapter 'Tuning Menu' of this manual for more detailed
information). Please note that in Tuning Menu the value for 'SEN' must be set
to 'OFF/Aut' to allow the PC* driver to take the control. If in Tuning Menu 'SEN'
is set to any other value than 'OFF/Aut' the value set in Tuning Menu is applied
and valid and the PC* driver has no influence.
The lower bar 'Dampering strength' is an additional fine tuning possibility for the
Tuning Menu option 'DPR' (see chapter 'Tuning Menu' of this manual for more
detailed information).
In the "Pedals" section there is only the one checkbox called 'Combined ped-
als'. Activate this checkbox if the game or software uses only one input (I/O) for
brake and throttle pedal signals (negative signal for brake, positive signal for
throttle). This might solve problems especially with older games.
In the "Gear shifts" section there is only one checkbox called 'Map sequen-
tial shifter to the shifter paddles'. Usually shifters connected to the SHIFTER2
port are mapped to different inputs (I/Os) than the shifter paddles on Fanatec
®
steering wheels. If you want to change the mapping so that the inputs for these
shifters are mapped identically to the Fanatec steering wheel shifter paddles,
®
activate this checkbox.
*Compatibility with other platforms not tested nor endorsed by Sony Interactive Entertainment Europe.
