- Page 1 Manual Rev. 01...
- Page 2 Thank you for choosing To get the most out of your CSL Pedals, please read this manual before first use. It contains important health and safety information and should be retained for future reference.
-
Page 3: Table Of Contents
INDEX 1. General ......................... 2. Compatibility ......................3. Package Contents ....................4. Assembly ......................4-12 4.1 Plan Your Setup ................... 4.2 Pedal Adjustment ..................4.3 Hard-Mount ....................4.4 Connections ....................4.5 Recommended Accessories ............... 10-12 5. Cleaning ....................... 6. Maintenance ...................... - Page 4 WARNING! Photosensitive Seizures A small percentage of people may experience a seizure when exposed to certain visual images, including flashing lights or patterns that may appear in video games. Even people who have no history of seizures or epilepsy may have an undiagnosed condition that can cause these “photosensitive epileptic seizures”...
-
Page 5: General
WARNING! Electrical Safety: The CSL Pedals must be connected to the appropriate wheel base port or PC USB port if using the ClubSport USB Adapter: • If the CSL Pedals becomes damaged in any way, stop usage immediately and contact Fanatec Customer Support: Fanatec.com/support/faq. -
Page 6: Compatibility
COMPATIBILITY The CSL Pedals can be used with all CSL, CSL Elite, ClubSport, and Podium series wheel bases as well as standalone on a PC via the ClubSport USB Adapter. IMPORTANT: CSL Pedals are fully usable out-of-the-box. We always recommend updating your Fanatec devices to the latest firmware. -
Page 7: Package Contents

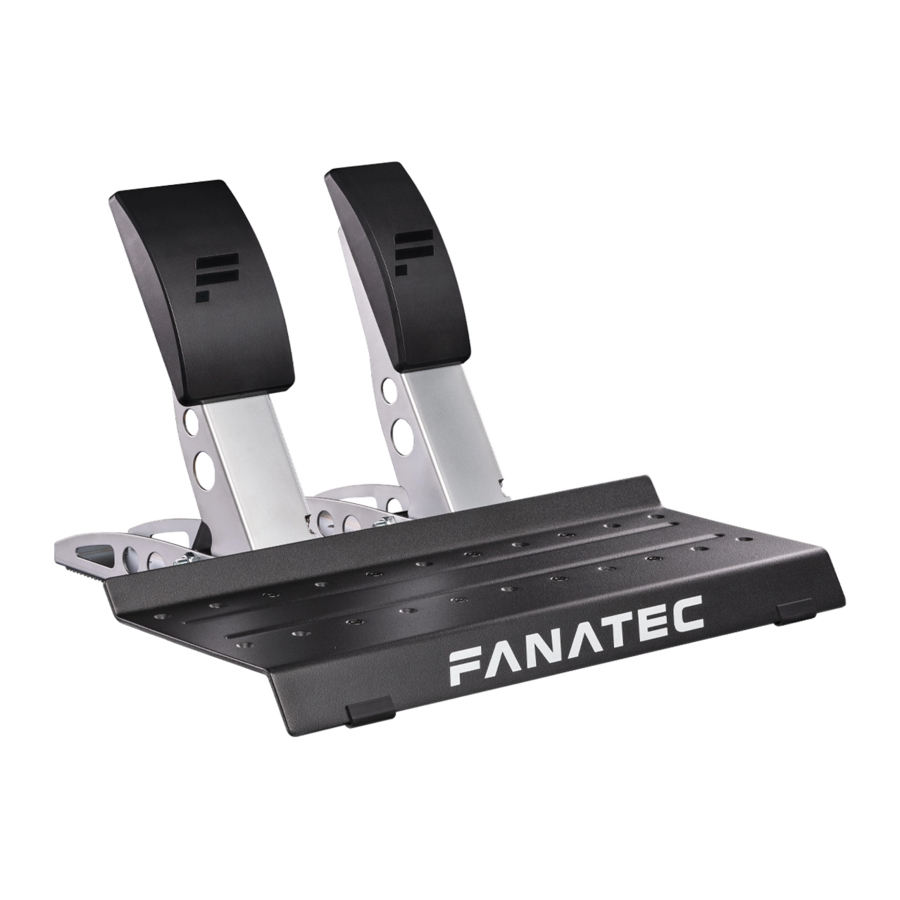

PACKAGE CONTENTS 1x CSL Pedals (2x Edge Protector 1.5 mm pre-installed) 2x Hard Mount Spacer 2x Edge Protector 2.5 mm (Adhesive Included) 8x M4x12 mm Countersunk Mounting Bolts 1x RJ12 Cable 1x T20 Torx Key... -
Page 8: Assembly
ASSEMBLY PLAN YOUR SETUP To get started with using the CSL Pedals, decide on your preferred pedal lever unit positions, pedal plate positions, and if you will hard-mount to a surface, then connect the CSL Pedals to your wheel base via the included RJ12 cable or to a PC via USB if using the ClubSport USB Adapter (not included). -
Page 9: Pedal Adjustment
PEDAL ADJUSTMENT PEDAL LEVER UNITS 4.2.1 Lift the heel rest from the pedal units. Align the holes of the pedal lever units with the holes of the heel rest once a desired position is selected. - Page 10 Insert and tighten the countersunk bolts (D) with the included T20 torx key (F) NOTE: Use either the pre-installed 1.5 mm or 2.5 mm edge protectors (C) (including adhesive) when using the pedals on a floor as shown below. Wheel Base / Load Cell...
- Page 11 PEDAL PLATES 4.2.2 All CSL Pedals pedal lever units feature adjustable pedal plates to suit your pedal plate height preferences. There are 3 height settings that can be adjusted in descending increments of 15 mm. Use the included T20 torx key...
-
Page 12: Hard-Mount
HARD - MOUNT Hard-mount using all four mounting holes (bolts are not included). Download drilling template from the product page on fanatec.com. Ø 8 mm 30.85 mm 275 mm Wheel Base / Load Cell 22mm M6x(22+X) mm... -
Page 13: Connections
CONNECTIONS ATTENTION: Do not connect any devices via the RJ12 ports found on the gas pedal lever unit which are not appropriate Fanatec products. Doing so ® may cause damage to the pedal set and / or connected devices, and is not covered by the warranty. -
Page 14: Recommended Accessories
RECOMMENDED ACCESSORIES We highly recommend the following accessories to upgrade the functionality of your CSL Pedals. Check them out at fanatec.com. NOTE: Please read the quick guides of the following accessories for assembly instructions and information. Clutch Kit Check it out here. - Page 15 NOTE: The ClubSport USB Adapter is essential if you want to use the CSL Pedals as a standalone device on PC via USB. Firmware installation instructions using the ClubSport USB Adapter Download the latest PC driver from fanatec.com/driver in order to proceed.
- Page 16 ‘Update USB Adapter Firmware’ to proceed to the ‘Fanatec CSUA Firmware Updater’. Click on ‘CSL Pedals’ to select the correct firmware, the click ‘Start Update’ to initiate the firmware update. Once completed, the message highlighted in blue will be displayed in the ‘Message Logs’...
-
Page 17: Cleaning
CSL Pedals. MAINTENANCE The appropriate parts of the CSL Pedals are well lubricated with lithium grease out-of-the-box. Should you feel or hear grinding as a result of extensive usage over time, apply lithium grease to the parts highlighted BLUE below. -
Page 18: Troubleshooting
TROUBLESHOOTING The CSL Pedals must not be modified in any way, other than what is explicitly described in this manual. Endor AG expressly prohibits analysis ® and utilisation of the electronics, hardware, software and firmware contained in this device. In case difficulties occur regarding utilisation of the CSL Pedals, please use the following troubleshooting guide. -
Page 19: Video Guide
CSL Pedals: CSL Pedals: ……………...…..…………..The serial number is located at the bottom of the gas pedal unit. The serial number of the CSL Pedals starts with letters ‘GW’ and has additional 8 numbers, for example: GW021000370. TRADEMARKS “Fanatec... -
Page 20: Compliance
COMPLIANCE CE COMPLIANCE This device complies with the European product regulations according to CE regulations. The CE regulations contain basic requirements for safe usage of technical products. FCC COMPLIANCE This device complies with part 15 of the FCC rules. The operation of this device is subject to the following two conditions: •... -
Page 21: Warranty
In case of issues apparently related to system software / firmware as well as any other product related issues, Endor recommends checking the FAQ database at fanatec.com/ support/faq to see if your problem can be solved there. - Page 22 Endor AG ® Designed and developed by Endor AG in Germany E.ON-Allee 3 - 84036 Landshut - Germany Telephone: +49 (871) 9221-122 Fax: +49 (871) 9221-221 Email: info.webshop@fanatec.com Website: www.fanatec.com - www.endor.ag Made in China...
