5.3 Hard-mounting the CSL Elite Racing Wheel

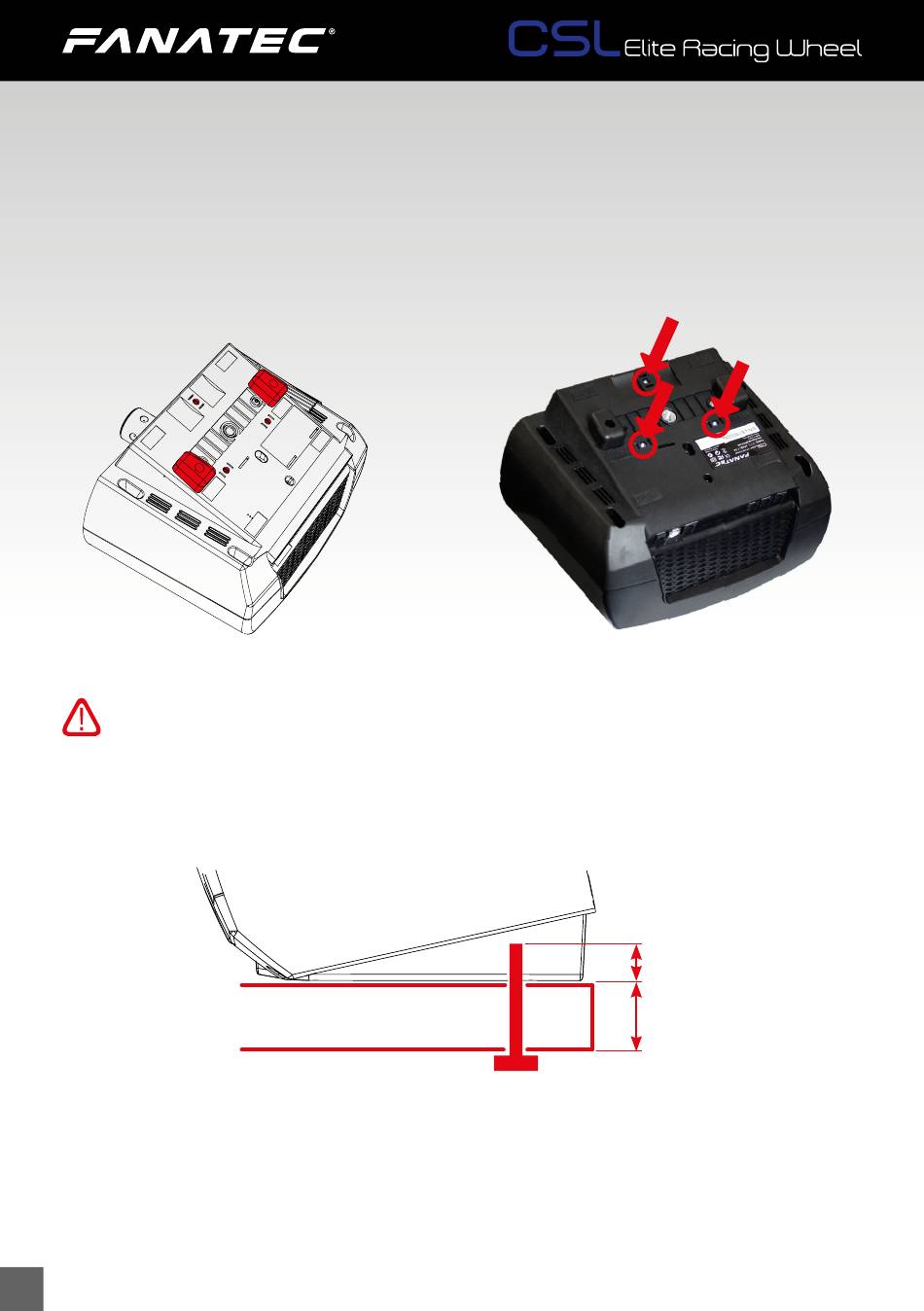

The CSL Elite Racing Wheel offers a three-point hard-mount location on the
bottom side of the CSL Elite Wheel Base (see the right hand side picture
below.) To hard-mount the wheel base, first disassemble the two blocks from
the bottom side with a 3mm Allen key (not included), see highlighted on the left
hand picture below:
IMPORTANT:
length so that the thread does not reach more than 16 mm into the wheel
base. Example: If your table thickness is 20 mm the screw must not ex-
ceed a total thread length of 36 mm! Always use all three hard-mount
points, this allows a proper and stable installation and avoids damage!
To hard-mount the CSL Elite Racing Wheel to a table or rig by screws please
find the printable drilling template in the download area of our website
www.fanatec.com.
12
Use only good quality M6 screws. Choose the screw
Table
max 16mm
X
