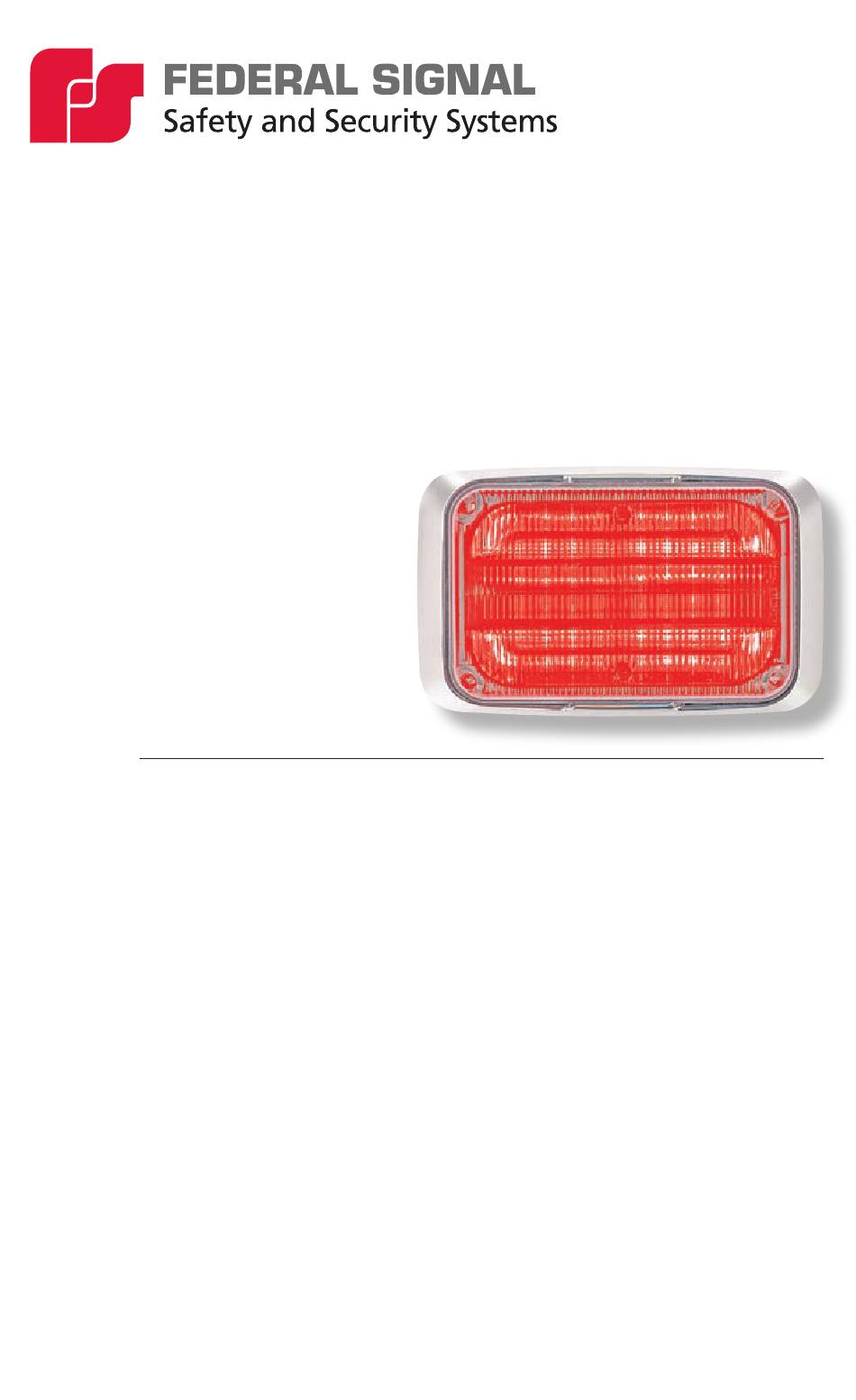

- Page 1 QuadraFlare ® Installation and Service Instructions 25500352 Para ver este manual en Rev. A2 0320 español, visite www.fedsig.com Printed in U.S.A. © Copyright 2019-2020 Federal Signal Corporation...
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Contents Safety Message to Installers ............4 Overview of the QuadraFlare............5 Unpacking the QuadraFlare..............5 Kit Contents List ................5 Installing the QuadraFlare ..............6 Wiring the QuadraFlare ..............10 Selecting a Flash Pattern ..............10 Safety Message to Operators ............12 Cleaning the QuadraFlare ...............13 Getting Technical Support and Service .........14 Getting Repair Service ..............14 Ordering Replacement Parts ............15 Replacement Parts ................15... -
Page 4: Safety Message To Installers
Safety Message to Installers Safety Message to Installers People’s lives depend on your proper installation of our products. It is important to read, understand and follow all instructions shipped with the products. Listed below are some other important safety instructions and precautions you should follow: •... -
Page 5: Overview Of The Quadraflare

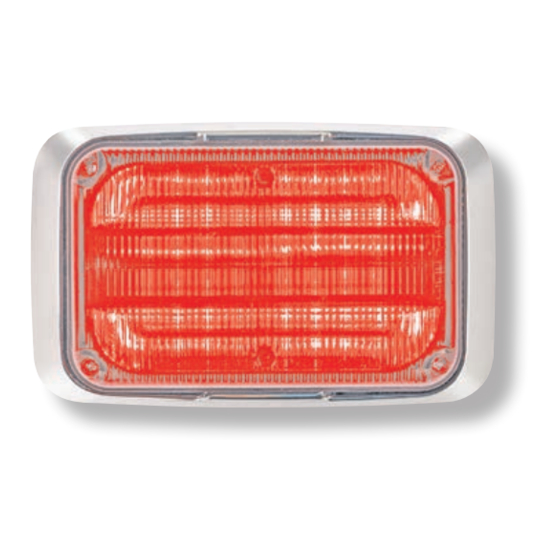

Kit Contents List Overview of the QuadraFlare The Federal Signal QuadraFlare Warning Light is a self- contained, high intensity, LED light designed for mounting to the exterior of a vehicle. All models are available in a variety of colors and have an internal flasher. The internal flasher has 26 selectable flash patterns. -
Page 6: Installing The Quadraflare
Installing the QuadraFlare Installing the QuadraFlare INSTALL IN RECOMMENDED AREAS: When installing equipment inside airbag equipped vehicles, the installer MUST ensure that the equipment is installed ONLY in areas recommended by the vehicle manufacturer. Failure to observe this warning reduces the effectiveness of the airbag, damage the airbag, or potentially damage or dislodge the equipment, causing serious injury or death to you or others. -
Page 7: Table 2 Hole Patterns
Installing the QuadraFlare Figure 1 Mounting hole locations A/2 (2X) Ø 0.25" (4) PLCS Ø 1.00" B/2 (2X) B (2X) 290A5511-02 Table 2 Hole Patterns Nominal size 4 x 3 4.200 2.100 2.375 1.188 6 x 4 5.750 2.875 3.250 1.625 7 x 3 6.562... - Page 8 Installing the QuadraFlare Failure to observe these precautions damages the light and void any warranty claims for the light. DRILLING PRECAUTIONS: When drilling holes, check the area you are drilling into to ensure that you do not damage vehicle components while drilling. All drilled holes should be de-burred, and all sharp edges should be smoothed.
-
Page 9: Figure 3 Ql64 Base
Installing the QuadraFlare Figure 2 Exploded Assembly View Legend Mounting Screw Lens Reflector LED PC Board Assembly Vent Base Assembly Screws (4) Screw Grommet Bezel w/ Gasket (Optional) 10. Vehicle Body NOTE: QuadraFlare models have identifiable color-coded sticker dots on the back of the light assembly. The color-coded sticker dots correspond to the LED color on the PC board. -
Page 10: Wiring The Quadraflare
Selecting a Flash Pattern Looking at the back of the unit with the vent hole on your right, the top of the light is controlled with the red wire and the bottom is controlled with the white wire. See Figure 3. If the light has one side with red LEDs, the red wire controls that side and the white controls the other side (amber, blue, white, green, or red). -
Page 11: Table 3 Quadraflare Models
Selecting a Flash Pattern 3. Briefly touch the program wire (yellow) to +12 Vdc. NOTE: Holding the pattern wire (yellow) to +12 Vdc for 5 to 9 seconds returns you to default flash pattern 1. Holding the pattern wire (yellow) to +12 Vdc for 10 seconds or more brings you to default flash pattern 2. -
Page 12: Safety Message To Operators
Selecting a Flash Pattern Number Flash Pattern FedPulse 75 — Alternating Vertical QuadFlash 75 — Alternating Vertical Fedpulse 75— Alternating X QuadFlash 75 — Alternating X Top Steady/Bottom 110 FPM *Indicates NFPA lower compliance. Safety Message to Operators Peoples’ lives depend on your safe use of our products. Listed below are some important safety instructions and precautions you should follow: •... -
Page 13: Cleaning The Quadraflare
Cleaning the QuadraFlare Cleaning the QuadraFlare CRAZING/CRACKING Crazing (fine cracks) of lenses causes reduced effectiveness of the light. Do not use cleaning agents (which cause crazing) such as strong detergents, solvents, or petroleum products. If crazing of the lenses does occur, the reliability of light for emergency signaling purposes may be reduced until the lenses are replaced. -
Page 14: Getting Technical Support And Service
Getting Repair Service Getting Technical Support and Service For technical support and service, please contact: Federal Signal Corporation Service Department Public Safety Systems Phone: 1-800-433-9132 Fax: 1-800-343-9706 Email: empserviceinfo@fedsig.com Getting Repair Service The Federal Signal factory provides technical assistance with any problems that cannot be handled locally. -
Page 15: Ordering Replacement Parts
Replacement Parts Ordering Replacement Parts To order replacement parts, call Customer Support at 1-800- 264-3578, 7 a.m. to 5 p.m., Monday through Friday (CT) or contact your nearest distributor. Replacement Parts Table 4 Table 2 Replacement Parts Description QL43 QL64 QL73 QL97 Mounting... - Page 16 Replacement Parts Description QL43 QL64 QL73 QL97 Lens, 801200983- 801201444- Smooth, Clear Lens, 801200983- 801201444- Smooth, Blue Lens, 801200983- 801201444- Smooth, Green Optional QL43MC QL64MC QL73MC QL97MC Chrome Bezel w/ Gasket N/A indicates not available. The following 26 patterns are available in all QuadraFlare models.
