Safety Message to Installers of Warning Light Equipment
People's lives depend on your safe installation of our products. It is important to read, understand and follow all
instructions shipped with the products. Listed below are some other important safety instructions and precautions you
should follow:
•
To properly install the lighting system, you must have a good understanding of automotive systems, along
with proficiency in the installation and use of safety warning equipment. Always refer to the vehicle's
service manuals when installing equipment on a vehicle.
•
Do not install equipment or route wiring in the deployment path of an airbag.
• Locate the light control so the VEHICLE and CONTROL can be operated safely under all driving conditions.
• You should frequently inspect the light system to ensure that it is operating properly and that it is securely
attached to the vehicle.
• A light system is a high-current system. In order for the system to function properly, a separate negative (–)
connection and positive (+) connection must be made. All negative connections should be connected to the
negative battery terminal and a suitable fuse should be installed on the positive battery connection as close
to the battery as possible. Ensure that all wires and fuses are rated correctly to handle the amperage rating of
the device and system.
• To be an effective warning device, this product produces bright light that can be hazardous to your eyesight
when viewed at close range. Do not stare directly into this lighting product at close range or permanent
damage to your eyesight may occur.
•
When drilling into a vehicle structure, be sure that both sides of the surface are clear of anything that could
be damaged.
•
If a vehicle seat is temporarily removed, verify with the vehicle manufacturer if the seat needs to be
recalibrated for proper airbag deployment.
•
Refer to the instructions packed with related products for additional precautions and information.
•
File these instructions in a safe place and refer to them when maintaining and/or reinstalling the product.
Overview

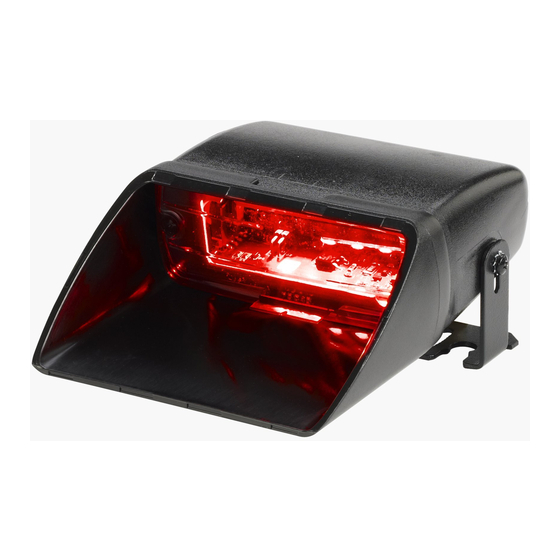

This publication has instructions for using kit models 350701-06 and 350701-07 to mount the single and dual
Viper S2 lights on the rear deck of a 2013 Ford Interceptor or Taurus sedan.
Unpacking the Kit
After unpacking the kit, inspect it for damage that may have occurred in transit. If it has been damaged or is
missing a part, do not attempt to install or operate it. File a claim immediately with the carrier, stating the extent
of the damage. Carefully check all envelopes, shipping labels and tags before removing or destroying them.
Ensure that all parts in Table 1 on page 2 have been included. If you are missing any parts, contact Customer
Support at 1-800-264-3578, 7
Installation Instructions for the Viper S2 Light on the
Rear Deck of a 2013 Ford Interceptor and Taurus Sedan
.
. to 5
.
., Monday through Friday (CT).
a
m
p
m
Advertisement
Table of Contents
Related Manuals for Federal Signal Corporation Viper S2 Light
Summary of Contents for Federal Signal Corporation Viper S2 Light
- Page 1 Installation Instructions for the Viper S2 Light on the Rear Deck of a 2013 Ford Interceptor and Taurus Sedan 25500064A REV. A 113 Safety Message to Installers of Warning Light Equipment People’s lives depend on your safe installation of our products. It is important to read, understand and follow all instructions shipped with the products.
- Page 2 Viper S2 for the Rear Deck of the 2013 Ford Interceptor and Taurus Sedan Table 1 Kit contents Qty. Description Model 350701-06 Model 350701-07 Bracket, VS2, Single, Rear Deck 861300165 Bracket, VS2, Dual, Rear Deck 861300166 Riser, VS2, Rear Deck 861300167 861300167 Screw, #6, Thread Forming...
- Page 3 Viper S2 for the Rear Deck of the 2013 Ford Interceptor and Taurus Sedan Trial-Fitting the Light and Bracket Assembly To trial-fit the light to the bracket assembly: 1. See Figure 2. Feed the #6 thread-forming screw (supplied with the Viper S2) through the slot in the bracket, through the #6 lock washer (supplied with the Viper S2) into the mounting hole on the side of the Viper S2. Leave the assembly loose. Figure 2 Rear deck bracket and riser assembly (350701-06 shown) VIPER S2 #6 LOCKWASHER (2) (SUPPLIED WITH LIGHT) #6 THREAD-FORMER (2) (SUPPLIED WITH LIGHT)
- Page 4 Viper S2 for the Rear Deck of the 2013 Ford Interceptor and Taurus Sedan 4. Position the assembly in the selected location. To get the light as close to the window as possible, slide the Viper S2 forward and backward. To further adjust the position of the light, switch the #6 screw between the front slot and the rear slots. 5. Once you determine the location, raise and lower the riser bracket until the Viper S2 is in the desired position. 6. Tighten the screws on the riser. 7. Use the marker to mark the locations of the two riser holes on the rear deck. 8. Remove the assembly. 9. Remove the Viper S2 from the bracket assembly. Mounting the Rear Deck Bracket Assemblies To mount the bracket assembly: 1. See Figure 3 on page 3. Place the angled edge of the rear-deck bracket assembly against the angled surface of the rear-deck package tray.
