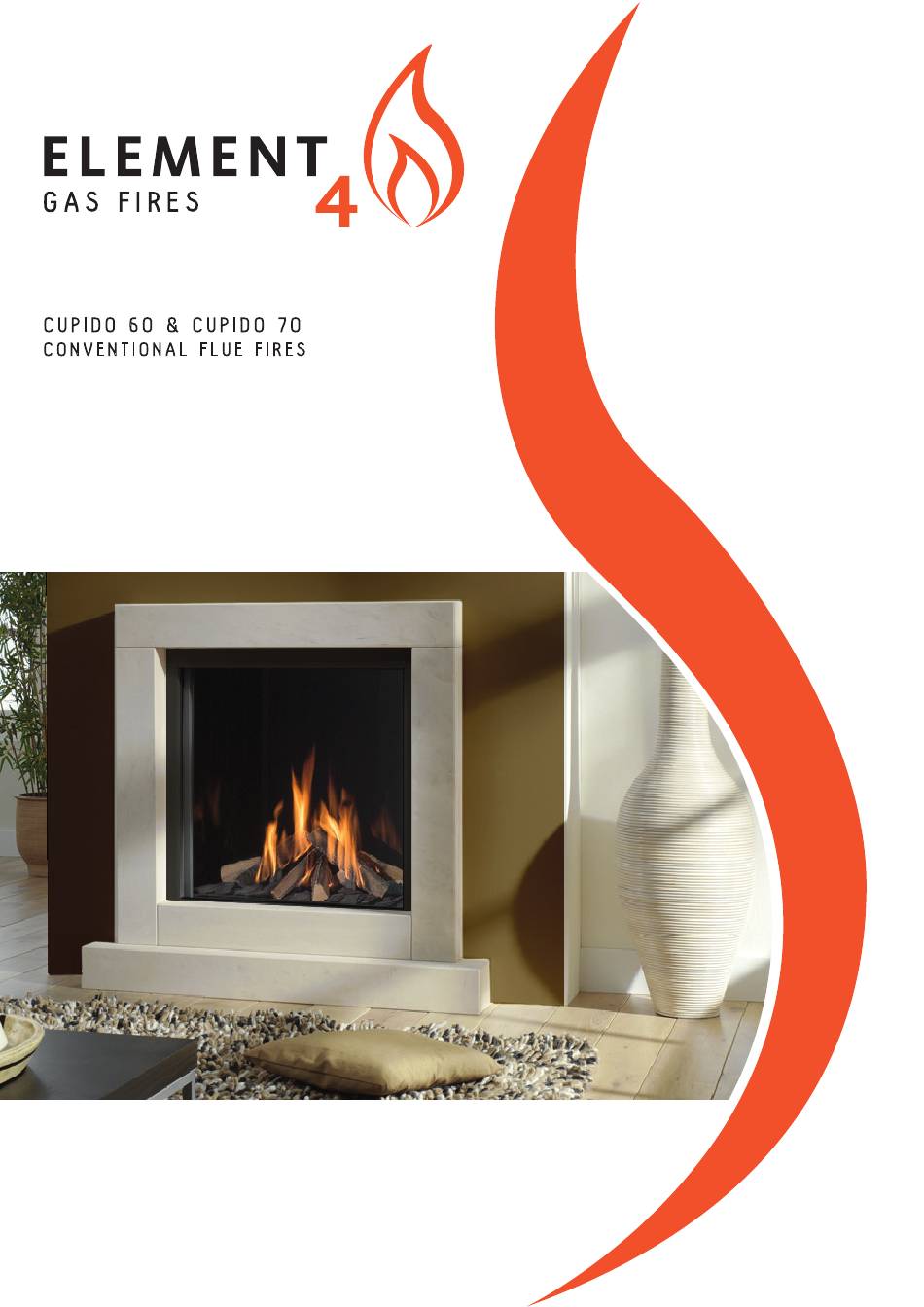

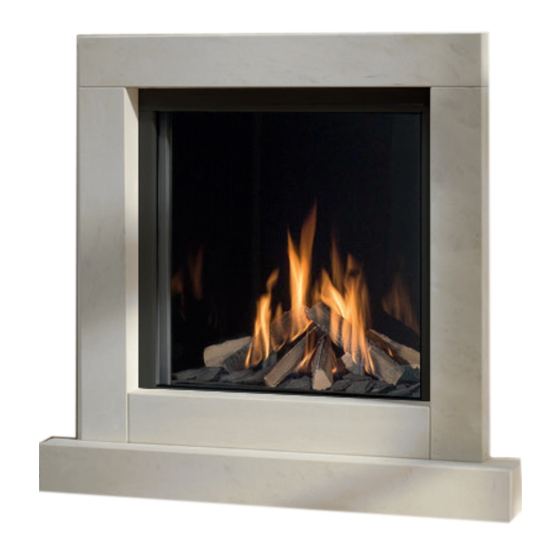

- Page 1 INSTALLATION MANUAL C U P I D O 6 0 & C U P I D O 7 0 C O N V E N T I O N A L F L U E F I R E S P L E A S E L E AV E T H E S E I N ST R U CT I O N S B E H I N D W I T H T H E D E V I C E...
- Page 2 I N STA L L AT I O N M A N UA L D O N OT U S E T H I S P R O D U CT A S A P R I M A RY H E AT S O U R C E...
-
Page 3: Table Of Contents
8 INSTALLATION CHECK AND FIRST USAGE 8.1 Renovation/new construction 8.2 Checking the gas lines 9 ELECTRICAL CIRCUIT 9.1 Domotica 9.2 Element4 ProControl App. 10 MAINTENANCE INSTRUCTION 10.1 Maintenance in the combustion chamber 10.2 Cleaning the glass 11 DECORATION ARRANGEMENT 12 USER INSTRUCTION 12.1 Hand over to the customer... -
Page 4: Ce Statement
This declaration loses its validity when changes to the device are manufacturer. made without the written permission by Element4. You can ask for a copy of the test certificates of all models via our general The device is provided with a special set of decorative materials. -
Page 5: Warranty
In case the installer is not able to fix the problem himself, a request can be made to Element4 to do it for him, as long as the service can be done within the borders of the Benelux. -
Page 6: Remote Control With Full Electronic Ignition
4 REMOTE CONTROL WITH FULL ELECTRONIC IGNITION 4.1) or the The unit is operated using a remote control (Fig. Element4 Puck, connected to a receiver (Fig. 4.2). The receiver is powered by 4 pen lite (type AA) batteries or a 6V adapter;... -
Page 7: Installation Preparation And - Instruction
Only when these materials are used a good and safe performance 5.2 Attention points gas fireplace can be promised by Element4. The flue channel works as a roof terminal (B11), as well as flex This device can be place in a new or existing situation. The device can be installed in a fully enclosed or mechanically ventilated pipes in an existing channel. -
Page 8: Fire Safe Installation
It is important to follow the installation regulations below Appliance carefully. When the regulations are insuff iciently- or not provided Cupido 60 CF with the aspects of fire safety, the instructions according to NPR 3378-20:2010 are leading. Cupido 70 CF 6.2 Appliance Fireplace Installation... -
Page 9: Building The Fireplace
I N STA L L AT I O N M A N UA L 6.3 Building the Fireplace Construct a studwork fireplace to the desired sizes, minimum figure 6.1. Any combustible material used to sizes are shown in construct the Fireplace must not be closer than the minimum table 6.1. -
Page 10: Additional Notes
I N STA L L AT I O N M A N UA L 6.5 Additional notes 6.5.1 Ventilation This appliance does not need extra air vent. However an adequate supply of fresh air to maintain temperatures and a comfortable environment is recommended. 6.5.2 Floor protection The temperature of the floor under the device needs be less than 85°C and the floor of the conversion around the fireplace is... -
Page 11: Attention Points Gas Flue
I N STA L L AT I O N M A N UA L 7 ATTENTION POINTS GAS FLUE 8 INSTALLATION CHECK AND FIRST USAGE 8.1 Renovation/new construction To guarantee the fire safety regarding you flue gas configuration a casing is necessary. For this case non-combustible materials should be used. -
Page 12: Electrical Circuit
Use cleaning supplies qualified by Element4. • When you clean your Anti-Reflective glass, make sure you use this with the special Element4 cleaner, which is available only via Element4. • Use only a microfibre cloth. Other materials such as kitchen towels, steel wool etcetera can cause scratches or damage the coating on the glass. - Page 13 I N STA L L AT I O N M A N UA L Figure 10.3 - Remove bottom trim Figure 10.5 - Put on the suction cup and lift window Figure 10.6 - Remove window by tilting Figure 10.4 - Remove window ropes...
- Page 14 Every fireplace is provided with a main adapter. adjusted for Element4 devices. Up to eight devices can be used with one app, in the situation that multiple fire are installed in the same location.
-
Page 15: Decoration Arrangement
I N STA L L AT I O N M A N UA L 11 DECORATION ARRANGEMENT Only the decoration ceramics supplied with this appliance are to be used. The ceramics must be laid only as shown on this page. Replacement parts are available from your dealer, but should only be installed by a qualified installation engineer. -
Page 16: User Instruction
Only use a neutral cleaning product by a recognized installer to ensure safe use and a long service life (neither acidic nor alkaline), such as Element4 window cleaner guarantee (Item No. 4500926). The cleaning agents that you normally use should therefore not be used with an anti-reflective glass. -
Page 17: Commissioning The Appliance
Check that the pilot flame stays alight appliance. No liability can be accepted by Element4 for injury Extinguish the pilot light caused by burning or scolding by a hot appliance. -
Page 18: A First Aid For Malfunction
A P P E N D I C E S A FIRST AID FOR MALFUNCTION Below you will find an overview of the possible cause and solution in the event of a failure. Problem Possible Cause Solution No transmission 1 Batteries in the receiver empty Replace the batteries (4x 1.5V AA) (motor will not 2 Batteries hand remote empty... - Page 19 A P P E N D I C E S Figure A.1: RESET-button Figure A.4: Antenna Figure A.2: Bend pin Figure A.5: Torx screw Figure A.6: Testpoint A Figure A.3: “Double plus”-button on the remote Figure A.7: Pilot set...
- Page 20 A P P E N D I C E S Problem Possible Cause Solution The pilot light goes 1 Insufficient voltage across the thermocouple or Place the measuring pins of the multimeter on the ground and on but goes out too much resistance in the thermocouple circuit black cable of the breaker.
- Page 21 A P P E N D I C E S 4,5 mV 4,5 mV Figure A.11: SI-port Figure A.8: interrupter Figure A.9: Wiring receiver Figure A.12: Domotica system Figure A.10: Button A on “On”...
-
Page 22: B Errors Codes Procontrol App
A P P E N D I C E S B ERRORS CODES PROCONTROL APP B.1 Messages shown in app Error Message in App Description Possible cause code Contact Service. • 5 sec. beep from Receiver • Microswitch not making contact with cam on motor knob •... -
Page 23: Messages Shown In Remote
A P P E N D I C E S Error Message in App Description Possible cause code Contact Service. • Fire is not responding • Receiver or Wi-Fi Box malfunction • No electronic control of fire • Connection cable from Receiver to Wi-Fi Box defective Check Wi-Fi •... -
Page 24: C Faults And Error Codes In The Remote
A P P E N D I C E S C FAULTS AND ERROR CODES IN THE REMOTE This appendix can be consulted when error messages occur in the application for smartphone and tablet. C.1 F41 error This message will appear if there is no or bad Wi-Fi reception, this can be between app and router or Wi-Fi box and router By closing the App and opening it again, this is solved in most cases. -
Page 25: D Location Terminal
A P P E N D I C E S D LOCATION TERMINAL D.1 Terminal location with vertical exhaust (B11) Distance Exhaust 1,2 of 3 At the same roof level > 6m * & ** At a different roof level >... -
Page 26: E Technical Data
A P P E N D I C E S E TECHNICAL DATA The dataplate specifies for which type of gas, gas pressure and for which country this appliance is intended. The nameplate is attached to a chain. It must remain attached to the chain. Note: Check whether the appliance is suitable for the gas type and gas pressure on site. -
Page 27: F Ecodesign
F.1 Ecolabels The ecolabels for the different types of gas are indicated below, respectively G20, G25 and G30. Cupido 70 CF | G20 Cupido 60 CF | G20 Cupido 70 CF Cupido 60 CF | G25 | G25... -
Page 28: G Dimensional Drawings
A P P E N D I C E S G DIMENSIONAL DRAWINGS On the following ones you will find dimensional drawings of the When you install the Cupido models in an existing chimney, conventional flue Cupido models with some of the important there are two possible exhaust ports, respecively on top and on dimensions that you have to take into account when installing the back of the fireplace. - Page 29 A P P E N D I C E S Figure I.1 - Technical drawing of Cupido 60 CF...
- Page 30 A P P E N D I C E S Figure I.2 - Technical drawing of Cupido 70 CF...
- Page 32 E L E M E N T 4 B .V. Paxtonstraat 23 8013 RP Zwolle The Netherlands Info@element4.nl www.element4fires.com R E L E A S E DAT E | 1 0 / 0 1 / 2 0...
