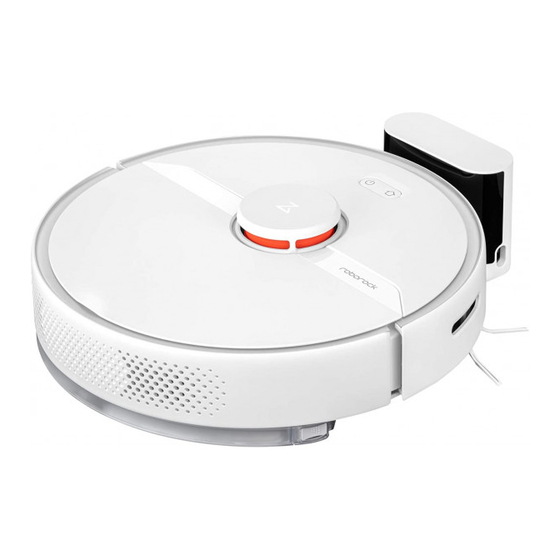

Roborock S6 Pure Robot Vacuum
Cleaner User Manual
Read this user manual carefully before using this product and
store it properly for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6 Pure and is the answer not in the manual?

Questions and answers

Related Manuals for Roborock S6 Pure

Summary of Contents for Roborock S6 Pure

  • Page 1 Roborock S6 Pure Robot Vacuum Cleaner User Manual Read this user manual carefully before using this product and store it properly for future reference.
  • Page 3 Languages Index...

  • Page 4: Table Of Contents

    Safety Information ............. 01 Roborock robot vacuum cleaner troubleshooting ..05 Product Introduction ..........06 Installation ..............10 Instructions for Use ............ 14 Routine maintenance ..........18 Environmental protection description ..... 23 Basic Parameters ............24 Troubleshooting ............25 FAQs ................27 EU Declaration of Conformity ........

  • Page 5: Safety Information

    Safety Information Restrictions • This product is designed for indoor floor cleaning only, do not use it outdoors (such as on an open-ended terrace), on any surface other than the ground (such as a sofa), or in any commercial or industrial environment. •...
  • Page 6 Safety Information reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision (EU).
  • Page 7 WARNING • Do not charge non-rechargeable batteries. • For the purposes of recharging the battery, only use the detachable supply unit roborock CDZ11 RR or CDZ12RR provided with this product. • Do not dismantle, repair or modify the battery or charging dock.
  • Page 8 Safety Information • Make sure the product is powered off before shipment. • Use of the original packaging is advised. • If to be left unused for a long period of time, fully charge the product and switch it off before storing it in a cool, dry place.

  • Page 9: Roborock Robot Vacuum Cleaner Troubleshooting

    Roborock robot vacuum cleaner troubleshooting Roborock robot vacuum cleaner troubleshooting Name Troubleshooting Problem listed in the User Manual Robot The product cannot be powered on The main brush, side brush, fan, or main wheels do not work Charging dock The robot does not receive power...

  • Page 10: Product Introduction

    Product Introduction Robot On/Off • Press to start cleaning • Press and hold to power on or off Power Indicator • White: battery level ≥ 20% • Red: battery level < 20% • Slow flashing: Charging or starting up • Flashing red: Error Dock/Spot Clean •...
  • Page 11 Product Introduction Parts list Charging dock Moisture-proof mat Power cable Adjustable water tank Mop cloth...
  • Page 12 Product Introduction Dustbin Robot Dustbin cover Dustbin latch WiFi indicator light • Off: WiFi disabled • Slow flashing: Waiting for connection Air filter • Fast flashing: Connecting • Steady: WiFi connected System reset Air vent Main brush cleaning tool Speaker...
  • Page 13 Product Introduction Robot and sensors Wall sensor Recharge sensor Omnidirectional wheel Bumper Charging contact Laser Side brush distance sensor Main wheels Main brush Height Main brush cover sensor latch...

  • Page 14: Installation

    Product Introduction Installation Mopping module Using the robot 1. Place the charging dock against the wall on a flat surface Water tank cover and plug it into the mains power. Filter Mop cloth attachment slot Water tank latch Water tank Flow control Water tank latch Mop cloth...
  • Page 15 Installation Using the robot 2. Secure the charging dock with the adhesive tape. Wipe the floor of the area where the charging dock will be placed with a dry cloth, then stick the enclosed double-sided tape to the floor. Place the dock onto the double-sided tape to secure it in place.
  • Page 16 Download the Roborock app or Xiaomi home app added, it will be found in a list on the homepage. a. Search "Roborock" in the App Store or Google Play, Or Note: scan the QR code below, then download and install the app.
  • Page 17 Installation Using the robot Install the mop cloth Dampen the mop cloth and squeeze it until it stops dripping. 6. Mopping Insert it into the mounting slot in the water tank. Note: • It is recommended that all floors are vacuumed at least three times before the first mopping session to reduce excessive dirt buildup on the mop.

  • Page 18: Instructions For Use

    Installation Instructions for Use Using the robot On/off 7. Start cleaning. Press and hold the button to turn on the robot. The power indicator will turn on and the robot will enter Standby mode. When the battery is fully charged, the power indicator If the robot is in Sleep mode, press and hold the button to will remain lit.
  • Page 19 Instructions for Use Start cleanup Auto: After cleaning, the robot will automatically return to Start cleanup the charging dock to recharge. Manual: In Pause mode, press the button to send the Note: • Cleaning cannot start if the battery level is too low. Allow the robot to charge robot back to the charging dock.
  • Page 20 Instructions for Use Spot Cleaning Selective Room Cleaning In Standby or Pause mode, press and hold the button to Select specific rooms for cleaning in the app. In this mode, start spot cleaning. This mode is used to clean a 1.5m × 1.5m the robot will only clean the selected rooms.
  • Page 21 Instructions for Use Pin n Go Use the app to set a destination for the robot to go to. Walls Cleaning mode Use the app to choose from Quiet, Balanced, Strong, or MAX modes. The balanced mode is the default. No-Go Zones Do Not Disturb (DND) mode In DND mode, no cleanups will start, no voice alerts will play,...

  • Page 22: Routine Maintenance

    Instructions for Use Routine maintenance Charging Dock Main brush *Clean weekly The charging dock should be plugged in and placed against 1. Turn the robot over then unlatch and remove the main a wall on level ground, with more than 0.5m (1.6ft) of brush cover.
  • Page 23 Routine maintenance Using the main brush cleaning tool Dustbin and filter *Weekly cleaning is recommended Use the main brush cleaning tool to remove any hair 2. Open the dust bin lid as indicated by the arrow and pour entangled around the main brush. out the contents.
  • Page 24 Routine maintenance Clean the washable filter 4. Rinse repeatedly and tap the filter frame to remove as much dirt as possible. *Clean every two weeks 2. Fill the dust bin with clean water and close the cover. Gently shake the dust bin, then pour out the dirty water. 5.
  • Page 25 Routine maintenance Side brush 2. Clean and dry the mop cloth. *Monthly Side cleaning brush recommended Note: • Always remove the mop cloth after cleaning to filter blockage. 1. Turn the robot over and remove the screw holding the • If the mop cloth gets excessively dirty, the cleaning quality will be affected. Always side brush.
  • Page 26 Routine maintenance Robot sensors Wheel *Clean monthly Axle Use a soft dry cloth to wipe and clean all sensors, including: 1. Four cliff sensors at the bottom of the robot. Bracket 2. The wall sensor on the right of the robot. 3.

  • Page 27: Environmental Protection Description

    Environmental protection description Removing the battery *The following information applies only when disposing of the robot and should not be followed for day-to-day operations The chemical substances contained in the built-in lithium-ion battery of this product can cause environmental pollution. Remove the battery before disposing of this product and hand it to a professional battery recycling facility for centralized disposal.

  • Page 28: Basic Parameters

    Basic Parameters Robot Charging Dock Name Parameters Name Specs Model Roborock 56 Pure Model CDZ11 RR or CDZ12RR Dimensions 350 × 350 × 96.5 mm Dimensions 151 × 130 × 98 mm Battery 14.4V/5200mAh lithium battery Rated power Weight Approx. 3.2kg...

  • Page 29: Troubleshooting

    Troubleshooting If an error occurs during cleanup, the power indicator will flash red quickly, and a voice alert will play. Refer to the table below for resolution options. Error Solution The LDS unit is jammed. Remove any items blocking it then move the robot to a Error 1: Rotate the laser head to check that it turns freely.
  • Page 30 Troubleshooting If an error occurs during cleanup, the power indicator will flash red quickly, and a voice alert will play. Refer to the table below for resolution options. Error Solution The robot ls too close to magnetic tape and cannot start. Move it to a new location Error 11: High-intensity magnetic field detected.

  • Page 31: Faqs

    Unable to connect to WiFi The current device is not supported. You can find supported models inside the app. Unable to connect to WiFi. There may be an error with your router settings. Contact Roborock customer service for help with troubleshooting.
  • Page 32 FAQs Problem Type Solution Is power always being drawn when the robot is on The robot will draw power while it is docked to maintain battery performance, but power consumption the charging dock? is extremely low. Does the robot need to be charged for at least 16 No.

  • Page 33: Eu Declaration Of Conformity

    EU Declaration of Conformity Hereby we: Name of manufacturer Beijing Roborock Technology Co.,Ltd. Floor6, Suite6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, Address No.8 Heiquan Road, Haidian District, Beijing, P.R. CHINA declare that this DoC is issued under our sole responsibility and that the products:...
  • Page 34 EU Declaration of Conformity 1.Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonized Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential requirements of article 6 of Directive 2014/30/EU RED Directive 2014/53/EU 2.Electromagnetic Compatibility (EMC) standard for radio equipment and services;...
  • Page 35 EU Declaration of Conformity Low Voltage Directive 2014/35/EU 1. Household and similar electrical appliances-Safety-Part 1: General requirements 1. EN 60335-1 :2012 + A11 :2014 + AC:2014 2. Household and similar electrical appliances-Safety-Part 2-29: Particular requirements for + A13:2017 battery chargers 2.

  • Page 36: Weee Information

    WEEE Information Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

  • Page 37: Warranty Information

    Warranty Information Warranty Information The seller provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year,starting from the date on which the appliance is sold to the end user. The warranty only covers defects in material or workmanship. The repairs under warranty may only be carried out by an authorized service centre.
