- Page 1 Roborock S4 Robot Vacuum User Manual Read this user manual carefully before using this product and store it properly for future reference.
-
Page 3: Table Of Contents
Safety Information FCC Statement Ba ery and Charging Welcome Product Introduction Installation Instructions for Use Basic Parameters Troubleshooting FAQs... -
Page 4: Safety Information
Safety Information IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING To reduce the risk of fire, electric shock, or injury: Do not use outdoors or on wet surfaces. - Page 5 Safety Information For use only with roborock CDZ10RR charger. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of ba ery pack may create a risk of fire when used with another ba ery pack.
- Page 6 Safety Information Do not allow children to sit on the vacuum. Do not use the vacuum cleaner on a wet surface. Risk Of Injury. Brush May Start Unexpectedly.Disconnect the main Brush Before Cleaning or Servicing. Do not use the product when the temperature is higher than 40℃ or lower than 4℃, or there is any liquid or sticky sub- stance on the floor.
- Page 7 à la position marche peut causer un accident. Pour emploi seulement avec roborock CDZ10RR chargeur.Recharger uniquement avec le chargeur prescrit par le fabricant. Un chargeur convenant à un type de ba erie peut présenter un risque d’incendie lorsqu’il est utilisé avec une autre ba erie.
- Page 8 Safety Information Ne pas utiliser une ba erie ou un appareil endommagé ou qui a été modifié. Des ba eries endommagées ou modifies peuvent avoir un comportement imprévisible pouvant causer un incendie, une explosion ou un risque de blessure. Ne pas exposer une ba erie ou un appareil à la flamme ou à des températures excessives. L’exposition à une flamme ou à...
-
Page 9: Fcc Statement
FCC Statement Compliance Information Product Name Robotic Vacuum Cleaner with Dock Charger Robotic Vacuum Cleaner Model: roborock S4 Produce Model Dock Charger Model: CDZ10RR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:... - Page 10 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 11: Ba Ery And Charging
Ba ery and Charging Please keep the dock charger away from heat (such as heating plates). The ba ery must be removed from the appliance before it is scrapped. The appliance must be disconnected from the supply mains when removing the ba ery. The ba ery is to be disposed of safely.Please do not discard waste ba eries. -
Page 12: Welcome
flicking dust and hair into the suction flow for a more thorough clean. Through the Roborock app, you can see a map of your home, the location of the robot, and its cleaning path in real-time, set cleaning schedules and specific cleaning areas, and more, for full remote control. -
Page 13: Product Introduction

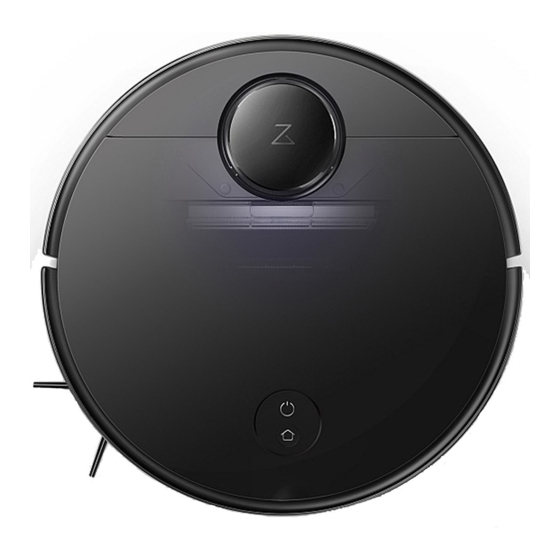

Product introduction Robot On/Off Press to start cleaning Press and hold to power on or off Power indicator White: Ba ery level ≥ 20% Red: Ba ery level < 20% Flashing: Charging or starting up Flashing red: Error Dock/spot clean Press to return to the dock Press and hold to spot clean Note: Press any bu on to pause cleanup,... - Page 14 Product introduction Dustbin Robot WiFi indicator light Air filter Off: WiFi disabled Dustbin cover Slow flashing: Waiting for connection Fast flashing: Connecting Steady: WiFi connected System reset bu on Dustbin latch...
- Page 15 Product introduction Charging dock Locator beacon Cable channel Charging points Power socket Cable exit points Latch Note: Cables can exit either the right or le opening. Rear cover...
- Page 16 Product introduction Air vent Charging contacts Wall sensor Speaker Cliff sensors Omnidirectional wheel Laser distance sensor Side brush Driving wheels Main brush Main brush cover latch Bumper USB debugging port (for service use only)
-
Page 17: Installation
Installation Using the robot 1. Connect the power cable to the charging dock and tidy cables 3. Turn on and charge using the cable channel as necessary. Press and hold the bu on to turn on the robot. When the power indicator lights up, place the robot onto the charging dock to begin charging. - Page 18 Installation Connect to the Mi Home App This robot is controlled through the Mi Home app. Through the MIUI system, it can be connected to other smart home products. Download app Search for "Mi Home" in the App Store or Google Play, or scan the QR code below, then download and install the app. WiFi indicator light Reset WiFi 1.
- Page 19 Instructions for use On/off Press and hold the bu on to turn on the robot. The power Note: indicator will turn on, and the robot will enter Standby mode. If the Cleaning cannot start if the ba ery level is too low. Allow the robot to charge before restarting cleanup.
-
Page 20: Instructions For Use
Instructions for use Charging Spot cleaning Auto: A er cleanup, the robot will automatically return to the In Standby or Pause modes, press and hold the bu on to spot charging dock to recharge. clean. A 1.5m x 1.5m square area centered on the robot will be cleaned. Manual: In Pause mode, press the bu on to send the robot A er cleanup, the robot will return to the center of the square. - Page 21 Instructions for use Scheduled cleanup Virtual no-go zone and barrier Use the Mi Home app to set start times and suction levels for The Mi Home app can be used to draw virtual no-go zones and barriers scheduled cleanups. The robot will return to the charging dock to keep the robot from entering the areas you define.
- Page 22 Instructions for use More app functions Live map Cleanup records Robot location Remote control mode Change cleaning mode Control other Mi Home devices View cleaning history View robot status Change voice pack Firmware updates Note: Functions and details of the Mi Home app may vary slightly due to the continuous app development and upgrades.
- Page 23 Routine maintenance Instructions for use Charging dock Main brush * Weekly cleaning recommended 1. Turn the robot over then unlatch and remove the main The charging dock should be plugged in and placed against a brush cover. wall on level ground, with more than 0.5m (1.6 ) of clearance 2.
- Page 24 Routine maintenance Using the main brush cleaning tool 2. Open the dustbin lid as indicated by the arrow and pour out the contents. Cut hair Clean dirt Dustbin and filter Clean the filter * Weekly cleaning is recommended * Bi-weekly cleaning is recommended 1.
- Page 25 Routine maintenance Clean the filter * Bi-weekly cleaning is recommended 2. Fill the dustbin with clean water and close the cover. Gently 4. Rinse repeatedly and tap the filter frame to remove as much shake the dustbin, then pour out the dirty water. dirt as possible.
- Page 26 Routine maintenance Side brush Omnidirectional wheel * Monthly cleaning recommended * Monthly cleaning recommended 1. Turn the robot over and remove the screw holding the side brush. 1. Turn the robot over and remove the omnidirectional wheel. 2. Remove and clean the side brush. 2.
- Page 27 Routine maintenance Holiday Energy Saving Function Machine sensors When the cleaner is on the charging dock, hold and press "Recharge" Use a so dry cloth to wipe and clean all sensors, including: 1. Four cliff sensors at the bo om of the robot. for 10 seconds until you hear a "Ding-dong"...
-
Page 28: Basic Parameters
Basic parameters Robot Charging dock Name Parameters Name Parameters Dimensions 354.7×350×96 mm Dimensions 265×109×129mm Ba ery 14.4 V/5200 mAh lithium ba ery Rated power Weight Approx. 3.8 kg Rated input 100-240VAC Rated output 20VDC 1.8A Wireless connection WiFi Smart Connect Rated frequency 50-60Hz Rated voltage... -
Page 29: Troubleshooting
Troubleshooting If an error occurs during cleanup, the power indicator will flash red quickly, and a voice alert will play. Refer to the table below for resolution options. Errors Troubleshooting The LDS unit is jammed. Remove any items blocking it then move the robot to a new Error 1: Rotate the laser head to check that it turns freely. - Page 30 Malfunction due to an internal error. Reset the system. Note: A system reset may not resolve all problems. If the problem persists a er using the recommendations in the table above, please email our a er-sales service team: US/Non-Europe Support: support@roborock.com Europe Support: support@roborock-eu.com...
-
Page 31: Faqs
FAQs Problem Solution Ba ery level may be too low. Charge the robot and retry. Ba ery temperature may be too low or Unable to power on too high. Try again when the ba ery is between 0°C (32°F) to 40°C (104°F). If the charging dock is not receiving power, check that both ends of the power cable are Unable to charge properly connected. - Page 32 Address of Manufacturer: Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No.8 Heiquan Road, Haidian District, Bejing, P.R.CHINA For more product information, visit our website: www.roborock.com For a er-sales support, email our a er-sales service team: US/Non-Europe Support: support@roborock.com...
