- Page 1 Installation and Operation Guide HOTAP Instant Water Heater Tap www.atmor.net Cat.No. 197535...
-
Page 2: Table Of Contents
Packing List ----------------------------------------------------------------------------------------------- 3 Important Safety Instructions ------------------------------------------------------------------------- 4 HOTAP Features----------------------------------------------------------------------------------------- 5 Safety Features ------------------------------------------------------------------------------------------ 5 Technical Specifications ------------------------------------------------------------------------------- 6 HOTAP Components ----------------------------------------------------------------------------------- 7 Electrical Diagram --------------------------------------------------------------------------------------- 8 Installation Guidelines ---------------------------------------------------------------------------------- 8 Installation ------------------------------------------------------------------------------------------------- 8 10. Operation Instructions -------------------------------------------------------------------------------- 10 11. -
Page 3: Packing List
1. Packing List Item Quantity Instant water heater tap Pedestal Rubber pad Mounting nut Water inlet hose BSP ½" Aerator extractor tool Installation and Operation Guide... -
Page 4: Important Safety Instructions
2. Important Safety Instructions For your satisfaction and safety, read this guide thoroughly before installing and using • the HOTAP instant water heater tap. For best performance, this appliance must be installed in accordance with all electrical • and plumbing codes applicable to your area, and as specified in this guide. -
Page 5: Hotap Features

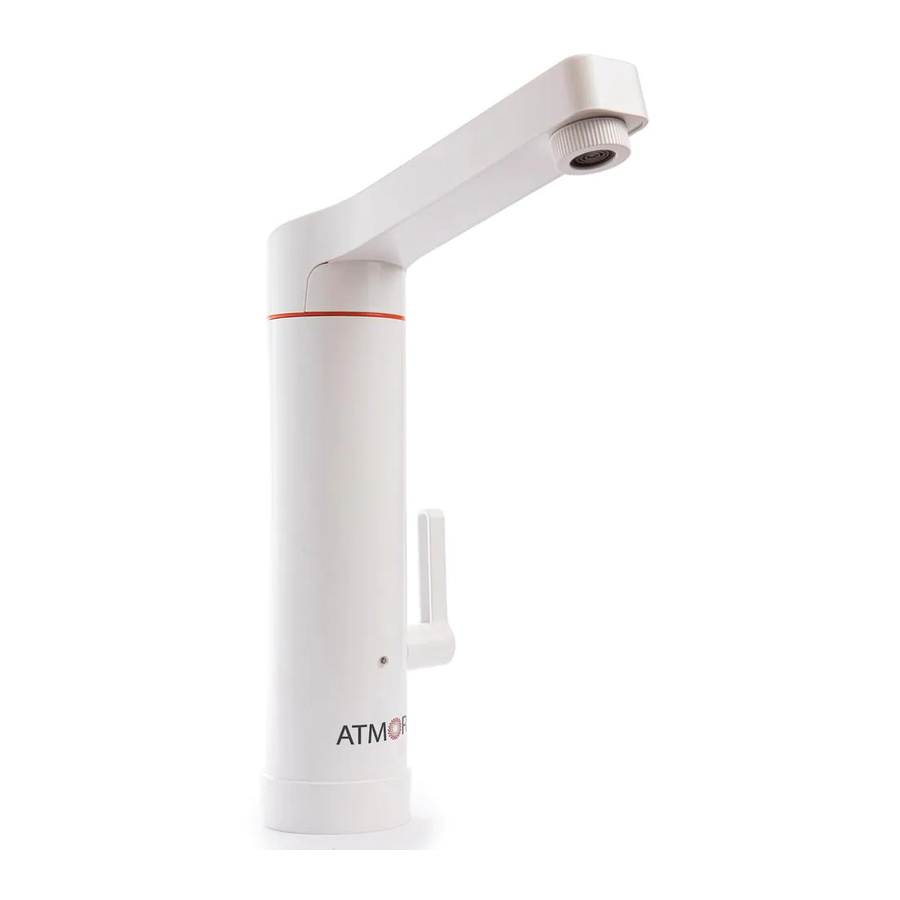

3. HOTAP Features The HOTAP instant water heater tap is designed for indoor and outdoor use. It is suited for use in kitchens, washrooms, bathrooms, garages and workspaces. The tap provides hot water instantly at any location that has access to a cold water supply line and a suitable grounded electrical outlet. -
Page 6: Technical Specifications
5. Technical Specifications Item Specification Power 3.3 kW Hot water flow rate @3 bar 2.6–6 L/min Voltage 220–240 V Rated current 15 A Rated frequency 50/60 Hz Overheat protection 49°C Thermal cut-out 85°C IP rating IP25 Minimum active pressure 80 kPa (0.8 bar) Maximum active pressure 600 kPa (6 bar) Water connection... -
Page 7: Hotap Components
HOTAP HOTAP Utility (HOTAP U) The HOTAP U tap allows the connection of a ¾” garden hose to the tap outlet by unscrewing the aerator and attaching the hose. The garden hose outlet must always remain open to prevent heat buildup within the tap. -
Page 8: Electrical Diagram
9. Installation The HOTAP instant water heater tap can be installed in either of two ways. Option 1: The power cable runs from the tap to a power outlet below the counter. - Page 9 8. After completing the installation, and when operating the appliance for the first time, allow cold water to flow through the tap for at least 20 seconds to flush the water line of any debris. After thoroughly flushing the line, you can activate the HOTAP water heater tap.
-
Page 10: Operation Instructions
Operation Instructions Improper use of the HOTAP instant water heater tap may cause scalding. Operation of the HOTAP water heater tap is simple. When the handle is fully forward (9 o’clock position), the appliance is shut off. • When the handle is in the middle facing up (12 o’clock position), cold water flows the •... -
Page 11: Maintenance
On the HOTAP U tap, periodically unscrew the aerator and remove scale and dirt that may have accumulated in the aerator. On the HOTAP tap, use the extraction tool provided in the product package to remove the aerator from the spout, as shown in the figure below. Remove scale and dirt that may have accumulated in the aerator, and then reinsert the aerator. -
Page 12: Limited Warranty
However, even the best engineered products can sometimes go wrong. That is why we offer all our customers a guarantee for new products. Your HOTAP instant water heater tap is guaranteed for a period of 12 months from the date of purchase.
