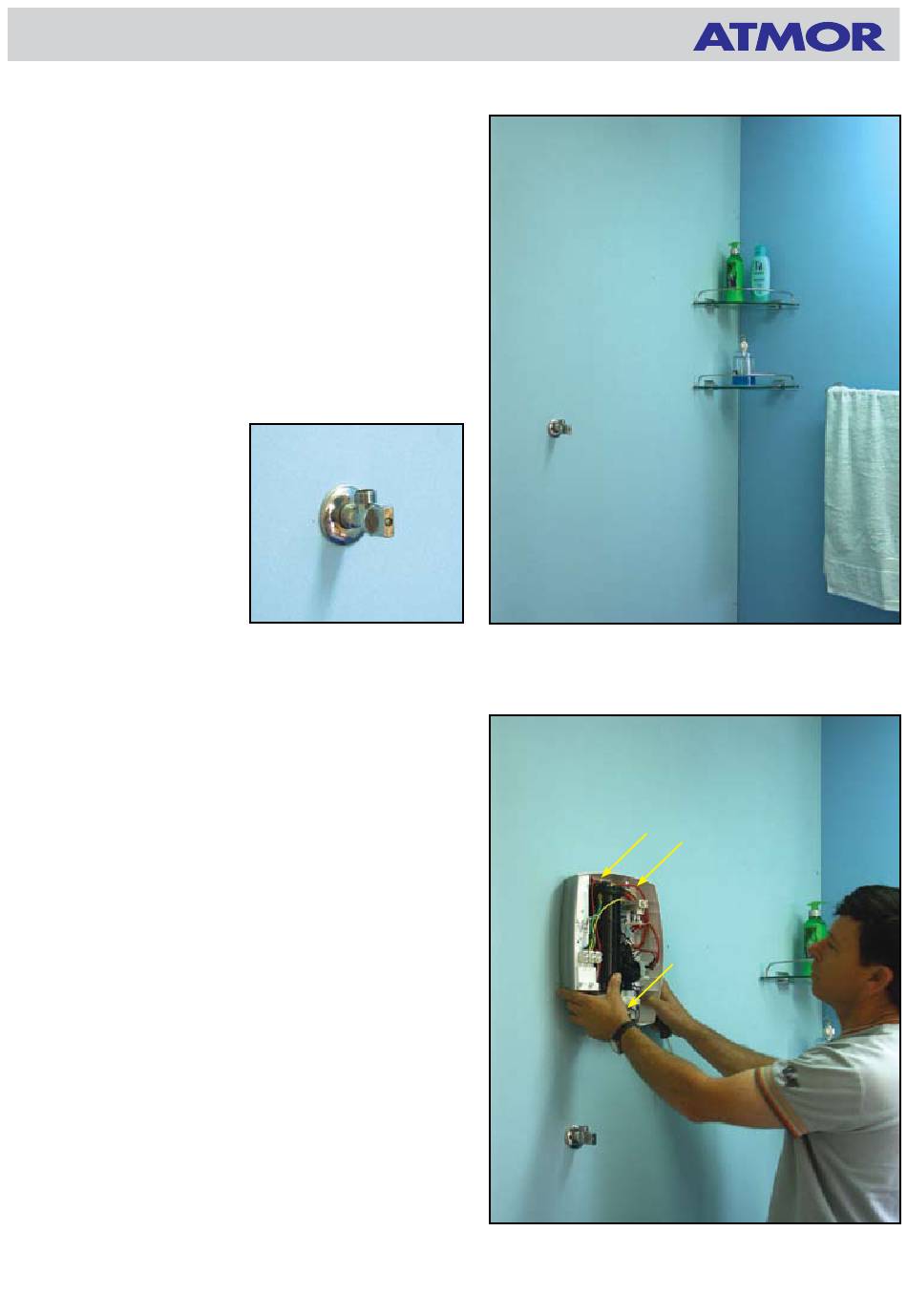

- Page 1 Blue Wave Assembly Instructions Steps Step 1 Step 2 Find The Place - Eye Level and Sign 3 screws place...
- Page 2 Blue Wave Assembly Instructions Steps Step 3 Drilling 3 holes and inserting 3 plugs Step 4 Inserting 2 top screws...
- Page 3 Blue Wave Assembly Instructions Steps Step 5 Hang the unit on the 2 top screws Step 6 Insert the third bottom screw, keeping the unit streight.
- Page 4 Blue Wave Assembly Instructions Steps Step 7 Connect the Reinforced hose to the water supply (don't forget to insert the rubbers). Step 8 Connect the second end of the reinforced hose to the inlet water connector of the unit. (on the left...
- Page 5 Blue Wave Assembly Instructions Steps 3 Way inlet hose posibility: 1. Top 2. Back 3. Bottom...
- Page 6 Blue Wave Assembly Instructions Steps Step 9 Connect the outlet hose to the outlet connector. (in the middle bottom of the unit) Step 10 1. Insert the Soap dishes. 2. Insert the hand shower holder. 3. Place the ends of the sliding bar.
- Page 7 Blue Wave Assembly Instructions Steps Step 11 1. Drilling 4 holes - 2 on top and 2 on the bottom. 2. Insert plugs Step 12 Connect the sliding bar to the wall using 4 screws...
- Page 8 Blue Wave Assembly Instructions Steps Step 13 Connect the cover of the Sliding bar ends. Step 14 Connect the hand shower to the outlet hose end. (Don't forget the ruber) Hand it on the sliding bar.
- Page 9 Blue Wave Assembly Instructions Steps Step 15 Open the water supply and check for leakage. Step 16 Insert the Electric cable threw the back of the unit.
- Page 10 Blue Wave Assembly Instructions Steps Step 17 Hold the cable with the cable holder. Step 18 Connect the electric cable to the Terminal block. L M N...
- Page 11 Blue Wave Assembly Instructions Steps Step 19 Open the Hose entry in the base corner. Step 20 Connect the corner to the the base of the unit.
- Page 12 Blue Wave Assembly Instructions Steps Step 21 Round the Knobs according to the Facet and Rotering switch Pivot. Than put the cover of the unit Step 22 Close the cover by 2 screws One on the top and the second...
- Page 13 Blue Wave Assembly Instructions Steps Step 23 Final view...
