Summary of Contents for Atmor InLine 800 Series

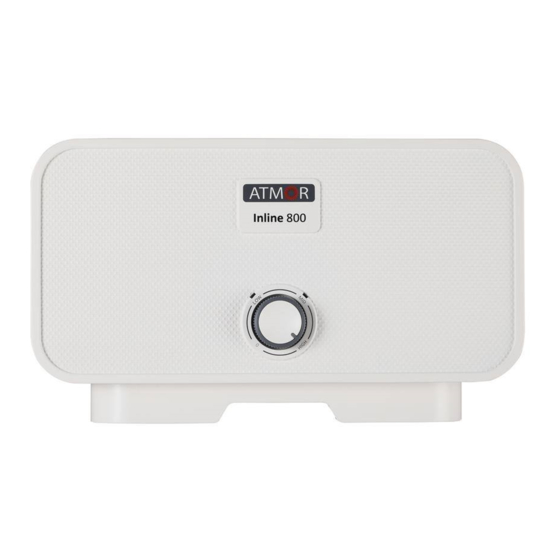

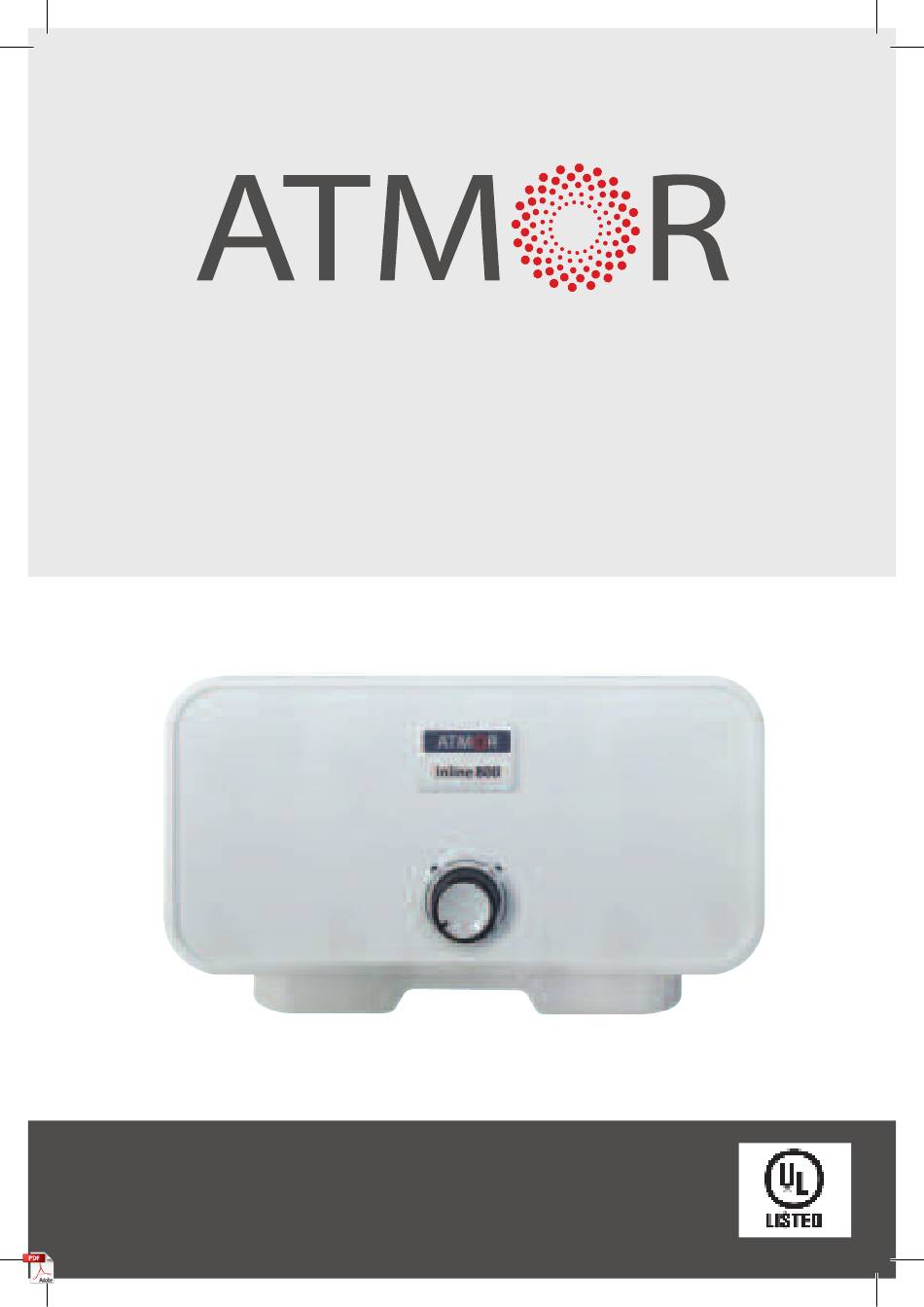

  • Page 1 Hot Water on Demand Installation and Operation Guide InLine 800 Series 3kW-13kW www.atmorusa.com...
  • Page 2: Safety Instructions

    Atmor will not be liable for any damages because of failure to comply with the installation and operating instructions outlined in this manual or because of improper use. Improper use includes the use of this appliance Failure to comply with the installation and operating instructions or to heat any liquid other than water.
  • Page 3: Technical Information

    Technical Information Circuit breaker Required wire Model *Wattage Voltage Amperage Phase size size AT-800-35 3.0 kW 10 AWG AT-800-04 3.8 kW 12 AWG AT-800-70 7.0 kW 10 AWG AT-800-08 8.5 kW 8 AWG AT-800-10 10.5 kW 6 AWG AT-800-13 13 kW 4 AWG Minimum water flow to activate unit: 0.5 GPM Nominal water volume: 2.7G/Min...
  • Page 4 Assembly Instructions 1. Mount ground plate Connect the Pressure Relief Remove the appliance Device (PRD) to the unit (Fig1) covers (Figure 2). to wall. Note: IMPORTANT – do not 2. Pull wires through. discard this step. A PRD 3. Cut out hole in back must be installed.
  • Page 5 Inline 800 Rubber Cold (See below the Electrical Diagram) Inline 800 G = Green or Yellow N = White L1/L2 = Black L1 L2 Inline 800 Cold *3a) *3b) *3c) Note: Neutral (N) does not need to 3.0-3.5kW 3.8-8.5kW 8.6-13kW be connected.
  • Page 6 Connect the power cable to the terminal block. Caution: The heater must be grounded. Run the water flow for Reference figure *3 on page 4 and one minute to check for Electrical diagram on page 6 leakage before connecting to power. Reattach the front cover Make sure that the When installed outdoors,...
  • Page 7: Electrical Diagram

    Electrical Diagram 3.0 (110V), 3.8 -6.5Kw (240V) - Install Line 1 (L1), E(G)-Ground, Line 2 (L2) 1. Terminal block Led 1 2. Thermal cut-out with reset 85 º 3. Thermal cut-out 85 º 4. Relay 5. Switch 0- Off 57 º Led 2 1- Low 2- Medium...
  • Page 8: Troubleshooting

    Operation Guide HIGH MODEL AT-800-35 AT-800-04 AT-800-70 AT-800-08 AT-800-10 5.25 5.25 10.5 AT-800-13 Troubleshooting PROBLEM ISSUE POSSIBLE CAUSE SOLUTION Too much water flowing Reduce the flow rate of the water via Water not hot enough. through the heater. the outlet tap. Reduction in the ambient Switch to higher temperature setting.
  • Page 9 Troubleshooting PROBLEM ISSUE POSSIBLE CAUSE SOLUTION Not enough water flowing Increase the flow rate via the outlet Water too hot. through the heater. tap. Increase in the ambient Switch to lower temperature setting. temperature. Heater shut off Interruption of main Check incoming power supply, MCB, during use.
  • Page 10 Parts 1. Switches Inline 800 2. PRD 5. Hot water outlet (to be connected to the main hot water pipe) 3. Cold water inlet...
  • Page 12 Atmor is not responsible for labor charges or any incidental or consequential expenses. Atmor’s liability is limited to the cost of the product or $1,000.00, whichever is less. Atmor is not an insurer and the original owner should purchase insurance to cover damage to property or belongings. The original owner agrees to waive their right to jury trial or to participate in a class action.
  • Page 13 Hot Water on Demand Instalación y guía de funcionamiento Serie InLine 800 3kW-13kW www.atmorusa.com...
  • Page 14: Instrucciones De Seguridad

    Atmor no será responsable de los daños ocasionados por no cumplir las instrucciones de instalación y funcionamiento detallados en este manual o por el uso inadecuado. El uso inadecuado incluye el uso de este artefacto para calentar cualquier líquido que no sea agua.
  • Page 15: Información Técnica

    Información técnica Tamaño del Tamaño de cable disyuntor Modelo *Vataje Voltaje Amperaje Fase requerido AT-800-35 3.0 kW 10 AWG AT-800-04 3.8 kW 12 AWG AT-800-70 7.0 kW 10 AWG AT-800-08 8.5 kW 8 AWG AT-800-10 10.5 kW 6 AWG AT-800-13 13 kW 4 AWG Flujo mínimo de agua para activar la unidad: 0.5 GPM...
  • Page 16: Instrucciones De Ensamblaje

    Instrucciones de ensamblaje 1. Instale la placa de tierra a Conecte el dispositivo de alivio de Retire las cubiertas del la pared. presión a la unidad (Fig. 1). artefacto (Figura 2). 2. Jale los cables. Nota: IMPORTANTE – No omita este paso.
  • Page 17 Inline 800 Goma Dispositivo de alivio de presión Frío Caliente (vea a continuación el diagrama eléctrico) Inline 800 G = Verde o amarillo N = Blanco L1/L2 = Negro L1 L2 Inline 800 *3a) *3b) *3c) Nota: el neutro (N) no requiere 3.0-3.5kW 3.8-8.5kW 8.6-13kW...
  • Page 18 Conecte el cable de alimentación al bloque de terminales. Precaución: el calentador debe estar conectado a tierra. Consulte la figura 3 en la página 4 y el Deje correr el agua durante un diagrama eléctrico en la página 6. minuto para verificar si hay fugas antes de conectar el artefacto al suministro eléctrico.
  • Page 19: Diagrama Eléctrico

    Diagrama eléctrico 3.0 (110V), 3.8 -6.5Kw (240V) - Instalar Línea 1 (L1), E(G)-Tierra, Línea 2 (L2) 1. Bloque de terminales Led 1 2. Interruptor térmico con reajuste 85 º 3. Interruptor térmico 85 º 4. Relé 5. Interruptor 0- Apagado 57 º...
  • Page 20: Guía De Funcionamiento

    Guía de funcionamiento Bajo Medio Alto MODELO AT-800-35 AT-800-04 AT-800-70 AT-800-08 AT-800-10 5.25 5.25 10.5 AT-800-13 Resolución de problemas PROBLEMA CAUSA POSIBLE SOLUCIÓN Fluye demasiada agua por Reducir la tasa de flujo del agua El agua no está lo el calentador. mediante la llave de salida.
  • Page 21 Resolución de problemas PROBLEMA CAUSA POSIBLE SOLUCIÓN El agua está No fluye suficiente agua por Incrementar la tasa de flujo mediante la demasiado caliente. el calentador. llave de salida. La temperatura ambiente Cambiar a un ajuste de temperatura aumentó. más bajo. El calentador se Interrupción del Revisar el suministro de energía,...
  • Page 22 Piezas 1. Interuptores Inline 800 2. Dispositivo de alivio de presión 5. Salida de agua caliente (para conectar a la tubería de agua caliente) 3. Entrada de agua fría...
  • Page 24 La responsabilidad de Atmor se limita al costo del producto o $ 1,000.00, lo que sea menor. Atmor no es una aseguradora y el propietario original debe comprar un seguro para cubrir los daños a la propiedad o pertenencias. El propietario original se compromete a renunciar a su derecho a juicio por jurado oa participar en una acción colectiva.
