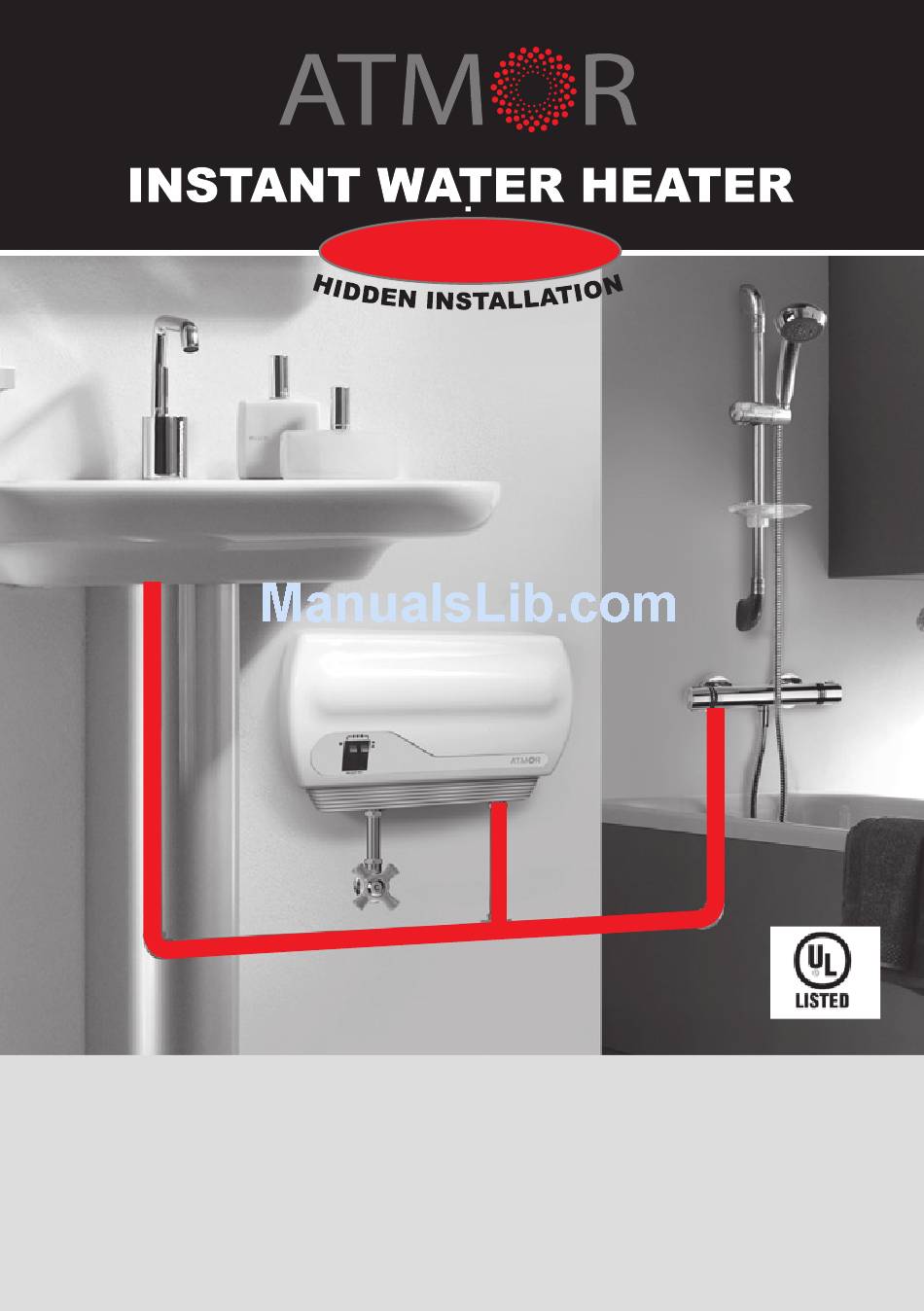

Hot Water
on Demand
InLine
900 Series
Directions of Assembly and Operation of "In-Line" Instant Water Heater
"Instant" appliance is a novel device designed to supply hot water instantaneously upon
demand while conserving electricity, water and energy.
The "In-Line" is the most advanced heater in the "Instant" family and as such can be installed
anywhere, and serve any purpose. When the flow switch turns on the electrical current, the
heating element heats only the amount of water economically needed for use.
Advertisement
Table of Contents
Related Manuals for Atmor 900 series
Summary of Contents for Atmor 900 series
- Page 1 Hot Water on Demand InLine 900 Series Directions of Assembly and Operation of “In-Line” Instant Water Heater “Instant” appliance is a novel device designed to supply hot water instantaneously upon demand while conserving electricity, water and energy. The “In-Line” is the most advanced heater in the “Instant” family and as such can be installed anywhere, and serve any purpose.
-
Page 2: Safety Precautions
Atmor will not be liable for any damages because of failure to comply with the installation and operating instructions outlined in this manual or because of improper use. Improper use includes the use of this appliance to heat any liquid other than water. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS This water heater must be installed by a licensed electrician, as required by law. 1. Open the four screws located on the top and bottom of the device and remove the cover from base. 2. Fix the base horizontally against a wall or side of cabinet, metal plate supplied must be installed below cable entry on the wall and ground wire must be connected to the unit, the water entry and exit connectors are on the down/bottom side of the unit. -
Page 4: Installation Requirements
OPERATION INSTRUCTIONS 1. Your new Instant Water Heater is flow activated. Simply place one or both switches in the ON position and turn on the hot water tap. You will need to allow at least 1.5 liters per minute to flow through the unit in order to activate the Instant Heating System. -
Page 5: Wiring Diagram
Device with 220V-240V 10.6kW- 13kW output A. A separate electrical line is needed as power supply for this device. B. The device must be connected to a separate circuit breaker. C. The recommanded electrical cable for feeding the device, see table I. 1. -
Page 6: Technical Information
TECHNICAL INFORMATION item no. AT900-04 AT900-06 AT900-08 AT900-10 AT900-13 AT900-03 Phase Voltage Wattage (KW) 10.5 Amperage Circuit breaker size Required wire size (min) 12 AWG 10 AWG 6 AWG 6 AWG 4 AWG 10 AWG Minimum water flow to 0.5 GPM 0.5 GPM 0.5 GPM 0.5 GPM... -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE Your water heater has no internal user serviceable parts and should be returned to the factory for repair or replacement. Please contact toll - free hot line for return authorization. If after following the Installation Instructions, your Instant heater does not heat water in accordance with this literature, please check the following: Symptom Possible Cause... -
Page 8: Limited Warranty
Should the owner wish to return the water heater for repair, the owner must first secure a written authorization from Atmor. The owner shall be required to show proof of purchase date and to pay all transportation costs to return the defective part(s) or water heater for repair or replacement. Warranty is void if: (i) water heater has been installed or used improperly;...
