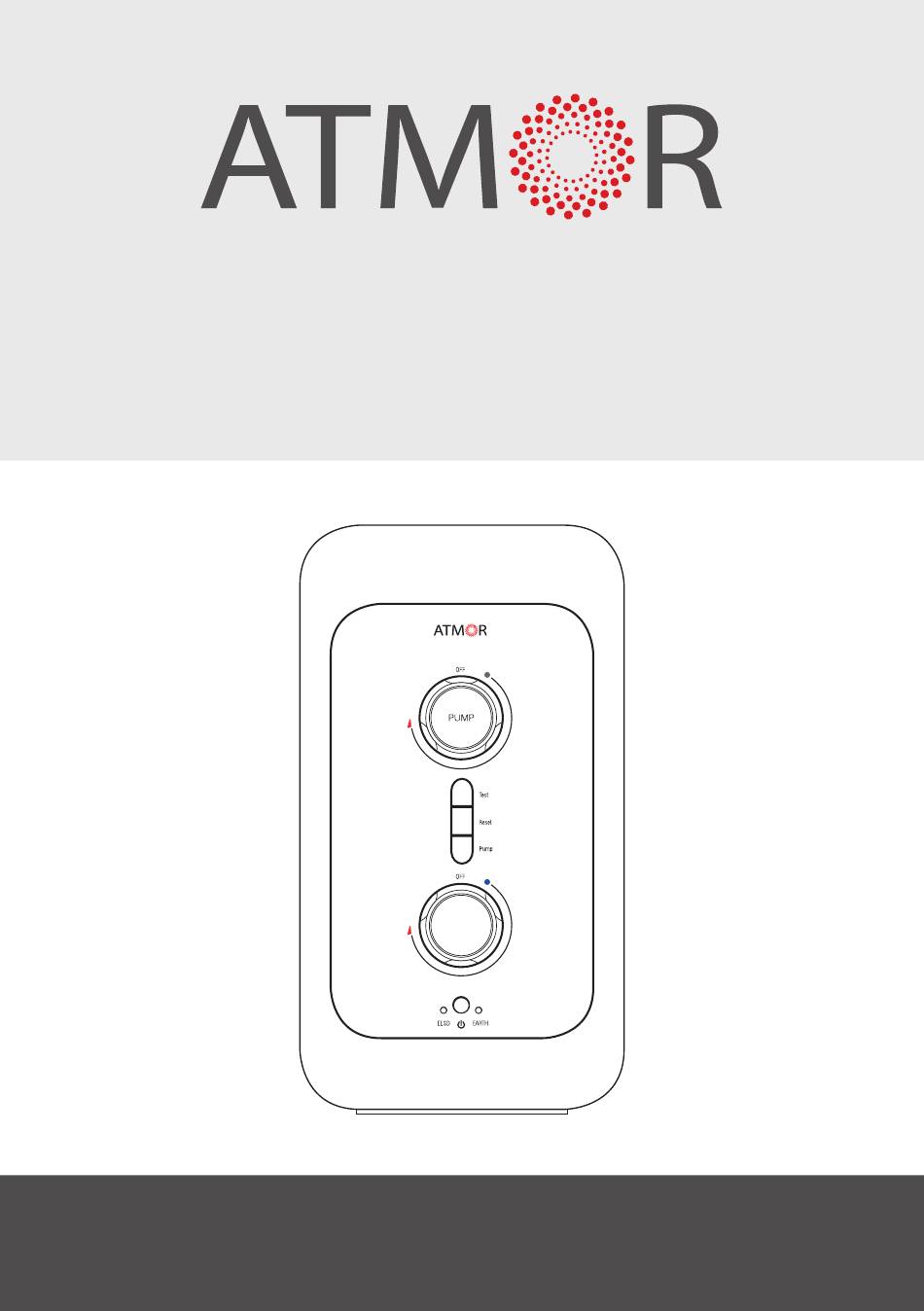

- Page 1 Hot Water on Demand Installation and Operation Guide ATMOR Series Models: 100, 100V, 101, 101V, 101P, 101PV, 102, 102V, 102P, 102PV Instant hot water heater provides endless supply of hot water while significantly conserving energy and water Reset Pump www.atmor.net...
- Page 2 Hot Water on Demand Dear Customer, Thank you for purchasing Atmor instantaneous water heater: • High energy efficiency • Slim design • Flow controlled...
- Page 3 Safety Hot Water on Demand 1. Carefully read the instructions below. 2. Check the data on data sticker and compare it with your mains voltage. 3. The heater must be installed and put into operation by a licensed specialized. • Do not switch ON the heater when it obviously frozen in.
-
Page 4: Installation Instruction
Installation instruction Hot Water on Demand Note: The control knobs are integral parts of the cover – do not attempt to remove them. • Unscrew the bottom & top A& B (fig.1) retained screws and lift the cover from the back plate. • Use the back plate as a template and mark the fixing holes. -
Page 5: Plumbing Connection
Plumbing connection Hot Water on Demand Warning: The outlet of the heater acts as a vent and MUST INCORRECT INSTALLATION NOT be connected to any TAP, CONTROL VALVE OR FITTING TO THE WATER OUTLET. 1. Connect the stop valve to the water inlet with rubber washer. Use correct tools to tighten and be careful not to break the plastic nut. -
Page 6: Electrical Connection
Electrical connection Hot Water on Demand This appliance must be EARTHED. The EARTH continuity conductor of the electrical installation must be effectively connected electrically to all exposed metal parts of other appliances in the room in Which the heater installed. SWITCH OFF at mains before carrying out any electrical work. - Page 7 Testing Hot Water on Demand Testing THE HEATER TANK MUST BE FILLED UP WITH WATER BEFORE TURN ON THE ELECTRICITY SUPPLY. THIS IS TO PREVENT ANY DRY BURNT DAMAGE TO THE HEATING ELEMENT. 1. Turn on the water supply (J) then wait until the water flow through the Hand shower.
-
Page 8: Maintenance
Maintenance Hot Water on Demand Read the section ‘WARNING ‘first. Test the “ELSD” regularly Turn on the electricity (G) and water supply (J), the green ELSD lamp (F) will light up. If the temperature control knob (E) is in ‘ON’ position;... - Page 9 Electrical connection Hot Water on Demand Table 1: Electrical Loading Table Amperage (AMPs) Cable Size Amperage (AMPs) Cable Size Wattage Wattage 1Ø 220V 1Ø 230V 1Ø 240V 1Ø 220V 1Ø 230V 1Ø 240V 7.5kW 34.1 32.6 31.3 4.0-6.0mm 2.5mm 8.5kW 38.6 37.0 35.4...
- Page 10 Electrical connection Hot Water on Demand Wiring Diagram - Without Pump...
-
Page 11: Part List
Part List Hot Water on Demand Terminal Block PCBA DP ELSD (Optional SP) Pump SP Tank Assy Main PCBA Control Flow Switch Assy Inlet Outlet Reset Pump Reset Reset ELSD Cover Cover ELSD+PUMP Model Cover... -
Page 12: Troubleshooting
The activation flow rate needed to Clean filter screen turn on the heating element has • Turn circuit breaker off not been reached. • Open hot valve to release pressure from the unit. • Turn circuit breaker on. www.atmor.net...
