CommScope AMP NETCONNECT 2U Multi-Fiber Push-On Instruction Sheet

Blank Adapter Plate
(Shown Removed)
(Qty: 12)
Note: Mounting Hardware Included, Not Shown

1. INTRODUCTION

2U MPO Secure Rack-Mounted Enclosure Assembly
1553761-1 is used to house and manage MPO Secure
fiber optic connections. The enclosure fits into a
standard 483-mm [19.0-in.] Electronic Industries
Alliance (EIA) rack or cabinet.
Dimensions in this instruction sheet are in metric
NOTE
units [with U.S. customary units in brackets].
i
Figures are not drawn to scale.
To obtain information on AMP NETCONNECT
products, contact CommScope or visit our
website at www.commscope.com

2. DESCRIPTION

The enclosure consists of a chassis with a lid, 12 blank
adapter plates (with attaching hardware), 2 front
mounting brackets, 2 (right and left) rear mounting
brackets, and mounting hardware. The mounting
holes in the enclosure chassis provide a choice of two
positions when mounting the enclosure onto the rack
or cabinet. See Figure 1.
®
To obtain information on CommScope products, visit our website at
www.commscope.com/SupportCenter
AMP NETCONNECT 2U Multi-Fiber
Push-On (MPO) Secure Rack-Mounted
Enclosure Assembly 1553761-1
Channel
(12 Places)
Mounting Holes
(Flush Position and
Protruding Position)

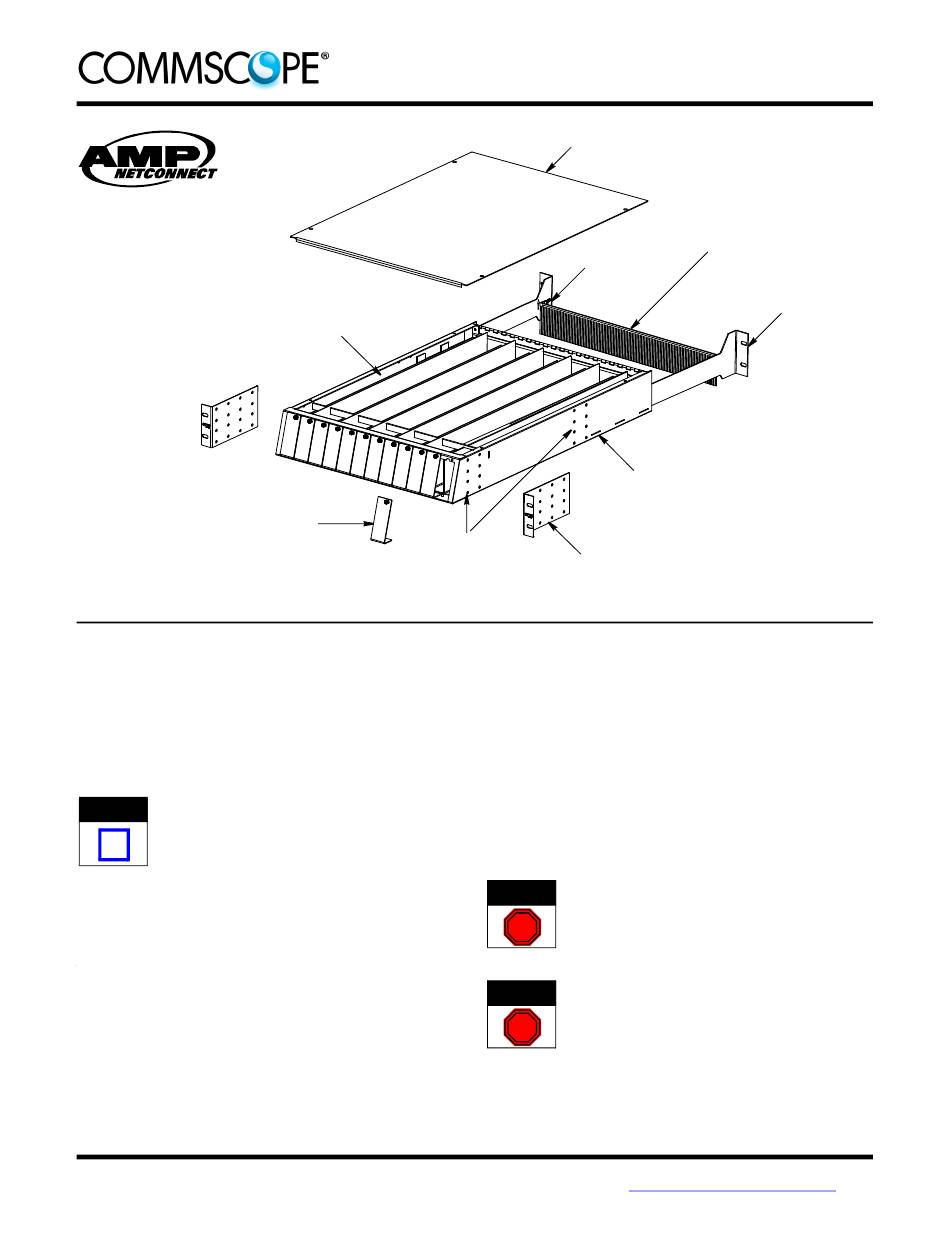

Figure 1
©2017 CommScope, Inc.
All Rights Reserved
®
Lid (Do Not Remove, Shown Removed for Clarity)
Arrow and "TOP"
Marking
Chassis
Front Bracket
(Qty: 2)
The chassis features 12 channels for routing cable
and a rear brush. The rear brush is used to conceal
the inside of the chassis. Each channel is marked on
the front and back of the chassis to identify the
adapter plate it supports.
The enclosure accepts OM3 Hydra Kits 2193057-[ ],
SM Hydra Kits 2193758-[ ], and Cable Management
Adapter Plate Assembly 2111481-1. MPO adapter
plates are included with the hydra kits.

3. SAFETY PRECAUTIONS

To avoid personal injury, ALWAYS wear eye
DANGER
protection when working with optical fibers.
NEVER look into the end of terminated or
STOP
unterminated optical fibers. Laser radiation is
invisible, but can still damage eye tissue.
To avoid personal injury, NEVER use defective or
DANGER
damaged product. Punctured or stray laser
radiation may degrade system performance.
STOP
ALWAYS replace defective or damaged product
immediately.
— DO NOT remove the dust cap plug from a port
when the port is not in use.
This product is covered by one or more U.S.
patents or their foreign equivalents. For patents, see
www.commscope.com/ProductPatent/ProductPatent.aspx
Instruction Sheet
408-32067
FEB 2017 Rev B
Rear Brush
(Shown Removed)
Rear Bracket
(Qty: 2)
1 of 4
