- Page 1 Dual Monitor KVM USER MANUAL ENJOY THE VIVID WORLD HDMI...
-

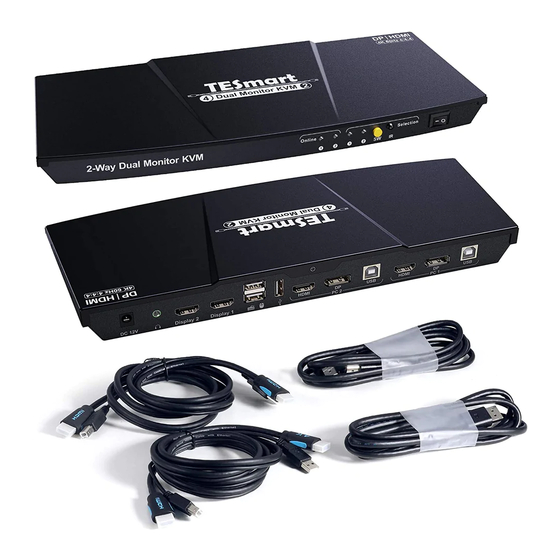

Page 3: Packing List
HDMI Features : Using only 1 set of keyboard, mouse and 2 monitors to control 2 computers Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry Pi and other Linux based systems Support hot plug, connect or disconnect devices to the KVM ... -
Page 4: Panel Description
HDMI Panel Description : Name Description USB connection LEDs will be lit if the USB TypeB ports status connect to computers, and computers are on Indicate current active selected input source Input selection LED1 on: Both monitors display PC1 status LED2 is on: Both monitors display PC2 LED1&LED2 on: One monitor display one PC Input selection... - Page 5 HDMI Name Description Analog audio output, connect to L/R audio output speaker HDMI output Connect to HDMI display Keyboard and mouse Connect to keyboard and mouse input Connect to USB 2.0 devices, printers, Standard USB 2.0 port USB drives HDMI: Connect to HDMI output of PC 2 Input DP: Connect to DP output of PC2 USB: Connect to USB of the PC2(with...
-
Page 6: Display Mode
HDMI Display Mode: Display mode 1: LED1 on: Both monitors display PC1 LED2 on: Both monitors display PC2 Display mode 2: LED1&LED2 on: One monitor display one PC Connection Diagram : Step1:Connect the two outputs of the PC1 to the Input A and Input B of the KVM PC1 inputs. -
Page 7: How To Use
HDMI Step 2: Connect keyboard, mouse or wireless dongle of the keyboard and mouse to the specified ports. Barcode Printer Scanner drive Keyboard Mouse Step 3: Connect speaker and monitor to the KVM. Monitor 1 Monitor 2 HDMI cable Speaker Step 4: Turn on the power switch to start the Dual Monitor KVM. - Page 8 HDMI How to use keyboard hot keys : Press [Right-Alt] key twice to change Right Right active selected computer in display mode 2 -Alt -Alt Scroll Scroll Select input source 1 in display mode 1 Lock Lock Scroll Scroll Select input source 2 in display mode 1 Lock Lock Keyboard and mouse focus on the...
- Page 9 HDMI How to identify whether the KVM is in keyboard and mouse pass through mode? Turn on the KVM, press [Scroll Lock] + [Scroll Lock] + [F3]，if buzzer beeping twice, the KVM is in keyboard and mouse pass through mode. And beeping once means in keyboard and mouse emulation mode.
-
Page 10: Ir Remote Control
HDMI IR Remote Control : Display mode 1 Display mode 2 Cyclically select Switch to Display mode 1 PC1 and PC2 Switch to Display Swap the desktops of mode 2 two monitors Keyboard and mouse Switch to PC 1 focus on the desktop of PC 1 Keyboard and mouse Switch to PC 2... - Page 11 HDMI Verified keyboards and mouses: Mouse Model Keyboard Model Logitech G500S Logitech G105 Microsoft Wireless Microsoft Wireless 2000 2000 Mouse Mouse Hewlett-Packard M100 Dareu CK535 Zklli ME TOO ZM500-5 Aigo 8362 FL.SPORTS Aigo AJAZZ AK35I WQ-641 LDK.al Colourful X800 Acer KB21-2X Note: The above list is part of the verified keyboards and mouses list with special HID protocol.
-
Page 12: Warranty Information
Warranty Information : V002...
