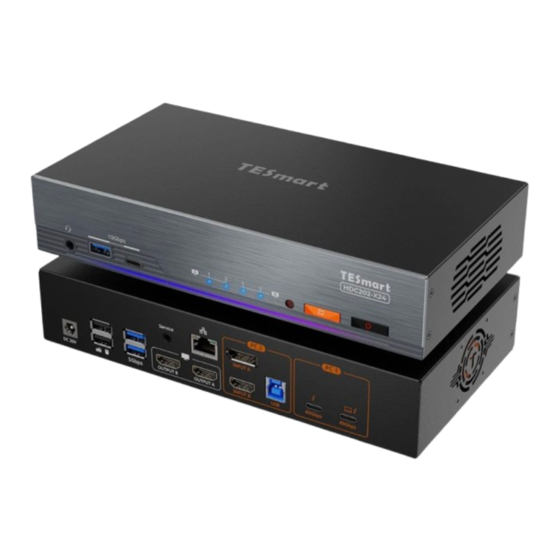

Summary of Contents for TESmart HDC202 Xtreme 23

  • Page 1 User 2x2 Dual Monitor Hybrid KVM Switch Manual HDMI HDC202 Xtreme 23 USB-C HDC202 Xtreme 23 English...
  • Page 3 English...
  • Page 5: Copyright Notice

    The ownership of the trade names and brand names adopted in this user manual belongs to their companies. Product Information For more information about TESmart products and how they can help you to enjoy your job, please visit the following TESmart website or contact an TESmart Authorized Reseller. www.tesmart.com...
  • Page 6: Table Of Contents

    Contents 1. Safety Tips and Warnings ··································01 9.4 Built-in Charging Module 2. Battery Description···········································02 9.5 keyboard and Mouse Emulation Mode 3. Warranty Information········································03 9.6 Mouse Wheel Switching 4. Preface··························································04 10. Operation Method···········································29 5. Features·························································05 10.1 Front Panel Button Switching Method 6. Packing List·····················································06 10.2 IR Remote Control 7.
  • Page 7: Safety Tips And Warnings

    1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water.
  • Page 8: Battery Description

    2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire.
  • Page 9: Warranty Information

    3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 10: Preface

    2 PCs. At the same time, with EDID emulators in each input port, it can keep PCs always having correct display information. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com.
  • Page 11: Features

    5. Features Using 2 monitors, 1 set of keyboard and mouse to control 2 computers Ÿ Support resolution up to 3840x2160@60Hz 4:4:4 Ÿ Supports DP Alt Mode which enables the USB connection to carry video signals Ÿ Support 2 display modes Ÿ...
  • Page 12: Packing List

    6. Packing List 1 * 2x2 Hybrid KVM Switch Ÿ 1 * KVM Cables Ÿ 1 * DisplayPort Cables Ÿ 1 * Thunderbolt 4 Cable Ÿ 1 * IR Remote Control Ÿ 1 * DC 20V Power Adapter Ÿ 1 * User Manual Ÿ...
  • Page 13: Panel Description

    7. Panel Description Name Function 3.5mm audio/mic Integrated microphone and L/R audio output. The maximum data transfer speed offered is 10 Gbps. Up to 7.5 W power USB 3.2 Gen 2 ports output for faster charging. Features 4 lighting modes to match your atmosphere Please refer to RGB LED stirp page 35 for how to switch different modes.
  • Page 14 Name Function Display status indicators Display the current output status of each monitor. IR receiver Receive IR remote signal. Input selection button Press to switch input sources. Power switch Turn on or turn off power supply.
  • Page 15 Name Function DC 20V 20V DC power supply. Keyboard and mouse input For USB keyboard and mouse input. USB 3.2 Gen 1 port The maximum data transfer speed offered is 5 Gbps. IR extension in Connect IR extension cable to this port to receive remote IR signal.
  • Page 16 Name Function HDMI outputs Connect to 2 HDMI displays for video output. Insert the network cable into this port to let the 2 input PCs to connect LAN port to the local network area.
  • Page 17 Name Function Contains 1 DP port and 1 HDMI port(marked as Input A&B) and a PC2 connection ports USB-A port. Connect the ports to corresponding input devices for (For general devices) signal input. Devices connected to these ports CANNOT be charged. Includes one PC connection port and one expansion port.
  • Page 18: Connection Description

    8. Connection Description 8.1 Connection Diagram Ethernet Hard disk drive Driver Router Switch USB-C Cable PSSD Keyboard Mouse Headset PC 1 Monitor A Monitor B PC 2 Tips: For optimal performance, use the included Thunderbolt 4 cable to connect the PC and the original Thunderbolt 4 cable to connect the PSSD.
  • Page 19: Connection Preparation

    8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ...
  • Page 20: Connection Steps

    8.3 Connection Steps 1. Connect PC 1 to the port labeled " " on the KVM using a single Thunderbolt 4 cable. Tips: To ensure proper video transmission, please confirm that your laptop supports Thunderbolt 3 and above or DP Alt Mode protocols. 2.
  • Page 21 3. Connect PC 2 with 1 DP cable and 1 KVM cable. 4. Connect external mouse and keyboard to KVM's keyboard and mouse input port.
  • Page 22 5. Connect USB 3.2 devices to KVM's standard USB 3.0 ports. 6. Connect KVM's HDMI output ports to 2 HDMI displays with 2 HDMI cables.
  • Page 23 7. Use the network cable to connect the LAN port on the KVM Switch to a router or local area network switch. 8. Connect external audio device to KVM's audio port.
  • Page 24 9. Connect the power cable to KVM's DC 20V port and plug it to a power socket. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work. Tips: 1 B .
  • Page 25: Kvm Workbench

    8.4 KVM Workbench A workbench with 2x2 Hybrid KVM Switch successfully connected is shown as below:...
  • Page 26: Function Description

    9. Function Description 9.1 Display Mode Description The 2x2 Hybrid KVM Switch support 2 display mode. You can choose to implement 2- screen extended display or duplicate display or display different PCs on 2 monitors. Display Mode 1: Display the same PC Duplicate displays Extend displays Display A...
  • Page 27 Display Mode 2: Display the different PCs Once the connection is complete, you can switch Display A Display B between images on any of your 2 monitors. When you view one of the monitors as the main PC 1 PC 2 monitor, you can use hot key command to switch the images on the subordinate monitor.
  • Page 28 If you think of Diaplay A as the main display, use the following PC 1 PC 2 PC 2 PC 2 PC 1 hot key command to switch subordinate Main Main subordinate Main desktop desktop desktop desktop desktop images on the Display B: Scroll Right Scroll...
  • Page 29: Expanded Downstream Port

    9.2 Expanded Downstream Port The expanded downstream port provides your PC with an additional USB-C interface, supporting the connection of external hard drives, displays, and other USB-C devices. Whether it's for handling large amounts of data or outputting high-definition video, it can easily manage.
  • Page 30: Built-In Network Switch

    9.3 Built-in Network Switch The 2x2 hybrid KVM Switch have a built-in USB Ethernet Adapter, which adds a standard RJ45 port to all the PC that is connected to the KVM and allows you to connect your computers to a router or network switch for gigabit wired network connection. Full 1000Mbps Ethernet for fast, stable data transfer, more reliable than most wireless connections.
  • Page 31: Built-In Charging Module

    9.4 Built-in Charging Module The 2x2 Hybrid KVM Switch comes with a powerful built-in charging module that allows you to charge your laptops, phone, tablet and other devices while you use it. Connect the laptops to the rear Type-C port marked“ ”of the KVM and it will be Ÿ...
  • Page 32 Tips: When the laptop is connected to both the KVM and the original charger, the charger will give priority to charge it. Connect the tablet, phone, ect to the front USB ports and it will be charged. Ÿ Use the USB ports on the front panel of the KVM (including an USB-A and an USB-C ports) can support data transmission while charging.
  • Page 33: Keyboard And Mouse Emulation Mode

    9.5 Keyboard and Mouse Emulation Mode We provide two keyboard and mouse modes: Pass Through Mode and Legacy Emulation Mode. Pass Through mode supports most keyboard and mouse drivers and multifunction keyboards and mice. Legacy Emulation Mode ensures the normal functioning of the keyboard, mouse, and hotkey features.
  • Page 34: Mouse Wheel Switching

    9.6 Mouse Wheel Switching Mouse wheel switching method can quickly switch input sources by mouse operation, double-click the mouse wheel to switch to the next input port. Mouse wheel switching mode is off by default. You can use keyboard hotkey command to turn on mouse wheel switching mode.
  • Page 35: Operation Method

    10. Operation Method 10.1 Front Panel Button Switching Method The 2x2 Hybrid KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control and keyboard hot keys. You can choose your favorite switching method according to your personal needs and habits.
  • Page 36: Ir Remote Control

    10.2 IR Remote Control Switch images on the Display A Switch images on the Display B Switch both monitor to display PC 1 Switch both monitor to display PC 2 Tips: Unspecified buttons at above are non-functional.
  • Page 37: Keyboard Hot H E Ys

    10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. After press [Right-Ctrl] key twice within 2 seconds and you will hear the buzzer beep once, please enter the commands within 3 seconds and the KVM will execute the corresponding commands.
  • Page 38 Think of display A as main display, switch images on display B (i.e. display mode 2): [Right-Ctrl]→[Right-Ctrl]→[→] Right Right Ctrl Ctrl Think of display B as main display, switch images on display A (i.e. display mode 2): [Right-Ctrl]→[Right-Ctrl]→[←] Right Right Ctrl Ctrl Switch KM focus in display mode 2:...
  • Page 39 Disable/enable follow mode: Tips: "Follow Mode" refers to whether the audio devices and USB 3.0 devices connected to the front panel will switch synchronously with the keyboard and mouse focus when switching. [Right-Ctrl] →[Right-Ctrl] →[~] Right Right Ctrl Ctrl Tips: The default setting of follow mode is enabled. When you disable it, the buzzer will emit only 1 short beep;...
  • Page 40 Disable/enable built-in network card: Right Right Ctrl Ctrl [Right-Ctrl] →[Right-Ctrl] →[F4] Tips: The built-in network card is enabled by default. Enable it will trigger the buzzer to beep twice and disable it will trigger the buzzer to beep once. Turn on/off mouse wheel switching mode: Right Right Ctrl...
  • Page 41 Switch lighting modes: Turn off lighting: [Right-Ctrl] → [Right-Ctrl] → [L] → [0] Right Right Ctrl Ctrl Light effects vary with KVM indicators: [Right-Ctrl] → [Right-Ctrl] → [L] → [1] Right Right Ctrl Ctrl Marquee lighting effect: [Right-Ctrl] → [Right-Ctrl] → [L] → [2] Right Right Ctrl...
  • Page 42: Change Hot Key Combination

    11. Change Hot Key Combinations For your convenience, we have built-in a custom hotkey function. By setting, you can use any key on the keyboard connected to the KVM as the trigger key for the hot key command. The default hotkey trigger key is the [Right-CTRL]. The custom hotkey function can be set in the following ways: Method 1: Change the hot key through the settings in the LCD menu, press the [...
  • Page 43 V002...
  • Page 44 To Enjoy Smart HDC202 Xtreme 23 Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
