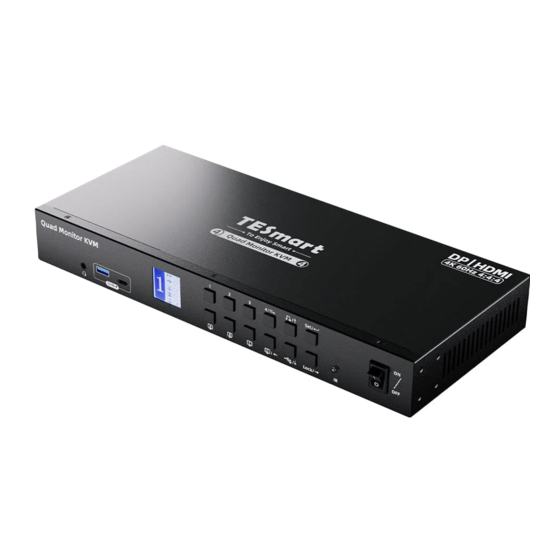

TESmart HDK404-P23 User Manual

4x4 quad monitor kvm switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
4x4
Quad Monitor
KVM Switch
Manual
MST
HDK404 Prime 23
HDK404 Prime 23
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDK404-P23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TESmart HDK404-P23

Summary of Contents for TESmart HDK404-P23

  • Page 1 User Quad Monitor KVM Switch Manual HDK404 Prime 23 HDK404 Prime 23 English...
  • Page 3 English...
  • Page 4 The ownership of the trade names and brand names adopted in this user manual belongs to their companies. Product Information For more information about TESmart products and how they can help you to enjoy your job, please visit the following TESmart website or contact an TESmart Authorized Reseller. www.tesmart.com...

  • Page 5: Table Of Contents

    Contents 1. Safety Tips and Warnings ··································01 9.4 Built-in Charging Module 2. Battery Description···········································02 9.5 Lock L/R Audio and USB Focus Function 3. Warranty Information········································03 Operation Method ···········································26 4. Preface··························································04 10.1 Front Panel Button Switching Method 5. Features·························································05 10.2 IR Remote Control 6.

  • Page 6: Safety Tips And Warnings

    1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water.

  • Page 7: Battery Description

    2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire.

  • Page 8: Warranty Information

    3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications.

  • Page 9: Preface

    With EDID emulators in each input port, it can keep PCs always having correct display information. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com.

  • Page 10: Features

    5. Features Using 4 monitors, 1 set of keyboard and mouse to control 4 computers Ÿ Support resolution up to 3840x2160@60Hz 4:4:4 Ÿ DisplayPort 1.2 compliant Ÿ HDMI 2.0 compliant Ÿ HDCP 2.2 compliant Ÿ Support MST(Multi-Stream Transport) technology allows output video to triple screen display through a Ÿ...

  • Page 11: Packing List

    6. Packing List 1 * 4x4 KVM Switch Ÿ 4 * KVM Cables Ÿ 6 * HDMI Cables Ÿ 2 * DisplayPort Cable Ÿ 1 * IR Remote Control Ÿ 1 * DC 12V Power Adapter Ÿ 1 * User Manual Ÿ...

  • Page 12: Panel Description

    7. Panel Description Name Function Name Function Audio Data transfer Integrated microphone Can be used to transfer data and integration and charging and L/R audio output. charge your mobile devices. port port Display current status Press to control the KVM. Please Color LCD Keypad and function settings.
  • Page 13 Name Function DC 12V 12V DC power supply. Keyboard and mouse input For USB keyboard and mouse input. USB 3.0 port Connect to USB 3.0 device. HDMI outputs Connect to 4 HDMI displays for video output.
  • Page 14 Name Function HDMI device input Each group contains 4 HDMI ports(marked as Input A/B/C/D) and a USB ports group (PC3&PC4) port. Connect the ports to corresponding input devices for signal input. Contains a Displayport (right), a USB port (left) and a HDMI port (upper). DisplayPort device Connecting to a DisplayPort device that supports MST allows for the input ports group...

  • Page 15: Connection Description

    8. Connection Description 8.1 Connection Diagram Monitor D Monitor C Monitor B Monitor A HDMI Cable Headset USB-A Cable HDMI USB Driver to B Cable Cable Hard disk Keyboard Mouse drive PC 1 PC 4 PC 3 PC 2 Tips: 1. Please refer to Page 17 for the detailed information about MST technology.

  • Page 16: Connection Preparation

    8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ...

  • Page 17: Connection Steps

    8.3 Connection Steps 1. Connect PC 1 with 1 DisplayPort cable and 1 KVM cable. Use DP cable to connect PC 1 to the DP port on the KVM, Using a KVM cable, connect the HDMI port of PC 1 to the HDMI port of the KVM.
  • Page 18 3. Connect PC 3 with 3 HDMI cables and 1 KVM cable and connect PC 4 the same way. Tips: Supports various converters that can be converted to HDMI output. 4. Connect external mouse and keyboard to KVM's keyboard and mouse input port. Tips: For the normal service of hotkeys, we recommend you use the full-key external keyboard with a separate [Scroll Lock] key (as shown...
  • Page 19 5. Connect USB 3.0 devices to KVM's standard USB 3.0 ports. 6. Connect KVM's HDMI output ports to 4 HDMI displays with 4 HDMI cables.
  • Page 20 7. Connect external audio device to KVM's audio port. 8. Connect the power cable to KVM's DC 12V port and plug it to a power socket. 9. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work.

  • Page 21: Kvm Workbench

    8.4 KVM Workbench A workbench with 4x4 KVM Switch successfully connected is shown as below:...

  • Page 22: Function Description

    9. Function Description 9.1 MST Mode Description Multi-Stream Transport mode: Operation method Ÿ Ÿ If your Windows OS PC with displayport The display mode will enable MST mode port and is DisplayPort 1.2 compliant, automatically when you connect PC to you can adopt 3 console displays from the displayport port marked ‘MST’...

  • Page 23: Quad View

    9.2 Quad View PC1 & PC2: using MST to achieve 3-way output, combined with 1 HDMI output to Ÿ achieve quad view. Display A Display B Display B Display A PC 2 PC 2 PC 2 Display C Display D Display C Display D Tips: If a device that doesn't support MST is connected, the display will only show on output A or show...
  • Page 24 PC3 & PC4: achieve quad view by directly connecting 4-way HDMI output. Ÿ Display B Display A PC 3 Display C Display D Tips: 1. Supports the use of various video interface to HDMI converters. 2. For your better usage, we recommend connecting the same group of video input ports on the KVM to the same PC.

  • Page 25: Display Mode Description

    9.3 Display Mode Description The 4x4 KVM Switch support 2 display mode. You can choose to implement 4-screen extended display or duplicate display or display different PCs on 4 monitors. Display Mode 1: Duplicate 4 displays: Extend 4 displays: Display A Display B Display A Display B...
  • Page 26 Display Mode 2: Display different Pcs on 4 monitors: Display A Display B PC 3 PC 1 PC 4 PC 2 Display C Display D In this mode, each input and output port on the KVM is marked with a letter, and the screen corresponding to the output port is output by the port with the corresponding letter of the PC selected.
  • Page 27 When different PCs are displayed on different monitors, you can double-click the right [Alt] to switch the focus between different PCs. Tips: 1. When any PC is expanded to display 4 screens, there is only one main display, and it is fixed to the display connected to a certain output port when switching (which display is determined by the operating system).

  • Page 28: Built-In Charging Module

    9.4 Built-in Charging Module The 4x4 KVM Switch comes with a powerful built-in charging module that allows you to charge your phone, tablet and other devices while you use it. Use the USB ports on the front panel of the KVM Switch (including an USB-A and an USB-C ports) can support data transmission while charging.

  • Page 29: Lock L/R Audio And Usb Focus Function

    9.5 Lock L/R Audio and USB Focus Function The 4x4 KVM Switch supports locking L/R audio and USB 3.0 focus. After the lock is turned on, the current audio or USB focus can be maintained and only the screen can be switched when switching;...
  • Page 30 Tips: 1. The keyboard & mouse focus and USB focus are independent of each other, and the keyboard and mouse focus cannot be locked. When switching between different input sources in display mode 2, the keyboard and mouse focus will not change with the switch. 2.

  • Page 31: Operation Method

    10. Operation Method 10.1 Front Panel Button Switching Method When you use the front panel button or IR remote to control the KVM, the LCD display will inquiry your target action, then execute the command according to your operation. The LCD interface in the figure above is the main interface.
  • Page 32 Schematic table of LCD interface and panel icons: Icons Meaning and function Monitor A、B、C、D. Audio focus icon, indicating the PC where the external audio focus is currently located. USB focus icon, indicating the PC where the external USB 3.0 device focus is currently located. Keyboard and mouse focus icon, indicating the PC where the keyboard and mouse focus is currently located.
  • Page 33 1~4 button: 1. Press directly to switch among 4 PCs. After switching, 3 displays will display the selected PC at the same time, i.e. display mode 1. 2. In the settings interface, press [ ] to return to the main interface. Display selection button: Directly press the button, then press the [1~4] buttons according to the prompt of the LCD screen to make the selected monitor display the...
  • Page 34 again in the locked state, and then press the [ ] button to unlock. 2. In the menu and setting interface, press [ ] button to page forward or select up. USB lock button: 1. Directly press [ ] button, follow the prompts on the LCD screen, then press the ] button to lock the external USB 3.0 devices to the current PC.
  • Page 35 Tips: 2. If you forget your password, you can restore the factory default settings to unlock. The default password is 1234. Press and hold the [ ] for about 10 seconds to restore the factory default settings. 3. IR remote control and keyboard hot keys are invalid when KVM is locked. Settings button: 1.

  • Page 36: Ir Remote Control

    10.2 IR Remote Control —— Press directly to select among 4 PCs, and 4 displays will display the selected PC at the same time. (i.e. display mode 1) —— Press the key, and then press the [1~4] key to make the selected monitor display the selected PC.

  • Page 37: Keyboard Hot Keys

    10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. After press [Right-Ctrl] key twice within 2 seconds and you will hear the buzzer beep once, please enter the commands within 3 seconds and the KVM will execute the corresponding commands.
  • Page 38 Switch PCs on different monitors separately(i.e. display mode 2): Monitor A：[Right-Ctrl] → [Right-Ctrl] → [←] → [1]~[4] Right Right ← Ctrl Ctrl Monitor B：[Right-Ctrl] → [Right-Ctrl] → [↓] → [1]~[4] Right Right ↓ Ctrl Ctrl Monitor C：[Right-Ctrl] → [Right-Ctrl] → [→] → [1]~[4] Right Right →...
  • Page 39 Switch focus in display mode 2: Scroll Right Right Lock [Right-Alt] → [Right-Alt] Disable or enable buzzer sound: Right Right Ctrl Ctrl [Right-Ctrl] → [Right-Ctrl] → [F11] Tips: The default setting of buzzer sound is enabled. Repeat this step to disable or enable buzzer sound.

  • Page 40: Change Hot Key Combination

    11. Change Hot Key Combinations There are three kinds of trigger hot keys in this product, the default is [Right-Ctrl] key, and the alternative are the [Scroll Lock] and [Left-Ctrl] key. You can switch the hot key to others Method 1: Change the hot key through the settings in the LCD menu, press the [ ] key and find à...

  • Page 41: Pass Through Mode Description

    12. Pass Through Mode Description 12.1 Introduction of Pass through mode Pass through mode is a built-in function of KVM, which is able to improve keyboard and mouse compatibility and enhance user experience. In the pass through mode, the keyboard and mouse are equivalent to directly connecting to the computer. At this time, you can use more keyboard and mouse functions and special functions that are not supported by traditional KVM.

  • Page 42: Keyboard And Mouse Compatible Model List

    12.2 Keyboard and mouse compatible model list Tips: The following list is from the most representative models of keyboard and mouse that have been tested in the laboratory, mainly from manufacturers with a high market share. Model Brand Model Brand Model Brand Brand...
  • Page 43 31.00.0466-V001...
  • Page 44 To Enjoy Smart HDK404 Prime 23 Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
