  • Page 3 Please read this user manual comprehensively before use. If you have any questions, comments or suggestions, please contact us via the following email: tech@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology, shall not be duplicated or translated by any person organizations without written permission.

  • Page 4: Table Of Contents

    Contents 1. Safety Tips and Warnings················ ··························································································· ··············01 2. Battery Description························ ····································································································· ···02 3. Warranty Information······························ ······························································································ ·03 4. Preface············································································································································ ···04 5. Features································································································································· ·············05 6. Packing List········································· ····································································································06 7. Panel Description···· ························································································································· ·····07 8. Connection Description················································································································· ·········09 8.1 Connection Diagr am 8.2 Connection Steps 9.

  • Page 5: Safety Tips And Warnings

    1. Safety Tips and Warnings Tips: Read the safety tips and warnings for HDMI Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water.

  • Page 6: Battery Description

    2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire.

  • Page 7: Warranty Information

    3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications.

  • Page 8: Preface

    S/PDIF optical audio port. Tips: If you need to contr ol more devices or conduct mor e complex and pr ofessional switching, y ou can also choose other products of our company. For more details, please visit our official website: www.tesmart.com.

  • Page 9: Features

    5. Features With 4 HDMI inputs and 1 HDMI output Ÿ Support resolution up to 4 K@60Hz 4:4:4 Ÿ HDCP 2.2 compliant Ÿ Support auto input detection Ÿ Support audio output via S/PDIF optical and L/R AUX interface Ÿ Support 3 modes of audio output Ÿ...

  • Page 10: Packing List

    6. Packing List 1 * 4x1 HDMI Switch Ÿ 1 * IR Remote Control Ÿ 1 * DC 5V Power Adapter Ÿ 1 * User Manual Ÿ Tips: After receipt of the product, please check the packing list carefully to make sure that no components have been lost and no damage to the product has been caused during transportation.

  • Page 11: Panel Description

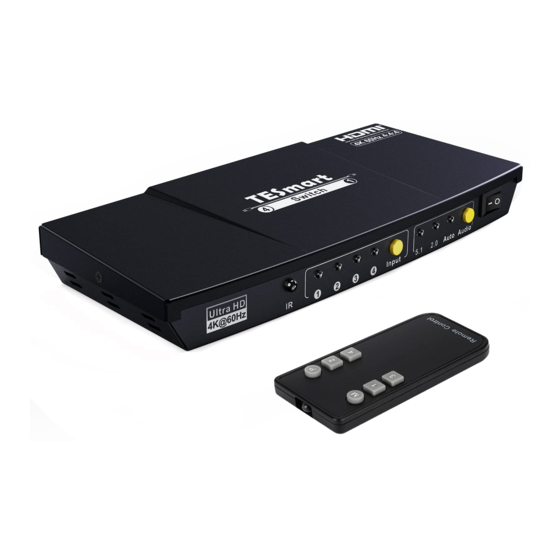

    7. Panel Description Name Description Name Description Audio mode Receive IR signal. Indicates the currently selected audio mode. receiver selection status Input The LED will be lit if the Audio mode selection corresponding input source Select audio output mode. selection button status is selected.
  • Page 12 Name Description DC 5V DC 5V power suppl y. HDMI input por ts Connect to HDMI source devices. HDMI output por t Connect to HDMI display. S/PDIF optical audio output Connect to amplifier , soundbars by a Toslink cable. AUX L/R audio output Connect to analog L/R audio speak er.

  • Page 13: Connection Description

    8. Connection Description 8.1 Connection Diagram UHD TV Speaker PS4/5...

  • Page 14: Connection Steps

    8.2 Connection Steps 1. Connect the input devices to the input ports using 4 HDMI cables. 2. Connect the output port to the display device using 1 HDMI cable . 3. Connect the amplifier or soundbar to the S/PDIF port using Toslink cable. 4.Connect speaker to the AUX L/R audio output.
  • Page 15 5. Connect the power cable to the HDMI S witch's DC 5V port and plug it to a power sock 6. By now, the connection has been completed. Turn on the power supply and the HDMI Switch will begin to work. Tips: If you get no sound from L/R audio out, please change the audio format to ‘‘2.0’’(refer to Chapter 10), as the L/R audio out onl y support 2.0 channel and the switch would not con vert the audio f ormat.

  • Page 16: Switch Modes Description

    9. Switch Modes Description Press the button ' Input' until all of the indicators flash once , the switch enters Auto Switch mode or Manual Switch mode . The default is Manual Switch mode 9.1 Manual Switch Mode In this mode, use panel button or IR remote contr ol to switch input por t.

  • Page 17: Audio Modes Description

    10. Audio Modes Description The Switch supports the high channel audio mode. You can select the audio output of the corresponding channels by pressing the audio mode selection button 'Audio' on the front panel or the k ey 'P' on the remote contr ol. 5.1 : In this mode, the input device can select up to 5.1 Channel audio regardless of whether the displa y supports 5.1 Channel or not.

  • Page 18: Cec Function Description

    11. CEC Function Description Consumer Electronics Control (CEC) is a feature of HDMI designed to control HDMI connected devices by using only one remote controller; So, individual CEC enabled devices can command and contr ol each other without user interv ention, for up to 15 devices.

  • Page 19: Ir Remote Control

    12. IR Remote Contr ol — Switch to next input port — Switch audio mode — Switch to input 1 — Switch to input 2 — Switch to input 3 — Switch to input 4 Tips: Unspecified buttons at abo ve are non-functional.
