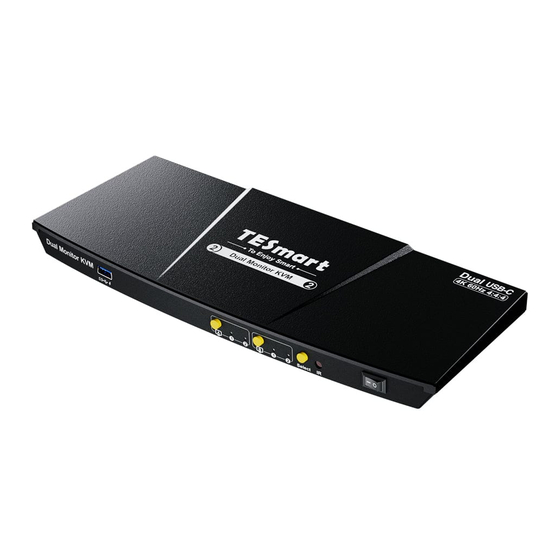

- Page 1 User 2x2 Dual Monitor Hybrid KVM Switch Manual HDMI HDC202 Prime 23 USB-C HDC202 Prime 23 English...
- Page 3 English...
- Page 4 The ownership of the trade names and brand names adopted in this user manual belongs to their companies. Product Information For more information about TESmart products and how they can help you to enjoy your job, please visit the following TESmart website or contact an TESmart Authorized Reseller. www.tesmart.com...
-
Page 5: Table Of Contents
Contents 1. Safety Tips and Warnings ··································01 9.4 Built-in Charging Module 2. Battery Description···········································02 9.5 Mouse Wheel Switching 3. Warranty Information········································03 10. Operation Method···········································27 4. Preface··························································04 10.1 Front Panel Button Switching Method 5. Features·························································05 10.2 IR Remote Control 6. Packing List·····················································06 10.3 Keyboard Hot Keys 7. -
Page 6: Safety Tips And Warnings
1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water. -
Page 7: Battery Description
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire. -
Page 8: Warranty Information
3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. -
Page 9: Preface
EDID emulators in each input port, it can keep PCs always having correct display information. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com. -
Page 10: Features
5. Features Using 2 monitors, 1 set of keyboard and mouse to control 2 computers Ÿ Support resolution up to 3840x2160@60Hz 4:4:4 Ÿ HDMI 2.0 compliant Ÿ Supports DP Alt Mode which enables the USB connection to carry video signals Ÿ... -
Page 11: Packing List
6. Packing List 1 * 2x2 Hybrid KVM Switch Ÿ 1 * KVM Cables Ÿ 1 * DisplayPort Cables Ÿ 2 * USB-C Cables Ÿ 1 * IR Remote Control Ÿ 1 * DC 20V Power Adapter Ÿ 1 * User Manual Ÿ... -
Page 12: Panel Description
7. Panel Description Name Function Name Function Data transfer Can be used to transfer data Separate Switch images on each display and charging and charge your mobile switch button separately (i.e. display mode 2). ports devices. The corresponding LEDs will Input selection be lit to indicate the current Input selection... - Page 13 Name Function DC 20V 20V DC power supply. Audio integration port Integrated microphone and L/R audio output. HDMI outputs Connect to 2 HDMI displays for video output. Keyboard and mouse input For USB keyboard and mouse input. Insert the network cable into this port to let the 2 input PCs to connect LAN port to the local network area USB 3.0 ports...
- Page 14 Name Function Contains 1 DP port and 1 HDMI port(marked as Input A&B) PC2 connection ports and a USB port. Connect the ports to corresponding input (For general devices) devices for signal input. Devices connected to these ports cannot be charged. Contains 2 type-C ports.
-
Page 15: Connection Description
8. Connection Description 8.1 Connection Diagram Tips: Please refer to Page 11~12 for how to connect different PCs running different operating systems. Headset Router Ethernet Switch USB-C Cable Hard disk drive Driver Keyboard Laptop Mouse Monitor B Monitor A Tips: 1. For your convenience, we suggest you connect each group port on the KVM to the same PC. 2 Please refer to Page 25 for how to use the front panel charging port. -
Page 16: Connection Preparation
8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ... -
Page 17: Connection Steps
8.3 Connection Steps 1. Connect PC 1 in different cases as follows. A. If your Type-C laptop is running Windows OS: Ÿ Connect the laptop to the Input port marked ‘A' of the KVM with 1 USB-C cable to enable the MST mode. - Page 18 B. If your Type-C laptops are running MacOS: Ÿ Connect your laptop to the Input ‘A'&‘B' ports of the KVM with 2 USB-C cables. 2. Connect PC 2 with 1 DP cable and 1 KVM cable.
- Page 19 3. Connect external mouse and keyboard to KVM's keyboard and mouse input port. Tips: For the normal service of hotkeys, we recommend you use the full-key external keyboard with a separate [Scroll Lock] key (as shown above 4. Connect USB 3.0 devices to KVM's standard USB 3.0 ports.
- Page 20 5. Connect KVM's HDMI output ports to 2 HDMI displays with 2 HDMI cables. 6. Use the network cable to connect the LAN port on the KVM Switch to a router or local area network switch.
- Page 21 7. Connect external audio device to KVM's audio port. 8. Connect the power cable to KVM's DC 20V port and plug it to a power socket. Tips: 1 B . y default, the network cable s i not included in the package. 2.
-
Page 22: Kvm Workbench
8.4 KVM Workbench A workbench with 2x2 Hybrid KVM Switch successfully connected is shown as below:... -
Page 23: Function Description
9. Function Description 9.1 MST Mode Description The traditional dual monitor KVM switch needs to connect two cables to each input device for the normal use of the dual monitor function. But our 2x2 Hybrid KVM Switch support Multi-Stream Transport(MST) mode allowing dual HDMI displays from a single USB-C source. - Page 24 Enable MST mode Ÿ Connect the laptop to the input port marked ‘A’ on the KVM with a single USB-C cable. Display A Display B PC 1 Tips: 1. Only the port marked ‘A’ supports the MST mode. 2. A s shown below, if your PC is not Windows OS and has 2 USB-C ports supporting video output, connecting them to the input port group will also enable dual monitor displays.
-
Page 25: Display Mode Description
9.2 Display Mode Description The 2x2 Hybrid KVM Switch support 2 display mode. You can choose to implement 2- screen extended display or duplicate display or display different PCs on 2 monitors. Display Mode 1: Display the same PC Duplicate displays Extend displays Display A Display B... - Page 26 Display Mode 2: Display the different PCs Once the connection is complete, you can switch Display A Display B between images on any of your 2 monitors. When you view one of the monitors as the main PC 1 PC 2 monitor, you can use hot key command switch the images on the subordinate monitor.
- Page 27 If you think of Diaplay A as the main display, use the following PC 1 PC 2 PC 2 PC 2 PC 1 hot key command to switch subordinate Main Main subordinate Main desktop desktop desktop desktop desktop images on the Display B: Scroll Right Scroll...
-
Page 28: Built-In Network Switch
9.3 Built-in Network Switch The 2x2 hybrid KVM Switch have a built-in USB Ethernet Adapter, which adds a standard RJ45 port to all the PC that is connected to the KVM and allows you to connect your computers to a router or network switch for gigabit wired network connection. Full 1000Mbps Ethernet for fast, stable data transfer, more reliable than most wireless connections. -
Page 29: Built-In Charging Module
9.4 Built-in Charging Module The 2x2 Hybrid KVM Switch comes with a powerful built-in charging module that allows you to charge your laptops, phone, tablet and other devices while you use it. Connect the laptops to the rear Type-C video port of the KVM and they will be charged Ÿ... - Page 30 Tips: When the laptop is connected to both the KVM and the original charger, the charger will give priority to charge it. Connect the tablet, phone, ect to the front USB ports and it will be charged. Ÿ Use the USB ports on the front panel of the KVM (including an USB-A and an USB-C ports) can support data transmission while charging.
-
Page 31: Mouse Wheel Switching
9.5 Mouse Wheel Switching Mouse wheel switching method can quickly switch input sources by mouse operation, double-click the mouse wheel to switch to the next input port. Mouse wheel switching mode is off by default. You can use keyboard hotkey command [Right-Ctrl] + [Right-Ctrl] + [F6] to turn on mouse wheel switching mode. -
Page 32: Operation Method
10. Operation Method 10.1 Front Panel Button Switching Method The 2x2 Hybrid KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control and keyboard hot keys. You can choose your favorite switching method according to your personal needs and habits. -
Page 33: Ir Remote Control
10.2 IR Remote Control Switch images on the Display A Switch images on the Display B Switch both monitor to display PC 1 Switch both monitor to display PC 2 Tips: Unspecified buttons at above are non-functional. -
Page 34: Keyboard Hot Keys
10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. After press [Right-Ctrl] key twice within 2 seconds then please enter the commands within 3 seconds and the KVM will execute the corresponding commands. - Page 35 Switch USB 3.0 device connected to the Right Right Ctrl Ctrl KVM between 2 PCs on display mode 2: [Right-Ctrl]→[Right-Ctrl]→[↑] Switch audio focus between 2 PCs: Right Right Ctrl Ctrl [Right-Ctrl]→[Right-Ctrl]→[↓] Switch KM focus in display mode 2: Scroll Right Right Lock [Right-Alt]→[Right-Alt]...
-
Page 36: Change Hot Key Combination
11. Change Hot Key Combinations There are three kinds of trigger hot keys in this product, the default is [Right-Ctrl] key, and the alternative are the [Scroll Lock] and [Left-Ctrl] key. You can switch the hot key to others Method 1: 10 seconds after powering on the KVM, press and hold the [Select] button on the front à... -
Page 37: Pass Through Mode Description
12. Pass Through Mode Description 12.1 Introduction of Pass through mode Pass through mode is a built-in function of KVM, which is able to improve keyboard and mouse compatibility and enhance user experience. In the pass through mode, the keyboard and mouse are equivalent to directly connecting to the computer. At this time, you can use more keyboard and mouse functions and special functions that are not supported by traditional KVM. -
Page 38: Keyboard And Mouse Compatible Model List
12.2 Keyboard and Mouse Compatible Model List Tips: The following list is from the most representative models of keyboard and mouse that have been tested in the laboratory, mainly from manufacturers with a high market share. Model Brand Model Brand Model Brand Brand... - Page 39 31.00.0471-V001...
- Page 40 To Enjoy Smart HDC202 Prime 23 Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
