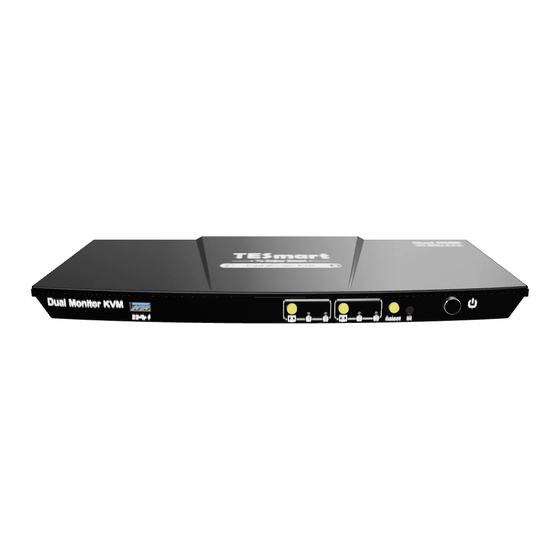

- Page 1 User Dual Monitor KVM Switch Manual HKS0202A2U HKS0202A2U English...
- Page 3 English...
- Page 5 If you have any questions, comments or suggestions, please contact us via the following email: support@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology Co.,Ltd, shall not be duplicated or translated by any person or organizations without written permission.
-
Page 6: Table Of Contents
Contents 1. Safety Tips and Warnings ··································01 10.1 Front Panel Button Switching Method 2. Battery Description···········································02 10.2 IR Remote Control 3. Warranty Information········································03 10.3 Keyboard Hot Keys 4. Preface··························································04 11. Change Hot Key Combination···························24 5. Features·························································05 12. Pass Through Mode Description························25 6. -
Page 7: Safety Tips And Warnings
1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for dual monitor KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water. -
Page 8: Battery Description
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire. -
Page 9: Warranty Information
3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. -
Page 10: Preface
KM compatibility. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com. -
Page 11: Features
5. Features Using 2 monitors, 1 set of keyboard and mouse to control 2 computers Ÿ Support resolution up to 3840x2160@60Hz 4:4:4 Ÿ HDMI 2.0 compliant Ÿ HDCP 2.2 compliant Ÿ Support 2 display modes Ÿ Support Unix/Windows/ Debian/ Ubuntu/Fedora/ MacOS X/ Raspbian/ Ubuntu for Raspberry Ÿ... -
Page 12: Packing List
6. Packing List 1 * 2x2 HDMI Dual Monitor KVM Switch Ÿ 2 * KVM Cables Ÿ 2 * HDMI Cables Ÿ 1 * IR Remote Control Ÿ 1 * DC 12V Power Adapter Ÿ 1 * User Manual Ÿ Tips: After receipt of the product, please check the packing list carefully to make sure that no components have been lost and no damage to the product has been caused during transportation. -
Page 13: Panel Description
7. Panel Description 7.1 Panel Description Name Function Name Function Data transfer Can be used to transfer data Separate Switch images on each display and charging and charge your mobile switch button separately (i.e. display mode 2). port devices. The corresponding LEDs will Input selection be lit to indicate the current Input selection... - Page 14 DC 12V Name Function DC 12V 12V DC power supply. Audio integration port Integrated microphone and L/R audio output. HDMI outputs Connect to 2 HDMI displays for video output. Keyboard and mouse input For USB keyboard and mouse input. USB 3.0 port Connect to USB 3.0 device.
-
Page 15: Connection Description
8. Connection Description 8.1 Connection Diagram PC 2 PC 1 Monitor B Monitor A HDMI Cable USB-A to USB-B Cable DC 12V Hard disk Printer Keyboard Mouse Headset drive Driver... -
Page 16: Connection Preparation
8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ... -
Page 17: Connection Steps
8.3 Connection Steps 1. Connect PC1 with 1 KVM cable and 1 HDMI cable, use HDMI end to connect PC1 to the corresponding HDMI ports group on the KVM, use USB-A end to connect each PC and USB- B end to connect the KVM. Connect PC2 in the same way. 2. - Page 18 3. Connect USB 3.0 device to KVM's standard USB 3.0 port. 4. Connect KVM's HDMI output ports to 2 HDMI displays with 2 HDMI cables.
- Page 19 5. Connect external audio device to KVM's L/R out port. 6. Connect the power cable to KVM's DC 12V port and plug it to a power socket. 7. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work.
-
Page 20: Kvm Workbench
8.4 KVM Workbench A workbench with 2x2 HDMI Dual Monitor KVM Switch successfully connected is shown as below:... -
Page 21: Function Description
9. Function Description 9.1 Display Mode Description The 2x2 HDMI dual monitor KVM Switch support 2 display modes. You can choose to implement 2-screen extended display or duplicate display or display different PCs on 2 monitors. Display Mode 1: Display the same PC Duplicate displays Extend displays Display A... - Page 22 Display Mode 2: Display the different PCs Once the connection is complete, you can switch Display A Display B between images on any of your 2 monitors. When you view one of the monitors as the main PC 1 PC 2 monitor, you can use hot key command switch the images on the subordinate monitor.
- Page 23 If you think of Diaplay A as the main display, use the following PC 1 PC 2 PC 2 PC 2 PC 1 hot key command to switch subordinate Main Main subordinate Main desktop desktop desktop desktop desktop images on the Display B: Scroll Right Scroll...
-
Page 24: Built-In Charging Module
9.2 Built-in Charging Module The 2x2 HDMI Dual monitor KVM Switch has built-in charging module which can charge your phone, tablet and other devices. Use the USB-A port on the front panel of the KVM can support data transmission while charging. The USB-A port support BC 1.2 protocol, and is able to match voltage and current automatically based on the specifications of charging devices. -
Page 25: Operation Method
10. Operation Method 10.1 Front Panel Button Switching Method The 2x2 HDMI Dual Monitor KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control, keyboard hot keys and mouse wheel switch mode. You can choose your favorite switching method according to your personal needs and habits. -
Page 26: Ir Remote Control
10.2 IR Remote Control Switch images on the Display B Switch images on the Display A Switch both monitor to display PC 1 Switch both monitor to display PC 2 Tips: Unspecified buttons at above are non-functional. -
Page 27: Keyboard Hot Keys
10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. After press [Right-Ctrl] key twice within 2 seconds then please enter the commands within 3 seconds and the KVM will execute the corresponding commands. - Page 28 Switch to display mode 2: Think of display A as main display, switch Right Right Ctrl Ctrl images on display B: [Right-Ctrl]→[Right-Ctrl]→[→] Think of display B as main display, switch Right Right Ctrl Ctrl images on display A: [Right-Ctrl]→[Right-Ctrl]→[←] Switch USB 3.0 device connected to the Right Right Ctrl...
- Page 29 Disable or enable buzzer sound: Right Right Ctrl Ctrl [Right-Ctrl] →[Right-Ctrl] →[F11] Tips: The default setting of buzzer sound is enabled. Repeat this step to disable or enable buzzer sound.
-
Page 30: Change Hot Key Combination
11. Change Hot Key Combinations There are three kinds of trigger hot keys in this product, the default is [Right-Ctrl] key, and the alternative are the [Scroll Lock] and [Left-Ctrl] key. You can switch the hot key to others Method 1: 10 seconds after powering on the KVM, press and keep holding the [Select] button on the à... -
Page 31: Pass Through Mode Description
12. Pass Through Mode Description 12.1 Introduction of Pass through mode Pass through mode is a built-in function of KVM, which is able to improve keyboard and mouse compatibility and enhance user experience. In the pass through mode, the keyboard and mouse are equivalent to directly connecting to the computer. At this time, you can use more keyboard and mouse functions and special functions that are not supported by traditional KVM. - Page 32 12.2 Keyboard and Mouse Compatible Model List Tips: The following list is from the most representative models of keyboard and mouse that have been tested in the laboratory, mainly from manufacturers with a high market share. Model Brand Model Brand Model Brand Brand...
- Page 33 31.00.0449-V001...
- Page 34 To Enjoy Smart HKS0202A2U Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
